Bosch GST 60 PB / 0601587241 / GB 110 Volt Spare Parts

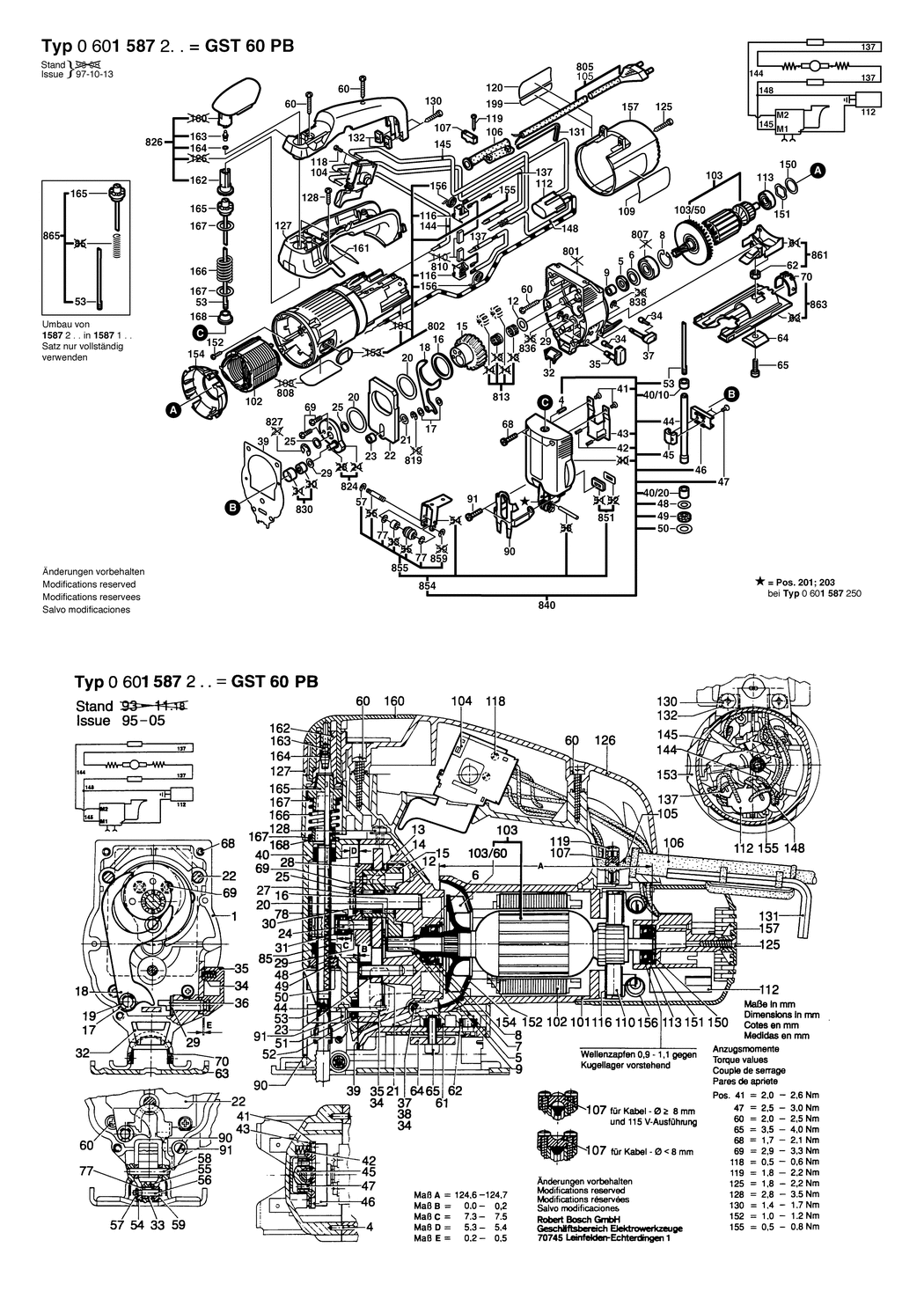

An exploded drawing and listing for the Bosch GST 60 PB / 0601587241 / GB 110 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A503 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A129 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A77 2600500002	£1.75	£2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A899 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A237 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A264 2600101616	-
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A87 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A198 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A138 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A93 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A39 2601923004	£2.80	£3.36
20 - SHIM 0.5 MM BSD-2600102652.A30 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A191 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A37 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A220 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A41 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A76 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A24 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A189 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A125 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A196 2600100577	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A179 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A107 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A863 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A73 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A1285 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A164 2602026036	-
37 - ROTARY KNOB BSD-2602026037.A31 2602026037	£2.80	£3.36
39 - SEAL BSD-2601015050.A106 2601015050	£2.61	£3.13
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A46 2600301046	£3.72	£4.47
40/20 - BUSHING BSD-2600301045.A181 2600301045	£2.80	£3.36
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A457 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A247 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-2601322010.A105 2601322010	£3.80	£4.56
44 - LIFTING ROD BSD-1619P12765.A68 1619P12765	£16.41	£19.69
45 - CLAMPING SADDLE BSD-2602329011.A156 2602329011	£4.75	£5.70
46 - SLIDING PIECE BSD-1619P12767.A79 1619P12767	£9.47	£11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A18 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A101 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A50 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A147 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603490011.A71 2603490011	£6.52	£7.83
57 - LOCKING WASHER BSD-2600116011.A63 2600116011	£2.16	£2.59
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A54 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A968 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A187 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A192 2910141197	£1.75	£2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A19 2603410049	£1.75	£2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A89 2914551176	£1.75	£2.10
70 - SCALE PLATE BSD-2601328044.A98 2601328044	£2.61	£3.13
77 - SHIM 0.2 MM BSD-2600100032.A133 2600100032	£1.75	£2.10
90 - SAFETY DEVICE BSD-2601322021.A26 2601322021	£4.26	£5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A235 2910011128	£1.75	£2.10
102 - FIELD 110-120V BSD-2604220721.A21 2604220721	£31.64	£37.97
103 - ARMATURE 110-115V BSD-2604010577.A8 2604010577	£54.42	£65.30
103/50 - FAN BSD-2606610049.A302 2606610049	£2.16	£2.59
104 - SWITCH BSD-2607200260.A83 2607200260	£11.30	£13.56
105 - ELEC. CABLE W/CONNECTION J 2.5m 2 x 0.75mm PVC BSD-2604460095.A3 2604460095	£21.52	£25.83
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A123 2600703027	£1.75	£2.10
107 - CABLE CLIP BSD-2601035001.A999 2601035001	£1.75	£2.10
109 - STICKER BSD-2601118034.A1 2601118034	£2.52	£3.02
112 - SUPPRESSION FILTER BSD-2607329129.A11 2607329129	£9.49	£11.39
113 - BALL BEARING 7x22x7 BSD-1900905018.A1238 1900905018	£18.96	£22.75
116 - BRUSH HOLDER BSD-2601323022.A64 2601323022	£2.80	£3.36
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A737 2603410001	£1.75	£2.10
119 - SCREW 4x16 BSD-2603490022.A234 2603490022	£1.75	£2.10
120 - REFERENCE PLATE BSD-2601110762.A14 2601110762	£1.95	£2.34
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A206 2910601321	-
127 - STRAP-SHAPED HANDLE BSD-2602025060.A9 2602025060	£12.04	£14.45
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A45 2603410054	£2.61	£3.13
130 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A45 2914501021	£1.75	£2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A173 1907950006	£4.26	£5.11
132 - SQUARE NUT M4 BSD-2603320001.A91 2603320001	£1.75	£2.10
137 - SUPPRESSION FILTER BSD-1619P15513.A83 1619P15513	£4.75	£5.70
144 - CABLE L=233 MM BSD-1614431010.A158 1614431010	£3.72	£4.47
145 - CABLE L = 238 MM BSD-2604448160.A17 2604448160	£2.52	£3.02
148 - INSULATION TUBING BSD-2600409017.A65 2600409017	£1.75	£2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A132 2600101027	£1.75	£2.10
150 - SHIM 0.2 MM BSD-2600101022.A317 2600101022	£1.75	£2.10
150 - SHIM 0.5 MM BSD-2600101020.A316 2600101020	£1.75	£2.10
151 - SHIM BSD-2600150004.A410 2600150004	£2.16	£2.59
152 - TAPPING SCREW BSD-2603435086.A393 2603435086	£1.75	£2.10
154 - COVER DISC BSD-2601328045.A130 2601328045	£2.16	£2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1408 2603490017	£2.16	£2.59
156 - SPIRAL SPRING BSD-2604652009.A162 2604652009	£1.75	£2.10
157 - HOUSING COVER BSD-2600508038.A69 2600508038	-
161 - STICKER BSD-2601118097.A7 2601118097	-
162 - RATCHET BSD-2606491011.A15 2606491011	£2.61	£3.13
163 - CARRIER BRACKET BSD-2600423006.A11 2600423006	£1.75	£2.10
164 - O-RING 4.0x1.0 MM BSD-1600210034.A210 1600210034	£1.75	£2.10
166 - COMPRESSION SPRING BSD-2604617004.A4 2604617004	£2.16	£2.59
167 - PLAIN WASHER 0.5 MM BSD-1600101603.A46 1600101603	£1.95	£2.34
168 - GUIDE SLEEVE BSD-2600421001.A14 2600421001	£1.75	£2.10
801 - GEAR HOUSING BSD-2605808917.A3 2605808917	£63.50	£76.20
802 - MOTOR HOUSING BSD-2605108904.A100 2605108904	£23.86	£28.63
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A689 2600905021	£8.67	£10.41
808 - NAMEPLATE BSD-160111A3H3.A1643 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604320910.A20 2604320910	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A114 2607001130	£5.58	£6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A91 2916080007	£2.61	£3.13
824 - ECCENTRIC DISC BSD-2601072901.A100 2601072901	£7.36	£8.83
826 - STRAP-SHAPED HANDLE BSD-2602025901.A28 2602025901	£12.04	£14.45
827 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A374 2916080910	£2.16	£2.59
830 - NEEDLE BEARING BSD-2600917900.A395 2600917900	£8.67	£10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A257 2916080008	-
838 - SPRING RETAINING RING BSD-2600116009.A59 2600116009	£1.75	£2.10
840 - GEAR COVER BSD-2605808920.A2 2605808920	£70.24	£84.29
851 - SEALING PLATE BSD-2601015901.A140 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A79 2601321902	-
855 - ROLLER SET BSD-1619P01375.A151 1619P01375	£11.30	£13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A328 2916080005	-
861 - FAN COVER BSD-2605500900.A77 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A80 2601016903	£16.41	£19.69
865 - MODIFICATION SET 100-240V BSD-2606491917.A44 2606491917	£21.52	£25.83

Attribute Name	Value
Brand	Bosch
