Bosch GST 60 PB / 0601581103 / EU 220 Volt Spare Parts

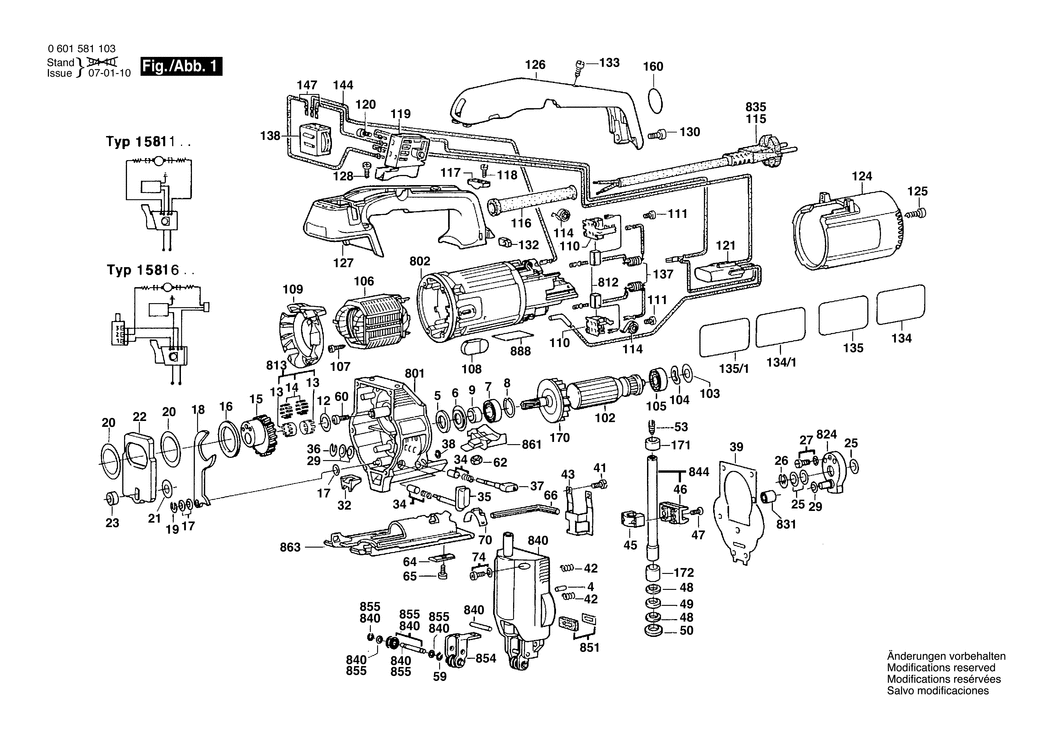

An exploded drawing and listing for the Bosch GST 60 PB / 0601581103 / EU 220 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A20 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A457 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A525 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A372 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A419 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A487 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A111 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A5 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A86 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A124 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A29 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A12 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A213 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A162 2601923004	£2.80	£3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A403 2916080007	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600102652.A199 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A51 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A187 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A53 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A219 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A130 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A175 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A17 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A300 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A17 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A174 2916080910	£2.16	£2.59
27 - SCREW AND WASHER ASSEMBLY M 4x12 MM BSD-2914501028.A24 2914501028	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A31 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A302 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A118 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A131 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A138 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A34 2602026036	-
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A99 2916080008	-
37 - ROTARY KNOB BSD-2602026037.A150 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116006.A0 2600116006	£1.75	£2.10
39 - SEAL BSD-2601015050.A158 2601015050	£2.61	£3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A39 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A121 2604613000	£1.75	£2.10
43 - GUIDE BRACKET BSD-1616B00224.A38 1616B00224	£11.32	£13.58
45 - CLAMPING SADDLE BSD-2602329011.A142 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A36 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A174 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A174 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A203 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A317 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A98 2603400000	£4.26	£5.11
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A138 2916080005	-
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A573 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A546 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A0 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A483 2910141197	£1.75	£2.10
66 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A1033 1907950006	£4.26	£5.11
70 - SCALE PLATE BSD-2601328044.A38 2601328044	£2.61	£3.13
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A404 2603410049	£1.75	£2.10
102 - ARMATURE 230-240V BSD-2604010578.A61 2604010578	£48.38	£58.06
103 - SHIM WASHER 0.3 MM BSD-2600101027.A245 2600101027	£1.75	£2.10
103 - SHIM 0.2 MM BSD-2600101022.A49 2600101022	£1.75	£2.10
103 - SHIM 0.5 MM BSD-2600101020.A583 2600101020	£1.75	£2.10
104 - SHIM BSD-2600150004.A704 2600150004	£2.16	£2.59
105 - BALL BEARING 7x22x7 BSD-1900905018.A168 1900905018	£18.96	£22.75
106 - FIELD 220-230V BSD-2604220445.A89 2604220445	£27.23	£32.68
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A616 2603435015	£2.16	£2.59
108 - PLUG BSD-2603231032.A2 2603231032	-
109 - COVER DISC BSD-2601328045.A241 2601328045	£2.16	£2.59
110 - BRUSH HOLDER BSD-1600A003G4.A71 1600A003G4	£3.72	£4.47
111 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A560 2603490017	£2.16	£2.59
114 - SPIRAL SPRING BSD-2604652009.A55 2604652009	£1.75	£2.10
116 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A892 2600703011	£2.80	£3.36
116 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A148 2600703012	£2.80	£3.36
116 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A867 2600703013	£2.61	£3.13
117 - CABLE CLIP BSD-2601035001.A1808 2601035001	£1.75	£2.10
118 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A386 2910611019	£2.80	£3.36
119 - SWITCH BSD-2607200260.A405 2607200260	£11.30	£13.56
120 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1827 2603410001	£1.75	£2.10
121 - SUPPRESSION FILTER BSD-2607329105.A54 2607329105	-
124 - HOUSING COVER BSD-2600508038.A17 2600508038	-
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A51 2910601321	-
126 - STRAP-SHAPED HANDLE BSD-2602025040.A49 2602025040	£11.78	£14.13
127 - STRAP-SHAPED HANDLE BSD-2602025043.A7 2602025043	£11.78	£14.13
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A117 2603410054	£2.61	£3.13
130 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A2 2914501021	£1.75	£2.10
132 - SQUARE NUT M4 BSD-2603320001.A199 2603320001	£1.75	£2.10
133 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A574 2603490024	£1.75	£2.10
134/1 - REFERENCE PLATE BSD-2601110762.A29 2601110762	£1.95	£2.34
135 - STICKER BSD-2601110729.A0 2601110729	-
137 - SUPPRESSOR BOX BSD-2604465106.A131 2604465106	£4.26	£5.11
138 - CABLE L=130 MM BSD-2604448005.A317 2604448005	£1.75	£2.10
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A111 2604448012	£1.32	£1.58
147 - CONNECTING CABLE L = 288 MM BSD-2604448062.A23 2604448062	£1.32	£1.58
160 - STICKER BSD-2601110041.A82 2601110041	-
170 - FAN BSD-2606610049.A66 2606610049	£2.16	£2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A135 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A92 2600301045	£2.80	£3.36
801 - GEAR HOUSING BSD-2605808915.A72 2605808915	£37.72	£45.27
802 - MOTOR HOUSING BSD-2605108904.A4 2605108904	£23.86	£28.63
812 - CARBON-BRUSH SET BSD-2604320912.A166 2604320912	£10.10	£12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A50 2607001130	£5.58	£6.70
824 - ECCENTRIC DISC BSD-2601072901.A197 2601072901	£7.36	£8.83
831 - NEEDLE BEARING BSD-2600917900.A203 2600917900	£8.67	£10.41
835 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A57 1607000385	£14.91	£17.89
840 - GEAR COVER BSD-2605808916.A5 2605808916	-
844 - LIFTING ROD BSD-2600780913.A55 2600780913	-
851 - SEALING PLATE BSD-2601015901.A3 2601015901	£2.80	£3.36
854 - ROLLER LEVER BSD-2601321902.A135 2601321902	-
855 - ROLLER SET BSD-1619P01375.A0 1619P01375	£11.30	£13.56
861 - FAN COVER BSD-2605500900.A143 2605500900	£4.26	£5.11
863 - BASE PLATE BSD-2601016903.A28 2601016903	£16.41	£19.69
888 - NAMEPLATE BSD-160111A3H3.A5421 160111A3H3	£2.61	£3.13
