Bosch ---- / 0601582041 / GB 110 Volt Spare Parts

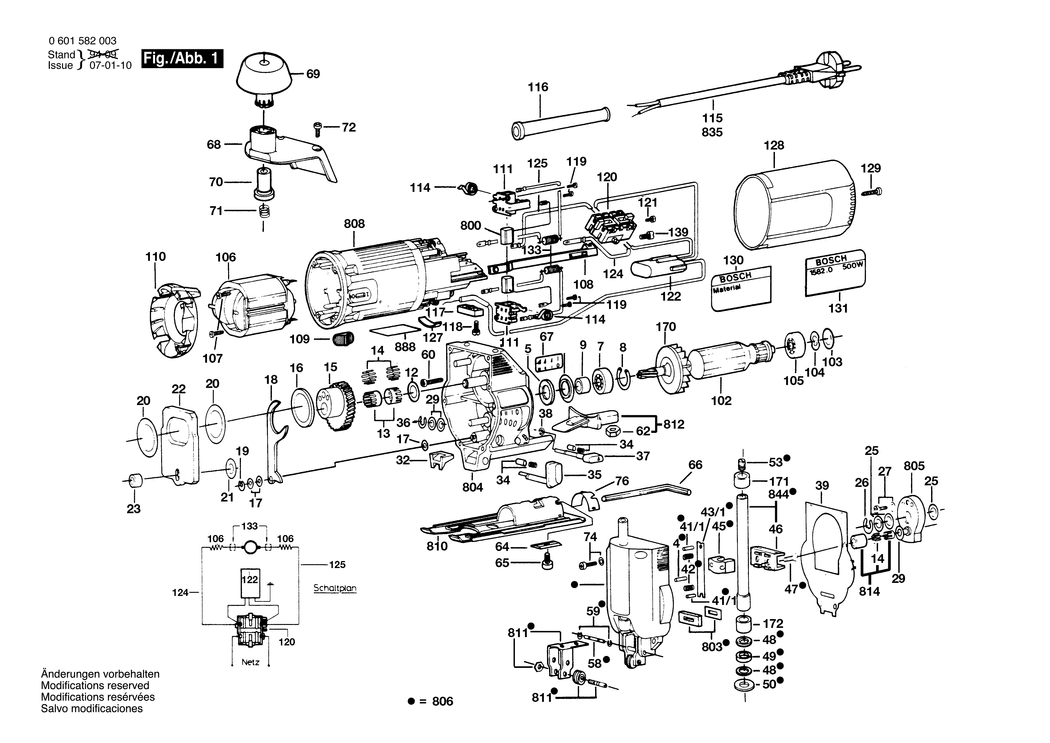

An exploded drawing and listing for the Bosch ---- / 0601582041 / GB 110 Volt

	Ex VAT	Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A333 1903201042	£2.16	£2.59
5 - FELT WASHER BSD-2600108077.A263 2600108077	£1.75	£2.10
6 - CUPPED WASHER BSD-2600500002.A260 2600500002	£1.75	£2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A482 2600905021	£8.67	£10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A593 2916660008	£2.16	£2.59
9 - RECEPTACLE BSD-2600400008.A33 2600400008	£1.75	£2.10
12 - SHIM 0.5 MM BSD-2600101616.A410 2600101616	-
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A54 2600913036	£1.75	£2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A142 2603201037	£2.61	£3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A40 1619P02581	£21.68	£26.01
16 - SHIM 1.0 MM BSD-2600102653.A117 2600102653	£1.75	£2.10
17 - SHIM 0.3 MM BSD-2600100515.A215 2600100515	£2.61	£3.13
17 - SHIM 0.5 MM BSD-2600100516.A21 2600100516	£2.16	£2.59
18 - FORK LEVER BSD-2601923004.A80 2601923004	£2.80	£3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A241 2916080007	£2.61	£3.13
20 - SHIM 0.5 MM BSD-2600102652.A111 2600102652	£1.75	£2.10
21 - SHIM 0.1 MM BSD-2600100625.A128 2600100625	-
21 - SHIM 0.2 MM BSD-2600100626.A100 2600100626	-
21 - SHIM 0.3 MM BSD-2600100627.A156 2600100627	-
21 - SHIM 0.5 MM BSD-2600100628.A124 2600100628	£1.75	£2.10
22 - COUNTERWEIGHT BSD-2601098003.A35 2601098003	£8.67	£10.41
23 - SPACER SLEEVE BSD-2600309009.A101 2600309009	£1.75	£2.10
25 - SHIM 0.2 MM BSD-2600100575.A256 2600100575	£2.16	£2.59
25 - SHIM 0.3 MM BSD-2600100576.A34 2600100576	-
25 - SHIM 0.5 MM BSD-2600100577.A258 2600100577	£1.75	£2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A318 2916080910	£2.16	£2.59
27 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A187 2603410049	£1.75	£2.10
29 - SHIM 0.5 MM BSD-2600100568.A242 2600100568	£1.75	£2.10
29 - SHIM 1.0 MM BSD-2600100569.A33 2600100569	£1.75	£2.10
29 - SHIM 0.3 MM BSD-2600100607.A654 2600100607	£1.75	£2.10
32 - AIR ELIMINATOR BSD-2602305042.A37 2602305042	£1.75	£2.10
34 - RATCHET CAP BSD-2600590006.A816 2600590006	£1.75	£2.10
35 - ROTARY KNOB BSD-2602026036.A93 2602026036	-
36 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A220 2916080908	£1.75	£2.10
37 - ROTARY KNOB BSD-2602026037.A91 2602026037	£2.80	£3.36
38 - SPRING RETAINING RING BSD-2600116009.A5 2600116009	£1.75	£2.10
39 - SEAL BSD-2601015050.A34 2601015050	£2.61	£3.13
41/1 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A252 2603410048	£1.75	£2.10
42 - COMPRESSION SPRING BSD-2604613000.A204 2604613000	£1.75	£2.10
43/1 - GUIDE BRACKET BSD-1616B00224.A184 1616B00224	£11.32	£13.58
45 - CLAMPING SADDLE BSD-2602329011.A225 2602329011	£4.75	£5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A83 2601321022	-
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A110 2603421040	£1.75	£2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A35 2600112031	£1.75	£2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A91 2600290017	£1.75	£2.10
50 - SHIM 0.5 MM BSD-2600101612.A31 2600101612	£1.75	£2.10
53 - CLAMP SCREW BSD-2603400000.A215 2603400000	£4.26	£5.11
58 - BEARING BOLT BSD-2603105029.A5 2603105029	-
59 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A51 2916080906	£1.75	£2.10
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A495 2603490024	£1.75	£2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1175 2915011007	-
64 - PROFILE BEADING BSD-2601030019.A136 2601030019	£2.61	£3.13
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A37 2910141197	£1.75	£2.10
66 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A441 1907950006	£4.26	£5.11
68 - FLANGED FITTING BSD-2605702002.A5 2605702002	£3.80	£4.56
69 - HANDLE BSD-2603231002.A41 2603231002	£14.91	£17.89
70 - RATCHET SLEEVE BSD-2600421000.A10 2600421000	£7.36	£8.83
71 - COMPRESSION SPRING BSD-2604616001.A34 2604616001	£1.75	£2.10
72 - SCREW AND WASHER ASSEMBLY DIN 7985-M 5x10 MM-4.8 BSD-2914501022.A10 2914501022	£1.75	£2.10
74 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A186 2603410049	£1.75	£2.10
76 - SCALE PLATE BSD-2601328044.A126 2601328044	£2.61	£3.13
102 - ARMATURE 110-115V BSD-2604010577.A11 2604010577	£54.42	£65.30
103 - SHIM WASHER 0.3 MM BSD-2600101027.A25 2600101027	£1.75	£2.10
103 - SHIM 0.2 MM BSD-2600101022.A494 2600101022	£1.75	£2.10
103 - SHIM 0.5 MM BSD-2600101020.A156 2600101020	£1.75	£2.10
104 - SHIM BSD-2600150004.A115 2600150004	£2.16	£2.59
105 - BALL BEARING 7x22x7 BSD-1900905018.A856 1900905018	£18.96	£22.75
106 - FIELD 110-115V BSD-2604220470.A7 2604220470	-
107 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A34 2603435015	£2.16	£2.59
108 - ADJUSTING SLIDE BSD-2602319005.A54 2602319005	£1.75	£2.10
109 - SWITCH HANDLE BSD-2602026015.A112 2602026015	£1.75	£2.10
110 - COVER DISC BSD-2601328045.A43 2601328045	£2.16	£2.59
111 - BRUSH HOLDER BSD-2601323022.A93 2601323022	£2.80	£3.36
114 - SPIRAL SPRING BSD-2604652009.A219 2604652009	£1.75	£2.10
115 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460205.A46 2604460205	£27.23	£32.68
116 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A226 2600703011	£2.80	£3.36
116 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1297 2600703012	£2.80	£3.36
116 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A175 2600703013	£2.61	£3.13
117 - CABLE CLIP BSD-2601035001.A285 2601035001	£1.75	£2.10
118 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A303 2910611019	£2.80	£3.36
119 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1193 2603490017	£2.16	£2.59
120 - SWITCH BSD-2607200674.A35 2607200674	£16.41	£19.69
121 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A169 2603410001	£1.75	£2.10
122 - SUPPRESSION FILTER BSD-2607329104.A110 2607329104	£10.10	£12.12
124 - CONNECTING CABLE L=86MM BSD-2604448044.A100 2604448044	£1.75	£2.10
125 - CONNECTING CABLE L=136MM BSD-2604448056.A10 2604448056	-
127 - INTERMEDIATE PIECE BSD-1600026000.A74 1600026000	£1.75	£2.10
128 - HOUSING COVER BSD-2600508036.A41 2600508036	£10.10	£12.12
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A121 2910601321	-
130 - STICKER BSD-2601110237.A1 2601110237	-
131 - STICKER BSD-2601110321.A4 2601110321	-
133 - SUPPRESSOR BOX BSD-2604465106.A80 2604465106	£4.26	£5.11
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A64 2910611006	£1.75	£2.10
170 - FAN BSD-2606610049.A551 2606610049	£2.16	£2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A102 2600301046	£3.72	£4.47
172 - BUSHING BSD-2600301045.A125 2600301045	£2.80	£3.36
650 - SAW BLADE SET BSD-2607010403.A32 2607010403	£7.78	£9.33
701 - SPLINTERING PROTECTOR BSD-2601016065.A96 2601016065	£5.30	£6.36
704 - SUPPORT CLAMP BSD-2608598001.A53 2608598001	-
800 - CARBON-BRUSH SET BSD-2604320912.A48 2604320912	£10.10	£12.12
803 - SEALING PLATE BSD-2601015901.A89 2601015901	£2.80	£3.36
804 - GEAR HOUSING BSD-2605808915.A34 2605808915	£37.72	£45.27
805 - ECCENTRIC DISC BSD-2601072901.A25 2601072901	£7.36	£8.83
806 - GEAR COVER BSD-2605808914.A16 2605808914	-
807 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A235 2916080005	-
808 - MOTOR HOUSING BSD-2605108904.A157 2605108904	£23.86	£28.63
810 - BASE PLATE BSD-2601016900.A4 2601016900	-
811 - ROLLER LEVER BSD-2601321901.A31 2601321901	-
812 - FAN COVER BSD-2605500900.A44 2605500900	£4.26	£5.11
813 - SPRING RETAINING RING BSD-2600116009.A6 2600116009	£1.75	£2.10
814 - NEEDLE BEARING BSD-2600917900.A262 2600917900	£8.67	£10.41
844 - LIFTING ROD BSD-2600780913.A33 2600780913	-
888 - NAMEPLATE BSD-160111A3H3.A951 160111A3H3	£2.61	£3.13
