Bosch ---- / 0601579060 / F 220 Volt Spare Parts

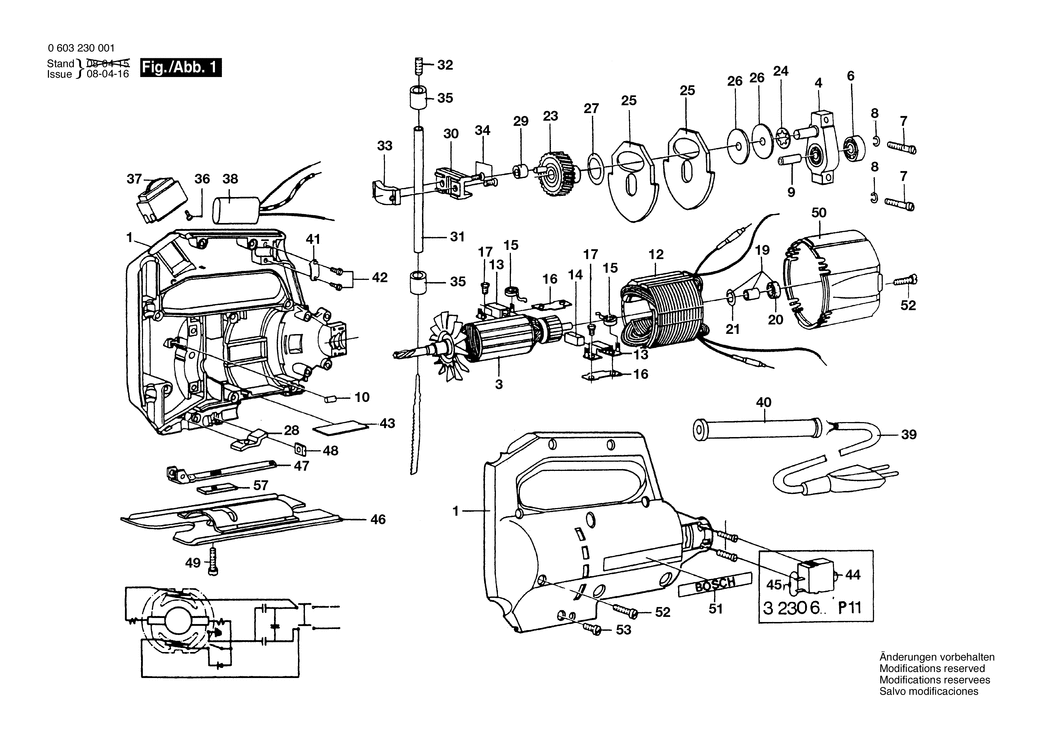

An exploded drawing and listing for the Bosch ---- / 0601579060 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104902.A10 2605104902	-
3 - ARMATURE 220-240V BSD-2604010371.A1 2604010371	-
4 - BEARING BRACKET BSD-2605807000.A0 2605807000	-
6 - GROOVE BALL BEARING BSD-2600900001.A13 2600900001	-
7 - SOCKET HEAD CAP SCREW BSD-2603410027.A2 2603410027	-
8 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1139 2916690003	£1.75	£2.10
9 - GUIDE SLEEVE BSD-2600400024.A87 2600400024	£2.80	£3.36
10 - NEEDLE ROLLER A 3x9.8G2DIN 5402 BSD-1903201041.A17 1903201041	-
12 - POLE SHOE 220V BSD-2604220293.A7 2604220293	-
13 - BRUSH HOLDER BSD-1601323007.A31 1601323007	-
15 - SPIRAL SPRING BSD-1604652004.A4 1604652004	£2.61	£3.13
16 - BRUSH PLATE BSD-1601034025.A13 1601034025	-
17 - TAPPING SCREW DIN 7972-BZ2.9x6.5 BSD-2910601004.A81 2910601004	-
19 - SINTERED-METAL BUSHING BSD-1600301900.A248 1600301900	-
20 - FELT WASHER BSD-1600205023.A169 1600205023	£1.32	£1.58
21 - O-RING 8.0x2.5 MM BSD-1610210014.A285 1610210014	-
23 - ECCENTRIC COG WHEEL Z=39 BSD-2606319073.A30 2606319073	-
24 - SPRING WASHER BSD-2600150050.A86 2600150050	£1.75	£2.10
25 - COUNTER WEIGHT BSD-1619P02421.A33 1619P02421	£8.67	£10.41
26 - SHIM 0.5 MM BSD-2600102658.A70 2600102658	£1.32	£1.58
27 - SHIM dia 18.3 MM BSD-2600101673.A39 2600101673	£1.75	£2.10
28 - SHIM 0.2 MM BSD-2600102656.A0 2600102656	£1.32	£1.58
29 - NEEDLE BEARING BSD-2600917904.A62 2600917904	£7.36	£8.83
30 - SLIDING PIECE BSD-2601321036.A0 2601321036	-
31 - LIFTING ROD BSD-2600780900.A0 2600780900	-
31 - LIFTING ROD BSD-2600780002.A10 2600780002	-
32 - CLAMP SCREW BSD-2603400000.A90 2603400000	£4.26	£5.11
33 - CLAMPING SADDLE BSD-2602329011.A130 2602329011	£4.75	£5.70
34 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A186 2603421040	£1.75	£2.10
35 - SINTERED-METAL BUSHING BSD-2600301049.A27 2600301049	£1.75	£2.10
36 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A220 2603410023	-
37 - ON-OFF SWITCH BSD-2607200048.A52 2607200048	-
38 - SUPPRESSION CAPACITOR BSD-2607329069.A81 2607329069	-
38 - SUPPRESSION CAPACITOR BSD-2607329069.A82 2607329069	-
39 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A97 1604460427	£12.04	£14.45
40 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A903 2600703011	£2.80	£3.36
40 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A137 2600703012	£2.80	£3.36
40 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A878 2600703013	£2.61	£3.13
41 - FASTENING CLAMP BSD-1601034026.A26 1601034026	-
42 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A149 2910211004	-
43 - NAMEPLATE BSD-2601105052.A5 2601105052	-
44 - CHANGE-OVER SWITCH BSD-1607200050.A3 1607200050	-
45 - SILICON DIODE BSD-2607320008.A103 2607320008	-
45 - SILICON DIODE BSD-2607320008.A104 2607320008	-
46 - BASE PLATE BSD-2601016043.A20 2601016043	-
47 - RETAINING BRACKET BSD-2608135900.A8 2608135900	-
48 - DRILLING SPINDLE BSD-2601030017.A20 2601030017	-
49 - PAN HEAD SCREW BSD-2603410028.A20 2603410028	-
50 - FAN COVER BSD-2605500029.A5 2605500029	-
51 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A323 2601007003	-
52 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1002 2910211019	£1.75	£2.10
53 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A150 2910211017	-
54 - SQUARE NUT DIN 562-M5-04 BSD-2915121005.A29 2915121005	£1.75	£2.10
55 - INTERMEDIATE PLATE BSD-2601000014.A23 2601000014	-
56 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A296 2910211006	£1.75	£2.10
810 - CARBON BRUSH BSD-1604321900.A161 1604321900	-
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A704 1607000227	£23.86	£28.63
835/020 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A281 1900452012	£1.75	£2.10
