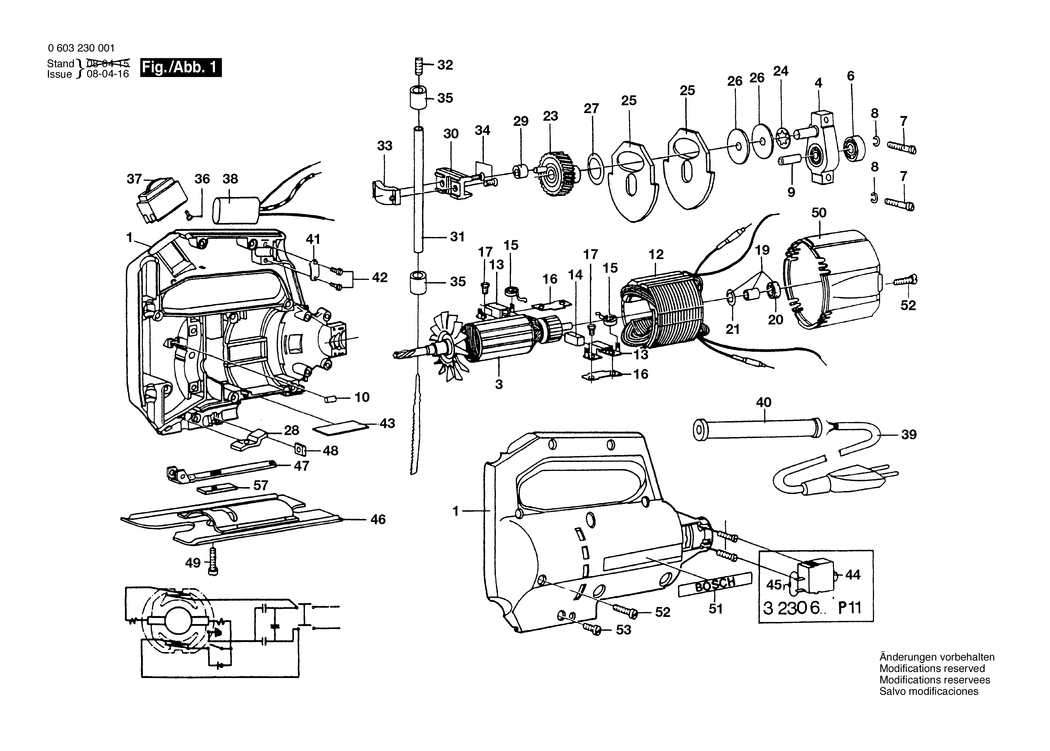

1 - MOTOR HOUSING
BSD-2605104902.A20
2605104902
|
-
|
|
|
|
3 - ARMATURE 110-115V
BSD-2604010370.A1
2604010370
|
-
|
|
|
|
4 - BEARING BRACKET
BSD-2605807000.A23
2605807000
|
-
|
|
|
|
6 - GROOVE BALL BEARING
BSD-2600900001.A9
2600900001
|
-
|
|
|
|
7 - SOCKET HEAD CAP SCREW
BSD-2603410027.A22
2603410027
|
-
|
|
|
|
8 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A621
2916690003
|
£1.75
|
£2.10
|
|
|
9 - GUIDE SLEEVE
BSD-2600400024.A36
2600400024
|
£2.80
|
£3.36
|
|
|
10 - NEEDLE ROLLER A 3x9.8G2DIN 5402
BSD-1903201041.A1
1903201041
|
-
|
|
|
|
12 - POLE SHOE 110-115V
BSD-2604220295.A1
2604220295
|
-
|
|
|
|
13 - BRUSH HOLDER
BSD-1601323007.A93
1601323007
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A84
1604652004
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A85
1601034025
|
-
|
|
|
|
17 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A63
2910601004
|
-
|
|
|
|
19 - SINTERED-METAL BUSHING
BSD-1600301900.A47
1600301900
|
-
|
|
|
|
20 - FELT WASHER
BSD-1600205023.A43
1600205023
|
£1.32
|
£1.58
|
|
|
21 - O-RING 8.0x2.5 MM
BSD-1610210014.A170
1610210014
|
-
|
|
|
|
23 - ECCENTRIC COG WHEEL Z=39
BSD-2606319073.A36
2606319073
|
-
|
|
|
|
24 - SPRING WASHER
BSD-2600150050.A24
2600150050
|
£1.75
|
£2.10
|
|
|
25 - COUNTER WEIGHT
BSD-1619P02421.A5
1619P02421
|
£8.67
|
£10.41
|
|
|
26 - SHIM 0.5 MM
BSD-2600102658.A22
2600102658
|
£1.32
|
£1.58
|
|
|
27 - SHIM dia 18.3 MM
BSD-2600101673.A0
2600101673
|
£1.75
|
£2.10
|
|
|
28 - SHIM 0.2 MM
BSD-2600102656.A48
2600102656
|
£1.32
|
£1.58
|
|
|
29 - NEEDLE BEARING
BSD-2600917904.A32
2600917904
|
£7.36
|
£8.83
|
|
|
30 - SLIDING PIECE
BSD-2601321036.A34
2601321036
|
-
|
|
|
|
31 - LIFTING ROD
BSD-2600780900.A16
2600780900
|
-
|
|
|
|
31 - LIFTING ROD
BSD-2600780002.A11
2600780002
|
-
|
|
|
|
32 - CLAMP SCREW
BSD-2603400000.A18
2603400000
|
£4.26
|
£5.11
|
|
|
33 - CLAMPING SADDLE
BSD-2602329011.A36
2602329011
|
£4.75
|
£5.70
|
|
|
34 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9
BSD-2603421040.A250
2603421040
|
£1.75
|
£2.10
|
|
|
35 - SINTERED-METAL BUSHING
BSD-2600301049.A1
2600301049
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A98
2603410023
|
-
|
|
|
|
37 - ON-OFF SWITCH
BSD-2607200048.A84
2607200048
|
-
|
|
|
|
38 - SUPPRESSION CAPACITOR
BSD-2607329069.A6
2607329069
|
-
|
|
|
|
38 - SUPPRESSION CAPACITOR
BSD-2607329069.A7
2607329069
|
-
|
|
|
|
39 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A131
1604460427
|
£12.04
|
£14.45
|
|
|
40 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A603
2600703011
|
£2.80
|
£3.36
|
|
|
40 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A607
2600703012
|
£2.80
|
£3.36
|
|
|
40 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A606
2600703013
|
£2.61
|
£3.13
|
|
|
41 - FASTENING CLAMP
BSD-1601034026.A3
1601034026
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A14
2910211004
|
-
|
|
|
|
43 - NAMEPLATE
BSD-2601105052.A24
2601105052
|
-
|
|
|
|
44 - CHANGE-OVER SWITCH
BSD-1607200050.A14
1607200050
|
-
|
|
|
|
45 - SILICON DIODE
BSD-2607320008.A152
2607320008
|
-
|
|
|
|
45 - SILICON DIODE
BSD-2607320008.A153
2607320008
|
-
|
|
|
|
46 - BASE PLATE
BSD-2601016043.A2
2601016043
|
-
|
|
|
|
47 - RETAINING BRACKET
BSD-2608135900.A14
2608135900
|
-
|
|
|
|
48 - DRILLING SPINDLE
BSD-2601030017.A4
2601030017
|
-
|
|
|
|
49 - PAN HEAD SCREW
BSD-2603410028.A0
2603410028
|
-
|
|
|
|
50 - FAN COVER
BSD-2605500029.A0
2605500029
|
-
|
|
|
|
51 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A167
2601007003
|
-
|
|
|
|
52 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A259
2910211019
|
£1.75
|
£2.10
|
|
|
53 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A45
2910211017
|
-
|
|
|
|
54 - SQUARE NUT DIN 562-M5-04
BSD-2915121005.A8
2915121005
|
£1.75
|
£2.10
|
|
|
55 - INTERMEDIATE PLATE
BSD-2601000014.A7
2601000014
|
-
|
|
|
|
56 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A2
2910211006
|
£1.75
|
£2.10
|
|
|
810 - CARBON BRUSH
BSD-1604321900.A68
1604321900
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A499
1607000227
|
£23.86
|
£28.63
|
|
|
835/020 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A32
1900452012
|
£1.75
|
£2.10
|
|
