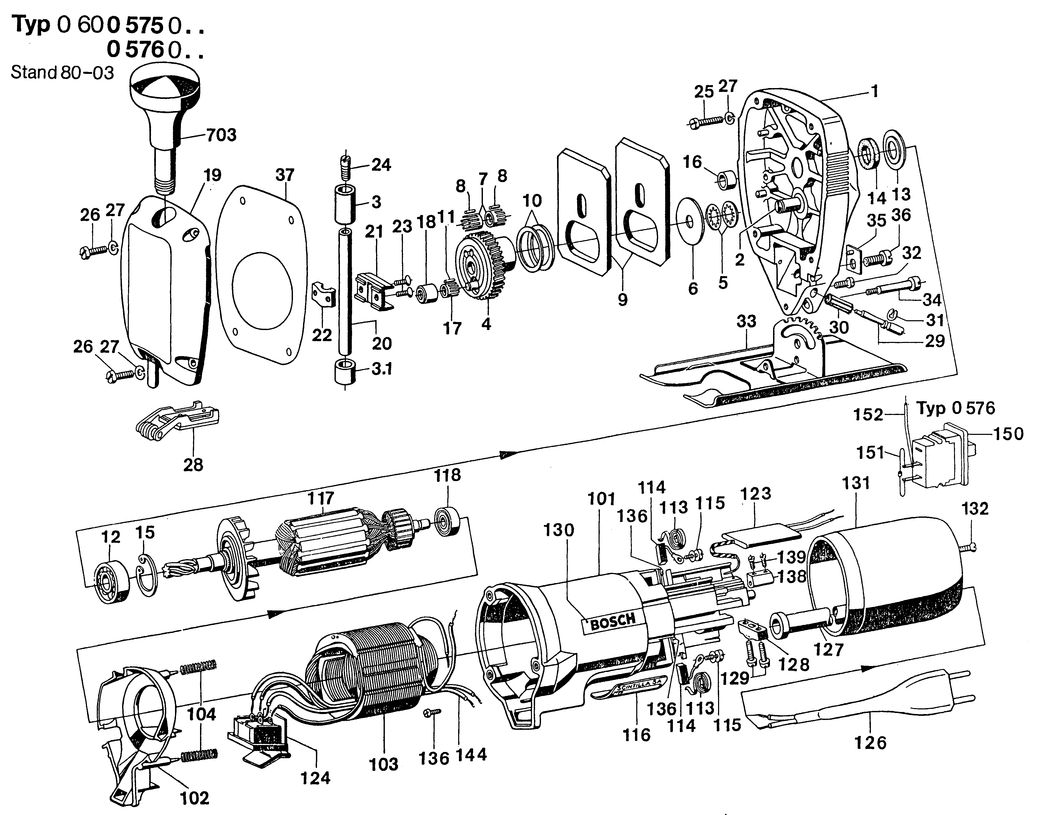

1 - GEAR COVER
BSD-2605808907.A6
2605808907
|
-
|
|
|
|
2 - STRAIGHT PIN DIN 6325-8m6x36
BSD-2917530182.A14
2917530182
|
-
|
|
|
|
3 - BUSHING
BSD-2600301001.A0
2600301001
|
-
|
|
|
|
4 - CYLINDRICAL GEAR Z=50
BSD-2606319029.A11
2606319029
|
-
|
|
|
|
5 - SPRING WASHER
BSD-2600150050.A68
2600150050
|
£1.66
|
£1.99
|
|
|
6 - SHIM
BSD-2600100614.A0
2600100614
|
-
|
|
|
|
7 - NEEDLE-ROLLER CAGE
BSD-2600409011.A17
2600409011
|
-
|
|
|
|
8 - NEEDLE ROLLER 1.5x5.8 MM
BSD-2603201037.A69
2603201037
|
£1.66
|
£1.99
|
|
|
9 - SWING-PLATE
BSD-2601000015.A4
2601000015
|
-
|
|
|
|
10 - SHIM 0.5 MM
BSD-2600102614.A0
2600102614
|
£1.32
|
£1.58
|
|
|
10 - SHIM 0.3 MM
BSD-2600102613.A17
2600102613
|
-
|
|
|
|
11 - NEEDLE ROLLER 1.5x5.8 MM
BSD-2603201037.A70
2603201037
|
£1.66
|
£1.99
|
|
|
12 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A43
2600905007
|
-
|
|
|
|
13 - CUPPED WASHER
BSD-2600500008.A52
2600500008
|
-
|
|
|
|
14 - FELT DISC
BSD-2600108020.A112
2600108020
|
-
|
|
|
|
15 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A171
2916660010
|
£1.66
|
£1.99
|
|
|
16 - BEARING SLEEVE
BSD-2600300043.A17
2600300043
|
-
|
|
|
|
17 - NEEDLE-ROLLER CAGE
BSD-2600913010.A23
2600913010
|
-
|
|
|
|
18 - NEEDLE BEARING
BSD-2600917900.A221
2600917900
|
£8.67
|
£10.41
|
|
|
19 - GEAR COVER
BSD-2605808906.A12
2605808906
|
-
|
|
|
|
20 - LIFTING ROD
BSD-2600780004.A5
2600780004
|
-
|
|
|
|
21 - SLIDING PIECE
BSD-2601321036.A16
2601321036
|
-
|
|
|
|
22 - CLAMPING SADDLE
BSD-2602329011.A81
2602329011
|
£4.75
|
£5.70
|
|
|
23 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9
BSD-2603421040.A191
2603421040
|
£1.66
|
£1.99
|
|
|
24 - CLAMP SCREW
BSD-2603400000.A65
2603400000
|
£4.26
|
£5.11
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A144
2910011128
|
£1.66
|
£1.99
|
|
|
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A409
2910021122
|
£1.66
|
£1.99
|
|
|
27 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1043
2916690003
|
£1.66
|
£1.99
|
|
|
28 - GUIDE ROLLER
BSD-2608135910.A8
2608135910
|
-
|
|
|
|
29 - ECCENTRIC BOLT
BSD-2603180003.A3
2603180003
|
-
|
|
|
|
31 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A171
2916080005
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A821
2910021118
|
£1.66
|
£1.99
|
|
|
33 - BASE PLATE
BSD-2601016002.A4
2601016002
|
-
|
|
|
|
34 - PAN HEAD SCREW
BSD-2603412001.A17
2603412001
|
-
|
|
|
|
35 - PERFORATED PANEL
BSD-2601032001.A13
2601032001
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A23
2910011191
|
-
|
|
|
|
37 - SEALING PLATE
BSD-2601010019.A13
2601010019
|
-
|
|
|
|
101 - MOTOR HOUSING
BSD-2605108900.A12
2605108900
|
-
|
|
|
|
102 - HOUSING COVER
BSD-2605500032.A5
2605500032
|
-
|
|
|
|
104 - COMPRESSION SPRING
BSD-2604611024.A25
2604611024
|
£1.95
|
£2.34
|
|
|
113 - SPIRAL SPRING
BSD-2604652000.A217
2604652000
|
-
|
|
|
|
114 - CARBON-BRUSH SET
BSD-2604320902.A134
2604320902
|
-
|
|
|
|
115 - SOCKET HEAD CAP SCREW
BSD-2603410010.A381
2603410010
|
-
|
|
|
|
118 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A230
1900905019
|
£14.91
|
£17.89
|
|
|
123 - SUPPRESSION CAPACITOR
BSD-2607329085.A8
2607329085
|
-
|
|
|
|
124 - ON-OFF SWITCH
BSD-2607200019.A9
2607200019
|
-
|
|
|
|
126 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A755
1607000227
|
£23.86
|
£28.63
|
|
|
127 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A316
2600703012
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A802
2600703013
|
£2.33
|
£2.80
|
|
|
127 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A832
2600703011
|
£2.80
|
£3.36
|
|
|
128 - CABLE CLIP
BSD-2601035001.A1701
2601035001
|
£1.66
|
£1.99
|
|
|
129 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A767
2910211019
|
£1.66
|
£1.99
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A213
1601110013
|
-
|
|
|
|
130 - NAMEPLATE
BSD-160111A3H3.A4908
160111A3H3
|
£2.33
|
£2.80
|
|
|
131 - HOUSING COVER
BSD-2600508001.A21
2600508001
|
-
|
|
|
|
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A21
2910601020
|
-
|
|
|
|
136 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A191
2910211004
|
-
|
|
|
|
138 - CONNECTING TERMINAL
BSD-2604490003.A53
2604490003
|
-
|
|
|
|
139 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1883
2603410001
|
£1.66
|
£1.99
|
|
|
144 - CONNECTING CABLE
BSD-2604411041.A12
2604411041
|
-
|
|
|
|
150 - ON-OFF SWITCH
BSD-2607200907.A8
2607200907
|
-
|
|
|
|
151 - SILICON DIODE
BSD-2607320008.A94
2607320008
|
-
|
|
|
|
152 - CABLE
BSD-1604411002.A0
1604411002
|
-
|
|
|
|
152 - CABLE L=173 MM
BSD-2604413014.A16
2604413014
|
-
|
|
|
|
703 - AUXILIARY HANDLE
BSD-2602025003.A4
2602025003
|
-
|
|
|
