Bosch SB 16 E / 0601183766 / CH 220 Volt Spare Parts

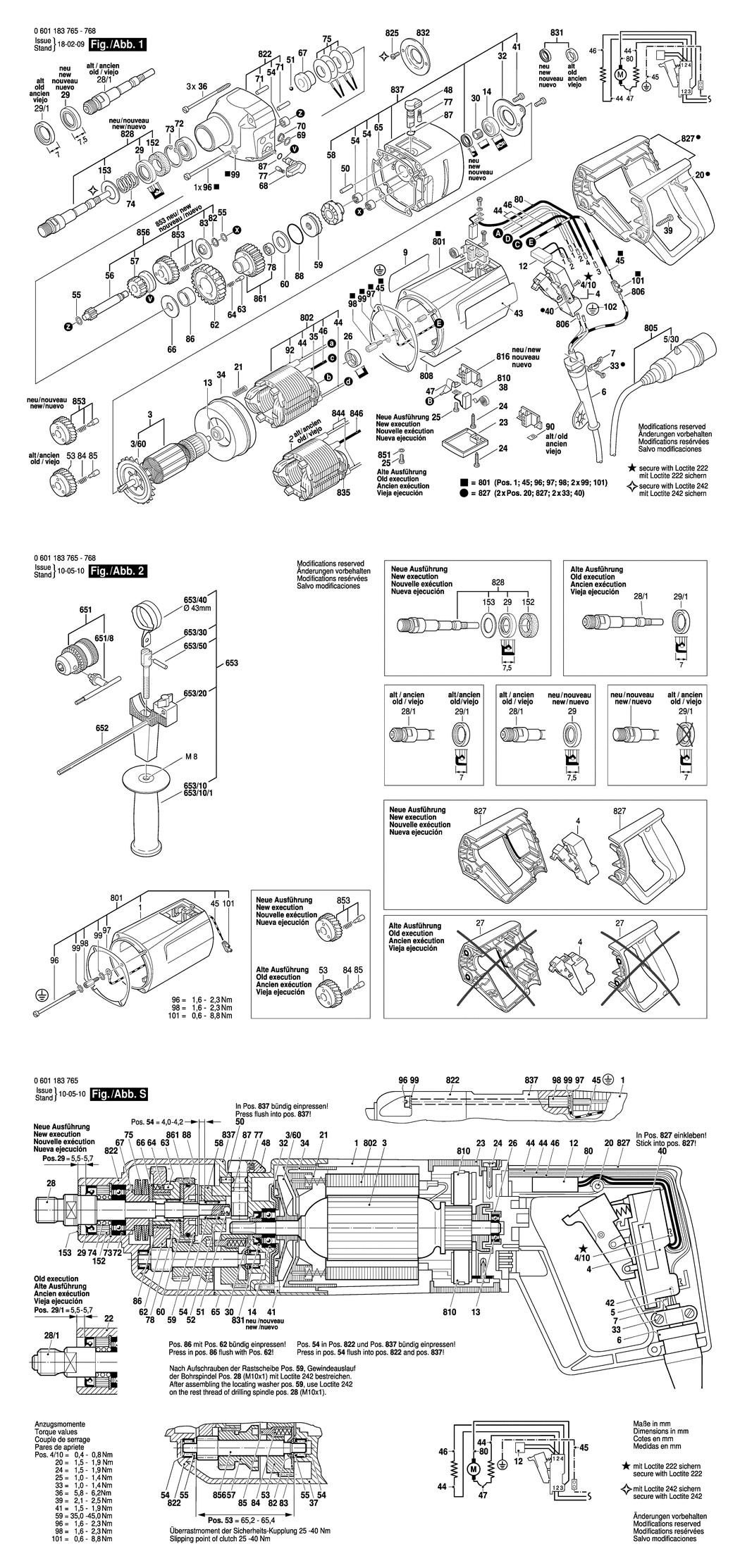

An exploded drawing and listing for the Bosch SB 16 E / 0601183766 / CH 220 Volt

	Ex VAT	Inc VAT
3 - ARMATURE BSD-1619P13612.A5 1619P13612	£45.67	£54.80
3/60 - FAN BSD-1606610122.A153 1606610122	£2.80	£3.36
4 - SWITCH BSD-1607200075.A63 1607200075	£68.42	£82.10
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A15 2910011088	£1.75	£2.10
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460440.A13 1604460440	£21.52	£25.83
5/30 - APPLIANCE INLET BSD-3604483034.A2 3604483034	-
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A111 1600703022	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302013.A492 1601302013	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601119129.A1 3601119129	-
12 - SUPPRESSION FILTER BSD-1607328028.A1 1607328028	£5.30	£6.36
13 - BALL BEARING 7x19x6 BSD-2600905032.A1373 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A52 3600905131	£11.30	£13.56
20 - TORX OVAL-HEAD SCREW BSD-2914201507.A43 2914201507	£1.75	£2.10
21 - COMPRESSION SPRING BSD-1604613006.A13 1604613006	£1.75	£2.10
23 - SEALING CAP BSD-3605500090.A1 3605500090	£10.10	£12.12
24 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A78 2910211019	£1.75	£2.10
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A310 2910021118	£1.75	£2.10
26 - INTERMEDIATE RING BSD-1600502011.A542 1600502011	£2.61	£3.13
29 - ROTARY SHAFT LIP SEAL BSD-3600283043.A4 3600283043	£12.04	£14.45
30 - INTERMEDIATE RING BSD-1600300090.A38 1600300090	£3.72	£4.47
32 - BEARING COVER BSD-3605500156.A20 3605500156	£5.58	£6.70
33 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A574 2910211018	£1.75	£2.10
34 - AIR-DEFLECTOR RING BSD-3600499013.A2 3600499013	-
35 - WIRE GUIDE BSD-3601025003.A66 3601025003	£1.75	£2.10
36 - LENS HEAD SCREW BSD-3603435039.A18 3603435039	£2.61	£3.13
38 - SPIRAL SPRING BSD-3604652001.A22 3604652001	£2.61	£3.13
39 - TORX OVAL-HEAD SCREW BSD-2914201527.A83 2914201527	£2.16	£2.59
40 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A82 1602381006	£1.75	£2.10
41 - THREAD-FORMING TAP. SCREW BSD-3604411040.A15 3604411040	£2.61	£3.13
43 - MANUFACTURER'S NAMEPLATE BSD-3601119902.A8 3601119902	£2.80	£3.36
44 - CONNECTING CABLE L=360 MM BSD-3604460027.A51 3604460027	£6.52	£7.83
45 - EARTH CONDUCTOR L=415 MM BSD-3604414049.A21 3604414049	£13.12	£15.75
46 - CONNECTING CABLE L=375 MM BSD-3604438027.A20 3604438027	£10.10	£12.12
47 - BLADE TERMINAL BSD-1604477001.A63 1604477001	£1.75	£2.10
48 - ROTARY KNOB BSD-3603231004.A0 3603231004	£21.52	£25.83
50 - STRAIGHT PIN DIN 6325-4m6x20 BSD-2917550099.A19 2917550099	£1.75	£2.10
51 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A323 1903230010	£1.75	£2.10
54 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A73 1600910018	£5.30	£6.36
55 - SHIM 0.5 MM BSD-1600100617.A8 1600100617	£1.75	£2.10
56 - TOOTHED SHAFT Z=9 BSD-3606309014.A5 3606309014	£40.80	£48.96
57 - CYLINDRICAL GEAR Z=21 BSD-3606317024.A3 3606317024	£40.80	£48.96
58 - LOCATING WASHER BSD-3600390015.A2 3600390015	£45.67	£54.80
59 - LOCATING WASHER BSD-3600190009.A17 3600190009	£31.64	£37.97
60 - COUPLING PLATE BSD-3600101030.A17 3600101030	£10.10	£12.12
62 - CYLINDRICAL GEAR Z=43 BSD-3606317022.A0 3606317022	£48.38	£58.06
63 - BALL PIN BSD-3603126000.A7 3603126000	£5.30	£6.36
64 - COMPRESSION SPRING BSD-3604610026.A5 3604610026	£2.16	£2.59
65 - SEAL BSD-3601015009.A37 3601015009	£2.61	£3.13
66 - PRESSURE DISK BSD-3600101029.A2 3600101029	£5.58	£6.70
67 - COLLAR SLEEVE BSD-3600320009.A5 3600320009	£11.30	£13.56
68 - ROTARY KNOB BSD-3603231005.A16 3603231005	£4.26	£5.11
69 - SHIM 0.2 MM BSD-2600100575.A75 2600100575	£2.16	£2.59
69 - SHIM 0.3 MM BSD-2600100576.A240 2600100576	-
69 - SHIM 0.5 MM BSD-2600100577.A78 2600100577	£1.75	£2.10
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A283 2916650001	£2.61	£3.13
71 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A23 2917500121	£1.75	£2.10
72 - GROOVE BALL BEARING 15x32x9 BSD-1900905162.A125 1900905162	£18.96	£22.75
73 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A654 2916660013	£2.16	£2.59
74 - COMPRESSION SPRING BSD-2604617000.A65 2604617000	£2.61	£3.13
75 - DISC SPRING BSD-3600550004.A12 3600550004	£3.72	£4.47
77 - RATCHET CAP BSD-2600590006.A346 2600590006	£1.75	£2.10
78 - NEEDLE BEARING BSD-3600913008.A33 3600913008	£3.72	£4.47
80 - CONNECTING CABLE L=290 MM BSD-1604445006.A0 1604445006	£5.58	£6.70
82 - RETAINING RING BSD-3600224008.A29 3600224008	£2.16	£2.59
83 - HOLDING PLATE BSD-3600190010.A2 3600190010	£1.75	£2.10
86 - BUSHING BSD-3600200011.A5 3600200011	£7.36	£8.83
87 - O-RING 6.0x2.0 MM BSD-3600210028.A30 3600210028	£2.16	£2.59
88 - O-RING 27.0x3.0 MM BSD-3600210027.A3 3600210027	£1.75	£2.10
90 - TAB WASHER BSD-1601030022.A341 1601030022	£1.75	£2.10
92 - SHRINKABLE TUBE BSD-3600707022.A96 3600707022	£3.72	£4.47
96 - SOCKET HEAD CAP SCREW M4x103 MM BSD-3603414022.A18 3603414022	£8.67	£10.41
97 - CONTACT SHEET BSD-3601016003.A5 3601016003	£21.68	£26.01
98 - BOLT BSD-3603100033.A19 3603100033	£2.80	£3.36
99 - TOOTHED LOCK WASHER BSD-2916031006.A18 2916031006	£1.75	£2.10
101 - SOCKET-TERMINAL STRIP 1x1.5 MM BSD-3602319041.A7 3602319041	£1.75	£2.10
102 - REFERENCE PLATE BSD-3601119070.A21 3601119070	£3.72	£4.47
152 - FELT WASHER BSD-3600200044.A2 3600200044	£2.80	£3.36
153 - COVER DISC BSD-3600150027.A4 3600150027	£3.72	£4.47
651 - KEY CHUCK dia3-16MM.5/8 BSD-1608571083.A18 1608571083	£72.18	£86.62
651/8 - CHUCK WRENCH SG2 BSD-2607950011.A33 2607950011	£11.30	£13.56
652 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A186 1613001008	£8.67	£10.41
653 - AUXILIARY HANDLE dia 43 MM BSD-3602025012.A19 3602025012	£27.23	£32.68
653/10 - AUXILIARY HANDLE M8 BSD-1612025019.A477 1612025019	£6.52	£7.83
653/10/1 - AUXILIARY HANDLE BSD-160202507H.A241 160202507H	£11.30	£13.56
653/20 - SUPPORT CLAMP BSD-1618040077.A49 1618040077	-
653/30 - STUD BOLT M8 BSD-1613521001.A49 1613521001	£5.58	£6.70
653/40 - CLAMPING BAND dia43 MM BSD-3601038048.A61 3601038048	£18.96	£22.75
653/50 - STRAIGHT PIN BSD-1613100012.A115 1613100012	£2.61	£3.13
801 - MOTOR HOUSING BSD-3605108176.A2 3605108176	-
802 - FIELD 230V BSD-3604220129.A10 3604220129	£72.18	£86.62
805 - POWER SUPPLY CORD BSD-3607000086.A1 3607000086	-
806 - END SPLICE DIN 46 228-A2.5-7 BSD-1900452003.A3 1900452003	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3HC.A173 160111A3HC	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-3607014012.A72 3607014012	£23.86	£28.63
816 - BRUSH HOLDER BSD-3604336012.A126 3604336012	£5.58	£6.70
822 - SPINDLE HOUSING BSD-3605806179.A2 3605806179	£81.81	£98.17
825 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A312 2910021118	£1.75	£2.10
827 - HANDLE BSD-3605133017.A6 3605133017	£40.80	£48.96
828 - DRILLING SPINDLE 5/8. SW17 BSD-3607030413.A14 3607030413	£72.18	£86.62
831 - ROTARY SHAFT LIP SEAL BSD-3600290070.A48 3600290070	£12.04	£14.45
832 - BEARING COVER BSD-3605500043.A6 3605500043	£4.26	£5.11
835 - WIRE GUIDE BSD-1601025001.A119 1601025001	£1.75	£2.10
837 - INTERMEDIATE BEARING BSD-3605820078.A13 3605820078	£135.25	£162.30
844 - CONNECTING CABLE L=330 MM BSD-1604438012.A39 1604438012	£7.36	£8.83
846 - CONNECTING CABLE L=345 MM BSD-1604438013.A27 1604438013	£7.36	£8.83
851 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A139 2916060005	£1.75	£2.10
853 - CYLINDRICAL GEAR BSD-3607030411.A5 3607030411	£48.38	£58.06
856 - CONTROL SHAFT BSD-3607031177.A13 3607031177	£135.25	£162.30
861 - CYLINDRICAL GEAR Z=33 BSD-3607030274.A3 3607030274	£54.42	£65.30
