Bosch RLE / 0601199742 / GB 240 Volt Spare Parts

Home Details Reviews Delivery

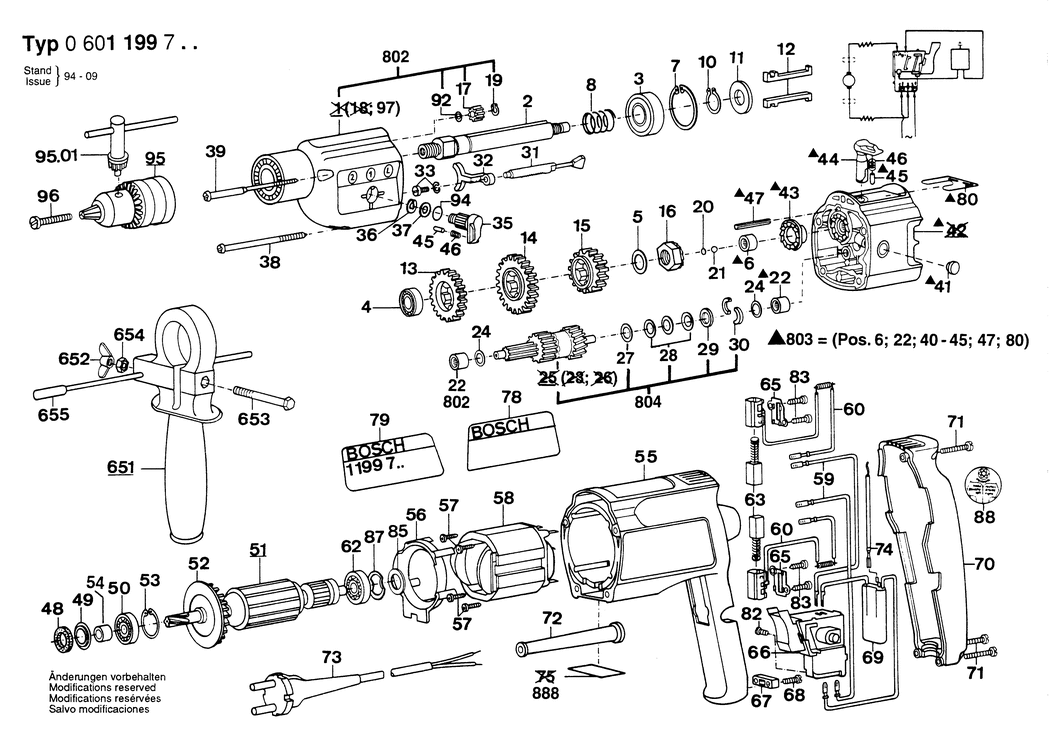

An exploded drawing and listing for the Bosch RLE / 0601199742 / GB 240 Volt

	Ex VAT	Inc VAT
2 - DRILLING SPINDLE 1/2 BSD-2606135026.A19 2606135026	-
2 - DRILLING SPINDLE 1/2 BSD-2606135010.A21 2606135010	-
3 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A257 1900905163	£11.30	£13.56
4 - GROOVE BALL BEARING BSD-2600900006.A34 2600900006	-
5 - SHIM 0.5 MM BSD-2600101616.A153 2600101616	-
5 - SUPPORTING DISC 2.5 MM BSD-1610101617.A32 1610101617	-
6 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A274 2600917003	£2.94	£3.53
7 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A220 2916660014	£1.75	£2.10
8 - COMPRESSION SPRING BSD-2604616002.A151 2604616002	£1.84	£2.21
10 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A204 2916650008	£1.84	£2.21
11 - RETAINING WASHER BSD-2600101671.A188 2600101671	£1.84	£2.21
12 - FLAT KEY BSD-2602300027.A26 2602300027	-
13 - CYLINDRICAL GEAR Z=43 BSD-2606317038.A29 2606317038	-
14 - CYLINDRICAL GEAR Z=48 BSD-2606317036.A30 2606317036	-
15 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A102 2606317037	-
16 - CATCH DISK BSD-2600190052.A25 2600190052	£8.17	£9.80
16 - LOCATING WASHER BSD-2600190031.A4 2600190031	-
17 - CYLINDRICAL GEAR Z=15 BSD-2606317039.A10 2606317039	-
19 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A147 2916640005	£1.75	£2.10
20 - SHIM WASHER 0.2 MM BSD-2600000012.A185 2600000012	£1.75	£2.10
20 - SHIM WASHER 0.3 MM BSD-2600000013.A3 2600000013	-
20 - SHIM WASHER 0.5 MM BSD-2600000014.A175 2600000014	£1.84	£2.21
20 - SHIM WASHER 0.1 MM BSD-2600000018.A31 2600000018	-
21 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A25 1903230010	£1.84	£2.21
22 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A124 2600914010	£2.94	£3.53
24 - SHIM 0.3 MM BSD-2600100607.A176 2600100607	£1.75	£2.10
27 - SHIM 0.5 MM BSD-2600100682.A41 2600100682	-
27 - SHIM 0.3 MM BSD-2600100683.A23 2600100683	-
27 - SHIM 0.2 MM BSD-2600100684.A38 2600100684	-
28 - DISC SPRING BSD-2600550008.A145 2600550008	£1.84	£2.21
29 - COVER DISC BSD-2600114001.A39 2600114001	-
30 - LOCKING WASHER BSD-2600116001.A52 2600116001	-
31 - TOOTHED RACK BSD-2603070011.A8 2603070011	-
32 - FORK LEVER BSD-2602033003.A27 2602033003	-
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A22 2914501011	£1.75	£2.10
34 - COMPRESSION SPRING BSD-2604615010.A7 2604615010	-
35 - ROTARY KNOB BSD-2602026034.A8 2602026034	-
36 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A244 2916080910	£2.16	£2.59
37 - SHIM 0.5 MM BSD-2600101612.A276 2600101612	£1.84	£2.21
38 - HEADLESS SCREW 74 MM BSD-2603435019.A51 2603435019	-
39 - TAPPING SCREW 79 MM BSD-2603435012.A44 2603435012	-
41 - PLUG BSD-2600591002.A20 2600591002	-
43 - LOCATING WASHER BSD-2600190029.A29 2600190029	-
44 - ROTARY KNOB BSD-2602026033.A16 2602026033	-
45 - RATCHET CAP BSD-2600590006.A73 2600590006	£1.84	£2.21
46 - RATCHET CAP BSD-2600590006.A74 2600590006	£1.84	£2.21
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A78 2917780105	£1.75	£2.10
48 - FELT WASHER BSD-2600108077.A441 2600108077	£1.84	£2.21
49 - CUPPED WASHER BSD-2600500002.A612 2600500002	£1.75	£2.10
50 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A349 2600905021	£8.67	£10.41
51 - ARMATURE 220-240V BSD-2604010524.A35 2604010524	-
52 - FAN BSD-2606610049.A60 2606610049	£2.27	£2.72
53 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A320 2916660008	£2.16	£2.59
54 - RECEPTACLE BSD-2600400008.A514 2600400008	£1.75	£2.10
55 - MOTOR HOUSING BSD-2605104116.A72 2605104116	-
56 - COVER DISC BSD-2601328033.A265 2601328033	-
57 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A683 2603490017	£2.27	£2.72
58 - FIELD 220-240V BSD-1604220254.A144 1604220254	£22.76	£27.31
59 - CABLE L=130 MM BSD-2604448005.A274 2604448005	£1.84	£2.21
60 - BRUSH HOLDER BSD-2604337003.A21 2604337003	£2.16	£2.59
60 - CONNECTING CABLE L=68 MM BSD-2604448100.A118 2604448100	£1.75	£2.10
62 - BALL BEARING 7x22x7 BSD-1900905018.A308 1900905018	£19.91	£23.89
65 - SUPPRESSION FILTER BSD-2604465068.A81 2604465068	-
66 - SWITCH BSD-1617200089.A19 1617200089	-
67 - CABLE CLIP BSD-2601035001.A1662 2601035001	£1.84	£2.21
68 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A388 2910611019	£2.94	£3.53
69 - SUPPRESSION FILTER BSD-2607329096.A133 2607329096	£7.72	£9.27
70 - HOUSING COVER BSD-2605132040.A24 2605132040	-
71 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A480 2603490023	£1.84	£2.21
72 - GROMMET dia6.9 MM BSD-2600707059.A320 2600707059	£3.91	£4.69
72 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A146 2600707060	£2.61	£3.13
72 - GROMMET dia8.8 MM BSD-2600707061.A158 2600707061	£2.80	£3.36
74 - CABLE BSD-2604448003.A40 2604448003	-
78 - STICKER BSD-2601110093.A52 2601110093	-
79 - STICKER BSD-2601110204.A0 2601110204	-
80 - STICKER BSD-2601110205.A5 2601110205	-
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1968 2603410001	£1.84	£2.21
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A631 2603435015	£2.27	£2.72
85 - SHIM 0.5 MM BSD-2600101020.A503 2600101020	£1.84	£2.21
85 - SHIM 0.2 MM BSD-2600101022.A129 2600101022	£1.84	£2.21
85 - SHIM 0.3 MM BSD-2600101023.A418 2600101023	£1.84	£2.21
87 - SHIM BSD-2600150004.A644 2600150004	£2.27	£2.72
88 - STICKER BSD-2601110230.A174 2601110230	-
92 - SHIM 0.5 MM BSD-2600100623.A29 2600100623	-
94 - O-RING 12.0x1.0 MM BSD-1600210024.A77 1600210024	-
95 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A347 1608571069	£25.05	£30.06
95/01 - CHUCK WRENCH SG2 BSD-2607950007.A99 2607950007	£6.85	£8.22
96 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A366 2603421226	£1.84	£2.21
97 - SHIM BSD-2600150018.A20 2600150018	-
98 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A724 2603490024	£1.84	£2.21
651 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A164 1619P10682	£12.49	£14.99
652 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A23 2915191006	-
653 - HEX SCREW DIN 931-M6x75-8.8 BSD-2911011220.A67 2911011220	-
654 - CONICAL SPRING WASHER BSD-2601098001.A6 2601098001	-
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A208 1613001005	-
801 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A243 2916080910	£2.16	£2.59
802 - GEAR HOUSING BSD-2605806970.A4 2605806970	-
803 - INTERMEDIATE FLANGE BSD-2605700931.A7 2605700931	-
804 - OVERLOAD CLUTCH BSD-2606309907.A9 2606309907	-
810 - CARBON-BRUSH SET BSD-2604321905.A63 2604321905	£11.87	£14.24
810/06 - RATCHET CAP BSD-2601322013.A446 2601322013	£1.84	£2.21
888 - NAMEPLATE BSD-160111A3H3.A4988 160111A3H3	£2.74	£3.29

Attribute Name	Value
Brand	Bosch
