Bosch GSB 20-2 RET / 0601192891 / CH 230 Volt Spare Parts

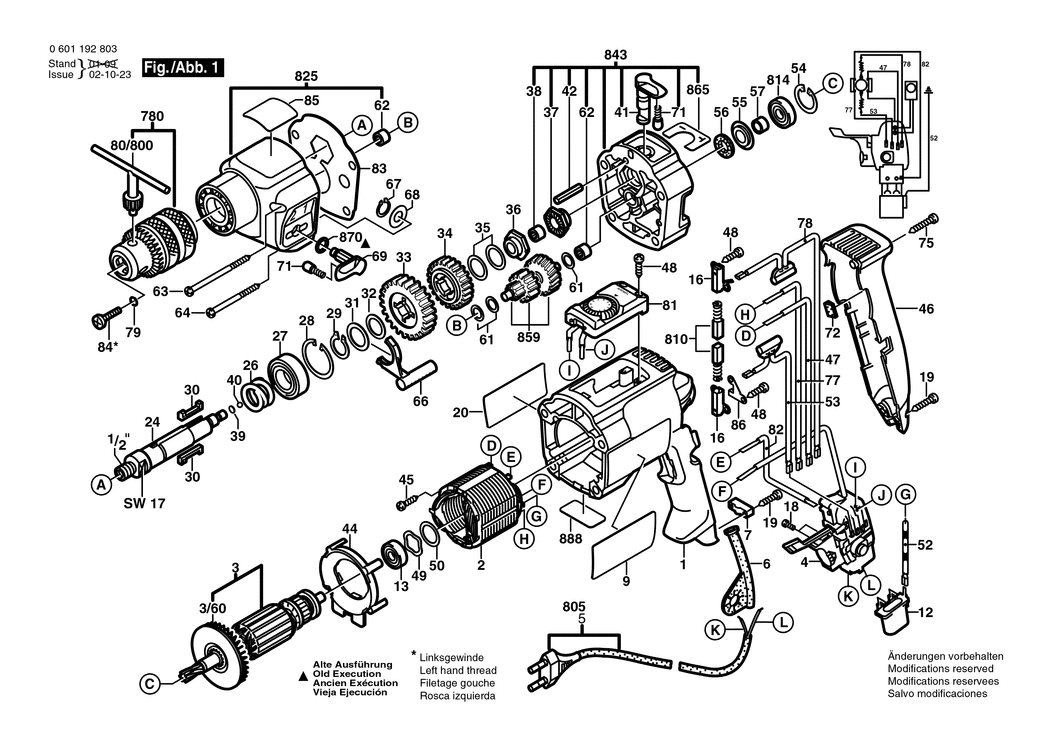

An exploded drawing and listing for the Bosch GSB 20-2 RET / 0601192891 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104314.A4 2605104314	-
2 - FIELD 220-240V BSD-2604220436.A21 2604220436	-
3 - ARMATURE 230-240V BSD-2604010865.A10 2604010865	-
3/60 - FAN BSD-2606610029.A17 2606610029	£2.61	£3.13
4 - ON-OFF SWITCH BSD-2607200238.A19 2607200238	-
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A75 1604460432	£11.30	£13.56
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1534 2600703012	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A1110 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118693.A4 2601118693	-
12 - SUPPRESSION FILTER BSD-2607329114.A104 2607329114	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A1130 1900905018	£18.96	£22.75
16 - BRUSH HOLDER BSD-2604337016.A17 2604337016	£1.75	£2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1011 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A357 2603490022	£1.75	£2.10
20 - REFERENCE PLATE BSD-2601118697.A10 2601118697	-
24 - DRILLING SPINDLE 1/2.SW 17 BSD-2606135032.A11 2606135032	-
26 - COMPRESSION SPRING BSD-2604616002.A29 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A425 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A445 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A299 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A42 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A225 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A31 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A17 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A191 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A211 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A108 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190052.A187 2600190052	£7.78	£9.33
37 - CATCH DISK BSD-2600190057.A112 2600190057	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A493 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.5 MM BSD-2600000014.A44 2600000014	£1.75	£2.10
39 - SHIM WASHER 0.2 MM BSD-2600000012.A109 2600000012	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A600 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A62 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A193 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A94 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A357 2603435086	£1.75	£2.10
46 - HOUSING COVER BSD-2605132049.A40 2605132049	£7.36	£8.83
47 - CONNECTING CABLE L = 123 MM BSD-2604448145.A13 2604448145	-
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1586 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A297 2600150004	£2.16	£2.59
50 - SHIM WASHER 0.3 MM BSD-2600101027.A200 2600101027	£1.75	£2.10
50 - SHIM WASHER 0.5 MM BSD-2600101667.A84 2600101667	£1.75	£2.10
52 - EARTH CONDUCTOR BSD-2604448103.A79 2604448103	-
53 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A46 2604465086	£5.58	£6.70
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A817 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A192 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A51 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A335 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A929 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A500 2600914010	£2.80	£3.36
63 - HEADLESS SCREW BSD-2603435070.A10 2603435070	£2.16	£2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A111 2603435071	-
66 - ADJUSTING SLIDE BSD-2602033006.A9 2602033006	£2.80	£3.36
67 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A62 2916080007	£2.61	£3.13
68 - SHIM WASHER BSD-2600100618.A267 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A98 2602026038	-
71 - RATCHET CAP BSD-2600590006.A1215 2600590006	£1.75	£2.10
72 - INSERT BSD-2601010049.A25 2601010049	-
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A160 2603490024	£1.75	£2.10
77 - CONNECTING CABLE L=78 MM BSD-2604448137.A16 2604448137	-
78 - SUPPRESSION FILTER L= 156 MM BSD-2604465087.A32 2604465087	£5.01	£6.01
79 - RETAINING RING BSD-2604601004.A441 2604601004	£1.75	£2.10
80/800 - CHUCK WRENCH SG2 BSD-2607950007.A1050 2607950007	£6.52	£7.83
81 - TORQUE CONTROL 230V BSD-2607233006.A16 2607233006	-
82 - CONNECTING CABLE L=176 MM BSD-2604448004.A9 2604448004	£1.32	£1.58
83 - GASKET BSD-2601073012.A26 2601073012	£1.75	£2.10
84 - COUNTERSUNK-HEAD SCREW M 6x34 MM BSD-2603421213.A28 2603421213	£2.61	£3.13
85 - STICKER BSD-2601110929.A12 2601110929	£1.32	£1.58
86 - PLATE BSD-2600034003.A10 2600034003	-
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A285 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A879 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A287 1613480007	£1.75	£2.10
753/40 - DRILL HOLDER BSD-2607000122.A277 2607000122	-
753/50 - CLAMPING PLATE M6 BSD-2608040014.A359 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A135 1613480008	£1.75	£2.10
754 - DEPTH-GAUGE BSD-2603001019.A194 2603001019	£2.63	£3.16
780 - KEYLESS CHUCK BSD-2608572123.A15 2608572123	£51.22	£61.47
810 - CARBON-BRUSH SET BSD-2604321905.A452 2604321905	£11.30	£13.56
814 - BALL BEARING 9x24x7 BSD-2600905095.A23 2600905095	£12.04	£14.45
825 - GEAR HOUSING BSD-2605806990.A54 2605806990	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A47 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/21/22 BSD-2606100914.A15 2606100914	-
865 - STICKER BSD-2601110076.A52 2601110076	-
870 - PARTS SET BSD-2607010226.A59 2607010226	£2.33	£2.80
888 - NAMEPLATE BSD-160111A3H3.A2397 160111A3H3	£2.61	£3.13
