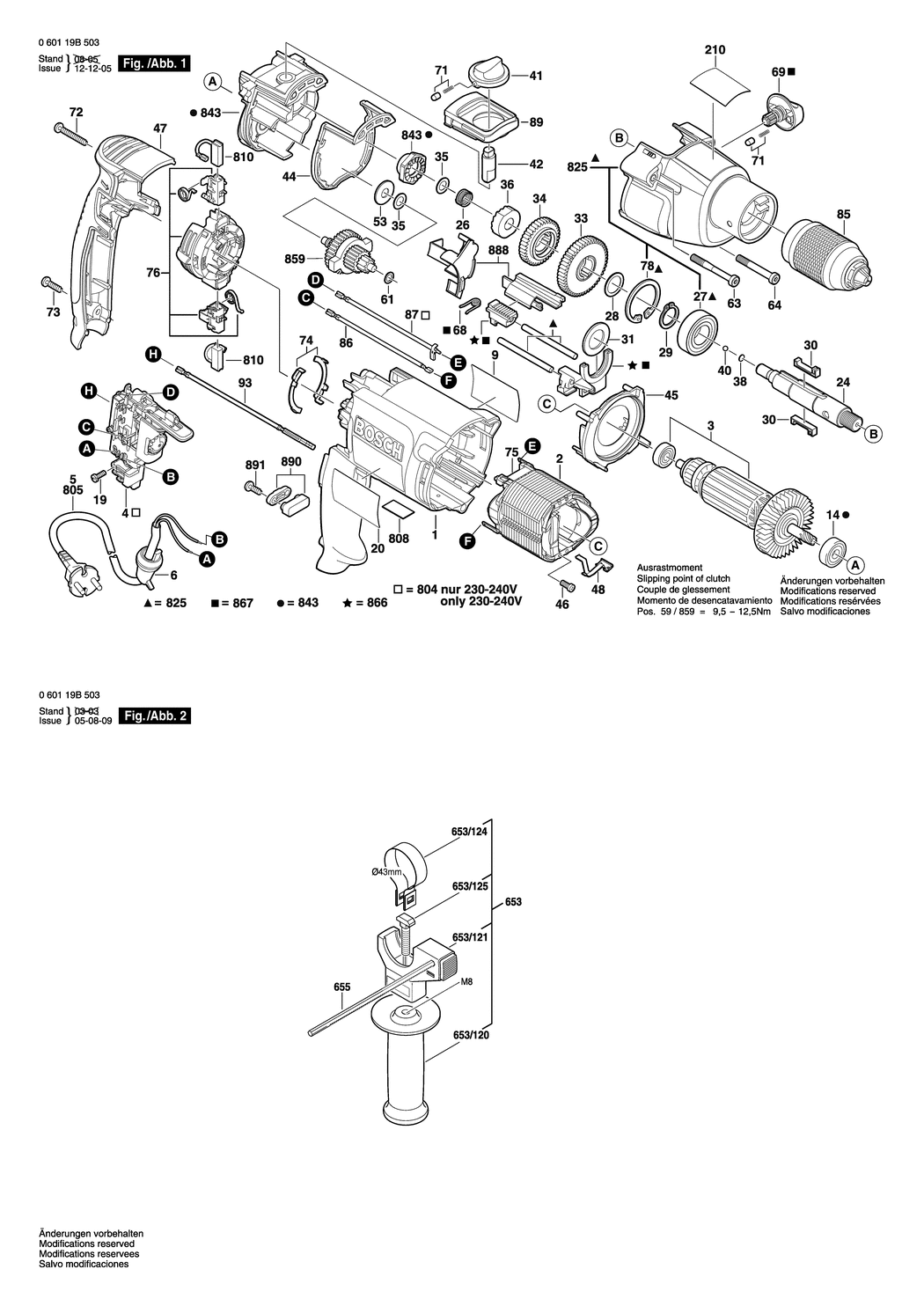

1 - MOTOR HOUSING
BSD-2605105032.A11
2605105032
|
£27.23
|
£32.68
|
|
|
2 - FIELD
BSD-2609120463.A7
2609120463
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230-240V
BSD-2604011320.A7
2604011320
|
£30.28
|
£36.33
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A1
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET
BSD-2600707072.A8
2600707072
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE GSB 20-2 RE
BSD-2601116316.A3
2601116316
|
£3.34
|
£4.01
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A239
2600905095
|
£12.04
|
£14.45
|
|
|
19 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A672
2603490017
|
£2.16
|
£2.59
|
|
|
20 - REFERENCE PLATE
BSD-2601116317.A5
2601116317
|
£3.72
|
£4.47
|
|
|
24 - DRILLING SPINDLE
BSD-2606135130.A6
2606135130
|
£21.68
|
£26.01
|
|
|
26 - COMPRESSION SPRING
BSD-2604616013.A33
2604616013
|
£2.61
|
£3.13
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A269
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SHIM 0.5 MM
BSD-2600100695.A142
2600100695
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A217
2916650008
|
£1.75
|
£2.10
|
|
|
30 - FLAT KEY
BSD-2602300032.A76
2602300032
|
£3.72
|
£4.47
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A202
2600101671
|
£1.75
|
£2.10
|
|
|
33 - CYLINDRICAL GEAR
BSD-2606317084.A72
2606317084
|
£13.12
|
£15.75
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317098.A63
2606317098
|
£12.04
|
£14.45
|
|
|
35 - SHIM 0.3 MM
BSD-2600101047.A171
2600101047
|
£1.75
|
£2.10
|
|
|
36 - CATCH DISK
BSD-2600190090.A27
2600190090
|
£2.52
|
£3.02
|
|
|
38 - SHIM WASHER 1.0 MM
BSD-2600000021.A108
2600000021
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.35 MM
BSD-2600000030.A90
2600000030
|
£1.75
|
£2.10
|
|
|
38 - SHIM WASHER 1.7 MM
BSD-2600000031.A44
2600000031
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A852
1903230009
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A20
1903230010
|
£1.75
|
£2.10
|
|
|
40 - BALL 5.25 MM
BSD-2603230007.A53
2603230007
|
£1.75
|
£2.10
|
|
|
41 - ROTARY KNOB
BSD-2602026118.A4
2602026118
|
£3.34
|
£4.01
|
|
|
42 - CONTROL SHAFT
BSD-2603120064.A43
2603120064
|
£2.80
|
£3.36
|
|
|
44 - SEAL
BSD-2601015091.A12
2601015091
|
£3.72
|
£4.47
|
|
|
45 - AIR GUIDE PLATE
BSD-2600148008.A8
2600148008
|
£3.80
|
£4.56
|
|
|
46 - TAPPING SCREW
BSD-2603435086.A12
2603435086
|
£1.75
|
£2.10
|
|
|
47 - HOUSING COVER
BSD-2605132055.A1
2605132055
|
£13.12
|
£15.75
|
|
|
48 - CONTACT SPRING
BSD-2601324048.A7
2601324048
|
£1.95
|
£2.34
|
|
|
53 - DISC SPRING
BSD-2600550008.A141
2600550008
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A163
2600100607
|
£1.75
|
£2.10
|
|
|
63 - HEADLESS SCREW
BSD-2603435084.A12
2603435084
|
£1.75
|
£2.10
|
|
|
64 - HEADLESS SCREW
BSD-2603435085.A89
2603435085
|
£1.75
|
£2.10
|
|
|
68 - COMPRESSION SPRING
BSD-2604616014.A62
2604616014
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026117.A43
2602026117
|
£2.16
|
£2.59
|
|
|
71 - RATCHET CAP
BSD-2600590006.A62
2600590006
|
£1.75
|
£2.10
|
|
|
72 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A56
2603490025
|
£1.75
|
£2.10
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2138
2603490022
|
£1.75
|
£2.10
|
|
|
74 - SWITCH CONTACT
BSD-1611329024.A55
1611329024
|
£1.75
|
£2.10
|
|
|
75 - ADAPTER MODULE
BSD-1600A0032J.A13
1600A0032J
|
£1.75
|
£2.10
|
|
|
76 - BRUSH PLATE
BSD-1614336061.A38
1614336061
|
£18.96
|
£22.75
|
|
|
78 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A238
2916660014
|
£1.75
|
£2.10
|
|
|
85 - KEYLESS CHUCK HSB 4
BSD-2608572143.A13
2608572143
|
£63.50
|
£76.20
|
|
|
86 - CONNECTING CABLE L=80 MM
BSD-1614448014.A66
1614448014
|
£2.61
|
£3.13
|
|
|
89 - BULB SHIELD
BSD-2605510206.A14
2605510206
|
£2.61
|
£3.13
|
|
|
93 - EARTH CONDUCTOR
BSD-2604448269.A7
2604448269
|
-
|
|
|
|
210 - REFERENCE PLATE
BSD-2601116318.A5
2601116318
|
£1.95
|
£2.34
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025139.A7
2602025139
|
£14.91
|
£17.89
|
|
|
653/120 - AUXILIARY HANDLE M8
BSD-1612025019.A102
1612025019
|
£6.52
|
£7.83
|
|
|
653/121 - SUPPORT CLAMP
BSD-2608040235.A14
2608040235
|
£5.87
|
£7.04
|
|
|
653/124 - CLAMPING BAND dia43 MM
BSD-1611316006.A366
1611316006
|
£2.61
|
£3.13
|
|
|
653/125 - T-HEAD BOLT M8x40 MM
BSD-1613490002.A654
1613490002
|
£4.26
|
£5.11
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A449
1613001009
|
£3.72
|
£4.47
|
|
|
804 - SWITCH
BSD-2607200919.A1
2607200919
|
£30.28
|
£36.33
|
|
|
808 - MARKING PLATE
BSD-2601116389.A0
2601116389
|
£1.32
|
£1.58
|
|
|
810 - CARBON-BRUSH SET
BSD-1617000525.A123
1617000525
|
£11.30
|
£13.56
|
|
|
825 - GEAR HOUSING
BSD-2605806892.A11
2605806892
|
-
|
|
|
|
843 - BEARING BRACKET
BSD-2605700943.A4
2605700943
|
£33.74
|
£40.49
|
|
|
859 - TRANSMISSION
BSD-1600A00MM2.A16
1600A00MM2
|
£37.72
|
£45.27
|
|
|
866 - ADJUSTING SLIDE
BSD-2602033018.A38
2602033018
|
£4.26
|
£5.11
|
|
|
867 - TOOTHED RACK
BSD-2606308925.A9
2606308925
|
£5.58
|
£6.70
|
|
|
888 - HOLDING PLATE
BSD-2601328900.A43
2601328900
|
£2.80
|
£3.36
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A277
2607001305
|
£4.26
|
£5.11
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A97
2603410046
|
£2.16
|
£2.59
|
|
