Bosch GSB 20-2 RE / 0601198742 / GB 230 Volt Spare Parts

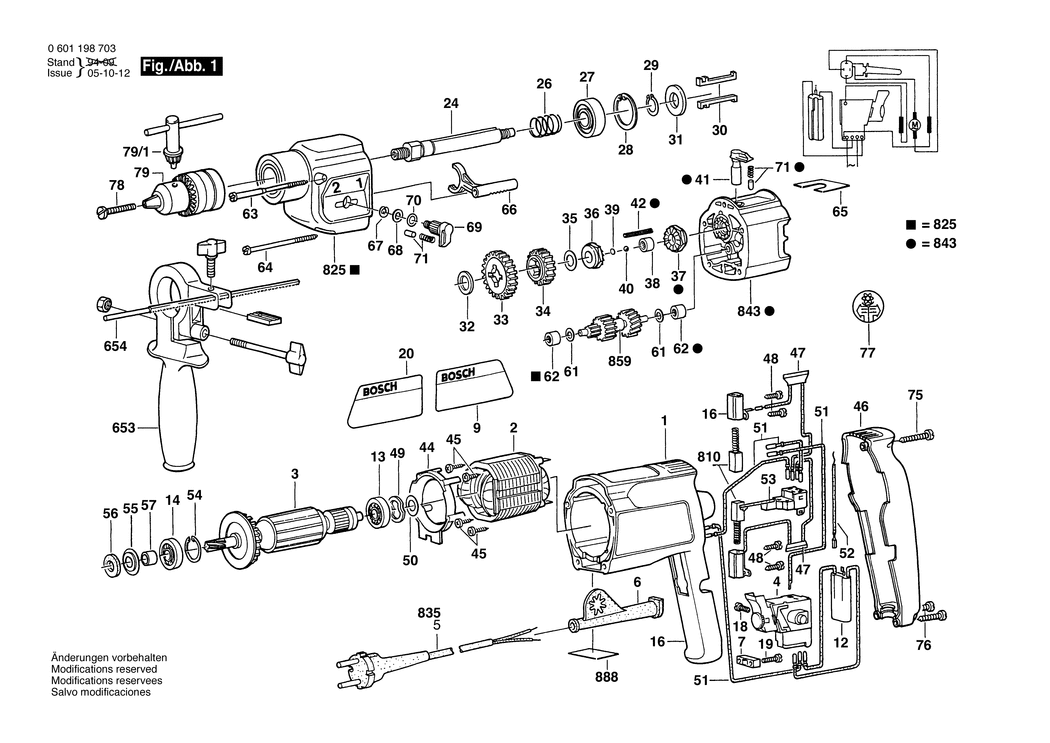

An exploded drawing and listing for the Bosch GSB 20-2 RE / 0601198742 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104116.A62 2605104116	-
2 - FIELD 240V BSD-2604220430.A14 2604220430	£27.23	£32.68
3 - ARMATURE 230-240V BSD-2604010858.A17 2604010858	£48.38	£58.06
4 - SWITCH BSD-2607200202.A17 2607200202	£37.27	£44.72
4 - SWITCH BSD-2607200209.A0 2607200209	£40.80	£48.96
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A68 3604460069	£37.72	£45.27
6 - GROMMET dia6.9 MM BSD-2600707059.A327 2600707059	£3.72	£4.47
6 - GROMMET dia8.8 MM BSD-2600707061.A164 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A1679 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110312.A2 2601110312	-
12 - SUPPRESSION FILTER BSD-2607329096.A125 2607329096	£7.36	£8.83
13 - BALL BEARING 7x22x7 BSD-1900905018.A298 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A328 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604337003.A3 2604337003	£2.16	£2.59
16 - CONNECTING CABLE L=88 MM BSD-2604448034.A150 2604448034	£1.75	£2.10
16 - CONNECTING CABLE L=52MM BSD-2604448016.A39 2604448016	£1.75	£2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1984 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A2114 2603490022	£1.75	£2.10
20 - STICKER BSD-2601110093.A30 2601110093	-
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A68 2606135013	£21.42	£25.71
26 - COMPRESSION SPRING BSD-2604616002.A138 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A234 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A206 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A197 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A60 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A210 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A128 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A53 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A113 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A156 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A174 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190052.A14 2600190052	£7.78	£9.33
37 - CATCH DISK BSD-2600190051.A35 2600190051	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A283 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A173 2600000012	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A183 2600000014	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A37 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A128 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A86 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A276 2601328033	-
45 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A643 2603435015	£2.16	£2.59
46 - HOUSING COVER BSD-2605132040.A38 2605132040	-
47 - SUPPRESSOR BOX L=93/85 MM BSD-2604465071.A38 2604465071	-
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A688 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A657 2600150004	£2.16	£2.59
50 - SHIM 0.5 MM BSD-2600101020.A507 2600101020	£1.75	£2.10
50 - SHIM 0.2 MM BSD-2600101022.A125 2600101022	£1.75	£2.10
50 - SHIM 0.3 MM BSD-2600101023.A422 2600101023	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A264 2604448005	£1.75	£2.10
52 - CABLE BSD-2604448003.A50 2604448003	-
53 - CHANGE-OVER SWITCH BSD-2607200198.A3 2607200198	-
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A328 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A600 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A444 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A526 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A178 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A115 2600914010	£2.80	£3.36
63 - TAPPING SCREW 79 MM BSD-2603435012.A33 2603435012	-
64 - HEADLESS SCREW 65 MM BSD-2603435071.A45 2603435071	-
65 - STICKER BSD-2601110076.A150 2601110076	-
66 - ADJUSTING SLIDE BSD-2602033006.A110 2602033006	£2.80	£3.36
67 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A380 2916080007	£2.61	£3.13
68 - SHIM WASHER BSD-2600100618.A22 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A58 2602026038	-
70 - PARTS SET BSD-2607010226.A5 2607010226	£2.33	£2.80
71 - RATCHET CAP BSD-2600590006.A49 2600590006	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A717 2603490024	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A485 2603490023	£1.75	£2.10
77 - STICKER BSD-2601110230.A186 2601110230	-
78 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A378 2603421226	£1.75	£2.10
79 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A353 1608571069	£23.86	£28.63
79/1 - CHUCK WRENCH SG2 BSD-2607950007.A96 2607950007	£6.52	£7.83
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A176 1619P10682	£12.49	£14.99
654 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A196 1613001005	-
655 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A645 2915011007	-
656 - WING SCREW M6x(15)55 BSD-1613480007.A174 1613480007	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-2604321905.A73 2604321905	£11.30	£13.56
825 - GEAR HOUSING BSD-2605806990.A18 2605806990	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A76 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A41 2606100903	-
888 - NAMEPLATE BSD-160111A3H3.A4998 160111A3H3	£2.61	£3.13
