Bosch GSB 20-2 / 3601A7B460 / GB 110 Volt Spare Parts

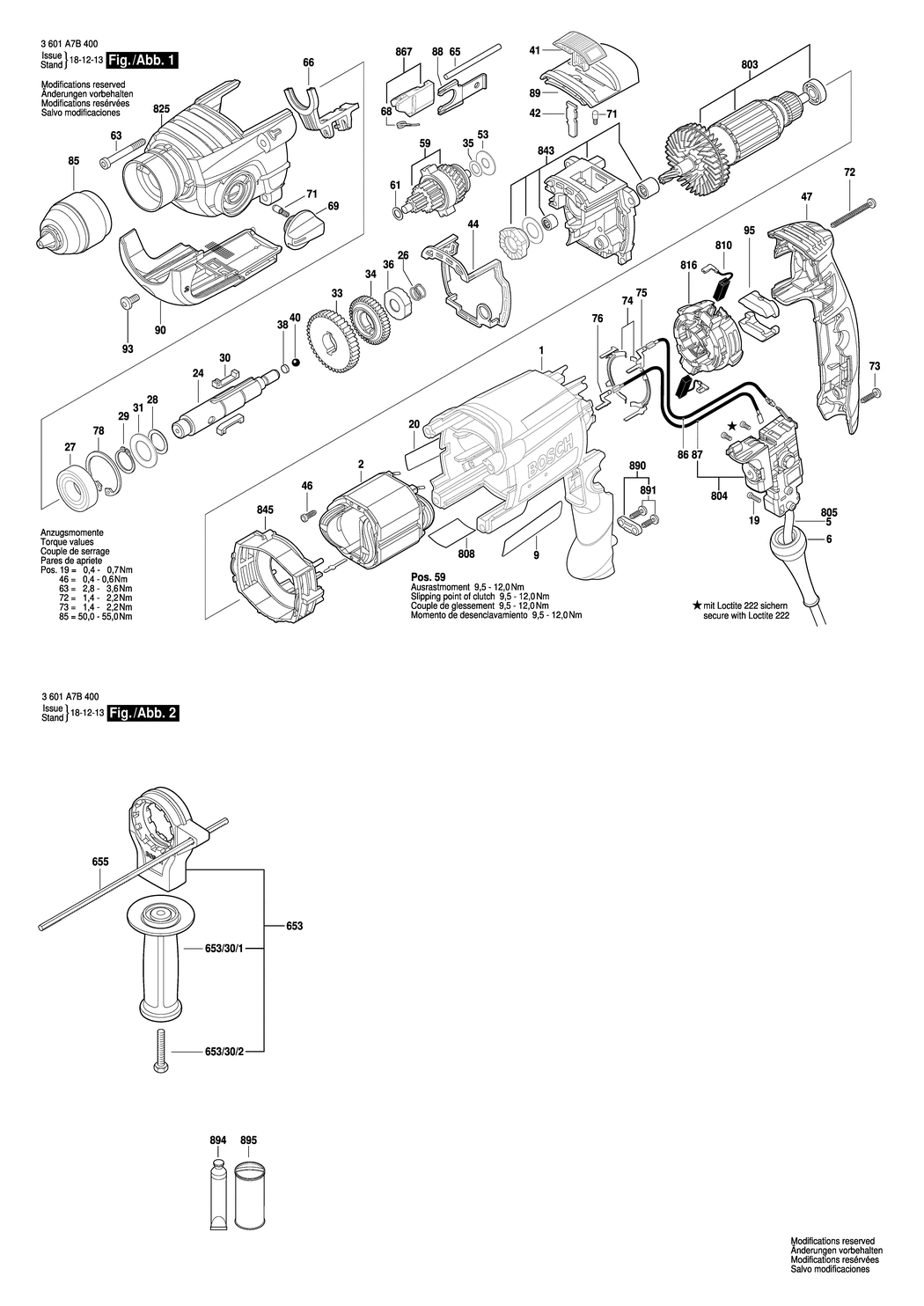

An exploded drawing and listing for the Bosch GSB 20-2 / 3601A7B460 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1618B00A04.A9 1618B00A04	£31.64	£37.97
2 - FIELD 110-120V BSD-2604220732.A2 2604220732	-
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460204.A23 2604460204	£31.64	£37.97
6 - CABLE SLEEVE dia6.4-dia7.0x66 MM BSD-2600707075.A15 2600707075	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-160111C2US.A3 160111C2US	-
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A522 2603490017	£2.16	£2.59
20 - REFERENCE PLATE BSD-1618B00029.A1 1618B00029	-
24 - DRILLING SPINDLE BSD-2606135138.A5 2606135138	£16.41	£19.69
26 - COMPRESSION SPRING BSD-2604616006.A180 2604616006	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A123 1900905163	£11.30	£13.56
28 - SHIM 0.5 MM BSD-2600100695.A57 2600100695	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A79 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300032.A6 2602300032	£3.72	£4.47
31 - RETAINING WASHER BSD-2600101671.A99 2600101671	£1.75	£2.10
33 - CYLINDRICAL GEAR BSD-2606317084.A35 2606317084	£13.12	£15.75
34 - CYLINDRICAL GEAR BSD-2606317098.A36 2606317098	£12.04	£14.45
35 - SHIM 0.3 MM BSD-2600101047.A90 2600101047	£1.75	£2.10
36 - CATCH DISK BSD-2600190105.A20 2600190105	£2.61	£3.13
38 - SHIM WASHER 1.0 MM BSD-2600000021.A35 2600000021	£1.75	£2.10
38 - SHIM WASHER 1.35 MM BSD-2600000030.A38 2600000030	£1.75	£2.10
38 - SHIM WASHER 1.7 MM BSD-2600000031.A104 2600000031	£1.75	£2.10
40 - BALL DIN 5401-5 G28 BSD-1903230009.A654 1903230009	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A267 1903230010	£1.75	£2.10
40 - BALL 5.25 MM BSD-2603230007.A70 2603230007	£1.75	£2.10
41 - SLIDE SWITCH BSD-1618B00800.A5 1618B00800	£1.75	£2.10
42 - PRESSURE PLATE BSD-2601074008.A9 2601074008	£1.75	£2.10
44 - SEAL BSD-2601015099.A12 2601015099	£5.58	£6.70
46 - TAPPING SCREW BSD-2603435095.A3 2603435095	-
47 - HOUSING COVER BSD-1618B00A02.A3 1618B00A02	£14.91	£17.89
53 - DISC SPRING BSD-2600550008.A42 2600550008	£1.75	£2.10
59 - TRANSMISSION BSD-1600A00MM2.A1 1600A00MM2	£37.72	£45.27
61 - SHIM 0.3 MM BSD-2600100607.A526 2600100607	£1.75	£2.10
63 - HEADLESS SCREW BSD-2603435085.A8 2603435085	£1.75	£2.10
65 - STRAIGHT PIN BSD-2603105200.A13 2603105200	£1.75	£2.10
66 - ADJUSTING SLIDE BSD-1618B00807.A10 1618B00807	£1.75	£2.10
68 - COMPRESSION SPRING BSD-2604616014.A18 2604616014	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026157.A3 2602026157	£2.16	£2.59
71 - RATCHET CAP BSD-2600590006.A584 2600590006	£1.75	£2.10
72 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A47 2603490027	£1.75	£2.10
73 - SCREW 4x16 BSD-2603490022.A2738 2603490022	£1.75	£2.10
74 - SWITCH CONTACT BSD-2601324062.A8 2601324062	£1.75	£2.10
75 - CONTACT BSD-2601099259.A13 2601099259	£1.75	£2.10
76 - CONTACT BSD-2601099260.A6 2601099260	£2.16	£2.59
78 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A60 2916660014	£1.75	£2.10
85 - KEYLESS CHUCK BSD-2608572142.A1 2608572142	£52.15	£62.58
86 - CONNECTING CABLE BSD-1600A01C9E.A3 1600A01C9E	-
87 - CONNECTING CABLE 72 mm BSD-2604448330.A4 2604448330	£2.16	£2.59
88 - HOLDING PLATE BSD-1618B00808.A4 1618B00808	£2.16	£2.59
89 - BULB SHIELD BSD-1618B00A06.A10 1618B00A06	£5.30	£6.36
90 - BULB SHIELD BSD-2605510269.A2 2605510269	£3.72	£4.47
93 - THREAD-FORMING TAP. SCREW BSD-2914491411.A4 2914491411	£1.75	£2.10
95 - CLIP BSD-2601329118.A6 2601329118	£1.75	£2.10
653 - AUXILIARY HANDLE BSD-2602025175.A8 2602025175	£16.41	£19.69
653/30/1 - HANDLE BSD-2602025180.A16 2602025180	-
653/30/2 - HEX SCREW M8x45 BSD-2911061252.A7 2911061252	£1.32	£1.58
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A392 1613001009	£3.72	£4.47
803 - ARMATURE 110-120V BSD-2604011918.A0 2604011918	£54.42	£65.30
804 - SWITCH BSD-160720036K.A0 160720036K	-
808 - NAMEPLATE BSD-160111A6G1.A0 160111A6G1	-
810 - CARBON-BRUSH SET BSD-1617000525.A68 1617000525	£11.30	£13.56
810 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A123 1607000485	£72.18	£86.62
816 - BRUSH PLATE BSD-1614336061.A94 1614336061	£18.96	£22.75
825 - GEAR HOUSING BSD-2605806884.A5 2605806884	£37.27	£44.72
843 - BEARING BRACKET BSD-1600A0018A.A4 1600A0018A	£33.74	£40.49
845 - AIR GUIDE PLATE BSD-2600148012.A4 2600148012	£7.36	£8.83
867 - LINK GUIDE BSD-2602033900.A11 2602033900	£5.30	£6.36
890 - FASTENING PARTS KIT BSD-2607001305.A324 2607001305	£4.26	£5.11
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A30 2603410046	£2.16	£2.59
895 - GREASE TUBE Albida BSD-3605430003.A45 3605430003	£27.23	£32.68

Attribute Name	Value
Brand	Bosch
