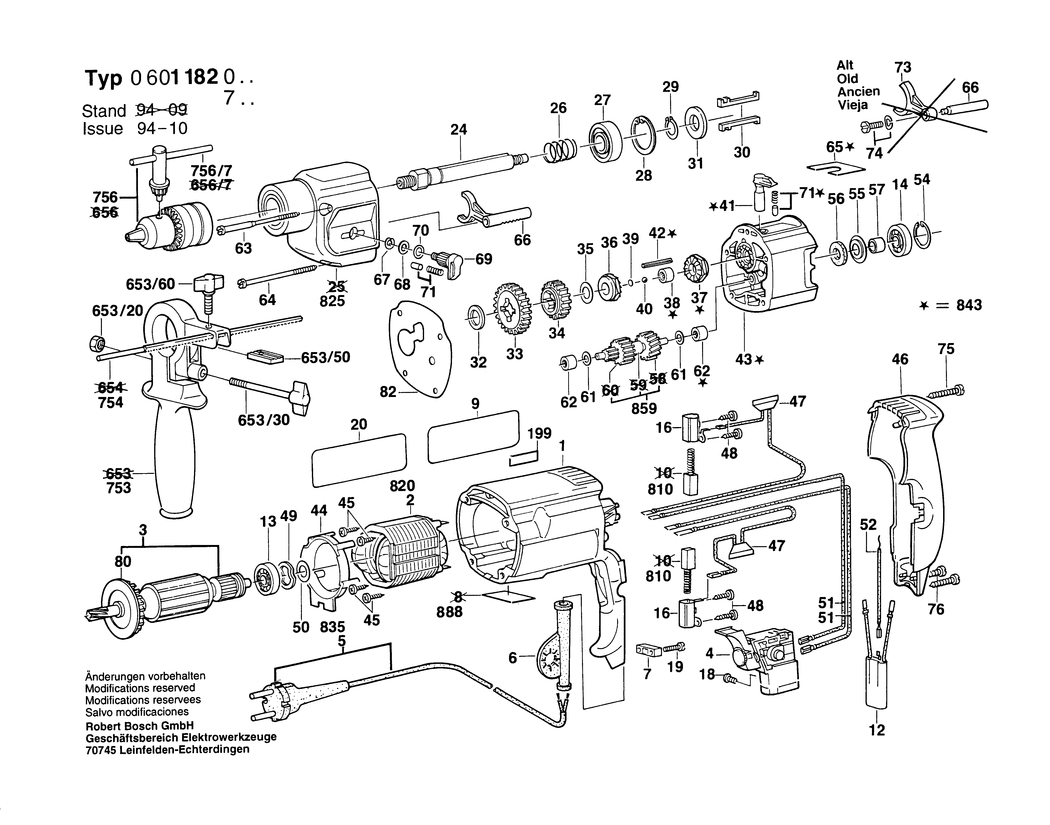

1 - MOTOR HOUSING
BSD-2605104116.A88
2605104116
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220254.A138
1604220254
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230-240V
BSD-2604010744.A20
2604010744
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A419
2607200260
|
£11.30
|
£13.56
|
|
|
4 - SWITCH
BSD-2607200184.A62
2607200184
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A223
1607000388
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A304
2600707059
|
£3.72
|
£4.47
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A145
2600707061
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A157
2600707060
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1607
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110735.A0
2601110735
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A121
2607329096
|
£7.36
|
£8.83
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A344
1900905018
|
£18.96
|
£22.75
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A309
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A26
2604337003
|
£2.16
|
£2.59
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1902
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2096
2603490022
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-2601110093.A21
2601110093
|
-
|
|
|
|
24 - DRILLING SPINDLE 1/2
BSD-2606135013.A60
2606135013
|
£21.42
|
£25.71
|
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A116
2604616002
|
£1.75
|
£2.10
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A306
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A196
2916660014
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A190
2916650008
|
£1.75
|
£2.10
|
|
|
30 - FLAT KEY
BSD-2602300028.A61
2602300028
|
-
|
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A217
2600101671
|
£1.75
|
£2.10
|
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A119
2600101515
|
£1.95
|
£2.34
|
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A58
2606317045
|
£14.72
|
£17.67
|
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A98
2606317037
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A172
2600101616
|
-
|
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A158
2600101617
|
£1.75
|
£2.10
|
|
|
36 - CATCH DISK
BSD-2600190052.A6
2600190052
|
£7.78
|
£9.33
|
|
|
37 - CATCH DISK
BSD-2600190051.A40
2600190051
|
-
|
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A287
2600917003
|
£2.80
|
£3.36
|
|
|
39 - SHIM WASHER 0.2 MM
BSD-2600000012.A172
2600000012
|
£1.75
|
£2.10
|
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A186
2600000014
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A38
1903230010
|
£1.75
|
£2.10
|
|
|
41 - ROTARY KNOB
BSD-2602026017.A144
2602026017
|
£7.36
|
£8.83
|
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A67
2917780105
|
£1.75
|
£2.10
|
|
|
43 - INTERMEDIATE FLANGE
BSD-2605700936.A73
2605700936
|
£46.82
|
£56.18
|
|
|
44 - COVER DISC
BSD-2601328033.A280
2601328033
|
-
|
|
|
|
45 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A653
2603435015
|
£2.16
|
£2.59
|
|
|
46 - HOUSING COVER
BSD-2605132040.A44
2605132040
|
-
|
|
|
|
47 - SUPPRESSION FILTER
BSD-2604465068.A73
2604465068
|
-
|
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A704
2603490017
|
£2.16
|
£2.59
|
|
|
49 - SHIM
BSD-2600150004.A672
2600150004
|
£2.16
|
£2.59
|
|
|
50 - SHIM 0.3 MM
BSD-2600101023.A444
2600101023
|
£1.75
|
£2.10
|
|
|
50 - SHIM 0.2 MM
BSD-2600101022.A103
2600101022
|
£1.75
|
£2.10
|
|
|
50 - SHIM 0.5 MM
BSD-2600101020.A529
2600101020
|
£1.75
|
£2.10
|
|
|
51 - CABLE L=130 MM
BSD-2604448005.A257
2604448005
|
£1.75
|
£2.10
|
|
|
52 - CABLE
BSD-2604448003.A57
2604448003
|
-
|
|
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A341
2916660008
|
£2.16
|
£2.59
|
|
|
55 - CUPPED WASHER
BSD-2600500002.A592
2600500002
|
£1.75
|
£2.10
|
|
|
56 - FELT WASHER
BSD-2600108077.A426
2600108077
|
£1.75
|
£2.10
|
|
|
57 - RECEPTACLE
BSD-2600400008.A534
2600400008
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A151
2600100607
|
£1.75
|
£2.10
|
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A138
2600914010
|
£2.80
|
£3.36
|
|
|
63 - TAPPING SCREW 79 MM
BSD-2603435012.A23
2603435012
|
-
|
|
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A52
2603435071
|
-
|
|
|
|
65 - STICKER
BSD-2601110076.A161
2601110076
|
-
|
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A109
2602033006
|
£2.80
|
£3.36
|
|
|
67 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A372
2916080007
|
£2.61
|
£3.13
|
|
|
68 - SHIM WASHER
BSD-2600100618.A26
2600100618
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026038.A48
2602026038
|
-
|
|
|
|
70 - PARTS SET
BSD-2607010226.A18
2607010226
|
£2.33
|
£2.80
|
|
|
71 - RATCHET CAP
BSD-2600590006.A89
2600590006
|
£1.75
|
£2.10
|
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A705
2603490024
|
£1.75
|
£2.10
|
|
|
76 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A339
2910211021
|
£1.75
|
£2.10
|
|
|
80 - FAN
BSD-2606610029.A243
2606610029
|
£2.61
|
£3.13
|
|
|
82 - GASKET
BSD-2601073012.A106
2601073012
|
£1.75
|
£2.10
|
|
|
180 - STICKER
BSD-1601110265.A266
1601110265
|
-
|
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A156
1619P10682
|
£12.49
|
£14.99
|
|
|
754 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A216
1613001005
|
-
|
|
|
|
756 - KEY CHUCK dia 1.5-13 MM.1/2
BSD-1608571048.A21
1608571048
|
-
|
|
|
|
756/7 - CHUCK WRENCH SG2
BSD-2607950007.A114
2607950007
|
£6.52
|
£7.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A86
2604321905
|
£11.30
|
£13.56
|
|
|
810/06 - RATCHET CAP
BSD-2601322013.A451
2601322013
|
£1.75
|
£2.10
|
|
|
825 - GEAR HOUSING
BSD-2605806990.A10
2605806990
|
-
|
|
|
|
859 - TOOTHED SHAFT Z= 10/22/29
BSD-2606100903.A49
2606100903
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4969
160111A3H3
|
£2.61
|
£3.13
|
|
