Bosch GSB 18-2 RE / 060117A642 / GB 230 Volt Spare Parts

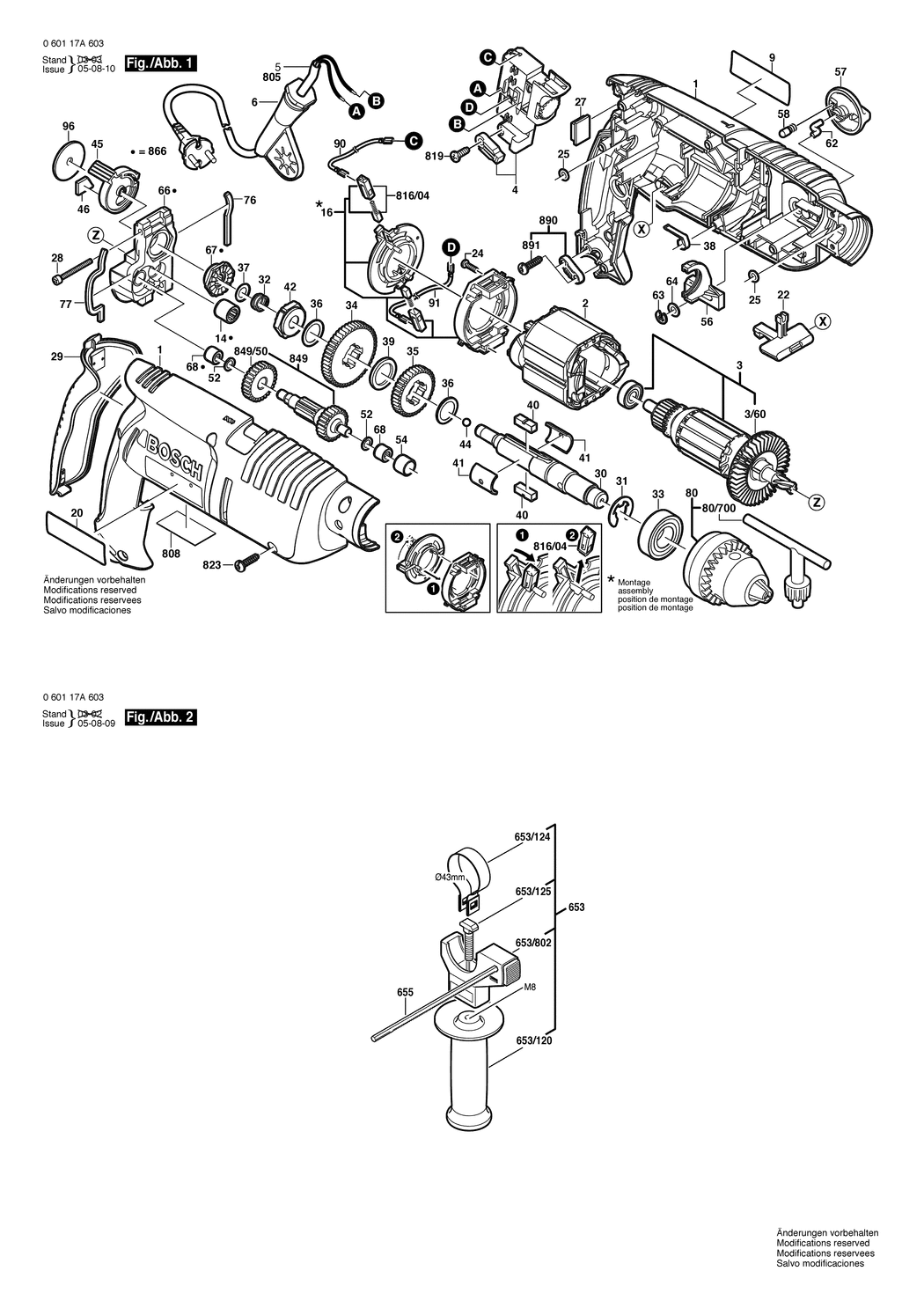

An exploded drawing and listing for the Bosch GSB 18-2 RE / 060117A642 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104760.A7 2605104760	£37.27	£44.72
2 - FIELD 230-240V BSD-2604220689.A24 2604220689	£21.52	£25.83
3 - ARMATURE 230-240V BSD-2604011166.A36 2604011166	£45.67	£54.80
3/60 - FAN BSD-2606610029.A7 2606610029	£2.61	£3.13
4 - SWITCH BSD-2607200556.A2 2607200556	£27.23	£32.68
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F BSD-2604460244.A2 2604460244	£27.23	£32.68
6 - GROMMET dia6.2-dia6.9x90 MM BSD-2600707066.A4 2600707066	£2.48	£2.97
9 - MANUFACTURER'S NAMEPLATE BSD-2601116359.A1 2601116359	£3.34	£4.01
14 - NEEDLE BEARING BSD-2600914019.A97 2600914019	£5.30	£6.36
16 - BRUSH PLATE BSD-2604337061.A34 2604337061	£14.91	£17.89
20 - REFERENCE PLATE BSD-2601116360.A7 2601116360	£4.75	£5.70
22 - CHANGE-OVER SWITCH BSD-2602098008.A137 2602098008	£1.75	£2.10
24 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H BSD-2910611002.A195 2910611002	£1.75	£2.10
25 - O-RING 5.0x1.5 MM BSD-1900210000.A575 1900210000	£1.75	£2.10
27 - DAMPING ELEMENT BSD-2603239024.A2 2603239024	£1.75	£2.10
28 - OVAL-HEAD SCREW BSD-2603429006.A3 2603429006	£1.32	£1.58
29 - HANDLE COVER BSD-2608040177.A10 2608040177	£5.87	£7.04
30 - DRILLING SPINDLE BSD-2606135116.A3 2606135116	£18.96	£22.75
31 - LOCKING WASHER 0.6 MM BSD-2600118001.A121 2600118001	£1.75	£2.10
31 - LOCKING WASHER 0.8 MM BSD-2600118002.A116 2600118002	£1.75	£2.10
31 - LOCKING WASHER 0.3 MM BSD-2600118006.A121 2600118006	-
32 - COMPRESSION SPRING BSD-2604616006.A158 2604616006	£1.75	£2.10
33 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A440 1900905163	£11.30	£13.56
34 - CYLINDRICAL GEAR BSD-2606317082.A22 2606317082	£13.12	£15.75
35 - CYLINDRICAL GEAR BSD-2606317083.A34 2606317083	£11.30	£13.56
36 - SHIM 0.5 MM BSD-2600100695.A219 2600100695	£1.75	£2.10
37 - SHIM 0.3 MM BSD-2600101047.A498 2600101047	£1.75	£2.10
38 - CONTACT STRAP BSD-2601329072.A5 2601329072	-
39 - RETAINING WASHER BSD-2600101084.A48 2600101084	£1.75	£2.10
40 - FLAT KEY BSD-2602300034.A32 2602300034	-
41 - GUIDING PLATE BSD-2601098031.A37 2601098031	£1.75	£2.10
42 - CATCH DISK BSD-2600190070.A29 2600190070	£5.58	£6.70
44 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A588 1903230010	£1.75	£2.10
45 - INDEXING DISK BSD-2601990041.A7 2601990041	£1.75	£2.10
46 - PRESSURE PLATE BSD-2601074003.A61 2601074003	£1.75	£2.10
52 - SHIM 0.3 MM BSD-2600100607.A970 2600100607	£1.75	£2.10
54 - BEARING SLEEVE BSD-2600400027.A102 2600400027	£4.26	£5.11
56 - FORK LEVER BSD-2601990009.A33 2601990009	£2.29	£2.75
57 - ROTARY KNOB BSD-2602026119.A7 2602026119	-
58 - RATCHET CAP BSD-2600590006.A1178 2600590006	£1.75	£2.10
62 - DRIVER PIN BSD-2601335001.A8 2601335001	£2.16	£2.59
63 - LOCKING WASHER 4 DIN 6799 BSD-2916080907.A8 2916080907	£2.16	£2.59
64 - SHIM WASHER BSD-2600100618.A233 2600100618	£1.75	£2.10
66 - BEARING BRACKET BSD-2605807085.A6 2605807085	£19.45	£23.34
67 - CATCH DISK BSD-2600190071.A37 2600190071	£6.52	£7.83
68 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A533 2600914010	£2.80	£3.36
76 - FELT STRIP BSD-2601005011.A41 2601005011	-
77 - FELT STRIP BSD-2601005021.A16 2601005021	£1.32	£1.58
80 - KEY CHUCK BSD-2608571065.A24 2608571065	£37.27	£44.72
80/700 - CHUCK WRENCH SG2 BSD-2607950007.A1032 2607950007	£6.52	£7.83
90 - PVC-INSULATED CABLE L=120 MM BSD-2604448228.A132 2604448228	£2.16	£2.59
91 - PVC-INSULATED CABLE L=95 MM BSD-1614431025.A46 1614431025	£2.61	£3.13
96 - PLAIN WASHER BSD-2600100066.A54 2600100066	£1.75	£2.10
653 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A125 2602025118	£14.91	£17.89
653/120 - AUXILIARY HANDLE M8 BSD-1612025019.A52 1612025019	£6.52	£7.83
653/124 - CLAMPING BAND dia43 MM BSD-1611316006.A389 1611316006	£2.61	£3.13
653/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A193 1613490002	£4.26	£5.11
653/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A127 2608040176	£6.52	£7.83
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A676 1613001009	£3.72	£4.47
808 - MARKING PLATE BSD-2601116378.A0 2601116378	£2.33	£2.80
816/04 - BRUSH HOLDER BSD-1607000CJ1.A50 1607000CJ1	£5.87	£7.04
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A181 2910611006	£1.75	£2.10
823 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A470 2910611020	£1.75	£2.10
849 - TOOTHED SHAFT BSD-2606309935.A7 2606309935	£21.52	£25.83
849/50 - HELICAL GEAR Z=29 BSD-2606319080.A3 2606319080	£6.52	£7.83
866 - BEARING BRACKET BSD-2605807934.A21 2605807934	-
890 - FASTENING PARTS KIT BSD-2607001305.A132 2607001305	£4.26	£5.11
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A181 2603410046	£2.16	£2.59
