Bosch GSB 18-2 RE / 0601141632 / CH 230 Volt Spare Parts

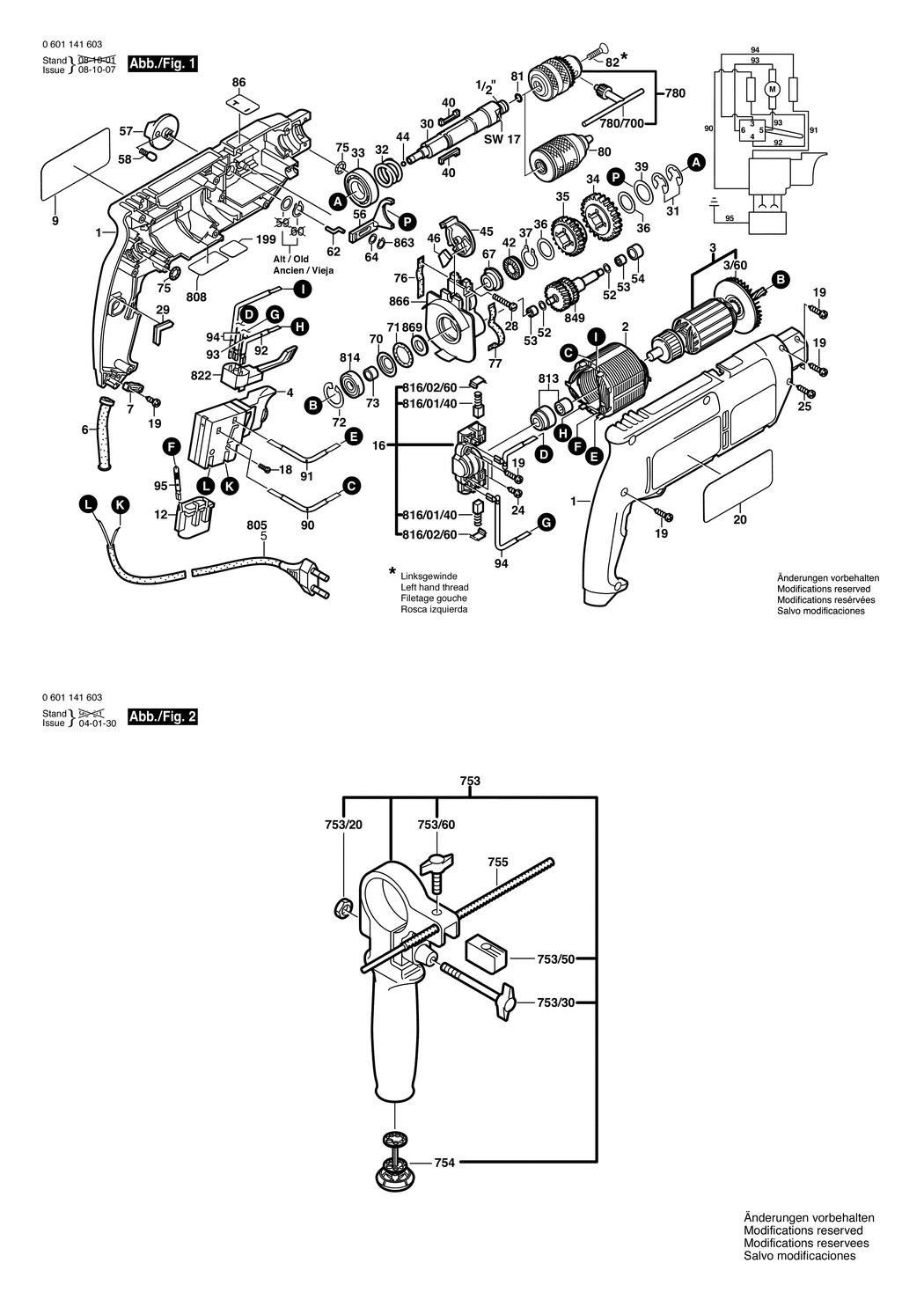

An exploded drawing and listing for the Bosch GSB 18-2 RE / 0601141632 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104437.A3 2605104437	-
2 - FIELD 220-230V BSD-2604220429.A33 2604220429	£23.86	£28.63
3 - ARMATURE 230-240V BSD-2604010862.A25 2604010862	-
3/60 - FAN BSD-2606610029.A380 2606610029	£2.61	£3.13
4 - SWITCH BSD-2607200209.A62 2607200209	£40.80	£48.96
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A40 1604460432	£11.30	£13.56
6 - GROMMET dia6.2-dia6.9x90 MM BSD-2600707066.A142 2600707066	£2.48	£2.97
7 - CABLE CLIP BSD-2601035001.A2487 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118437.A2 2601118437	-
12 - SUPPRESSION FILTER BSD-2607329114.A379 2607329114	-
16 - BRUSH PLATE BSD-2605807060.A20 2605807060	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2444 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A2204 2603490022	£1.75	£2.10
20 - REFERENCE PLATE BSD-2601118439.A9 2601118439	-
24 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A439 2603490017	£2.16	£2.59
25 - TORX OVAL-HEAD SCREW 3x30 BSD-2603490019.A16 2603490019	£1.75	£2.10
28 - SOCKET HEAD CAP SCREW BSD-2603429005.A43 2603429005	£1.75	£2.10
29 - DAMPING PLATE BSD-2601022000.A159 2601022000	£1.75	£2.10
30 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135044.A25 2606135044	-
31 - LOCKING WASHER 0.6 MM BSD-2600118001.A129 2600118001	£1.75	£2.10
31 - LOCKING WASHER 0.8 MM BSD-2600118002.A108 2600118002	£1.75	£2.10
31 - LOCKING WASHER 0.3 MM BSD-2600118006.A225 2600118006	-
32 - COMPRESSION SPRING BSD-2604616002.A189 2604616002	£1.75	£2.10
33 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A14 1900905163	£11.30	£13.56
34 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A154 2606317045	£14.72	£17.67
35 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A29 2606317037	-
36 - SHIM 1.0 MM BSD-2600101515.A223 2600101515	£1.95	£2.34
37 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A107 2916650006	£1.75	£2.10
39 - RETAINING WASHER BSD-2600101671.A36 2600101671	£1.75	£2.10
40 - FLAT KEY BSD-2602300028.A131 2602300028	-
42 - CATCH DISK BSD-2600190052.A109 2600190052	£7.78	£9.33
44 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A351 1903230010	£1.75	£2.10
45 - INDEXING DISK BSD-2601990001.A99 2601990001	£1.32	£1.58
46 - PRESSURE PLATE BSD-2601074003.A175 2601074003	£1.75	£2.10
52 - SHIM 0.3 MM BSD-2600100607.A440 2600100607	£1.75	£2.10
53 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A162 2600914010	£2.80	£3.36
54 - BEARING SLEEVE BSD-2600400027.A19 2600400027	£4.26	£5.11
56 - CONTROL FORK BSD-2602033005.A39 2602033005	-
57 - ROTARY HEAD BSD-2602026091.A45 2602026091	-
58 - RATCHET CAP BSD-2600590006.A294 2600590006	£1.75	£2.10
62 - DRIVER PIN BSD-2601335001.A58 2601335001	£2.16	£2.59
64 - SHIM WASHER BSD-2600100618.A150 2600100618	£1.75	£2.10
67 - CATCH DISK BSD-2600190057.A71 2600190057	-
70 - CUPPED WASHER BSD-2600500014.A2 2600500014	-
71 - O-RING 18x3 MM BSD-1900210117.A89 1900210117	£3.72	£4.47
72 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A136 2916660008	£2.16	£2.59
73 - RECEPTACLE BSD-2600400008.A648 2600400008	£1.75	£2.10
75 - O-RING 5.0x1.5 MM BSD-1900210000.A118 1900210000	£1.75	£2.10
76 - FELT STRIP BSD-2601005011.A154 2601005011	-
77 - FELT STRIP BSD-2601005016.A20 2601005016	£1.32	£1.58
81 - RETAINING RING BSD-2604601004.A23 2604601004	£1.75	£2.10
82 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11) BSD-2603421208.A49 2603421208	-
86 - STICKER BSD-2601110580.A21 2601110580	-
90 - CABLE L=173 MM BSD-2604448060.A236 2604448060	-
91 - CABLE L=98 MM BSD-2604448045.A213 2604448045	-
92 - CONNECTING CABLE L=88 MM BSD-2604448034.A35 2604448034	£1.75	£2.10
93 - CONNECTING CABLE L=103 MM BSD-2604448132.A20 2604448132	£1.75	£2.10
94 - CONNECTING CABLE L=73 MM BSD-2604448115.A26 2604448115	£1.75	£2.10
95 - EARTH CONDUCTOR BSD-2604448170.A142 2604448170	-
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A37 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A56 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A39 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A83 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A424 1613480008	£1.75	£2.10
754 - DRILL HOLDER BSD-2607000122.A113 2607000122	-
755 - DEPTH-GAUGE BSD-2603001019.A20 2603001019	£2.63	£3.16
780 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A422 1608571069	£23.86	£28.63
780/700 - CHUCK WRENCH SG2 BSD-2607950007.A770 2607950007	£6.52	£7.83
808 - NAMEPLATE BSD-160111A3H3.A4199 160111A3H3	£2.61	£3.13
813 - NEEDLE BEARING BSD-2600917902.A72 2600917902	-
814 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A252 2600905039	£12.04	£14.45
816/01/40 - CARBON-BRUSH SET BSD-2604321913.A4 2604321913	-
816/02/60 - RATCHET CAP BSD-2601322017.A107 2601322017	£1.75	£2.10
822 - CHANGE-OVER SWITCH BSD-2607200231.A130 2607200231	£16.41	£19.69
849 - TOOTHED SHAFT Z= 10/29/22 BSD-2606309913.A38 2606309913	-
863 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A588 2916080007	£2.61	£3.13
866 - BEARING BRACKET BSD-2605807928.A10 2605807928	-
869 - FELT DISC BSD-2600108000.A41 2600108000	-
