Bosch GSB 18-2 E / 0601180750 / I 220 Volt Spare Parts

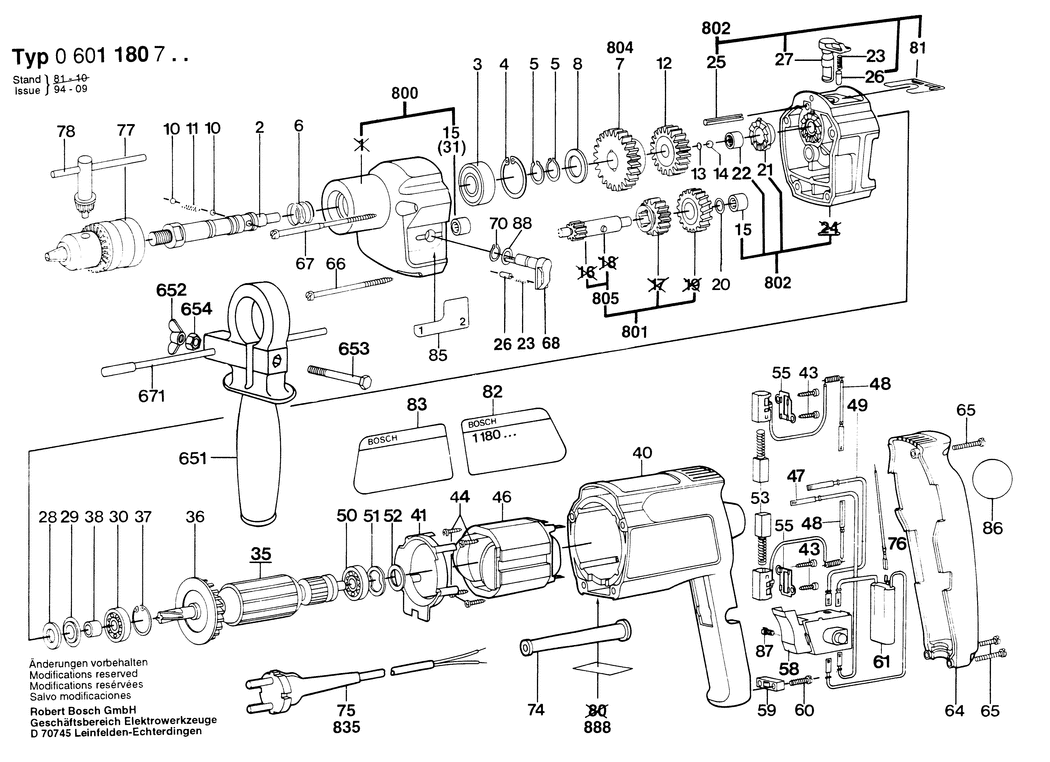

An exploded drawing and listing for the Bosch GSB 18-2 E / 0601180750 / I 220 Volt

	Ex VAT	Inc VAT
2 - DRILLING SPINDLE 1/2-UNF-2 BSD-2606135001.A7 2606135001	-
3 - GROOVE BALL BEARING 15x32x9 BSD-2600905014.A30 2600905014	-
5 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A360 2916650006	£1.75	£2.10
6 - COMPRESSION SPRING BSD-2604617000.A151 2604617000	£2.61	£3.13
7 - TOOTHED GEAR Z=48 BSD-2606317043.A9 2606317043	-
8 - SHIM 1.0 MM BSD-2600101515.A8 2600101515	£1.95	£2.34
10 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A10 1903230007	£1.75	£2.10
11 - COMPRESSION SPRING BSD-2604610007.A33 2604610007	-
12 - CYLINDRICAL GEAR Z=36 BSD-2606317025.A22 2606317025	-
13 - SHIM WASHER 0.2 MM BSD-2600000012.A90 2600000012	£1.75	£2.10
13 - SHIM WASHER 0.3 MM BSD-2600000013.A12 2600000013	-
13 - SHIM WASHER 0.5 MM BSD-2600000014.A35 2600000014	£1.75	£2.10
13 - SHIM WASHER 0.1 MM BSD-2600000018.A1 2600000018	-
14 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A569 1903230010	£1.75	£2.10
15 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A550 2600914010	£2.80	£3.36
20 - SHIM 0.3 MM BSD-2600100607.A948 2600100607	£1.75	£2.10
21 - LOCATING WASHER BSD-2606490031.A27 2606490031	-
22 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A469 2600917003	£2.80	£3.36
23 - RATCHET CAP BSD-2600590006.A1198 2600590006	£1.75	£2.10
25 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A211 2917780105	£1.75	£2.10
26 - RATCHET CAP BSD-2600590006.A1197 2600590006	£1.75	£2.10
27 - ROTARY KNOB BSD-2602026017.A43 2602026017	£7.36	£8.83
28 - FELT WASHER BSD-2600108077.A25 2600108077	£1.75	£2.10
29 - CUPPED WASHER BSD-2600500002.A163 2600500002	£1.75	£2.10
30 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A613 2600905021	£8.67	£10.41
31 - NEEDLE BEARING dia6/12 MM BSD-2600914017.A22 2600914017	£11.30	£13.56
35 - ARMATURE 220-240V BSD-2604010524.A9 2604010524	-
36 - FAN BSD-2606610049.A385 2606610049	£2.16	£2.59
37 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A835 2916660008	£2.16	£2.59
38 - RECEPTACLE BSD-2600400008.A368 2600400008	£1.75	£2.10
40 - MOTOR HOUSING BSD-2605104146.A2 2605104146	-
41 - COVER DISC BSD-2601328032.A35 2601328032	-
43 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1597 2603490017	£2.16	£2.59
44 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A141 2603435015	£2.16	£2.59
46 - FIELD 220-230V BSD-2604220491.A23 2604220491	£21.68	£26.01
47 - CABLE L=130 MM BSD-2604448005.A409 2604448005	£1.75	£2.10
48 - SUPPRESSION FILTER BSD-2604465090.A8 2604465090	£7.36	£8.83
49 - BRUSH HOLDER BSD-2604337003.A217 2604337003	£2.16	£2.59
49 - CONNECTING CABLE L=68 MM BSD-2604448100.A58 2604448100	£1.75	£2.10
50 - BALL BEARING 7x22x7 BSD-1900905018.A1116 1900905018	£18.96	£22.75
51 - SHIM BSD-2600150004.A275 2600150004	£2.16	£2.59
52 - SHIM 0.5 MM BSD-2600101020.A277 2600101020	£1.75	£2.10
52 - SHIM 0.2 MM BSD-2600101022.A355 2600101022	£1.75	£2.10
52 - SHIM 0.3 MM BSD-2600101023.A244 2600101023	£1.75	£2.10
53 - CARBON-BRUSH SET BSD-2604321905.A435 2604321905	£11.30	£13.56
54 - CONNECTING CABLE L=110 MM BSD-2604448146.A30 2604448146	£1.75	£2.10
58 - SWITCH BSD-1617200089.A39 1617200089	-
59 - CABLE CLIP BSD-2601035001.A1132 2601035001	£1.75	£2.10
60 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A89 2910611019	£2.80	£3.36
61 - SUPPRESSION FILTER BSD-2607329096.A99 2607329096	£7.36	£8.83
64 - HOUSING COVER BSD-2605132046.A11 2605132046	-
65 - SCREW 4x16 BSD-2603490022.A346 2603490022	£1.75	£2.10
66 - HEADLESS SCREW 65 MM BSD-2603435071.A136 2603435071	-
67 - TAPPING SCREW 79 MM BSD-2603435012.A88 2603435012	-
68 - ROTARY KNOB BSD-2602026018.A5 2602026018	-
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A385 2916650001	£2.61	£3.13
74 - GROMMET dia6.9 MM BSD-2600707059.A647 2600707059	£3.72	£4.47
74 - GROMMET dia8.8 MM BSD-2600707061.A353 2600707061	£2.80	£3.36
75 - POWER SUPPLY CORD I / BR 4.15m 2 x 1.0mm H05VV-F BSD-2604460278.A8 2604460278	£7.36	£8.83
76 - CABLE BSD-2604448003.A301 2604448003	-
77 - KEY CHUCK dia1.5-13 MM. 1/2 BSD-1608571055.A46 1608571055	-
78 - CHUCK WRENCH SG2 BSD-2607950007.A1027 2607950007	£6.52	£7.83
81 - STICKER BSD-2601110076.A29 2601110076	-
82 - STICKER BSD-2601110894.A1 2601110894	-
83 - STICKER BSD-2601110890.A5 2601110890	-
85 - STICKER BSD-2601110072.A0 2601110072	-
87 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A999 2603410001	£1.75	£2.10
88 - SHIM 0.2 MM BSD-2600100575.A161 2600100575	£2.16	£2.59
88 - SHIM 0.3 MM BSD-2600100576.A158 2600100576	-
88 - SHIM 0.5 MM BSD-2600100577.A162 2600100577	£1.75	£2.10
90 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A169 2603490024	£1.75	£2.10
651 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A293 1619P10682	£12.49	£14.99
652 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A90 2915191006	-
653 - HEX SCREW DIN 931-M6x75-8.8 BSD-2911011220.A22 2911011220	-
654 - CONICAL SPRING WASHER BSD-2601098001.A57 2601098001	-
671 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A83 1613001005	-
800 - GEAR HOUSING BSD-2605806959.A11 2605806959	-
801 - TOOTHED SHAFT Z=10/22/21 BSD-2606309902.A0 2606309902	-
802 - FLANGED BEARING BSD-2605700928.A11 2605700928	-
804 - CYLINDRICAL GEAR Z=48 BSD-2606317014.A38 2606317014	-
805 - TOOTHED SHAFT Z=10 BSD-2606309004.A11 2606309004	-
888 - NAMEPLATE BSD-160111A3H3.A2386 160111A3H3	£2.61	£3.13
