Bosch GSB 18-2 / 0601185042 / GB 240 Volt Spare Parts

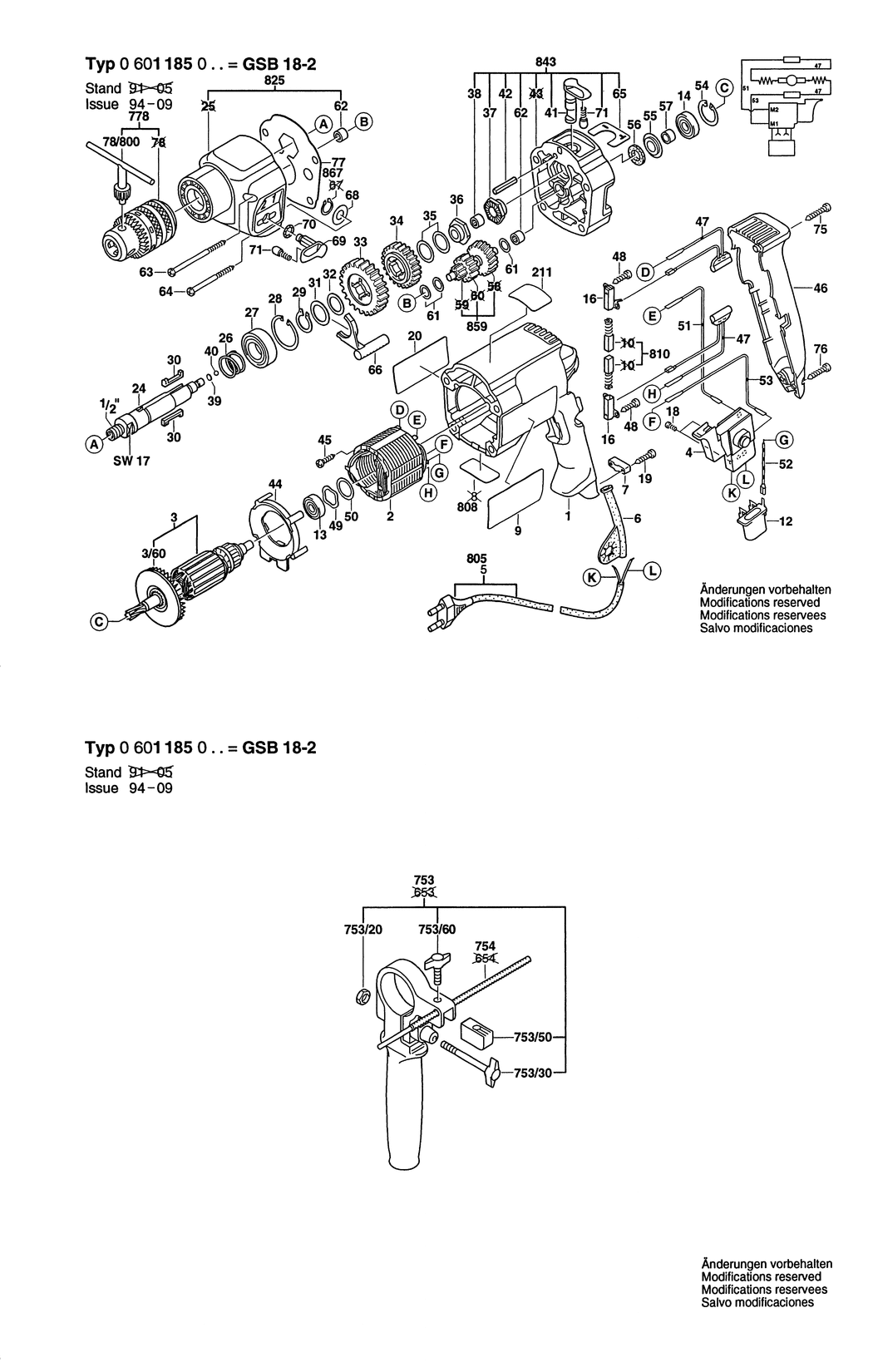

An exploded drawing and listing for the Bosch GSB 18-2 / 0601185042 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104309.A12 2605104309	£23.86	£28.63
2 - FIELD 220-240V BSD-1604220254.A99 1604220254	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604010744.A5 2604010744	-
3/60 - FAN BSD-2606610029.A423 2606610029	£2.61	£3.13
4 - ON-OFF SWITCH BSD-2607200365.A23 2607200365	-
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F BSD-3604460069.A54 3604460069	£37.72	£45.27
6 - GROMMET dia6.9 MM BSD-2600707059.A130 2600707059	£3.72	£4.47
6 - GROMMET dia8.8 MM BSD-2600707061.A80 2600707061	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A2450 2601035001	£1.75	£2.10
7 - CABLE CLIP BSD-1611035005.A234 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601119138.A0 2601119138	-
12 - SUPPRESSION FILTER BSD-2607329114.A421 2607329114	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A471 1900905018	£18.96	£22.75
16 - BRUSH HOLDER BSD-2604337003.A86 2604337003	£2.16	£2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2438 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A2262 2603490022	£1.75	£2.10
20 - STICKER BSD-2601118171.A14 2601118171	-
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A39 2606135013	£21.42	£25.71
26 - COMPRESSION SPRING BSD-2604616002.A222 2604616002	£1.75	£2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A36 1900905163	£11.30	£13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A143 2916660014	£1.75	£2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A64 2916650008	£1.75	£2.10
30 - FLAT KEY BSD-2602300028.A154 2602300028	-
31 - RETAINING WASHER BSD-2600101671.A60 2600101671	£1.75	£2.10
32 - SHIM 1.0 MM BSD-2600101515.A233 2600101515	£1.95	£2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A122 2606317045	£14.72	£17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A61 2606317037	-
35 - SHIM 0.5 MM BSD-2600101616.A22 2600101616	-
35 - SHIM 0.3 MM BSD-2600101617.A299 2600101617	£1.75	£2.10
36 - CATCH DISK BSD-2600190052.A138 2600190052	£7.78	£9.33
37 - CATCH DISK BSD-2600190057.A42 2600190057	-
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A61 2600917003	£2.80	£3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A145 2600000012	£1.75	£2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A153 2600000014	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A311 1903230010	£1.75	£2.10
41 - ROTARY KNOB BSD-2602026017.A155 2602026017	£7.36	£8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A11 2917780105	£1.75	£2.10
44 - COVER DISC BSD-2601328033.A201 2601328033	-
45 - TAPPING SCREW BSD-2603435086.A152 2603435086	£1.75	£2.10
46 - HOUSING COVER BSD-2605132049.A65 2605132049	£7.36	£8.83
47 - SUPPRESSION FILTER BSD-2604465068.A57 2604465068	-
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A452 2603490017	£2.16	£2.59
49 - SHIM BSD-2600150004.A494 2600150004	£2.16	£2.59
50 - SHIM WASHER 0.5 MM BSD-2600101667.A24 2600101667	£1.75	£2.10
50 - SHIM WASHER 0.3 MM BSD-2600101027.A333 2600101027	£1.75	£2.10
51 - CABLE L=130 MM BSD-2604448005.A67 2604448005	£1.75	£2.10
52 - EARTH CONDUCTOR BSD-2604448097.A42 2604448097	£1.75	£2.10
53 - CONNECTING CABLE L=96MM BSD-2604448133.A30 2604448133	£2.80	£3.36
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A87 2916660008	£2.16	£2.59
55 - CUPPED WASHER BSD-2600500002.A473 2600500002	£1.75	£2.10
56 - FELT WASHER BSD-2600108077.A355 2600108077	£1.75	£2.10
57 - RECEPTACLE BSD-2600400008.A706 2600400008	£1.75	£2.10
61 - SHIM 0.3 MM BSD-2600100607.A468 2600100607	£1.75	£2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A202 2600914010	£2.80	£3.36
63 - HEADLESS SCREW BSD-2603435070.A81 2603435070	£2.16	£2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A14 2603435071	-
66 - ADJUSTING SLIDE BSD-2602033006.A79 2602033006	£2.80	£3.36
68 - SHIM WASHER BSD-2600100618.A117 2600100618	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026038.A13 2602026038	-
70 - PARTS SET BSD-2607010226.A47 2607010226	£2.33	£2.80
71 - RATCHET CAP BSD-2600590006.A369 2600590006	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A815 2603490024	£1.75	£2.10
77 - GASKET BSD-2601073012.A74 2601073012	£1.75	£2.10
78/800 - CHUCK WRENCH SG2 BSD-2607950007.A702 2607950007	£6.52	£7.83
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A4 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A89 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A5 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A58 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A458 1613480008	£1.75	£2.10
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A298 1613001005	-
778 - KEY CHUCK dia1.5-13 MM BSD-1608571080.A26 1608571080	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3H3.A4086 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604321905.A273 2604321905	£11.30	£13.56
825 - GEAR HOUSING BSD-2605806990.A43 2605806990	-
843 - INTERMEDIATE FLANGE BSD-2605700936.A95 2605700936	£46.82	£56.18
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A65 2606100903	-
867 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A617 2916080007	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
