Bosch GSB 16 RE / 3601A4E600 / EU 230 Volt Spare Parts

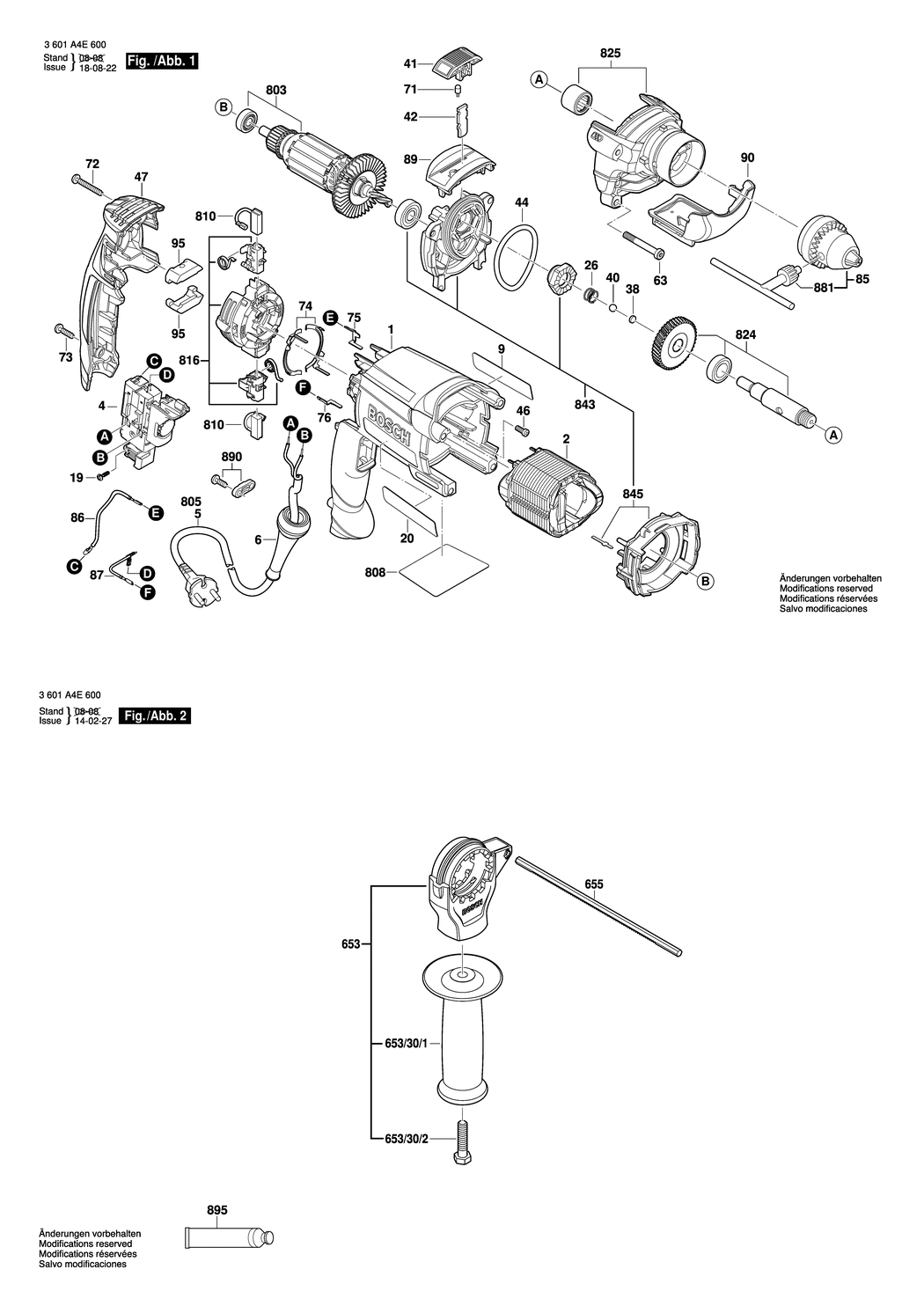

An exploded drawing and listing for the Bosch GSB 16 RE / 3601A4E600 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1618B00A04.A4 1618B00A04	£31.64	£37.97
2 - FIELD 230-240V BSD-2604220689.A6 2604220689	£21.52	£25.83
4 - SWITCH BSD-2607200680.A3 2607200680	£16.41	£19.69
6 - CABLE SLEEVE dia6.4-dia7.0x66 MM BSD-2600707075.A13 2600707075	£2.61	£3.13
8 - NAMEPLATE BSD-2601115940.A0 2601115940	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1618B0002F.A0 1618B0002F	£2.80	£3.36
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A527 2603490017	£2.16	£2.59
20 - REFERENCE PLATE BSD-1618B00400.A4 1618B00400	£2.80	£3.36
26 - COMPRESSION SPRING BSD-2604616006.A183 2604616006	£1.75	£2.10
38 - SHIM WASHER 1.0 MM BSD-2600000021.A40 2600000021	£1.75	£2.10
38 - SHIM WASHER 1.35 MM BSD-2600000030.A33 2600000030	£1.75	£2.10
38 - SHIM WASHER 1.7 MM BSD-2600000031.A109 2600000031	£1.75	£2.10
40 - BALL DIN 5401-5 G28 BSD-1903230009.A659 1903230009	£1.75	£2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A261 1903230010	£1.75	£2.10
40 - BALL 5.25 MM BSD-2603230007.A75 2603230007	£1.75	£2.10
41 - SLIDE SWITCH BSD-1618B00800.A0 1618B00800	£1.75	£2.10
42 - PRESSURE PLATE BSD-2601074008.A4 2601074008	£1.75	£2.10
44 - O-RING BSD-2600206024.A4 2600206024	£1.75	£2.10
46 - TAPPING SCREW BSD-2603435086.A135 2603435086	£1.75	£2.10
47 - HOUSING COVER BSD-1618B00A00.A0 1618B00A00	£12.04	£14.45
63 - HEADLESS SCREW BSD-2603435085.A4 2603435085	£1.75	£2.10
71 - RATCHET CAP BSD-2600590006.A590 2600590006	£1.75	£2.10
72 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A52 2603490027	£1.75	£2.10
73 - SCREW 4x16 BSD-2603490022.A2733 2603490022	£1.75	£2.10
74 - SWITCH CONTACT BSD-2601324062.A3 2601324062	£1.75	£2.10
75 - CONTACT BSD-2601099259.A9 2601099259	£1.75	£2.10
76 - CONTACT BSD-2601099260.A10 2601099260	£2.16	£2.59
85 - KEY CHUCK BSD-2608571065.A10 2608571065	£37.27	£44.72
86 - CONNECTING CABLE BSD-2604448331.A2 2604448331	£1.75	£2.10
87 - CONNECTING CABLE 48 mm BSD-2604448334.A12 2604448334	£2.16	£2.59
89 - BULB SHIELD BSD-1618B00A03.A0 1618B00A03	£3.72	£4.47
90 - BULB SHIELD BSD-2605510270.A1 2605510270	-
95 - CLIP BSD-2601329118.A1 2601329118	£1.75	£2.10
653 - AUXILIARY HANDLE BSD-2602025175.A3 2602025175	£16.41	£19.69
653/30/1 - HANDLE BSD-2602025180.A21 2602025180	-
653/30/2 - HEX SCREW M8x45 BSD-2911061252.A1 2911061252	£1.32	£1.58
655 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A389 1613001009	£3.72	£4.47
803 - ARMATURE 230-240V BSD-2604011913.A2 2604011913	£37.72	£45.27
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A502 1607000386	£21.52	£25.83
808 - NAMEPLATE BSD-2601115940.A1 2601115940	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617000525.A63 1617000525	£11.30	£13.56
810 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A124 1607000485	£72.18	£86.62
816 - BRUSH PLATE BSD-1614336061.A89 1614336061	£18.96	£22.75
824 - DRILLING SPINDLE BSD-2606135941.A0 2606135941	£27.23	£32.68
825 - GEAR HOUSING BSD-2605806883.A3 2605806883	£23.86	£28.63
843 - BEARING BRACKET BSD-2605700945.A3 2605700945	£27.23	£32.68
845 - AIR GUIDE PLATE BSD-2600148011.A0 2600148011	£5.30	£6.36
881 - CHUCK WRENCH SG2 BSD-2607950007.A423 2607950007	£6.52	£7.83
890 - FASTENING PARTS KIT BSD-2607001305.A316 2607001305	£4.26	£5.11
895 - GREASE TUBE Albida BSD-3605430003.A40 3605430003	£27.23	£32.68
