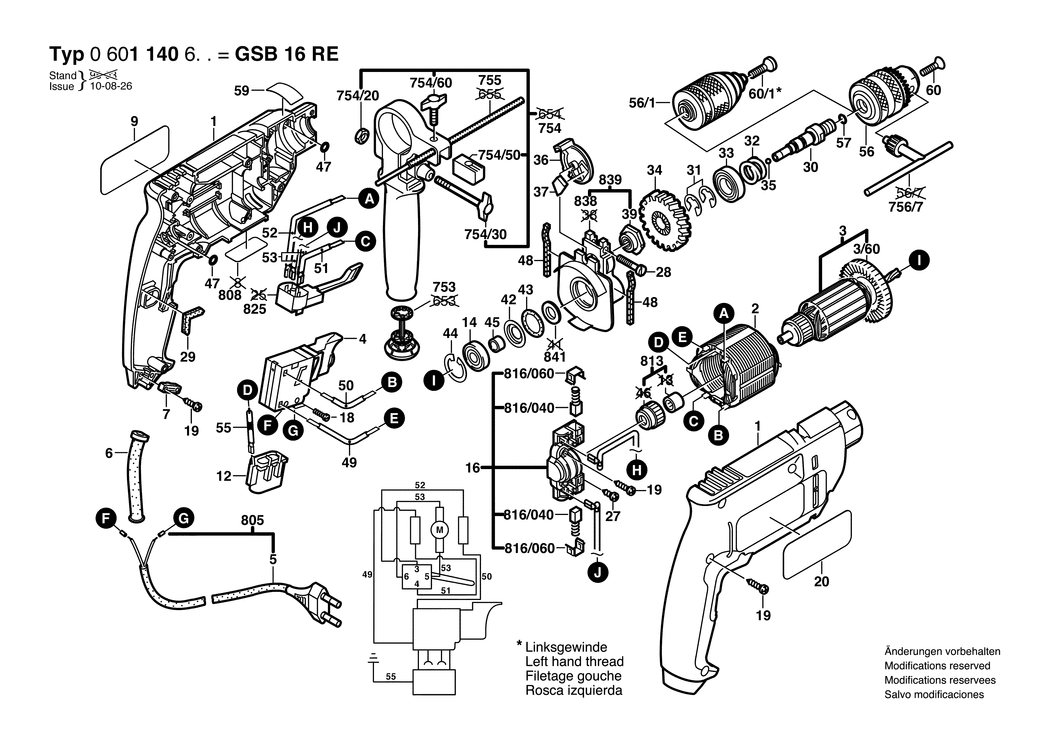

1 - HOUSING SECTION
BSD-2605104436.A9
2605104436
|
£31.64
|
£37.97
|
|
|
2 - FIELD 115V
BSD-2604220440.A4
2604220440
|
£27.23
|
£32.68
|
|
|
3 - ARMATURE 110-120V
BSD-2604011051.A0
2604011051
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A394
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200210.A13
2607200210
|
£48.38
|
£58.06
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460207.A17
2604460207
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A109
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2465
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118433.A1
2601118433
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A404
2607329114
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A271
2600905039
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2609992626.A0
2609992626
|
£16.74
|
£20.09
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2456
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2219
2603490022
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601118434.A6
2601118434
|
-
|
|
|
|
27 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A446
2603490017
|
£2.16
|
£2.59
|
|
|
28 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A193
2910021134
|
£1.75
|
£2.10
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A172
2601022000
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE 1/2.M6
BSD-2606135033.A41
2606135033
|
-
|
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A143
2600118001
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A94
2600118002
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A239
2600118006
|
-
|
|
|
|
31 - LOCKING WASHER 1.2 MM
BSD-2600118007.A7
2600118007
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-2604617000.A71
2604617000
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A203
1900905122
|
£10.10
|
£12.12
|
|
|
34 - CYLINDRICAL GEAR Z=42
BSD-2606320050.A6
2606320050
|
£14.75
|
£17.70
|
|
|
35 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A344
1903230010
|
£1.75
|
£2.10
|
|
|
36 - INDEXING DISK
BSD-2601990001.A113
2601990001
|
£1.32
|
£1.58
|
|
|
37 - PRESSURE PLATE
BSD-2601074003.A188
2601074003
|
£1.75
|
£2.10
|
|
|
39 - SCREEN DISC
BSD-2606490056.A3
2606490056
|
-
|
|
|
|
42 - CUPPED WASHER
BSD-2600500014.A12
2600500014
|
-
|
|
|
|
43 - O-RING 18x3 MM
BSD-1900210117.A103
1900210117
|
£3.72
|
£4.47
|
|
|
44 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A143
2916660008
|
£2.16
|
£2.59
|
|
|
45 - RECEPTACLE
BSD-2600400008.A667
2600400008
|
£1.75
|
£2.10
|
|
|
47 - O-RING 5.0x1.5 MM
BSD-1900210000.A104
1900210000
|
£1.75
|
£2.10
|
|
|
48 - FELT STRIP
BSD-2601005011.A169
2601005011
|
-
|
|
|
|
49 - CABLE L=173 MM
BSD-2604448060.A217
2604448060
|
-
|
|
|
|
50 - CABLE L=98 MM
BSD-2604448045.A231
2604448045
|
-
|
|
|
|
51 - CONNECTING CABLE L=88 MM
BSD-2604448034.A17
2604448034
|
£1.75
|
£2.10
|
|
|
52 - CONNECTING CABLE L=103 MM
BSD-2604448132.A17
2604448132
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE L=73 MM
BSD-2604448115.A21
2604448115
|
£1.75
|
£2.10
|
|
|
55 - EARTH CONDUCTOR
BSD-2604448103.A36
2604448103
|
-
|
|
|
|
56 - KEYLESS CHUCK dia 1.5-13 MM. 1/2
BSD-2608572106.A19
2608572106
|
£81.81
|
£98.17
|
|
|
56 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A418
1608571069
|
£23.86
|
£28.63
|
|
|
57 - RETAINING RING
BSD-2604601004.A27
2604601004
|
£1.75
|
£2.10
|
|
|
59 - STICKER
BSD-2601110580.A4
2601110580
|
-
|
|
|
|
60 - COUNTERSUNK-HEAD SCREW M 6x38 MM
BSD-2603421215.A4
2603421215
|
-
|
|
|
|
60/1 - COUNTERSUNK-HEAD SCREW M 6x34 MM
BSD-2603421213.A73
2603421213
|
£2.61
|
£3.13
|
|
|
753 - DRILL HOLDER
BSD-2607000122.A98
2607000122
|
-
|
|
|
|
754 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A54
1619P10682
|
£12.49
|
£14.99
|
|
|
754/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A71
2915011007
|
-
|
|
|
|
754/30 - WING SCREW M6x(15)55
BSD-1613480007.A46
1613480007
|
£1.75
|
£2.10
|
|
|
754/50 - CLAMPING PLATE M6
BSD-2608040014.A101
2608040014
|
-
|
|
|
|
754/60 - WING SCREW M6x20 MM
BSD-1613480008.A417
1613480008
|
£1.75
|
£2.10
|
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A279
1613001005
|
-
|
|
|
|
756/7 - CHUCK WRENCH SG2
BSD-2607950007.A737
2607950007
|
£6.52
|
£7.83
|
|
|
813 - NEEDLE BEARING
BSD-2600917902.A57
2600917902
|
-
|
|
|
|
816/040 - CARBON-BRUSH SET
BSD-2604321916.A2
2604321916
|
-
|
|
|
|
816/060 - RATCHET CAP
BSD-2601329051.A84
2601329051
|
£2.33
|
£2.80
|
|
|
816/060 - RATCHET CAP
BSD-2601322013.A285
2601322013
|
£1.75
|
£2.10
|
|
|
825 - CHANGE-OVER SWITCH
BSD-2607200231.A115
2607200231
|
£16.41
|
£19.69
|
|
|
838 - BEARING BRACKET
BSD-2605807029.A4
2605807029
|
-
|
|
|
|
839 - BEARING BRACKET
BSD-2605807915.A71
2605807915
|
-
|
|
|
|
841 - FELT DISC
BSD-2600108000.A56
2600108000
|
-
|
|
|
