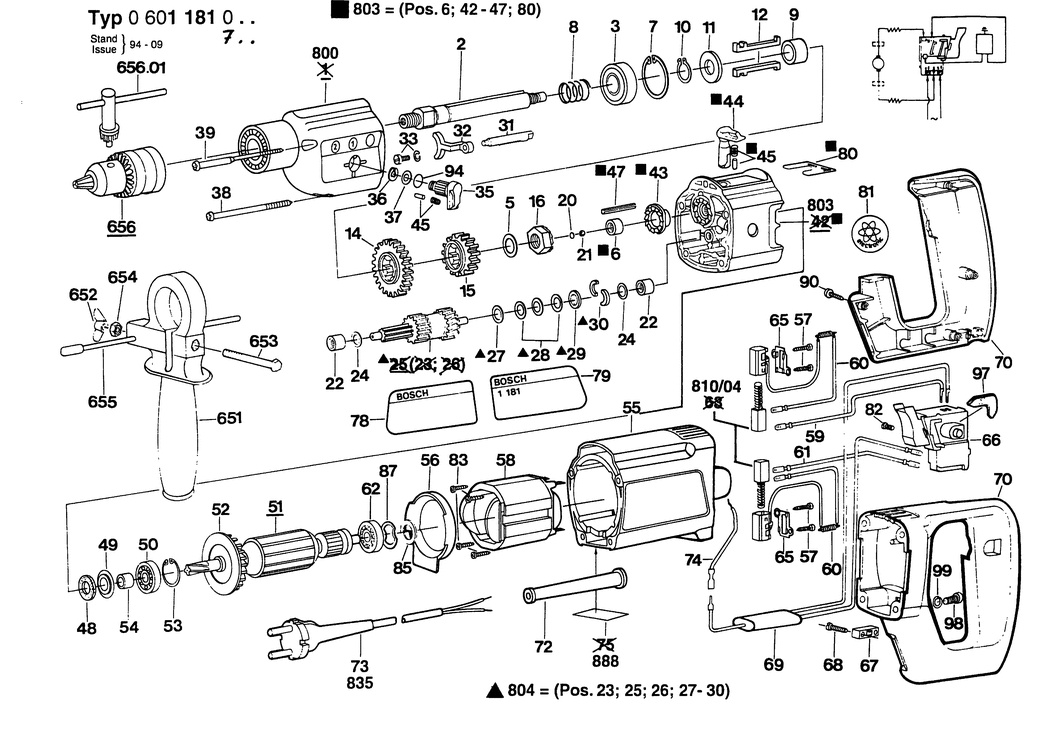

2 - DRILLING SPINDLE 1/2
BSD-2606135026.A32
2606135026
|
-
|
|
|
|
2 - DRILLING SPINDLE 1/2
BSD-2606135010.A35
2606135010
|
-
|
|
|
|
3 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A303
1900905163
|
£11.30
|
£13.56
|
|
|
5 - SHIM 0.5 MM
BSD-2600101616.A186
2600101616
|
-
|
|
|
|
5 - SHIM 0.3 MM
BSD-2600101617.A144
2600101617
|
£1.75
|
£2.10
|
|
|
6 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A267
2600917003
|
£2.80
|
£3.36
|
|
|
7 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A185
2916660014
|
£1.75
|
£2.10
|
|
|
8 - COMPRESSION SPRING
BSD-2604616002.A113
2604616002
|
£1.75
|
£2.10
|
|
|
9 - SPACER BUSHING
BSD-2600300016.A1
2600300016
|
-
|
|
|
|
10 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A165
2916650008
|
£1.75
|
£2.10
|
|
|
11 - RETAINING WASHER
BSD-2600101671.A164
2600101671
|
£1.75
|
£2.10
|
|
|
12 - FLAT KEY
BSD-2602300027.A8
2602300027
|
-
|
|
|
|
14 - CYLINDRICAL GEAR Z=48
BSD-2606317036.A35
2606317036
|
-
|
|
|
|
15 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A79
2606317037
|
-
|
|
|
|
16 - CATCH DISK
BSD-2600190052.A45
2600190052
|
£7.78
|
£9.33
|
|
|
16 - LOCATING WASHER
BSD-2600190031.A17
2600190031
|
-
|
|
|
|
20 - SHIM WASHER 0.2 MM
BSD-2600000012.A210
2600000012
|
£1.75
|
£2.10
|
|
|
20 - SHIM WASHER 0.5 MM
BSD-2600000014.A202
2600000014
|
£1.75
|
£2.10
|
|
|
21 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A95
1903230010
|
£1.75
|
£2.10
|
|
|
22 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A56
2600914010
|
£2.80
|
£3.36
|
|
|
24 - SHIM 0.3 MM
BSD-2600100607.A234
2600100607
|
£1.75
|
£2.10
|
|
|
27 - SHIM 0.5 MM
BSD-2600100682.A57
2600100682
|
-
|
|
|
|
27 - SHIM 0.3 MM
BSD-2600100683.A7
2600100683
|
-
|
|
|
|
27 - SHIM 0.2 MM
BSD-2600100684.A54
2600100684
|
-
|
|
|
|
28 - DISC SPRING
BSD-2600550008.A103
2600550008
|
£1.75
|
£2.10
|
|
|
29 - COVER DISC
BSD-2600114001.A51
2600114001
|
-
|
|
|
|
30 - LOCKING WASHER
BSD-2600116001.A40
2600116001
|
-
|
|
|
|
31 - TOOTHED RACK
BSD-2603070012.A10
2603070012
|
-
|
|
|
|
32 - FORK LEVER
BSD-2602033003.A51
2602033003
|
-
|
|
|
|
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A15
2914501011
|
£1.75
|
£2.10
|
|
|
35 - ROTARY KNOB
BSD-2602026034.A23
2602026034
|
-
|
|
|
|
36 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A261
2916080910
|
£2.16
|
£2.59
|
|
|
37 - SHIM 0.5 MM
BSD-2600101612.A255
2600101612
|
£1.75
|
£2.10
|
|
|
38 - HEADLESS SCREW 74 MM
BSD-2603435019.A29
2603435019
|
-
|
|
|
|
39 - TAPPING SCREW 79 MM
BSD-2603435012.A3
2603435012
|
-
|
|
|
|
43 - LOCATING WASHER
BSD-2600190029.A20
2600190029
|
-
|
|
|
|
44 - ROTARY KNOB
BSD-2602026017.A123
2602026017
|
£7.36
|
£8.83
|
|
|
45 - RATCHET CAP
BSD-2600590006.A2
2600590006
|
£1.75
|
£2.10
|
|
|
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A50
2917780105
|
£1.75
|
£2.10
|
|
|
48 - FELT WASHER
BSD-2600108077.A411
2600108077
|
£1.75
|
£2.10
|
|
|
49 - CUPPED WASHER
BSD-2600500002.A617
2600500002
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A307
2600905021
|
£8.67
|
£10.41
|
|
|
51 - ARMATURE 220-240V
BSD-2604010524.A26
2604010524
|
-
|
|
|
|
52 - FAN
BSD-2606610049.A34
2606610049
|
£2.16
|
£2.59
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A369
2916660008
|
£2.16
|
£2.59
|
|
|
54 - RECEPTACLE
BSD-2600400008.A557
2600400008
|
£1.75
|
£2.10
|
|
|
55 - MOTOR HOUSING
BSD-2605108014.A15
2605108014
|
-
|
|
|
|
56 - COVER DISC
BSD-2601328033.A248
2601328033
|
-
|
|
|
|
57 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A756
2603490017
|
£2.16
|
£2.59
|
|
|
58 - FIELD 220-230V
BSD-2604220491.A56
2604220491
|
£21.68
|
£26.01
|
|
|
59 - CABLE
BSD-2604448042.A2
2604448042
|
-
|
|
|
|
60 - BRUSH HOLDER
BSD-2604337003.A34
2604337003
|
£2.16
|
£2.59
|
|
|
60/10 - CONNECTING CABLE L=68 MM
BSD-2604448100.A110
2604448100
|
£1.75
|
£2.10
|
|
|
61 - CONNECTING CABLE
BSD-2604448036.A22
2604448036
|
-
|
|
|
|
62 - BALL BEARING 7x22x7
BSD-1900905018.A330
1900905018
|
£18.96
|
£22.75
|
|
|
64 - SUPPRESSION FILTER
BSD-2604465068.A70
2604465068
|
-
|
|
|
|
65 - BRUSH PLATE
BSD-2601015047.A2
2601015047
|
-
|
|
|
|
66 - SWITCH
BSD-2607200260.A428
2607200260
|
£11.30
|
£13.56
|
|
|
67 - CABLE CLIP
BSD-2601035001.A1584
2601035001
|
£1.75
|
£2.10
|
|
|
68 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A712
2910211019
|
£1.75
|
£2.10
|
|
|
69 - SUPPRESSION CAPACITOR
BSD-2607329103.A23
2607329103
|
-
|
|
|
|
70 - HANDLE
BSD-2605133000.A3
2605133000
|
-
|
|
|
|
72 - GROMMET dia6.9 MM
BSD-2600707059.A299
2600707059
|
£3.72
|
£4.47
|
|
|
752 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A160
2600707060
|
£2.61
|
£3.13
|
|
|
72 - GROMMET dia8.8 MM
BSD-2600707061.A142
2600707061
|
£2.80
|
£3.36
|
|
|
74 - CABLE
BSD-2604448003.A23
2604448003
|
-
|
|
|
|
78 - STICKER
BSD-2601110093.A19
2601110093
|
-
|
|
|
|
79 - STICKER
BSD-2601110249.A2
2601110249
|
-
|
|
|
|
80 - STICKER
BSD-2601110076.A136
2601110076
|
-
|
|
|
|
81 - STICKER
BSD-2601110041.A101
2601110041
|
-
|
|
|
|
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1892
2603410001
|
£1.75
|
£2.10
|
|
|
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A675
2603435015
|
£2.16
|
£2.59
|
|
|
85 - SHIM 0.5 MM
BSD-2600101020.A482
2600101020
|
£1.75
|
£2.10
|
|
|
85 - SHIM 0.2 MM
BSD-2600101022.A150
2600101022
|
£1.75
|
£2.10
|
|
|
85 - SHIM 0.3 MM
BSD-2600101023.A397
2600101023
|
£1.75
|
£2.10
|
|
|
87 - SHIM
BSD-2600150004.A625
2600150004
|
£2.16
|
£2.59
|
|
|
90 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A481
2912401020
|
£2.16
|
£2.59
|
|
|
94 - O-RING 12.0x1.0 MM
BSD-1600210024.A56
1600210024
|
-
|
|
|
|
97 - DAMPING PLATE
BSD-2601022000.A203
2601022000
|
£1.75
|
£2.10
|
|
|
98 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8
BSD-2910951132.A52
2910951132
|
-
|
|
|
|
99 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1074
2916690003
|
£1.75
|
£2.10
|
|
|
651 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A141
1619P10682
|
£12.49
|
£14.99
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A36
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911011220.A55
2911011220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A15
2601098001
|
-
|
|
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A231
1613001005
|
-
|
|
|
|
656 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A9
1608571055
|
-
|
|
|
|
656/01 - CHUCK WRENCH SG2
BSD-2607950007.A67
2607950007
|
£6.52
|
£7.83
|
|
|
800 - GEAR HOUSING
BSD-2605806973.A8
2605806973
|
-
|
|
|
|
802 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A252
2916080910
|
£2.16
|
£2.59
|
|
|
803 - INTERMEDIATE FLANGE
BSD-2605700933.A4
2605700933
|
-
|
|
|
|
810/04 - CARBON-BRUSH SET
BSD-2604321905.A49
2604321905
|
£11.30
|
£13.56
|
|
|
810/06 - RATCHET CAP
BSD-2601322013.A439
2601322013
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5015
160111A3H3
|
£2.61
|
£3.13
|
|
