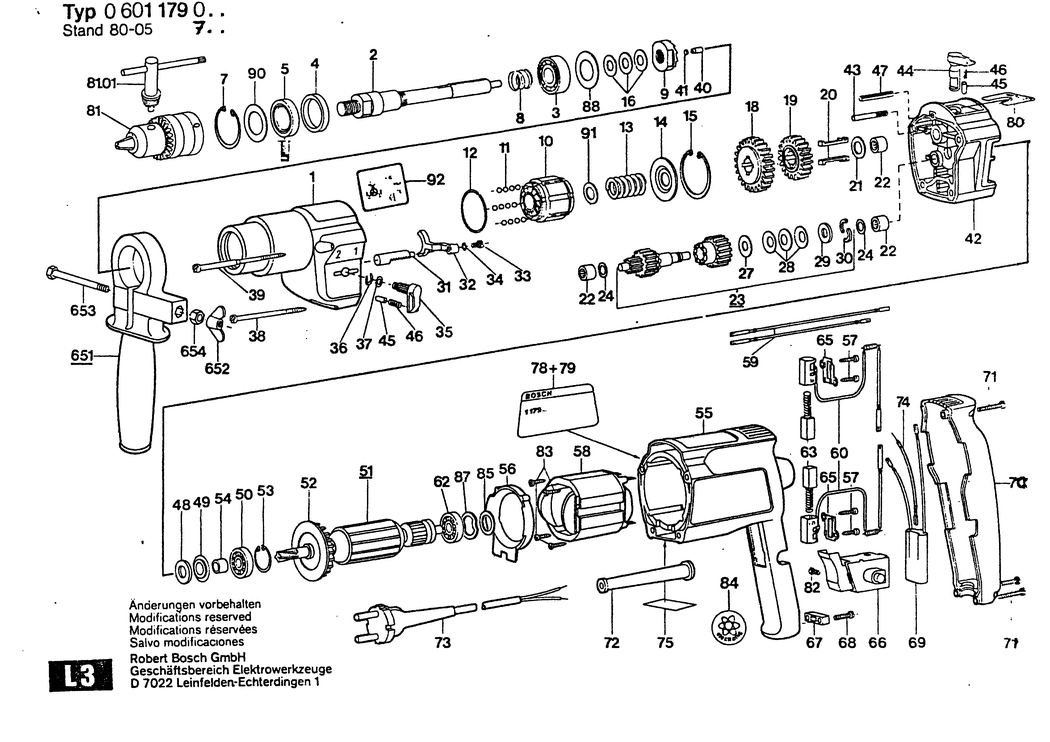

1 - GEAR HOUSING
BSD-2605806954.A8
2605806954
|
-
|
|
|
|
2 - DRILLING SPINDLE
BSD-2606135003.A0
2606135003
|
-
|
|
|
|
3 - GROOVE BALL BEARING 160 03 DIN 625
BSD-1900900202.A20
1900900202
|
-
|
|
|
|
4 - SPACER RING
BSD-2600201007.A20
2600201007
|
-
|
|
|
|
5 - RADIAL SEAL
BSD-2600283011.A11
2600283011
|
-
|
|
|
|
7 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A438
2916660014
|
£1.75
|
£2.10
|
|
|
8 - COMPRESSION SPRING
BSD-2604616002.A22
2604616002
|
£1.75
|
£2.10
|
|
|
9 - LOCATING WASHER
BSD-2600190025.A3
2600190025
|
-
|
|
|
|
10 - STRIKER
BSD-2608710008.A20
2608710008
|
-
|
|
|
|
11 - BALL 5/32
BSD-1903230204.A12
1903230204
|
-
|
|
|
|
12 - RETAINING RING
BSD-2604601011.A15
2604601011
|
-
|
|
|
|
13 - COMPRESSION SPRING
BSD-2604619008.A12
2604619008
|
-
|
|
|
|
14 - SUPPORTING DISC
BSD-2600101082.A20
2600101082
|
-
|
|
|
|
15 - SPRING RETAINING RING 40x1.75 DIN 472
BSD-2916663018.A11
2916663018
|
-
|
|
|
|
16 - SHIM WASHER 0.3 MM
BSD-2600101027.A221
2600101027
|
£1.75
|
£2.10
|
|
|
16 - SHIM WASHER 0.3 MM
BSD-2600101666.A11
2600101666
|
-
|
|
|
|
16 - SHIM WASHER 0.5 MM
BSD-2600101667.A65
2600101667
|
£1.75
|
£2.10
|
|
|
18 - CYLINDRICAL GEAR Z=48
BSD-2606317028.A0
2606317028
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=36
BSD-2606317029.A11
2606317029
|
-
|
|
|
|
20 - FLAT KEY
BSD-2602300001.A34
2602300001
|
-
|
|
|
|
21 - PLAIN WASHER
BSD-2600101001.A34
2600101001
|
-
|
|
|
|
22 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A526
2600914010
|
£2.80
|
£3.36
|
|
|
23 - OVERLOAD CLUTCH
BSD-2606309903.A0
2606309903
|
-
|
|
|
|
24 - SHIM 0.3 MM
BSD-2600100570.A226
2600100570
|
£1.75
|
£2.10
|
|
|
27 - SHIM 0.5 MM
BSD-2600100682.A6
2600100682
|
-
|
|
|
|
27 - SHIM 0.3 MM
BSD-2600100683.A58
2600100683
|
-
|
|
|
|
27 - SHIM 0.2 MM
BSD-2600100684.A3
2600100684
|
-
|
|
|
|
28 - DISC SPRING
BSD-2600550008.A31
2600550008
|
£1.75
|
£2.10
|
|
|
29 - COVER DISC
BSD-2600114001.A18
2600114001
|
-
|
|
|
|
30 - LOCKING WASHER
BSD-2600116001.A28
2600116001
|
-
|
|
|
|
31 - TOOTHED RACK
BSD-2603070010.A0
2603070010
|
-
|
|
|
|
32 - FORK LEVER
BSD-2602033000.A0
2602033000
|
-
|
|
|
|
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A144
2914501011
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A96
2916690001
|
-
|
|
|
|
35 - ROTARY KNOB
BSD-2602026023.A51
2602026023
|
-
|
|
|
|
36 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A52
2916080007
|
£2.61
|
£3.13
|
|
|
37 - SHIM WASHER
BSD-2600100618.A242
2600100618
|
£1.75
|
£2.10
|
|
|
38 - HEADLESS SCREW 65 MM
BSD-2603435071.A121
2603435071
|
-
|
|
|
|
39 - TAPPING SCREW 79 MM
BSD-2603435012.A73
2603435012
|
-
|
|
|
|
40 - PRESSURE SPINDLE 0.2 MM
BSD-2603200019.A1
2603200019
|
-
|
|
|
|
41 - SHIM WASHER 0.3 MM
BSD-2600000015.A15
2600000015
|
-
|
|
|
|
41 - SHIM WASHER
BSD-2600000016.A8
2600000016
|
-
|
|
|
|
41 - SHIM WASHER 0.5 MM
BSD-2600000017.A15
2600000017
|
-
|
|
|
|
41 - SHIM WASHER 0.8 MM
BSD-2600000019.A0
2600000019
|
-
|
|
|
|
42 - ASSEMBLY OF SERVICE PARTS
BSD-2605700923.A11
2605700923
|
-
|
|
|
|
43 - HOLDING PIN
BSD-2603200011.A22
2603200011
|
-
|
|
|
|
44 - ROTARY KNOB
BSD-2602026027.A3
2602026027
|
-
|
|
|
|
45 - RATCHET CAP
BSD-2600590006.A1161
2600590006
|
£1.75
|
£2.10
|
|
|
46 - RATCHET CAP
BSD-2600590006.A1162
2600590006
|
£1.75
|
£2.10
|
|
|
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A195
2917780105
|
£1.75
|
£2.10
|
|
|
48 - FELT WASHER
BSD-2600108077.A19
2600108077
|
£1.75
|
£2.10
|
|
|
49 - CUPPED WASHER
BSD-2600500002.A170
2600500002
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A625
2600905021
|
£8.67
|
£10.41
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A838
2916660008
|
£2.16
|
£2.59
|
|
|
54 - RECEPTACLE
BSD-2600400008.A354
2600400008
|
£1.75
|
£2.10
|
|
|
55 - MOTOR HOUSING
BSD-2605104116.A42
2605104116
|
-
|
|
|
|
56 - COVER DISC
BSD-2601328033.A66
2601328033
|
-
|
|
|
|
57 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1612
2603490017
|
£2.16
|
£2.59
|
|
|
58 - FIELD 220-230V
BSD-2604220491.A32
2604220491
|
£21.68
|
£26.01
|
|
|
59 - CABLE L=130 MM
BSD-2604448005.A405
2604448005
|
£1.75
|
£2.10
|
|
|
60 - SUPPRESSOR BOX
BSD-2604465062.A30
2604465062
|
-
|
|
|
|
62 - BALL BEARING 7x22x7
BSD-1900905018.A1109
1900905018
|
£18.96
|
£22.75
|
|
|
65 - BRUSH PLATE
BSD-2601015047.A162
2601015047
|
-
|
|
|
|
67 - CABLE CLIP
BSD-2601035001.A1124
2601035001
|
£1.75
|
£2.10
|
|
|
68 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2401
2910211019
|
£1.75
|
£2.10
|
|
|
69 - SUPPRESSION FILTER
BSD-2607329096.A92
2607329096
|
£7.36
|
£8.83
|
|
|
70 - HOUSING COVER
BSD-2605132040.A49
2605132040
|
-
|
|
|
|
71 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A990
2910211021
|
£1.75
|
£2.10
|
|
|
72 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A120
2600703011
|
£2.80
|
£3.36
|
|
|
72 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1523
2600703012
|
£2.80
|
£3.36
|
|
|
74 - CABLE
BSD-2604448003.A305
2604448003
|
-
|
|
|
|
78 - STICKER
BSD-2601110093.A85
2601110093
|
-
|
|
|
|
79 - STICKER
BSD-2601110096.A4
2601110096
|
-
|
|
|
|
80 - STICKER
BSD-2601110076.A40
2601110076
|
-
|
|
|
|
81 - KEY CHUCK dia 1-10 MM. 1/2
BSD-1608571045.A12
1608571045
|
£29.74
|
£35.69
|
|
|
81 - CHUCK WRENCH SG2. SW4
BSD-1607950044.A41
1607950044
|
£6.12
|
£7.34
|
|
|
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A994
2603410001
|
£1.75
|
£2.10
|
|
|
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A156
2603435015
|
£2.16
|
£2.59
|
|
|
84 - STICKER
BSD-2601110041.A206
2601110041
|
-
|
|
|
|
85 - SHIM 0.3 MM
BSD-2600101023.A229
2600101023
|
£1.75
|
£2.10
|
|
|
85 - SHIM 0.2 MM
BSD-2600101022.A370
2600101022
|
£1.75
|
£2.10
|
|
|
85 - SHIM 0.5 MM
BSD-2600101020.A262
2600101020
|
£1.75
|
£2.10
|
|
|
87 - SHIM
BSD-2600150004.A281
2600150004
|
£2.16
|
£2.59
|
|
|
88 - SHIM WASHER
BSD-2600102042.A12
2600102042
|
-
|
|
|
|
90 - SHIM 0.5 MM
BSD-2600102044.A1
2600102044
|
-
|
|
|
|
90 - SHIM 0.3 MM
BSD-2600102043.A10
2600102043
|
-
|
|
|
|
91 - SHIM 0.2 MM
BSD-2600100692.A31
2600100692
|
-
|
|
|
|
91 - SHIM 0.3 MM
BSD-2600100693.A4
2600100693
|
-
|
|
|
|
91 - SHIM 0.5 MM
BSD-2600100695.A210
2600100695
|
£1.75
|
£2.10
|
|
|
92 - REFERENCE PLATE
BSD-2601110158.A8
2601110158
|
-
|
|
|
|
651 - AUXILIARY HANDLE
BSD-2602025031.A18
2602025031
|
-
|
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A92
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911011220.A23
2911011220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A40
2601098001
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A438
2604321905
|
£11.30
|
£13.56
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2428
160111A3H3
|
£2.61
|
£3.13
|
|
