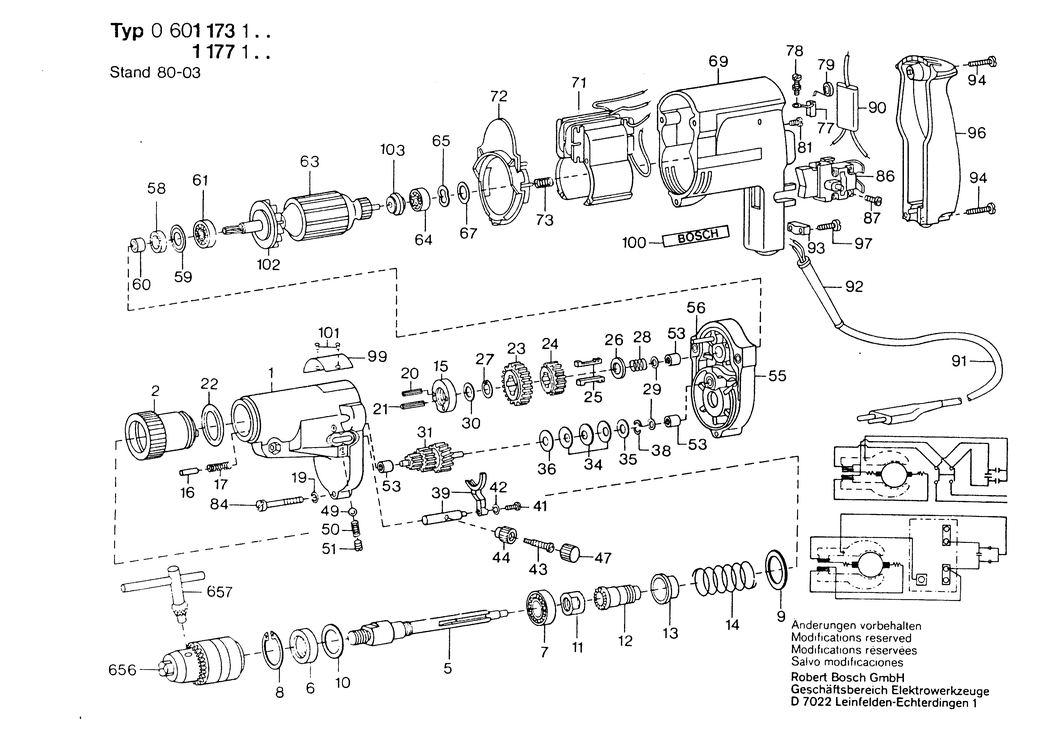

1 - GEAR HOUSING
BSD-2605806935.A13
2605806935
|
-
|
|
|
|
2 - RECEPTACLE
BSD-2605801002.A20
2605801002
|
-
|
|
|
|
5 - DRILLING SPINDLE 1/2
BSD-2603523034.A15
2603523034
|
-
|
|
|
|
6 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A8
2600283009
|
-
|
|
|
|
7 - GROOVE BALL BEARING 15x32x9
BSD-1900900272.A55
1900900272
|
-
|
|
|
|
8 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A392
2916660013
|
£2.16
|
£2.59
|
|
|
9 - SHIM
BSD-2600102654.A1
2600102654
|
-
|
|
|
|
10 - SHIM
BSD-2600102036.A1
2600102036
|
£2.61
|
£3.13
|
|
|
11 - LOCATING WASHER
BSD-2600190009.A25
2600190009
|
-
|
|
|
|
12 - THREADED BUSHING
BSD-2600324002.A34
2600324002
|
-
|
|
|
|
13 - CAPSULE
BSD-2600521016.A1
2600521016
|
-
|
|
|
|
14 - COMPRESSION SPRING
BSD-2604616000.A22
2604616000
|
-
|
|
|
|
15 - ROUND NUT
BSD-2603340008.A5
2603340008
|
-
|
|
|
|
16 - STRAIGHT PIN
BSD-2600556001.A1
2600556001
|
-
|
|
|
|
17 - COMPRESSION SPRING
BSD-2604612001.A1
2604612001
|
-
|
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A276
2916690003
|
£1.75
|
£2.10
|
|
|
20 - SLOTTED SPRING PIN 3x16 DIN 1481
BSD-2917760079.A7
2917760079
|
-
|
|
|
|
21 - SLOTTED SPRING PIN 3x20 DIN 1481
BSD-2917760081.A10
2917760081
|
-
|
|
|
|
22 - O-RING 32.0x2.0 MM
BSD-2600210024.A47
2600210024
|
£1.75
|
£2.10
|
|
|
23 - CYLINDRICAL GEAR Z=42
BSD-2606316078.A8
2606316078
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=33
BSD-2606316077.A7
2606316077
|
-
|
|
|
|
25 - FLAT KEY
BSD-2602300001.A54
2602300001
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-2600101001.A59
2600101001
|
-
|
|
|
|
27 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A228
2916650003
|
£1.75
|
£2.10
|
|
|
28 - COMPRESSION SPRING
BSD-2604611027.A1
2604611027
|
-
|
|
|
|
29 - SHIM 0.3 MM
BSD-2600100570.A273
2600100570
|
£1.75
|
£2.10
|
|
|
30 - SHIM
BSD-2600101607.A2
2600101607
|
-
|
|
|
|
31 - OVERLOAD CLUTCH Z= 13/22/27
BSD-2606308908.A13
2606308908
|
-
|
|
|
|
31 - TOOTHED SHAFT Z= 13
BSD-2606308019.A2
2606308019
|
-
|
|
|
|
34 - DISC SPRING
BSD-2600550008.A6
2600550008
|
£1.75
|
£2.10
|
|
|
35 - COVER DISC
BSD-2600114001.A6
2600114001
|
-
|
|
|
|
36 - SHIM 0.5 MM
BSD-2600100682.A25
2600100682
|
-
|
|
|
|
36 - SHIM 0.3 MM
BSD-2600100683.A39
2600100683
|
-
|
|
|
|
36 - SHIM 0.2 MM
BSD-2600100684.A22
2600100684
|
-
|
|
|
|
38 - LOCKING WASHER
BSD-2600116001.A1
2600116001
|
-
|
|
|
|
39 - AXLE
BSD-2607010007.A15
2607010007
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A172
2910011048
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A12
2916690001
|
-
|
|
|
|
43 - PAN HEAD SCREW
BSD-2603413020.A10
2603413020
|
-
|
|
|
|
44 - SHIFT-LEVER KNOB
BSD-2603340016.A24
2603340016
|
-
|
|
|
|
47 - SEALING CAP
BSD-2600508029.A53
2600508029
|
-
|
|
|
|
49 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A244
1903230007
|
£1.75
|
£2.10
|
|
|
50 - COMPRESSION SPRING
BSD-2604611030.A34
2604611030
|
-
|
|
|
|
51 - SET SCREW M 5x5 DIN 551-5.8
BSD-2912031147.A20
2912031147
|
-
|
|
|
|
53 - NEEDLE BEARING
BSD-2600914004.A29
2600914004
|
£4.26
|
£5.11
|
|
|
55 - ASSEMBLY OF SERVICE PARTS
BSD-2605700907.A5
2605700907
|
-
|
|
|
|
56 - HOLDING PIN
BSD-2603200009.A10
2603200009
|
-
|
|
|
|
58 - FELT DISC
BSD-2600108020.A166
2600108020
|
-
|
|
|
|
59 - CUPPED WASHER
BSD-2600500008.A156
2600500008
|
-
|
|
|
|
60 - RECEPTACLE
BSD-2600400020.A184
2600400020
|
-
|
|
|
|
61 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A180
2600905007
|
-
|
|
|
|
63 - ARMATURE WITH FAN 110-115V
BSD-2604010438.A2
2604010438
|
-
|
|
|
|
64 - BALL BEARING 7x22x7
BSD-1900905018.A727
1900905018
|
£18.96
|
£22.75
|
|
|
65 - SHIM
BSD-2600150004.A32
2600150004
|
£2.16
|
£2.59
|
|
|
67 - SHIM 0.5 MM
BSD-2600101020.A38
2600101020
|
£1.75
|
£2.10
|
|
|
67 - SHIM 0.2 MM
BSD-2600101022.A612
2600101022
|
£1.75
|
£2.10
|
|
|
67 - SHIM 0.3 MM
BSD-2600101023.A38
2600101023
|
£1.75
|
£2.10
|
|
|
69 - MOTOR HOUSING
BSD-2605104903.A60
2605104903
|
-
|
|
|
|
71 - POLE SHOE 110V
BSD-2604222288.A2
2604222288
|
-
|
|
|
|
72 - COVER DISC
BSD-2601328018.A5
2601328018
|
-
|
|
|
|
73 - COMPRESSION SPRING
BSD-2604611026.A268
2604611026
|
-
|
|
|
|
78 - SPIRAL SPRING
BSD-2604652004.A42
2604652004
|
-
|
|
|
|
79 - SOCKET HEAD CAP SCREW
BSD-2603410010.A90
2603410010
|
-
|
|
|
|
81 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A450
2910211004
|
-
|
|
|
|
84 - PAN HEAD SCREW
BSD-2603410025.A61
2603410025
|
-
|
|
|
|
86 - ON-OFF SWITCH
BSD-2607200065.A10
2607200065
|
-
|
|
|
|
87 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A328
2603410023
|
-
|
|
|
|
90 - SUPPRESSION FILTER
BSD-2607329051.A245
2607329051
|
-
|
|
|
|
91 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A60
2604460053
|
-
|
|
|
|
92 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A326
2600703011
|
£2.80
|
£3.36
|
|
|
92 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1103
2600703012
|
£2.80
|
£3.36
|
|
|
92 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A271
2600703013
|
£2.61
|
£3.13
|
|
|
94 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A684
2910211021
|
£1.75
|
£2.10
|
|
|
96 - HOUSING COVER
BSD-2605132007.A6
2605132007
|
-
|
|
|
|
97 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1809
2910211019
|
£1.75
|
£2.10
|
|
|
100 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A48
2601007003
|
-
|
|
|
|
101 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A42
2917724032
|
-
|
|
|
|
102 - FAN
BSD-2606610016.A36
2606610016
|
-
|
|
|
|
103 - ARMATURE PLATE
BSD-2600121002.A2
2600121002
|
-
|
|
|
|
656 - CHUCK
BSD-1608571028.A6
1608571028
|
-
|
|
|
|
657 - CHUCK WRENCH SG2
BSD-2607950007.A1461
2607950007
|
£6.52
|
£7.83
|
|
|
704 - HANDLE M6
BSD-2602025023.A1
2602025023
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604320906.A128
2604320906
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A719
160111A3H3
|
£2.61
|
£3.13
|
|
