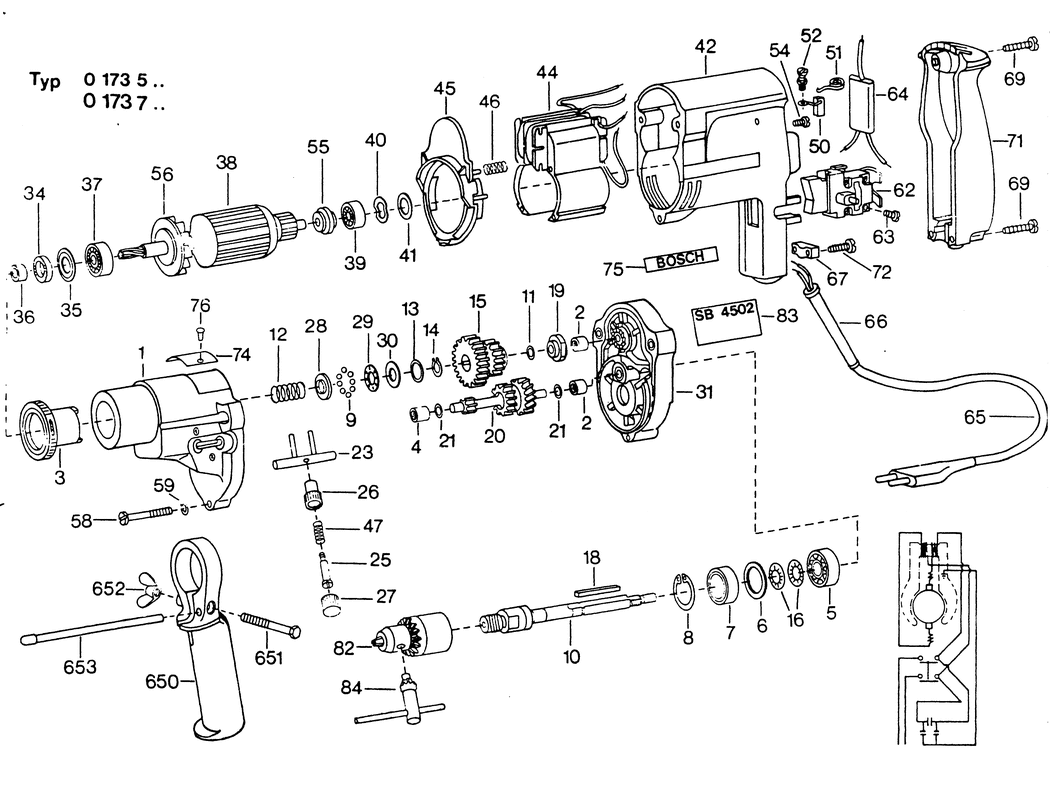

1 - GEAR HOUSING
BSD-2605806948.A3
2605806948
|
-
|
|
|
|
2 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A618
2600914010
|
£2.80
|
£3.36
|
|
|
3 - SWITCHING BUSHING
BSD-2605801017.A4
2605801017
|
-
|
|
|
|
4 - NEEDLE BEARING
BSD-2600914004.A57
2600914004
|
£4.26
|
£5.11
|
|
|
5 - GROOVE BALL BEARING 6001 Y DIN 625 FD150
BSD-1900900271.A0
1900900271
|
-
|
|
|
|
6 - PLAIN WASHER
BSD-2600102003.A7
2600102003
|
-
|
|
|
|
7 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A29
2600283009
|
-
|
|
|
|
8 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A75
2916660011
|
£1.66
|
£1.99
|
|
|
9 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A372
1903230003
|
£1.95
|
£2.34
|
|
|
10 - DRILLING SPINDLE 1/2
BSD-2603523024.A0
2603523024
|
-
|
|
|
|
11 - SHIM 0.8 MM
BSD-2600100091.A7
2600100091
|
-
|
|
|
|
11 - SHIM 0.2 MM
BSD-2600100621.A5
2600100621
|
£1.66
|
£1.99
|
|
|
11 - PLAIN WASHER 0.3 MM
BSD-1230100633.A30
1230100633
|
-
|
|
|
|
11 - SHIM 0.5 MM
BSD-2600100623.A40
2600100623
|
-
|
|
|
|
12 - COMPRESSION SPRING
BSD-2604630002.A4
2604630002
|
£1.66
|
£1.99
|
|
|
13 - SHIM 0.1 MM
BSD-2600101660.A6
2600101660
|
-
|
|
|
|
13 - SHIM 0.2 MM
BSD-2600101661.A2
2600101661
|
-
|
|
|
|
13 - SHIM 0.3 MM
BSD-2600101662.A5
2600101662
|
-
|
|
|
|
13 - SHIM 0.5 MM
BSD-2600101663.A1
2600101663
|
-
|
|
|
|
14 - SPRING RETAINING RING DIN 471 11x1MM
BSD-2916650002.A5
2916650002
|
-
|
|
|
|
15 - CYLINDRICAL GEAR Z=32/45
BSD-2606328048.A4
2606328048
|
-
|
|
|
|
16 - DISC SPRING
BSD-2600170000.A0
2600170000
|
-
|
|
|
|
18 - FLAT KEY
BSD-2602300004.A5
2602300004
|
-
|
|
|
|
19 - LOCATING WASHER
BSD-2600190013.A5
2600190013
|
-
|
|
|
|
20 - TOOTHED SHAFT Z=10/24/27
BSD-2606308906.A3
2606308906
|
-
|
|
|
|
21 - SHIM 0.3 MM
BSD-2600100570.A302
2600100570
|
£1.66
|
£1.99
|
|
|
23 - GUIDE ROD
BSD-2603103900.A1
2603103900
|
-
|
|
|
|
25 - PAN HEAD SCREW
BSD-2603413003.A5
2603413003
|
-
|
|
|
|
26 - ROUND NUT
BSD-2603340002.A7
2603340002
|
-
|
|
|
|
27 - SEALING CAP
BSD-2600508029.A55
2600508029
|
-
|
|
|
|
28 - SPRING DISK
BSD-2600220007.A2
2600220007
|
-
|
|
|
|
29 - BALL CAGE
BSD-2600138001.A0
2600138001
|
-
|
|
|
|
30 - PLAIN WASHER
BSD-2600101003.A5
2600101003
|
-
|
|
|
|
31 - INTERMEDIATE FLANGE
BSD-2605700919.A4
2605700919
|
-
|
|
|
|
34 - FELT DISC
BSD-2600108020.A184
2600108020
|
-
|
|
|
|
35 - CUPPED WASHER
BSD-2600500008.A189
2600500008
|
-
|
|
|
|
36 - RECEPTACLE
BSD-2600400020.A151
2600400020
|
-
|
|
|
|
37 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A192
2600905007
|
-
|
|
|
|
38 - ARMATURE 220V
BSD-2604010439.A17
2604010439
|
-
|
|
|
|
39 - BALL BEARING 7x22x7
BSD-1900905018.A801
1900905018
|
£18.96
|
£22.75
|
|
|
40 - SHIM
BSD-2600150004.A25
2600150004
|
£1.95
|
£2.34
|
|
|
41 - SHIM 0.5 MM
BSD-2600101020.A68
2600101020
|
£1.66
|
£1.99
|
|
|
41 - SHIM 0.2 MM
BSD-2600101022.A582
2600101022
|
£1.66
|
£1.99
|
|
|
41 - SHIM 0.3 MM
BSD-2600101023.A68
2600101023
|
£1.66
|
£1.99
|
|
|
42 - MOTOR HOUSING
BSD-2605104903.A75
2605104903
|
-
|
|
|
|
44 - POLE SHOE 220V
BSD-2604222289.A10
2604222289
|
-
|
|
|
|
44 - POLE SHOE 220V
BSD-2604222292.A5
2604222292
|
-
|
|
|
|
45 - COVER DISC
BSD-2601328018.A23
2601328018
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-2604611026.A332
2604611026
|
-
|
|
|
|
47 - COMPRESSION SPRING
BSD-2604610006.A5
2604610006
|
-
|
|
|
|
50 - CARBON-BRUSH SET
BSD-2604320906.A99
2604320906
|
-
|
|
|
|
51 - SPIRAL SPRING
BSD-2604652004.A46
2604652004
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW
BSD-2603410010.A129
2603410010
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A466
2910211004
|
-
|
|
|
|
55 - ARMATURE PLATE
BSD-2600121002.A23
2600121002
|
-
|
|
|
|
56 - FAN
BSD-2606610038.A2
2606610038
|
-
|
|
|
|
58 - PAN HEAD SCREW
BSD-2603410025.A41
2603410025
|
-
|
|
|
|
59 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A195
2916690003
|
£1.66
|
£1.99
|
|
|
62 - ON-OFF SWITCH
BSD-2607200065.A30
2607200065
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A404
2603410023
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-2607329051.A181
2607329051
|
-
|
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A382
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1056
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A310
2600703013
|
£2.33
|
£2.80
|
|
|
67 - CABLE CLIP
BSD-2601035001.A182
2601035001
|
£1.66
|
£1.99
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A745
2910211021
|
£1.66
|
£1.99
|
|
|
71 - HOUSING COVER
BSD-2605132038.A2
2605132038
|
-
|
|
|
|
71 - HOUSING COVER
BSD-2605132007.A37
2605132007
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1778
2910211019
|
£1.66
|
£1.99
|
|
|
75 - NAMEPLATE
BSD-160111A3H3.A531
160111A3H3
|
£2.33
|
£2.80
|
|
|
76 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A99
2917724031
|
-
|
|
|
|
82 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A82
1608571069
|
£23.86
|
£28.63
|
|
|
83 - STICKER
BSD-2601110045.A0
2601110045
|
-
|
|
|
|
84 - CHUCK WRENCH SG2
BSD-2607950007.A1310
2607950007
|
£6.52
|
£7.83
|
|
|
650 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A91
2602025032
|
-
|
|
|
|
651 - HEX SCREW DIN 931-M6x45-8.8
BSD-2911011211.A8
2911011211
|
-
|
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A120
2915191006
|
-
|
|
|
|
653 - DEPTH-GAUGE
BSD-2607010026.A31
2607010026
|
-
|
|
|
