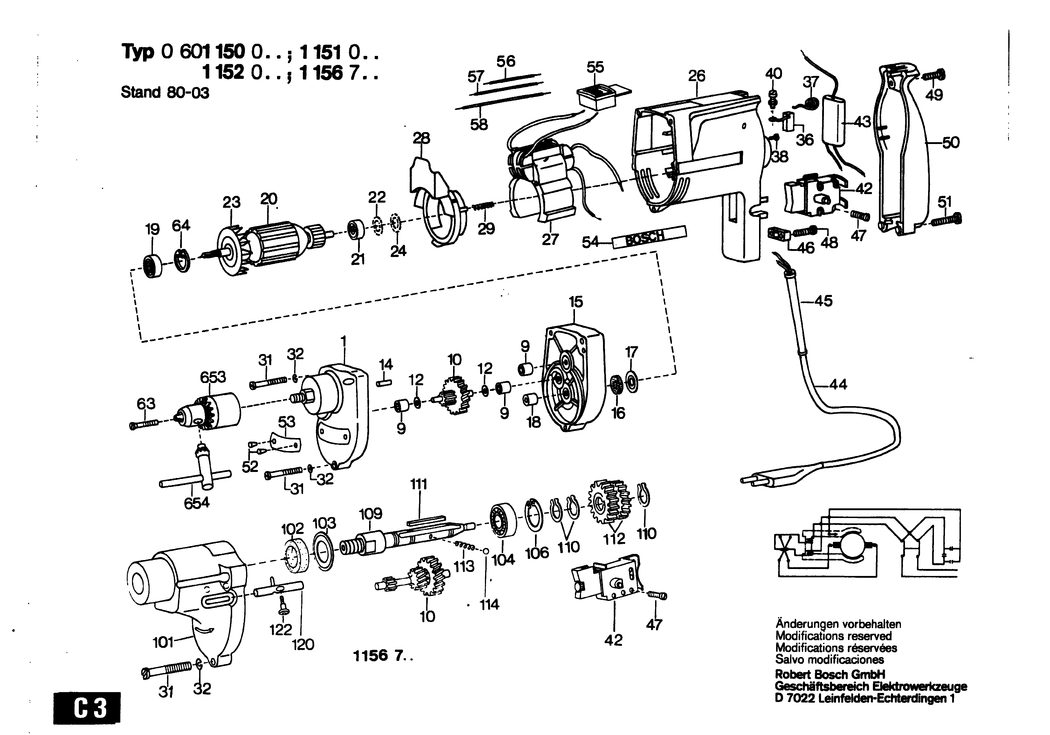

9 - NEEDLE BEARING
BSD-2600914004.A41
2600914004
|
£4.26
|
£5.11
|
|
|
12 - SHIM 0.3 MM
BSD-2600100570.A255
2600100570
|
£1.84
|
£2.21
|
|
|
15 - INTERMEDIATE FLANGE
BSD-2605700916.A3
2605700916
|
-
|
|
|
|
16 - FELT DISC
BSD-2600108020.A156
2600108020
|
-
|
|
|
|
17 - CUPPED WASHER
BSD-2600500008.A138
2600500008
|
-
|
|
|
|
18 - RECEPTACLE
BSD-2600400020.A178
2600400020
|
-
|
|
|
|
19 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A170
2600905007
|
-
|
|
|
|
20 - ARMATURE WITH FAN 110-115V
BSD-2604010507.A1
2604010507
|
-
|
|
|
|
21 - BALL BEARING 7x22x7
BSD-1900905018.A694
1900905018
|
£19.91
|
£23.89
|
|
|
22 - SHIM
BSD-2600150004.A51
2600150004
|
£2.27
|
£2.72
|
|
|
23 - FAN
BSD-2606610019.A7
2606610019
|
-
|
|
|
|
24 - SHIM 0.5 MM
BSD-2600101020.A66
2600101020
|
£1.84
|
£2.21
|
|
|
24 - SHIM 0.2 MM
BSD-2600101022.A584
2600101022
|
£1.84
|
£2.21
|
|
|
24 - SHIM 0.3 MM
BSD-2600101023.A66
2600101023
|
£1.84
|
£2.21
|
|
|
26 - MOTOR HOUSING
BSD-2605104930.A3
2605104930
|
-
|
|
|
|
27 - POLE SHOE 110-115V
BSD-2604222231.A1
2604222231
|
-
|
|
|
|
28 - COVER DISC
BSD-2601328001.A13
2601328001
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A298
2604611026
|
-
|
|
|
|
31 - PAN HEAD SCREW
BSD-2603410026.A1
2603410026
|
-
|
|
|
|
32 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A231
2916690003
|
£1.75
|
£2.10
|
|
|
37 - SPIRAL SPRING
BSD-2604652004.A26
2604652004
|
-
|
|
|
|
38 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A422
2910211004
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW
BSD-2603410010.A53
2603410010
|
-
|
|
|
|
42 - SWITCH
BSD-2607200148.A4
2607200148
|
-
|
|
|
|
43 - SUPPRESSION FILTER
BSD-2607329051.A204
2607329051
|
-
|
|
|
|
44 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460205.A66
2604460205
|
£28.59
|
£34.31
|
|
|
45 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A294
2600703011
|
£2.94
|
£3.53
|
|
|
45 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1135
2600703012
|
£2.94
|
£3.53
|
|
|
45 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A239
2600703013
|
£2.74
|
£3.29
|
|
|
46 - CABLE CLIP
BSD-2601035001.A42
2601035001
|
£1.84
|
£2.21
|
|
|
47 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A366
2603410023
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1848
2910211019
|
£1.84
|
£2.21
|
|
|
50 - HOUSING COVER
BSD-2605132007.A14
2605132007
|
-
|
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A732
2910211021
|
£1.75
|
£2.10
|
|
|
52 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A27
2917724032
|
-
|
|
|
|
54 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A30
2601007003
|
-
|
|
|
|
55 - ON-OFF SWITCH
BSD-2607200052.A9
2607200052
|
-
|
|
|
|
56 - CONNECTING CABLE
BSD-2604411505.A64
2604411505
|
-
|
|
|
|
57 - CABLE
BSD-2604411530.A30
2604411530
|
-
|
|
|
|
58 - CABLE
BSD-2604411523.A18
2604411523
|
-
|
|
|
|
63 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A83
2603421226
|
£1.84
|
£2.21
|
|
|
64 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A195
2916660010
|
£1.75
|
£2.10
|
|
|
101 - GEAR HOUSING
BSD-2605806250.A33
2605806250
|
-
|
|
|
|
102 - FELT WASHER
BSD-2600108033.A22
2600108033
|
£1.84
|
£2.21
|
|
|
103 - CUPPED WASHER
BSD-2600500033.A71
2600500033
|
£2.74
|
£3.29
|
|
|
104 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A137
1900900302
|
-
|
|
|
|
106 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A364
2916660013
|
£2.16
|
£2.59
|
|
|
109 - DRILLING SPINDLE
BSD-2603523037.A5
2603523037
|
-
|
|
|
|
110 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A221
2916650003
|
£1.75
|
£2.10
|
|
|
111 - FLAT KEY
BSD-2602300014.A8
2602300014
|
-
|
|
|
|
112 - CYLINDRICAL GEAR Z=43/35
BSD-2606328037.A20
2606328037
|
-
|
|
|
|
113 - COMPRESSION SPRING
BSD-2604611016.A49
2604611016
|
-
|
|
|
|
114 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A339
1903230006
|
£2.27
|
£2.72
|
|
|
120 - SWITCHING PIN
BSD-2603103017.A58
2603103017
|
-
|
|
|
|
122 - PUSH-BUTTON
BSD-2603231006.A5
2603231006
|
-
|
|
|
|
653 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A56
1608571069
|
£25.05
|
£30.06
|
|
|
654 - CHUCK WRENCH SG2
BSD-2607950007.A1433
2607950007
|
£6.85
|
£8.22
|
|
|
655 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A107
2602025032
|
-
|
|
|
|
836 - CARBON-BRUSH SET
BSD-2604320906.A114
2604320906
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A696
160111A3H3
|
£2.74
|
£3.29
|
|
