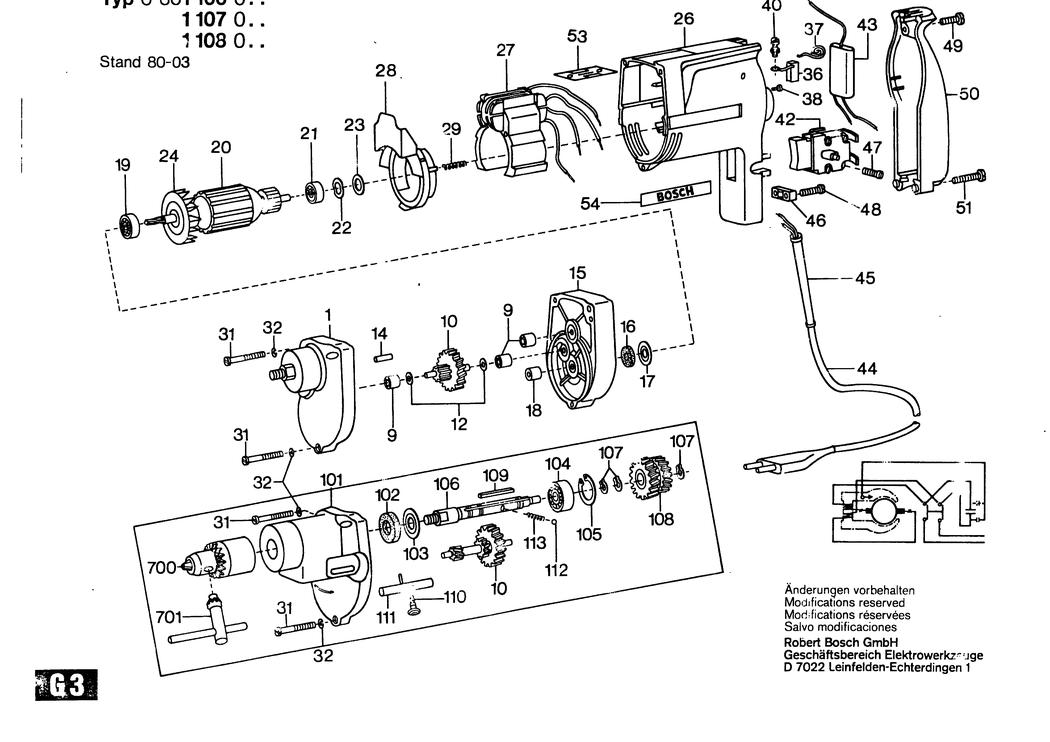

1 - GEAR HOUSING
BSD-2605806900.A14
2605806900
|
-
|
|
|
|
9 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A256
2600914010
|
£2.80
|
£3.36
|
|
|
10 - SPINDLE WITH GEAR Z= 41/19/13
BSD-2606100045.A3
2606100045
|
-
|
|
|
|
12 - SHIM 0.3 MM
BSD-2600100607.A499
2600100607
|
£1.75
|
£2.10
|
|
|
14 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A257
1903201042
|
£2.16
|
£2.59
|
|
|
15 - FLANGED BEARING
BSD-2605700901.A4
2605700901
|
-
|
|
|
|
16 - FELT DISC
BSD-2600108000.A87
2600108000
|
-
|
|
|
|
17 - CUPPED WASHER
BSD-2600500080.A19
2600500080
|
-
|
|
|
|
18 - SEAL BUSHING
BSD-2600300049.A147
2600300049
|
-
|
|
|
|
19 - BALL BEARING 8x22x7
BSD-1900905029.A106
1900905029
|
£21.52
|
£25.83
|
|
|
20 - ARMATURE WITH FAN 220V
BSD-2604010298.A26
2604010298
|
-
|
|
|
|
21 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A178
1900905019
|
£14.91
|
£17.89
|
|
|
22 - SHIM
BSD-2600150003.A141
2600150003
|
£2.16
|
£2.59
|
|
|
23 - SHIM 0.2 MM
BSD-2600101655.A114
2600101655
|
-
|
|
|
|
23 - SHIM 0.3 MM
BSD-2600101656.A67
2600101656
|
-
|
|
|
|
23 - SHIM 0.5 MM
BSD-2600101657.A114
2600101657
|
-
|
|
|
|
24 - FAN
BSD-2606610013.A92
2606610013
|
-
|
|
|
|
26 - MOTOR HOUSING
BSD-2605104900.A22
2605104900
|
-
|
|
|
|
27 - POLE SHOE 220V
BSD-2604222221.A22
2604222221
|
-
|
|
|
|
28 - COVER DISC
BSD-2601328016.A2
2601328016
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A71
2604611026
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A189
2910021134
|
£1.75
|
£2.10
|
|
|
32 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A717
2916690003
|
£1.75
|
£2.10
|
|
|
36 - CARBON-BRUSH SET
BSD-2604320902.A88
2604320902
|
-
|
|
|
|
37 - SPIRAL SPRING
BSD-2604652000.A190
2604652000
|
-
|
|
|
|
38 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A55
2910211004
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW
BSD-2603410010.A273
2603410010
|
-
|
|
|
|
42 - ON-OFF SWITCH
BSD-2607200065.A56
2607200065
|
-
|
|
|
|
43 - SUPPRESSION FILTER
BSD-2607329051.A74
2607329051
|
-
|
|
|
|
44 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A218
2604460053
|
-
|
|
|
|
45 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A502
2600703011
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A731
2600703012
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A496
2600703013
|
£2.61
|
£3.13
|
|
|
46 - CABLE CLIP
BSD-2601035001.A2674
2601035001
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A36
2603410023
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A54
2910211019
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A569
2910211020
|
£2.16
|
£2.59
|
|
|
50 - HOUSING COVER
BSD-2605132005.A48
2605132005
|
-
|
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A20
2910211021
|
£1.75
|
£2.10
|
|
|
53 - NAMEPLATE
BSD-160111A3H3.A4324
160111A3H3
|
£2.61
|
£3.13
|
|
|
54 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A144
2601007003
|
-
|
|
|
|
101 - GEAR HOUSING
BSD-2605806208.A8
2605806208
|
-
|
|
|
|
102 - SEALING DISK
BSD-2600108031.A0
2600108031
|
-
|
|
|
|
103 - CUPPED WASHER
BSD-2600500012.A3
2600500012
|
-
|
|
|
|
104 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A31
1900900270
|
-
|
|
|
|
105 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A58
2916660010
|
£1.75
|
£2.10
|
|
|
106 - DRILLING SPINDLE
BSD-2603122030.A21
2603122030
|
-
|
|
|
|
107 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A265
2916650001
|
£2.61
|
£3.13
|
|
|
108 - TOOTHED GEAR Z=37/31
BSD-2606328035.A3
2606328035
|
-
|
|
|
|
109 - FLAT KEY
BSD-2602300025.A4
2602300025
|
-
|
|
|
|
110 - PUSH-BUTTON
BSD-2603231006.A57
2603231006
|
-
|
|
|
|
111 - SWITCHING PIN
BSD-2603103015.A0
2603103015
|
-
|
|
|
|
112 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A206
1903230006
|
£2.16
|
£2.59
|
|
|
113 - COMPRESSION SPRING
BSD-2604611025.A35
2604611025
|
£2.80
|
£3.36
|
|
|
700 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A15
1608571020
|
-
|
|
|
|
700 - KEYLESS CHUCK dia 0-8 MM.3/8.
BSD-1608572012.A31
1608572012
|
-
|
|
|
|
701 - CHUCK WRENCH SG2
BSD-2607950007.A801
2607950007
|
£6.52
|
£7.83
|
|
|
703 - SUSPENSION LOOP
BSD-3604720004.A48
3604720004
|
£2.80
|
£3.36
|
|
