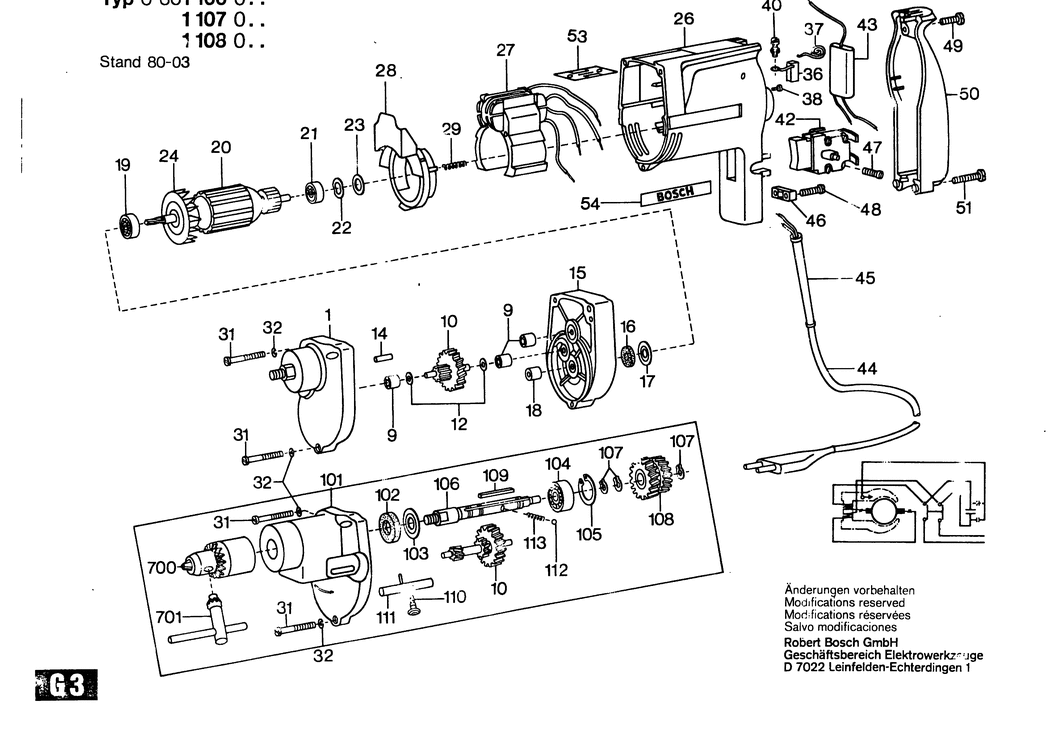

1 - GEAR HOUSING
BSD-2605806900.A2
2605806900
|
-
|
|
|
|
9 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A259
2600914010
|
£2.80
|
£3.36
|
|
|
10 - SPINDLE WITH GEAR Z= 16/41
BSD-2606100041.A22
2606100041
|
-
|
|
|
|
12 - SHIM 0.3 MM
BSD-2600100607.A496
2600100607
|
£1.75
|
£2.10
|
|
|
14 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A254
1903201042
|
£2.16
|
£2.59
|
|
|
15 - INTERMEDIATE FLANGE
BSD-2605700900.A24
2605700900
|
-
|
|
|
|
16 - FELT DISC
BSD-2600108000.A84
2600108000
|
-
|
|
|
|
17 - CUPPED WASHER
BSD-2600500080.A22
2600500080
|
-
|
|
|
|
18 - SEAL BUSHING
BSD-2600300049.A126
2600300049
|
-
|
|
|
|
19 - BALL BEARING 8x22x7
BSD-1900905029.A85
1900905029
|
£21.52
|
£25.83
|
|
|
20 - ARMATURE WITH FAN 24V
BSD-2604010287.A0
2604010287
|
-
|
|
|
|
21 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A199
1900905019
|
£14.91
|
£17.89
|
|
|
22 - SHIM
BSD-2600150003.A140
2600150003
|
£2.16
|
£2.59
|
|
|
23 - SHIM 0.2 MM
BSD-2600101655.A117
2600101655
|
-
|
|
|
|
23 - SHIM 0.3 MM
BSD-2600101656.A64
2600101656
|
-
|
|
|
|
23 - SHIM 0.5 MM
BSD-2600101657.A117
2600101657
|
-
|
|
|
|
24 - FAN
BSD-2606610013.A75
2606610013
|
-
|
|
|
|
26 - MOTOR HOUSING
BSD-2605104900.A41
2605104900
|
-
|
|
|
|
27 - POLE SHOE 24V
BSD-2604222200.A0
2604222200
|
-
|
|
|
|
28 - COVER DISC
BSD-2601328015.A23
2601328015
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A88
2604611026
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8
BSD-2910021132.A90
2910021132
|
£1.75
|
£2.10
|
|
|
32 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A735
2916690003
|
£1.75
|
£2.10
|
|
|
36 - CARBON-BRUSH SET
BSD-2604320902.A103
2604320902
|
-
|
|
|
|
37 - SPIRAL SPRING
BSD-2604652000.A173
2604652000
|
-
|
|
|
|
38 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A75
2910211004
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW
BSD-2603410010.A261
2603410010
|
-
|
|
|
|
42 - ON-OFF SWITCH
BSD-2607200043.A67
2607200043
|
-
|
|
|
|
43 - SUPPRESSION FILTER
BSD-2607329051.A56
2607329051
|
-
|
|
|
|
44 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A538
1607000227
|
£23.86
|
£28.63
|
|
|
45 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A501
2600703011
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A732
2600703012
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A495
2600703013
|
£2.61
|
£3.13
|
|
|
46 - CABLE CLIP
BSD-2601035001.A2676
2601035001
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A48
2603410023
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A34
2910211019
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A589
2910211020
|
£2.16
|
£2.59
|
|
|
50 - HOUSING COVER
BSD-2605132005.A30
2605132005
|
-
|
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A0
2910211021
|
£1.75
|
£2.10
|
|
|
53 - NAMEPLATE
BSD-160111A3H3.A4303
160111A3H3
|
£2.61
|
£3.13
|
|
|
54 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A142
2601007003
|
-
|
|
|
|
101 - GEAR HOUSING
BSD-2605806208.A22
2605806208
|
-
|
|
|
|
102 - SEALING DISK
BSD-2600108031.A21
2600108031
|
-
|
|
|
|
103 - CUPPED WASHER
BSD-2600500012.A6
2600500012
|
-
|
|
|
|
104 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A9
1900900270
|
-
|
|
|
|
105 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A60
2916660010
|
£1.75
|
£2.10
|
|
|
106 - DRILLING SPINDLE
BSD-2603122030.A0
2603122030
|
-
|
|
|
|
107 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A232
2916650001
|
£2.61
|
£3.13
|
|
|
108 - TOOTHED GEAR Z=37/31
BSD-2606328035.A24
2606328035
|
-
|
|
|
|
109 - FLAT KEY
BSD-2602300025.A24
2602300025
|
-
|
|
|
|
110 - PUSH-BUTTON
BSD-2603231006.A78
2603231006
|
-
|
|
|
|
111 - SWITCHING PIN
BSD-2603103015.A3
2603103015
|
-
|
|
|
|
112 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A204
1903230006
|
£2.16
|
£2.59
|
|
|
700 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A25
1608571020
|
-
|
|
|
|
700 - KEYLESS CHUCK dia 0-8 MM.3/8.
BSD-1608572012.A33
1608572012
|
-
|
|
|
|
701 - CHUCK WRENCH SG2
BSD-2607950007.A825
2607950007
|
£6.52
|
£7.83
|
|
|
703 - SUSPENSION LOOP
BSD-3604720004.A68
3604720004
|
£2.80
|
£3.36
|
|
