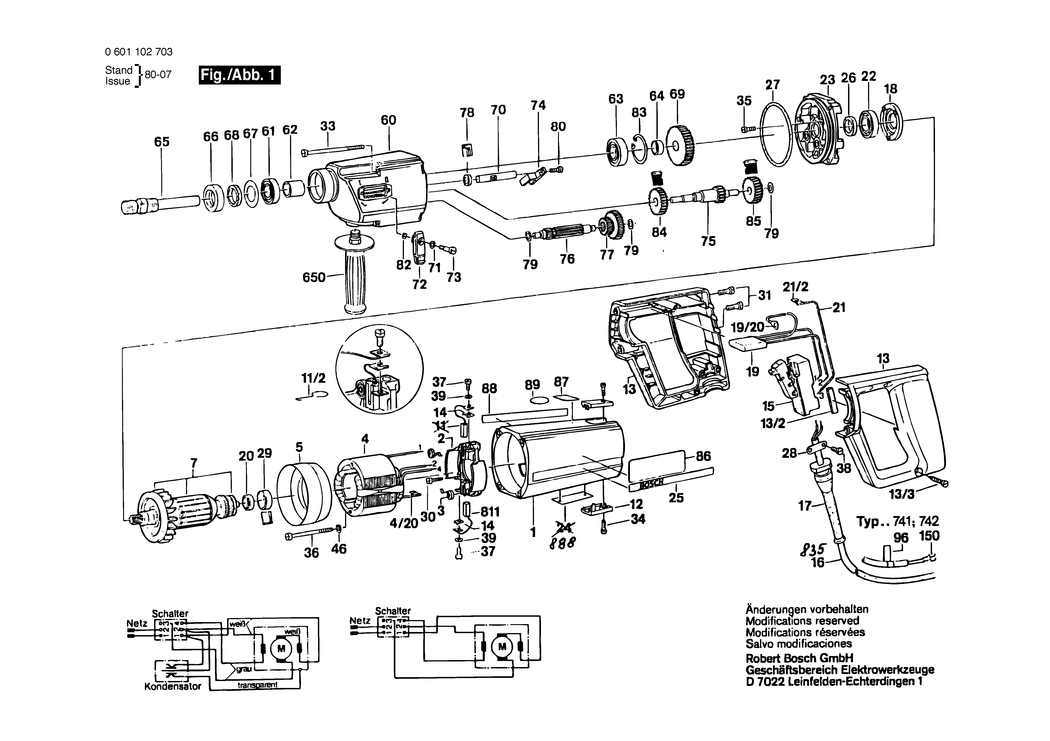

1 - MOTOR HOUSING
BSD-1609991106.A9
1609991106
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336005.A22
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A53
1604652001
|
-
|
|
|
|
4 - POLE SHOE 100-110V
BSD-1604220213.A0
1604220213
|
-
|
|
|
|
4/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A233
1901350003
|
£1.75
|
£2.10
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A101
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 110-115V
BSD-1609991110.A23
1609991110
|
-
|
|
|
|
12 - SEALING CAP
BSD-3605500057.A192
3605500057
|
-
|
|
|
|
13 - HANDLE
BSD-3605133012.A172
3605133012
|
-
|
|
|
|
13/2 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A66
1602381006
|
£1.75
|
£2.10
|
|
|
13/3 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A19
2910211220
|
-
|
|
|
|
15 - SWITCH
BSD-1607200076.A17
1607200076
|
£120.11
|
£144.13
|
|
|
17 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A43
1600703022
|
£2.80
|
£3.36
|
|
|
18 - BEARING COVER
BSD-1600501019.A441
1600501019
|
£23.86
|
£28.63
|
|
|
19 - SUPPRESSION CAPACITOR
BSD-1607328024.A1
1607328024
|
-
|
|
|
|
19/20 - TERMINAL LUG
BSD-1601353003.A149
1601353003
|
-
|
|
|
|
20 - BALL BEARING 7x19x6
BSD-2600905032.A227
2600905032
|
£5.30
|
£6.36
|
|
|
21 - CONNECTING CABLE L=290 MM
BSD-1604445006.A84
1604445006
|
£5.58
|
£6.70
|
|
|
21/2 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A234
1901350003
|
£1.75
|
£2.10
|
|
|
22 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A181
1600900001
|
-
|
|
|
|
23 - INTERMEDIATE BEARING
BSD-3605820033.A20
3605820033
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A102
1601110004
|
-
|
|
|
|
26 - FELT DISC
BSD-1600108003.A28
1600108003
|
£1.32
|
£1.58
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A18
1600210006
|
£1.75
|
£2.10
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A1022
1601302014
|
£2.61
|
£3.13
|
|
|
29 - RUBBER BUSHING
BSD-1600502020.A239
1600502020
|
£2.61
|
£3.13
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1719
2910211019
|
£1.75
|
£2.10
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A25
2910021154
|
£1.75
|
£2.10
|
|
|
33 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A36
1603435006
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A361
2910021125
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A362
2910021125
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A157
2910021176
|
-
|
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1151
2910021118
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A405
2910021116
|
£2.16
|
£2.59
|
|
|
46 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A255
2916680006
|
-
|
|
|
|
60 - SPINDLE BEARING
BSD-1605806186.A0
1605806186
|
-
|
|
|
|
61 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A75
1900900201
|
-
|
|
|
|
62 - SPACER BUSHING
BSD-1600300026.A100
1600300026
|
-
|
|
|
|
63 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A33
1900900303
|
-
|
|
|
|
64 - SPACER BUSHING
BSD-1600300027.A7
1600300027
|
-
|
|
|
|
65 - DRILLING SPINDLE 5/8x16 UN
BSD-1603523093.A4
1603523093
|
-
|
|
|
|
66 - RETAINING SNAP RING
BSD-3607030355.A152
3607030355
|
£18.96
|
£22.75
|
|
|
67 - SHIM 0.5 MM
BSD-1600102003.A136
1600102003
|
£1.75
|
£2.10
|
|
|
68 - SEALING DISK
BSD-1600108000.A30
1600108000
|
-
|
|
|
|
69 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A57
1606317045
|
-
|
|
|
|
70 - ADJUSTING BOLT
BSD-1603104005.A116
1603104005
|
-
|
|
|
|
71 - SHIM 0.2 MM
BSD-1420100620.A125
1420100620
|
£1.32
|
£1.58
|
|
|
72 - CONTROL LEVER
BSD-1602026026.A99
1602026026
|
-
|
|
|
|
73 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A18
1603413005
|
£2.52
|
£3.02
|
|
|
74 - CONTROL LEVER
BSD-1602120006.A9
1602120006
|
-
|
|
|
|
75 - SPINDLE WITH GEAR Z=20/33/50
BSD-1606328048.A29
1606328048
|
-
|
|
|
|
76 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A76
1606309036
|
-
|
|
|
|
77 - CYLINDRICAL GEAR Z=12/20/36
BSD-1606328058.A17
1606328058
|
-
|
|
|
|
78 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A173
1600283003
|
£4.26
|
£5.11
|
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A380
1600100631
|
£1.75
|
£2.10
|
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A569
2910021122
|
£2.16
|
£2.59
|
|
|
82 - SPRING LOCK WASHER DIN 127-B3.5
BSD-2916680004.A50
2916680004
|
-
|
|
|
|
83 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A348
2916660014
|
£1.75
|
£2.10
|
|
|
84 - CYLINDRICAL GEAR Z=35
BSD-1606317043.A9
1606317043
|
-
|
|
|
|
85 - CYLINDRICAL GEAR Z=33
BSD-1606320041.A0
1606320041
|
-
|
|
|
|
89 - STICKER
BSD-2601110041.A138
2601110041
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A386
1900452012
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A309
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A49
1602025030
|
£18.96
|
£22.75
|
|
|
651 - KEYLESS CHUCK dia3-16 MM. 5/8
BSD-1608572014.A10
1608572014
|
-
|
|
|
|
651/2 - KEY CHUCK dia3-16 MM. 5/8
BSD-1608571056.A18
1608571056
|
£48.12
|
£57.74
|
|
|
811 - CARBON-BRUSH SET
BSD-1607014101.A108
1607014101
|
£11.30
|
£13.56
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A340
1607000228
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2204
160111A3H3
|
£2.61
|
£3.13
|
|
