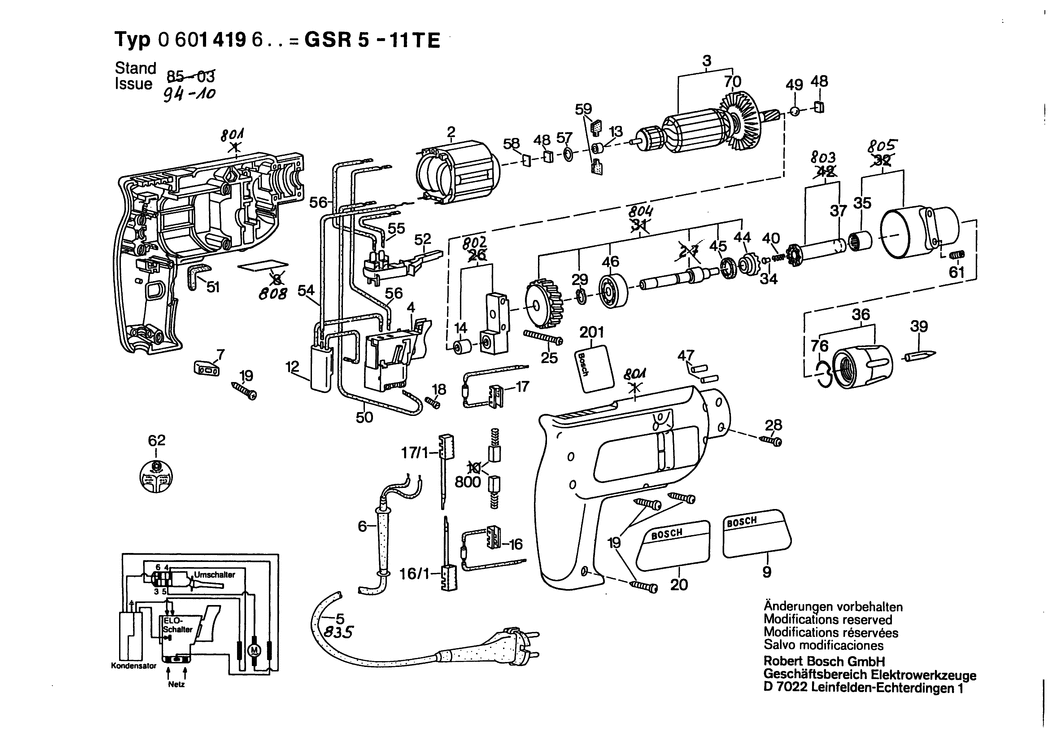

2 - FIELD 240V
BSD-2604220398.A35
2604220398
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-2604010570.A8
2604010570
|
-
|
|
|
|
4 - SWITCH
BSD-2607200202.A59
2607200202
|
£37.27
|
£44.72
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A34
2600703007
|
-
|
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A259
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1042
2601035001
|
£1.66
|
£1.99
|
|
|
9 - STICKER
BSD-2601110488.A4
2601110488
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A76
2607329096
|
£7.36
|
£8.83
|
|
|
13 - SINTERED-METAL BUSHING
BSD-1900301004.A39
1900301004
|
£13.41
|
£16.09
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A522
2600917003
|
£2.80
|
£3.36
|
|
|
16 - SUPPRESSOR BOX
BSD-2604465099.A36
2604465099
|
-
|
|
|
|
17 - SUPPRESSOR BOX
BSD-2604465020.A17
2604465020
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A835
2603410001
|
£1.66
|
£1.99
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A23
2910611019
|
£2.52
|
£3.02
|
|
|
20 - STICKER
BSD-2601110079.A42
2601110079
|
-
|
|
|
|
25 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A238
2603490025
|
£1.66
|
£1.99
|
|
|
28 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A15
2603490018
|
£1.66
|
£1.99
|
|
|
29 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A467
2916650001
|
£1.66
|
£1.99
|
|
|
34 - PRESSURE SPINDLE
BSD-2603132002.A36
2603132002
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600914015.A16
2600914015
|
-
|
|
|
|
36 - DEPTH-GAUGE
BSD-2600460007.A4
2600460007
|
-
|
|
|
|
37 - RETAINING RING
BSD-2604601004.A457
2604601004
|
£1.66
|
£1.99
|
|
|
39 - SCREWDRIVER BLADE NR.2.1/4
BSD-1608521004.A12
1608521004
|
-
|
|
|
|
40 - COMPRESSION SPRING
BSD-2604611040.A33
2604611040
|
-
|
|
|
|
44 - COUPLING HALF
BSD-2606490036.A9
2606490036
|
-
|
|
|
|
45 - FELT WASHER
BSD-2600205002.A35
2600205002
|
-
|
|
|
|
46 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A80
1900905232
|
£21.68
|
£26.01
|
|
|
47 - O-RING 28x3 MM
BSD-1900210129.A40
1900210129
|
£2.33
|
£2.80
|
|
|
48 - PRESSURE PLATE 1.5 MM
BSD-1601000013.A12
1601000013
|
-
|
|
|
|
49 - BALL DIN 5401-5 G28
BSD-1903230009.A108
1903230009
|
£1.66
|
£1.99
|
|
|
50 - CONNECTING CABLE L=154 MM
BSD-2604448000.A45
2604448000
|
-
|
|
|
|
51 - DAMPING PLATE
BSD-2601022000.A739
2601022000
|
£1.66
|
£1.99
|
|
|
52 - CHANGE-OVER SWITCH
BSD-2607200206.A14
2607200206
|
-
|
|
|
|
52 - CHANGE-OVER SWITCH
BSD-2607200198.A30
2607200198
|
-
|
|
|
|
54 - CABLE
BSD-2604448003.A262
2604448003
|
-
|
|
|
|
55 - CONNECTING CABLE
BSD-2604448017.A5
2604448017
|
-
|
|
|
|
56 - CONNECTING CABLE L=124 MM
BSD-2604448018.A40
2604448018
|
£2.33
|
£2.80
|
|
|
57 - O-RING 8.0x2.5 MM
BSD-1610210014.A410
1610210014
|
-
|
|
|
|
58 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A125
2601000018
|
-
|
|
|
|
59 - LUBRICATING FELT
BSD-2601020005.A51
2601020005
|
-
|
|
|
|
61 - SET SCREW DIN 913-M 6x16-45H
BSD-2912040197.A7
2912040197
|
-
|
|
|
|
62 - STICKER
BSD-2601110230.A54
2601110230
|
-
|
|
|
|
70 - FAN
BSD-2606610022.A88
2606610022
|
£4.26
|
£5.11
|
|
|
75 - O-RING 21.0x2.0 MM
BSD-2600210028.A60
2600210028
|
£1.32
|
£1.58
|
|
|
76 - STOP SPRING
BSD-2604601012.A1
2604601012
|
£2.52
|
£3.02
|
|
|
800 - CARBON-BRUSH SET
BSD-2604321904.A54
2604321904
|
£10.10
|
£12.12
|
|
|
801 - HOUSING SECTION
BSD-2605104949.A12
2605104949
|
-
|
|
|
|
802 - BEARING BRACKET
BSD-2605807904.A12
2605807904
|
-
|
|
|
|
803 - COUPLING HALF
BSD-2606490913.A5
2606490913
|
-
|
|
|
|
804 - DRIVE SHAFT
BSD-2603124904.A7
2603124904
|
-
|
|
|
|
805 - BEARING HOUSING
BSD-2605806985.A0
2605806985
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1988
160111A3H3
|
£2.33
|
£2.80
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A302
1607000227
|
£23.86
|
£28.63
|
|
|
847 - RUBBER PLUG
BSD-2603239010.A51
2603239010
|
-
|
|
|
