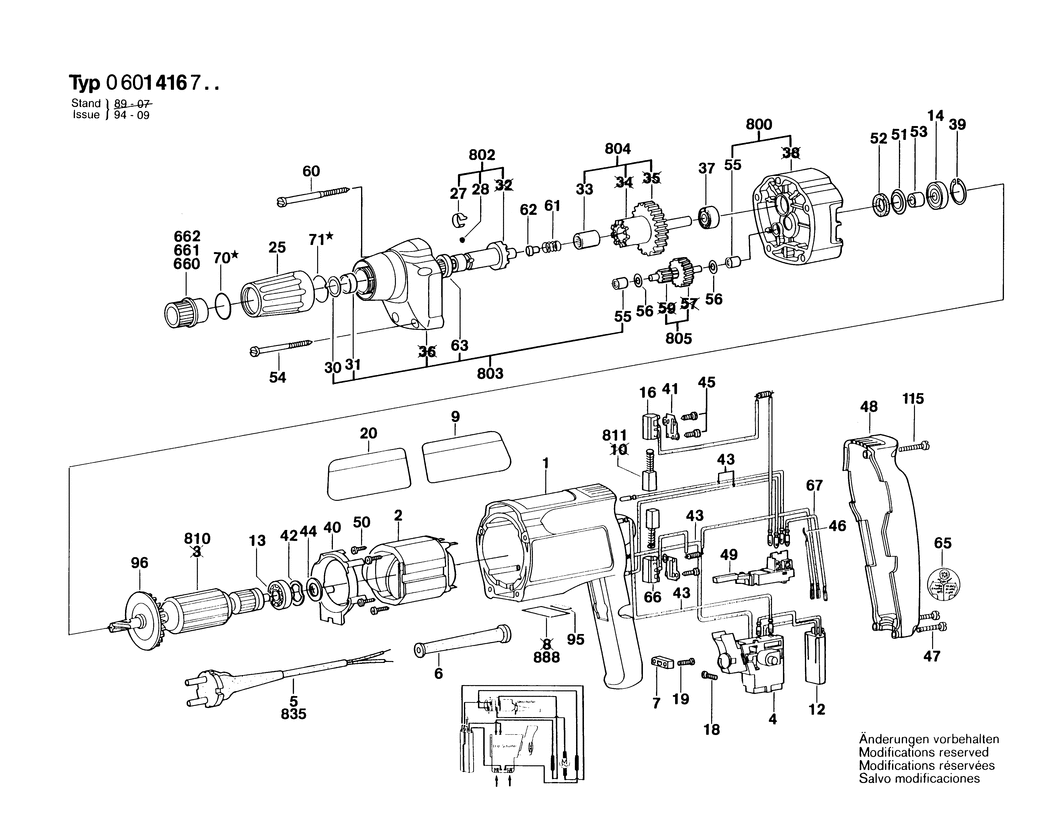

1 - MOTOR HOUSING
BSD-2605104116.A5
2605104116
|
-
|
|
|
|
2 - FIELD 100V
BSD-2604220427.A2
2604220427
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200138.A3
2607200138
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-3604460069.A36
3604460069
|
£39.61
|
£47.53
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1652
2600703012
|
£2.94
|
£3.53
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1076
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110376.A2
2601110376
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A61
2607329096
|
£7.72
|
£9.27
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A1293
1900905018
|
£19.91
|
£23.89
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A724
2600905021
|
£8.67
|
£10.41
|
|
|
16 - SUPPRESSOR BOX L=93/85 MM
BSD-2604465071.A30
2604465071
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A853
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A38
2910611019
|
£2.94
|
£3.53
|
|
|
20 - STICKER
BSD-2601110093.A66
2601110093
|
-
|
|
|
|
25 - DEPTH-GAUGE
BSD-2600460901.A22
2600460901
|
-
|
|
|
|
27 - LEAF SPRING
BSD-2601250001.A50
2601250001
|
£3.72
|
£4.47
|
|
|
28 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A534
1903230003
|
£2.74
|
£3.29
|
|
|
30 - SEAL RING
BSD-2600283012.A40
2600283012
|
£2.94
|
£3.53
|
|
|
31 - BUSHING
BSD-2600499002.A31
2600499002
|
-
|
|
|
|
33 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A583
2600910001
|
£4.48
|
£5.37
|
|
|
37 - GROOVE BALL BEARING dia 8 MM
BSD-2600900008.A6
2600900008
|
-
|
|
|
|
39 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A916
2916660008
|
£2.16
|
£2.59
|
|
|
40 - COVER DISC
BSD-2601328033.A137
2601328033
|
-
|
|
|
|
41 - BRUSH HOLDER
BSD-2604337003.A232
2604337003
|
£2.16
|
£2.59
|
|
|
42 - SHIM
BSD-2600150004.A368
2600150004
|
£2.27
|
£2.72
|
|
|
43 - CABLE L=130 MM
BSD-2604448005.A494
2604448005
|
£1.84
|
£2.21
|
|
|
44 - SHIM 0.3 MM
BSD-2600101023.A290
2600101023
|
£1.84
|
£2.21
|
|
|
44 - SHIM 0.2 MM
BSD-2600101022.A273
2600101022
|
£1.84
|
£2.21
|
|
|
44 - SHIM 0.5 MM
BSD-2600101020.A359
2600101020
|
£1.84
|
£2.21
|
|
|
45 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1503
2603490017
|
£2.27
|
£2.72
|
|
|
46 - CABLE
BSD-2604448003.A269
2604448003
|
-
|
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A1070
2910211021
|
£1.75
|
£2.10
|
|
|
48 - HOUSING COVER
BSD-2605132040.A89
2605132040
|
-
|
|
|
|
49 - CHANGE-OVER SWITCH
BSD-2607200206.A25
2607200206
|
-
|
|
|
|
50 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A206
2603435015
|
£2.27
|
£2.72
|
|
|
51 - CUPPED WASHER
BSD-2600500002.A51
2600500002
|
£1.75
|
£2.10
|
|
|
52 - FELT WASHER
BSD-2600108077.A88
2600108077
|
£1.84
|
£2.21
|
|
|
53 - RECEPTACLE
BSD-2600400008.A269
2600400008
|
£1.75
|
£2.10
|
|
|
54 - HEADLESS SCREW
BSD-2603435018.A31
2603435018
|
-
|
|
|
|
55 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A408
2600914010
|
£2.94
|
£3.53
|
|
|
56 - SHIM 0.3 MM
BSD-2600100607.A905
2600100607
|
£1.75
|
£2.10
|
|
|
60 - HEADLESS SCREW
BSD-2603435017.A42
2603435017
|
£2.61
|
£3.13
|
|
|
61 - COMPRESSION SPRING
BSD-2604611037.A6
2604611037
|
-
|
|
|
|
62 - PRESSURE SPINDLE
BSD-2603126006.A35
2603126006
|
-
|
|
|
|
63 - NEEDLE BEARING
BSD-2600914013.A2
2600914013
|
£5.58
|
£6.70
|
|
|
65 - STICKER
BSD-2601110230.A46
2601110230
|
-
|
|
|
|
66 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A6
2604465086
|
£5.58
|
£6.70
|
|
|
67 - CONNECTING CABLE L=52MM
BSD-2604448016.A12
2604448016
|
£1.75
|
£2.10
|
|
|
70 - O-RING 21.0x2.0 MM
BSD-2600210028.A66
2600210028
|
£1.38
|
£1.66
|
|
|
71 - STOP SPRING
BSD-2604601012.A22
2604601012
|
£2.52
|
£3.02
|
|
|
96 - FAN
BSD-2606610049.A354
2606610049
|
£2.27
|
£2.72
|
|
|
115 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A31
2603490024
|
£1.84
|
£2.21
|
|
|
660 - GUIDE SLEEVE
BSD-2600326006.A2
2600326006
|
-
|
|
|
|
661 - GUIDE SLEEVE
BSD-2600326007.A26
2600326007
|
-
|
|
|
|
662 - GUIDE SLEEVE
BSD-2600326008.A2
2600326008
|
-
|
|
|
|
800 - INTERMEDIATE FLANGE
BSD-2605700930.A21
2605700930
|
-
|
|
|
|
802 - COUPLING HALF
BSD-2606490910.A8
2606490910
|
-
|
|
|
|
803 - GEAR HOUSING
BSD-2605806980.A10
2605806980
|
-
|
|
|
|
804 - COUPLING HALF
BSD-2606490911.A4
2606490911
|
-
|
|
|
|
805 - TOOTHED SHAFT Z= 15/21
BSD-2606309909.A3
2606309909
|
-
|
|
|
|
810 - ARMATURE 110-115V
BSD-2604010585.A3
2604010585
|
-
|
|
|
|
811 - CARBON-BRUSH SET
BSD-2604321905.A505
2604321905
|
£11.87
|
£14.24
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1950
160111A3H3
|
£2.74
|
£3.29
|
|
