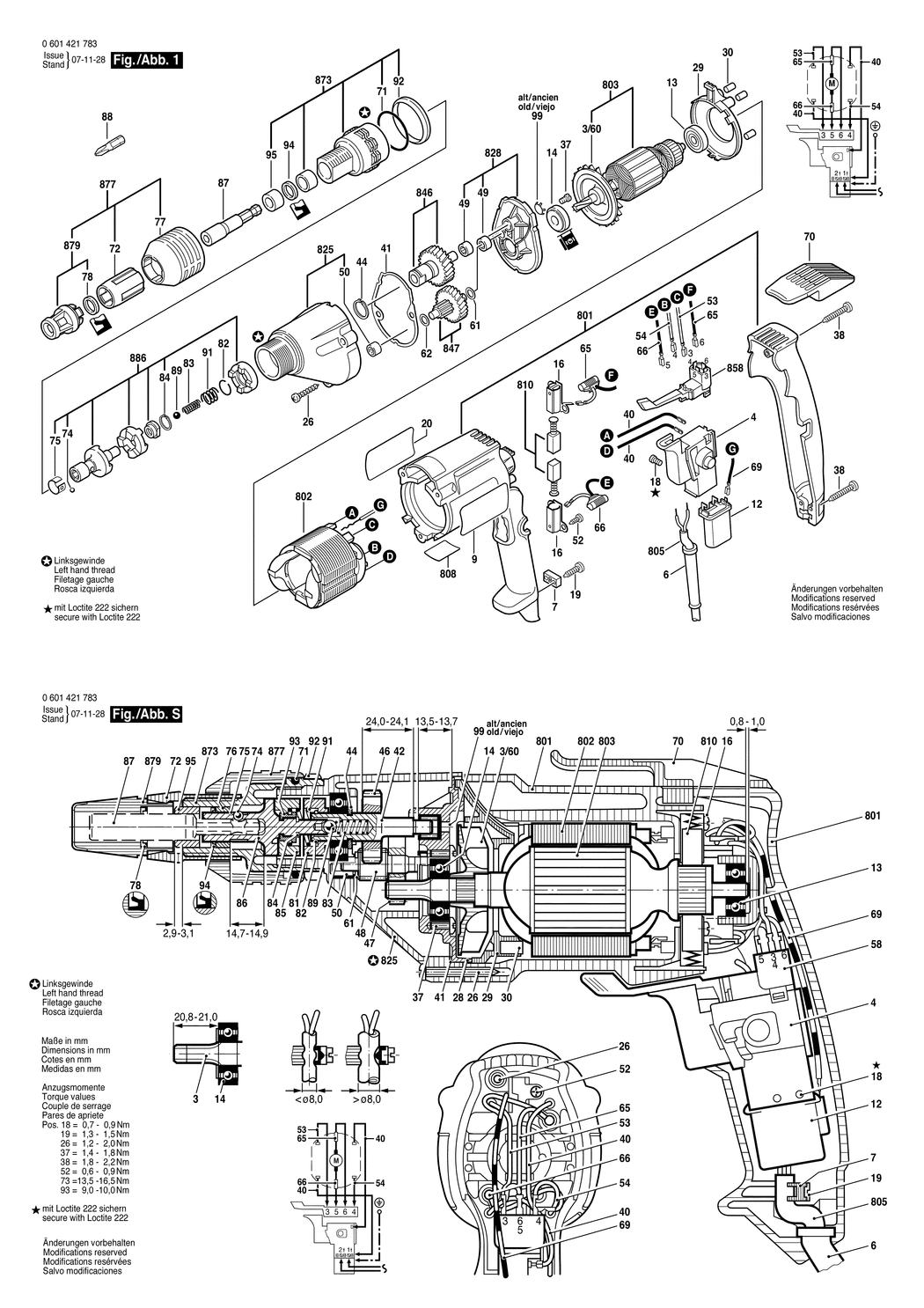

3/60 - FAN
BSD-2606610027.A138
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-1617200070.A0
1617200070
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A240
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1909
2601035001
|
£1.66
|
£1.99
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116707.A0
2601116707
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A331
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A120
1900905018
|
£18.96
|
£22.75
|
|
|
14 - BALL BEARING 9x24x7
BSD-2600905095.A289
2600905095
|
£12.04
|
£14.45
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A70
2604337003
|
£1.95
|
£2.34
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1859
2603410001
|
£1.66
|
£1.99
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1941
2603490022
|
£1.66
|
£1.99
|
|
|
20 - REFERENCE PLATE
BSD-2601116708.A0
2601116708
|
-
|
|
|
|
26 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A117
2603490025
|
£1.66
|
£1.99
|
|
|
29 - COVER DISC
BSD-3600590505.A23
3600590505
|
£1.66
|
£1.99
|
|
|
30 - RUBBER BUFFER
BSD-3602391503.A40
3602391503
|
-
|
|
|
|
37 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A102
2603410048
|
£1.66
|
£1.99
|
|
|
38 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A616
2603490023
|
£1.66
|
£1.99
|
|
|
40 - CABLE L=130 MM
BSD-2604448005.A290
2604448005
|
£1.66
|
£1.99
|
|
|
41 - FLAT SEAL RING
BSD-3601016502.A24
3601016502
|
-
|
|
|
|
44 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A160
2916650003
|
£1.66
|
£1.99
|
|
|
49 - NEEDLE BEARING
BSD-2600917004.A61
2600917004
|
£3.72
|
£4.47
|
|
|
50 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A36
1610910057
|
£2.80
|
£3.36
|
|
|
52 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A650
2603490017
|
£1.66
|
£1.99
|
|
|
53 - CONNECTING CABLE L=98 MM
BSD-2604448074.A94
2604448074
|
£1.66
|
£1.99
|
|
|
54 - CONNECTING CABLE L=68 MM
BSD-2604448100.A146
2604448100
|
£1.66
|
£1.99
|
|
|
61 - SHIM 0.5 MM
BSD-2600100628.A249
2600100628
|
£1.66
|
£1.99
|
|
|
62 - SHIM 0.3 MM
BSD-2600101654.A29
2600101654
|
£2.33
|
£2.80
|
|
|
65 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A231
2604465086
|
£5.58
|
£6.70
|
|
|
66 - SUPPRESSION FILTER L=126 MM
BSD-2604465097.A113
2604465097
|
£5.58
|
£6.70
|
|
|
69 - EARTH CONDUCTOR
BSD-2604448097.A5
2604448097
|
£1.66
|
£1.99
|
|
|
70 - CLIP
BSD-3600690503.A7
3600690503
|
-
|
|
|
|
71 - O-RING
BSD-2600210043.A17
2600210043
|
£1.66
|
£1.99
|
|
|
72 - SPACER SLEEVE
BSD-3600360505.A11
3600360505
|
£7.78
|
£9.33
|
|
|
74 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A126
1903230006
|
£1.95
|
£2.34
|
|
|
75 - BALL SUPPORT
BSD-3600034504.A15
3600034504
|
£2.52
|
£3.02
|
|
|
77 - LOCKING RING
BSD-3600390502.A29
3600390502
|
£6.61
|
£7.93
|
|
|
78 - SEAL RING
BSD-3600290502.A8
3600290502
|
£3.72
|
£4.47
|
|
|
82 - RETAINING RING
BSD-3600200516.A12
3600200516
|
£1.66
|
£1.99
|
|
|
83 - SPRING
BSD-3604613507.A10
3604613507
|
£1.95
|
£2.34
|
|
|
84 - SPRING RETAINING RING
BSD-3600118502.A16
3600118502
|
£2.33
|
£2.80
|
|
|
87 - TOOLHOLDER 1/4
BSD-3603008500.A0
3603008500
|
£14.91
|
£17.89
|
|
|
88 - SCREWDRIVER BIT
BSD-2607000366.A1
2607000366
|
-
|
|
|
|
89 - BALL DIN 5401-6 G28
BSD-1903230011.A443
1903230011
|
£1.66
|
£1.99
|
|
|
91 - SPRING
BSD-3604613506.A24
3604613506
|
£1.95
|
£2.34
|
|
|
92 - INSULATING SLEEVE
BSD-3600113506.A21
3600113506
|
£1.66
|
£1.99
|
|
|
94 - SEAL RING
BSD-3600290503.A12
3600290503
|
£2.52
|
£3.02
|
|
|
95 - BUSHING
BSD-3600301510.A8
3600301510
|
£1.95
|
£2.34
|
|
|
99 - LOCKING WASHER
BSD-3600171504.A5
3600171504
|
-
|
|
|
|
801 - HOUSING SET
BSD-2605105072.A1
2605105072
|
-
|
|
|
|
802 - FIELD 230-240V
BSD-2604220526.A1
2604220526
|
£21.68
|
£26.01
|
|
|
803 - ARMATURE 230V
BSD-2604010803.A3
2604010803
|
£58.76
|
£70.51
|
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A49
1607000385
|
£14.91
|
£17.89
|
|
|
808 - NAMEPLATE
BSD-2601116706.A0
2601116706
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A126
2604321905
|
£11.30
|
£13.56
|
|
|
825 - GEAR HOUSING
BSD-3605190518.A3
3605190518
|
-
|
|
|
|
828 - BEARING BRACKET
BSD-3605806537.A17
3605806537
|
£27.23
|
£32.68
|
|
|
846 - DRIVE SHAFT Z=33
BSD-3606120566.A4
3606120566
|
-
|
|
|
|
847 - TOOTHED SHAFT Z=41/17
BSD-3606319522.A2
3606319522
|
-
|
|
|
|
858 - CHANGE-OVER SWITCH
BSD-2607200216.A1
2607200216
|
-
|
|
|
|
873 - CLUTCH
BSD-3605190520.A2
3605190520
|
-
|
|
|
|
877 - DEPTH-GAUGE
BSD-3600552509.A0
3600552509
|
£24.45
|
£29.34
|
|
|
879 - DEPTH-GAUGE
BSD-3600552505.A0
3600552505
|
-
|
|
|
|
886 - CLUTCH
BSD-3606441503.A24
3606441503
|
-
|
|
|
