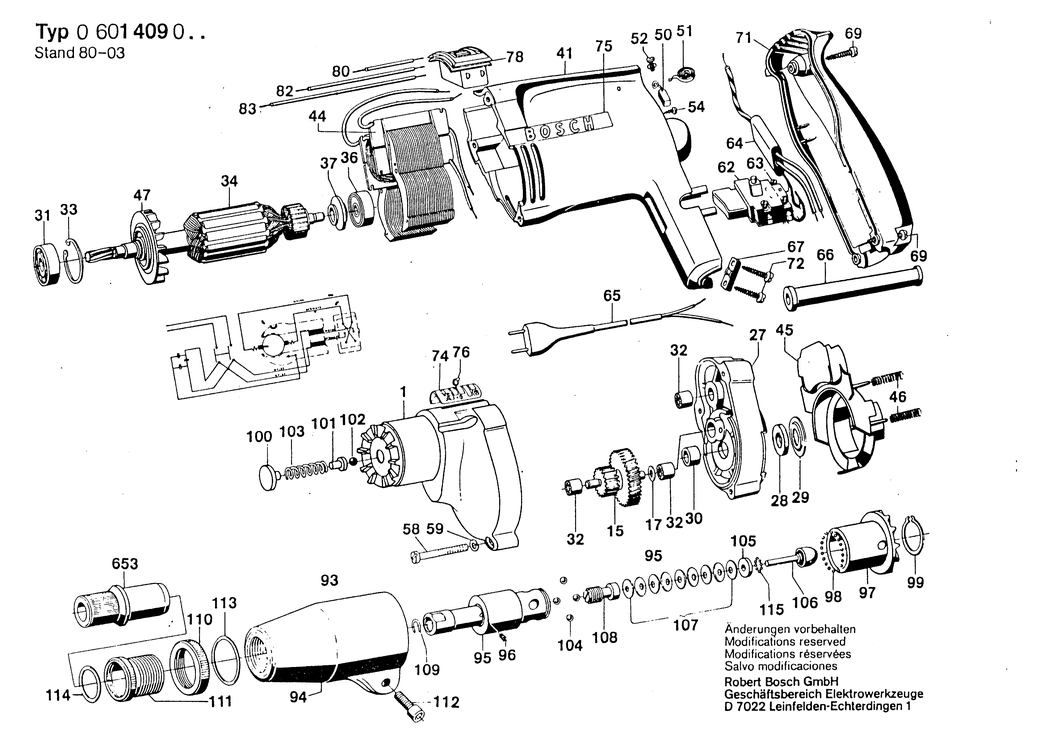

1 - GEAR HOUSING
BSD-2605806943.A2
2605806943
|
-
|
|
|
|
15 - TOOTHED SHAFT
BSD-2606100910.A1
2606100910
|
-
|
|
|
|
17 - SHIM 0.3 MM
BSD-2600100570.A245
2600100570
|
£1.66
|
£1.99
|
|
|
27 - INTERMEDIATE FLANGE
BSD-2605700916.A11
2605700916
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108020.A205
2600108020
|
-
|
|
|
|
29 - CUPPED WASHER
BSD-2600500008.A203
2600500008
|
-
|
|
|
|
30 - RECEPTACLE
BSD-2600400020.A135
2600400020
|
-
|
|
|
|
31 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A200
2600905007
|
-
|
|
|
|
32 - NEEDLE BEARING
BSD-2600914004.A23
2600914004
|
£4.26
|
£5.11
|
|
|
33 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A174
2916660010
|
£1.66
|
£1.99
|
|
|
34 - ARMATURE 220V
BSD-2604010267.A1
2604010267
|
-
|
|
|
|
36 - BALL BEARING 7x22x7
BSD-1900905018.A928
1900905018
|
£18.96
|
£22.75
|
|
|
37 - ARMATURE PLATE
BSD-2600121002.A27
2600121002
|
-
|
|
|
|
41 - MOTOR HOUSING
BSD-2605104930.A11
2605104930
|
-
|
|
|
|
44 - POLE SHOE 220V
BSD-2604222096.A1
2604222096
|
-
|
|
|
|
45 - COVER DISC
BSD-2601328001.A4
2601328001
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-2604611026.A240
2604611026
|
-
|
|
|
|
47 - FAN
BSD-2606610019.A18
2606610019
|
-
|
|
|
|
50 - CARBON-BRUSH SET
BSD-2604320906.A85
2604320906
|
-
|
|
|
|
51 - SPIRAL SPRING
BSD-2604652004.A50
2604652004
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW
BSD-2603410010.A28
2603410010
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A364
2910211004
|
-
|
|
|
|
58 - PAN HEAD SCREW
BSD-2603410026.A18
2603410026
|
-
|
|
|
|
59 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A65
2916690003
|
£1.66
|
£1.99
|
|
|
62 - ON-OFF SWITCH
BSD-2607200043.A160
2607200043
|
-
|
|
|
|
62 - ON-OFF SWITCH
BSD-2607200006.A11
2607200006
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A412
2603410023
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-2607329051.A267
2607329051
|
-
|
|
|
|
65 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A37
2604460053
|
-
|
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A241
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1217
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A192
2600703013
|
£2.33
|
£2.80
|
|
|
67 - CABLE CLIP
BSD-2601035001.A352
2601035001
|
£1.66
|
£1.99
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A645
2910211021
|
£1.66
|
£1.99
|
|
|
71 - HOUSING COVER
BSD-2605132007.A50
2605132007
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1577
2910211019
|
£1.66
|
£1.99
|
|
|
74 - NAMEPLATE
BSD-160111A3H3.A772
160111A3H3
|
£2.33
|
£2.80
|
|
|
75 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A114
2601007003
|
-
|
|
|
|
76 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A63
2917724032
|
-
|
|
|
|
78 - ON-OFF SWITCH
BSD-2607200052.A20
2607200052
|
-
|
|
|
|
80 - CABLE
BSD-2604411524.A44
2604411524
|
-
|
|
|
|
82 - CABLE
BSD-2604411530.A54
2604411530
|
-
|
|
|
|
82 - SUPPRESSOR BOX
BSD-2604465026.A26
2604465026
|
-
|
|
|
|
83 - CABLE
BSD-2604411523.A38
2604411523
|
-
|
|
|
|
83 - SUPPRESSOR BOX
BSD-2604465027.A36
2604465027
|
-
|
|
|
|
93 - WRENCH ATTACHMENT
BSD-2608583005.A0
2608583005
|
-
|
|
|
|
94 - GEAR HOUSING
BSD-2605806303.A2
2605806303
|
-
|
|
|
|
95 - TOOLHOLDER
BSD-2606490902.A6
2606490902
|
-
|
|
|
|
96 - SET SCREW M 3x3-DIN 551-5.8
BSD-2912030045.A6
2912030045
|
-
|
|
|
|
97 - COUPLING HALF
BSD-2606490024.A0
2606490024
|
-
|
|
|
|
98 - BALL 2 MM III DIN 5401 ST
BSD-1903230002.A41
1903230002
|
£1.66
|
£1.99
|
|
|
99 - SPRING RETAINING RING
BSD-2600118004.A0
2600118004
|
-
|
|
|
|
100 - SPRING DISK
BSD-2603120012.A2
2603120012
|
-
|
|
|
|
101 - RETAINING PIN
BSD-2603120015.A4
2603120015
|
-
|
|
|
|
102 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A259
1903230007
|
£1.66
|
£1.99
|
|
|
103 - COMPRESSION SPRING
BSD-2604610013.A0
2604610013
|
-
|
|
|
|
104 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A64
1903230014
|
£1.66
|
£1.99
|
|
|
105 - SUPPORTING DISC
BSD-2600100023.A6
2600100023
|
-
|
|
|
|
106 - BALL STUD
BSD-2603126003.A0
2603126003
|
-
|
|
|
|
107 - DISC SPRING
BSD-2600550005.A0
2600550005
|
-
|
|
|
|
108 - ADJUSTING SCREW
BSD-2603465001.A0
2603465001
|
-
|
|
|
|
109 - RETAINING RING
BSD-2604601010.A4
2604601010
|
-
|
|
|
|
110 - ROUND NUT
BSD-2603340006.A0
2603340006
|
-
|
|
|
|
111 - KNURLED BUSHING
BSD-2600420001.A0
2600420001
|
-
|
|
|
|
112 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8
BSD-2910141196.A46
2910141196
|
-
|
|
|
|
113 - O-RING 28x2.5 MM
BSD-1900210128.A55
1900210128
|
£2.33
|
£2.80
|
|
|
114 - O-RING 21.0x2.0 MM
BSD-2600210028.A44
2600210028
|
£1.32
|
£1.58
|
|
|
115 - BALL 2 MM III DIN 5401 ST
BSD-1903230002.A40
1903230002
|
£1.66
|
£1.99
|
|
|
653 - GUIDE SLEEVE
BSD-2600326006.A13
2600326006
|
-
|
|
|
|
653 - GUIDE SLEEVE
BSD-2600326007.A9
2600326007
|
-
|
|
|
|
653 - GUIDE SLEEVE
BSD-2600326008.A13
2600326008
|
-
|
|
|
