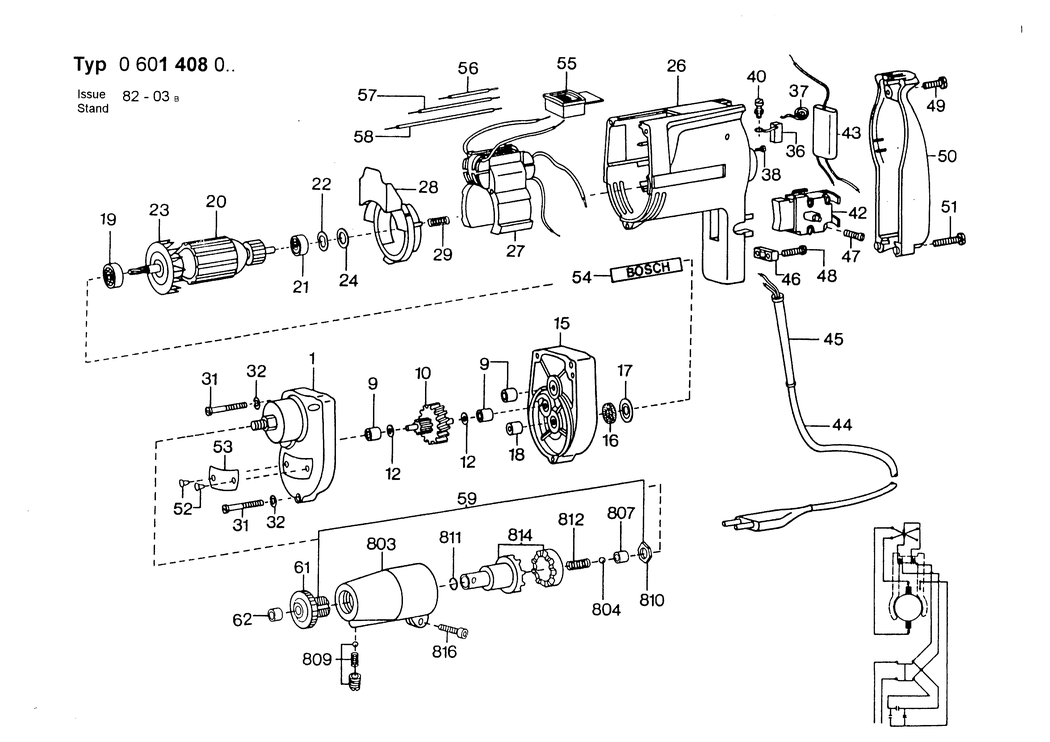

1 - GEAR HOUSING Z=33
BSD-2605806921.A10
2605806921
|
-
|
|
|
|
9 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A266
2600914010
|
£2.80
|
£3.36
|
|
|
10 - TOOTHED SHAFT Z= 17/39
BSD-2606308902.A12
2606308902
|
-
|
|
|
|
12 - SHIM 0.3 MM
BSD-2600100607.A422
2600100607
|
£1.66
|
£1.99
|
|
|
15 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A210
1903201042
|
£1.95
|
£2.34
|
|
|
15 - FLANGED BEARING
BSD-2605700917.A14
2605700917
|
-
|
|
|
|
16 - FELT DISC
BSD-2600108000.A20
2600108000
|
-
|
|
|
|
17 - CUPPED WASHER
BSD-2600500030.A103
2600500030
|
-
|
|
|
|
18 - SEAL BUSHING
BSD-2600300049.A120
2600300049
|
-
|
|
|
|
19 - BALL BEARING 8x22x7
BSD-1900905029.A60
1900905029
|
£21.52
|
£25.83
|
|
|
19 - SPRING RETAINING RING
BSD-2600119000.A110
2600119000
|
£1.66
|
£1.99
|
|
|
20 - ARMATURE 220-240V
BSD-2604010415.A8
2604010415
|
-
|
|
|
|
21 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A173
1900905019
|
£14.91
|
£17.89
|
|
|
22 - SHIM
BSD-2600150003.A120
2600150003
|
£1.95
|
£2.34
|
|
|
23 - FAN
BSD-2606610018.A16
2606610018
|
-
|
|
|
|
24 - SHIM 0.2 MM
BSD-2600101655.A166
2600101655
|
-
|
|
|
|
24 - SHIM 0.3 MM
BSD-2600101656.A8
2600101656
|
-
|
|
|
|
24 - SHIM 0.5 MM
BSD-2600101657.A166
2600101657
|
-
|
|
|
|
26 - MOTOR HOUSING
BSD-2605104909.A12
2605104909
|
-
|
|
|
|
27 - POLE SHOE 220V
BSD-2604222277.A8
2604222277
|
-
|
|
|
|
28 - COVER DISC
BSD-2601328016.A21
2601328016
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A130
2604611026
|
-
|
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A223
2910021134
|
£1.66
|
£1.99
|
|
|
32 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A664
2916690003
|
£1.66
|
£1.99
|
|
|
36 - CARBON-BRUSH SET
BSD-2604320902.A39
2604320902
|
-
|
|
|
|
37 - SPIRAL SPRING
BSD-2604652000.A157
2604652000
|
-
|
|
|
|
38 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A32
2910211004
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW
BSD-2603410010.A231
2603410010
|
-
|
|
|
|
42 - ON-OFF SWITCH
BSD-2607200043.A10
2607200043
|
-
|
|
|
|
43 - SUPPRESSION FILTER
BSD-2607329051.A13
2607329051
|
-
|
|
|
|
44 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A465
1607000227
|
£23.86
|
£28.63
|
|
|
45 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A559
2600703011
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A662
2600703012
|
£2.80
|
£3.36
|
|
|
45 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A564
2600703013
|
£2.33
|
£2.80
|
|
|
46 - CABLE CLIP
BSD-2601035001.A2361
2601035001
|
£1.66
|
£1.99
|
|
|
47 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A78
2603410023
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A242
2910211019
|
£1.66
|
£1.99
|
|
|
49 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A510
2910211020
|
£1.66
|
£1.99
|
|
|
50 - HOUSING COVER
BSD-2605132005.A14
2605132005
|
-
|
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A97
2910211021
|
£1.66
|
£1.99
|
|
|
52 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A140
2917724032
|
-
|
|
|
|
53 - NAMEPLATE
BSD-160111A3H3.A3724
160111A3H3
|
£2.33
|
£2.80
|
|
|
54 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A235
2601007003
|
-
|
|
|
|
55 - CHANGE-OVER SWITCH
BSD-2607200003.A9
2607200003
|
-
|
|
|
|
56 - CONNECTING CABLE
BSD-2604411505.A23
2604411505
|
-
|
|
|
|
57 - CABLE
BSD-2604411530.A9
2604411530
|
-
|
|
|
|
58 - CABLE
BSD-2604411523.A56
2604411523
|
-
|
|
|
|
59 - WRENCH ATTACHMENT
BSD-2608583004.A1
2608583004
|
-
|
|
|
|
61 - DEPTH-GAUGE
BSD-2600326003.A6
2600326003
|
-
|
|
|
|
62 - SEAL RING
BSD-2600370001.A0
2600370001
|
-
|
|
|
|
803 - BEARING HOUSING
BSD-2605806302.A6
2605806302
|
-
|
|
|
|
804 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A557
1903230007
|
£1.66
|
£1.99
|
|
|
807 - GUIDE SLEEVE
BSD-2600452002.A6
2600452002
|
-
|
|
|
|
809 - BALL SLEEVE
BSD-2603126001.A5
2603126001
|
-
|
|
|
|
810 - HEX NUT
BSD-2603300001.A1
2603300001
|
-
|
|
|
|
811 - RETAINING RING
BSD-2604601004.A0
2604601004
|
£1.66
|
£1.99
|
|
|
812 - COMPRESSION SPRING
BSD-2604611004.A1
2604611004
|
-
|
|
|
|
814 - JAW COUPLING
BSD-2606490901.A0
2606490901
|
-
|
|
|
|
816 - HEX SOCKET HEAD CAP SCREW
BSD-2910140157.A6
2910140157
|
-
|
|
|
