Bosch GSH 5 CE / 0611313750 / I 230 Volt Spare Parts

Home Details Reviews Delivery

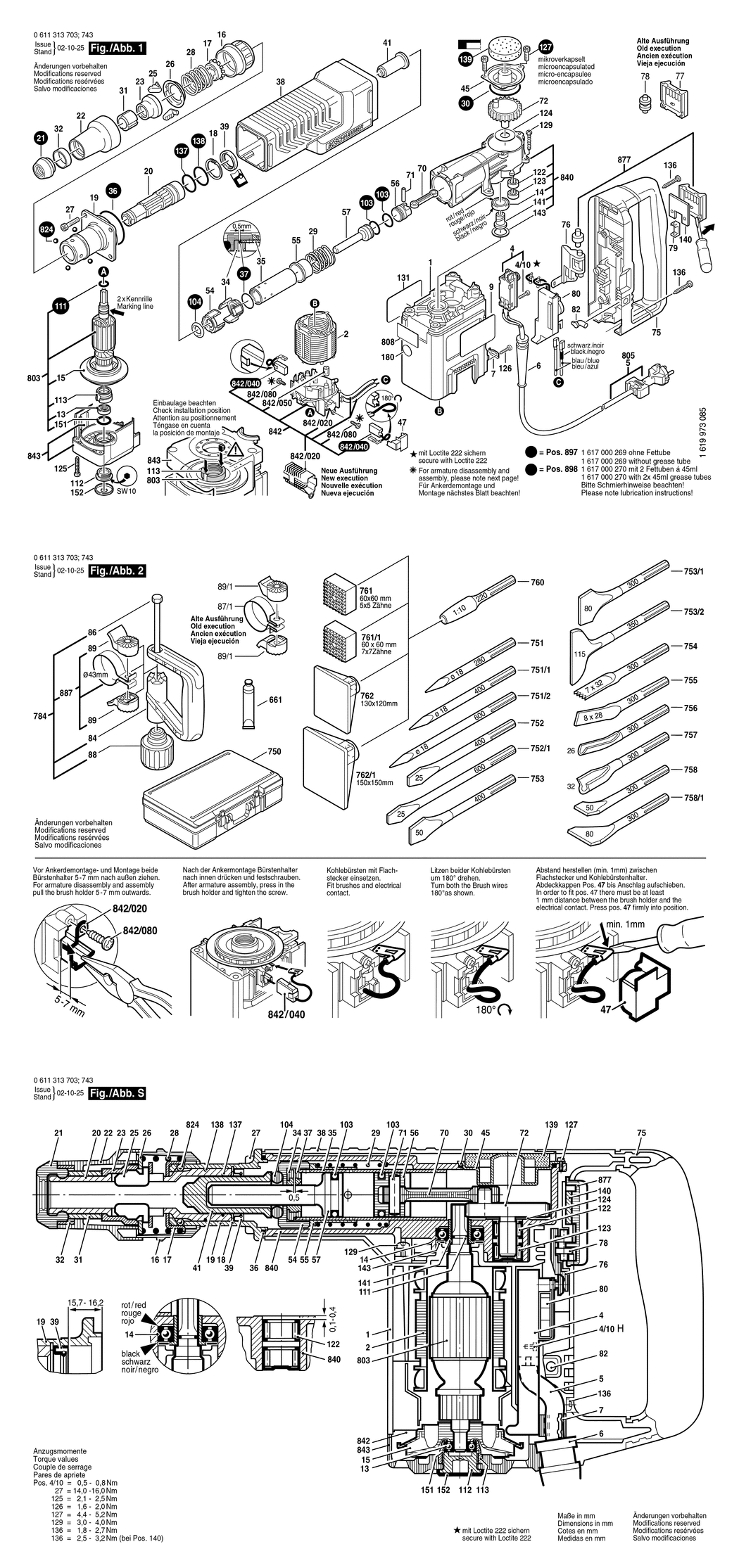

An exploded drawing and listing for the Bosch GSH 5 CE / 0611313750 / I 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102142.A18 1615102142	£22.60	£27.12
2 - FIELD 220-230V BSD-1604220343.A81 1604220343	£33.74	£40.49
4 - SWITCH BSD-1617200048.A118 1617200048	£19.91	£23.89
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A137 2910011088	£1.84	£2.21
5 - POWER SUPPLY CORD IL 4.15m 2 x 1.0mm H07 RN-F BSD-1614460047.A10 1614460047	£18.96	£22.75
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A182 1610703053	£2.74	£3.29
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A757 3600703011	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302018.A776 1601302018	£1.75	£2.10
13 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A153 1610900025	£16.41	£19.69
14 - GROOVE BALL BEARING 15x32x9 BSD-1610905027.A20 1610905027	-
15 - FAN BSD-1616610071.A53 1616610071	£9.49	£11.39
16 - RATCHET SLEEVE BSD-1610499016.A3 1610499016	-
17 - RETAINING SNAP RING BSD-1610590002.A28 1610590002	£3.72	£4.47
18 - SPRING RETAINING RING DIN 472 37x1.5MM BSD-2916660016.A25 2916660016	£2.61	£3.13
19 - CLAMPING-FLANGE BSD-1615700033.A24 1615700033	-
20 - TOOLHOLDER BSD-1618597069.A10 1618597069	-
21 - PROTECTIVE CAP BSD-1610508017.A69 1610508017	£3.91	£4.69
22 - PROTECTION SLEEVE BSD-1610499015.A28 1610499015	-
23 - STOP SLEEVE BSD-1610520001.A119 1610520001	£12.64	£15.17
25 - STOPPING DEVICE BSD-1612300027.A44 1612300027	£11.87	£14.24
26 - INDEXING DISK BSD-1610290025.A107 1610290025	£6.85	£8.22
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A175 2910141201	£2.74	£3.29
28 - COMPRESSION SPRING BSD-1614621000.A117 1614621000	£2.94	£3.53
29 - COMPRESSION SPRING BSD-1614615002.A18 1614615002	£2.05	£2.46
30 - O-RING 60.0x2.5 MM BSD-1610210136.A15 1610210136	-
31 - SPACER TUBE BSD-1610390015.A18 1610390015	-
32 - CYLINDER SLEEVE BSD-1610202016.A65 1610202016	-
34 - SPACER TUBE BSD-1610390030.A29 1610390030	-
35 - HAMMER PIPE BSD-1615806086.A28 1615806086	-
36 - O-RING 48.0x2.0 MM BSD-1610210022.A31 1610210022	£1.74	£2.09
37 - O-RING 30x2.5 MM BSD-1900210131.A59 1900210131	£4.48	£5.37
38 - COVERING HOOD BSD-1615190073.A3 1615190073	£11.87	£14.24
39 - ROTARY SHAFT LIP SEAL BSD-1610283027.A18 1610283027	£4.99	£5.99
41 - STRIKER PIN BSD-1618710052.A22 1618710052	£16.74	£20.09
45 - HOUSING COVER BSD-1615500294.A5 1615500294	-
47 - COVER BSD-1610591012.A55 1610591012	£1.84	£2.21
54 - CONTROL DISC BSD-1610190010.A31 1610190010	-
55 - CONTROL BUSHING BSD-1610420004.A11 1610420004	-
56 - HAMMER PISTON BSD-1618700057.A24 1618700057	-
57 - STRIKER BSD-1618710077.A26 1618710077	-
70 - CONNECTING ROD BSD-1612001031.A27 1612001031	-
71 - STRAIGHT PIN BSD-1613101005.A12 1613101005	£1.38	£1.66
72 - ECCENTRIC COG WHEEL Z=43 BSD-1616317051.A11 1616317051	-
75 - HANDLE BSD-1615132043.A11 1615132043	-
76 - CONTROL LEVER BSD-1612026029.A22 1612026029	£5.57	£6.68
79 - BEARING PEDESTAL BSD-1615819016.A22 1615819016	-
80 - SPEED GOVERNOR 220-240V BSD-1617233026.A29 1617233026	£49.16	£58.99
82 - LIGHT CONDUCTOR BSD-1615510000.A20 1615510000	£2.27	£2.72
84 - STRAP-SHAPED HANDLE BSD-1615132044.A10 1615132044	£15.65	£18.78
86 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A63 2911011270	£4.48	£5.37
88 - STAR KNOB M8 BSD-1619P16922.A17 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1618040068.A7 1618040068	£5.01	£6.01
103 - O-RING 24.0x4.0 MM BSD-1610210091.A28 1610210091	£3.91	£4.69
104 - O-RING 17.0x8.0 MM BSD-1610210093.A18 1610210093	£1.75	£2.10
111 - O-RING 10.0x1.0 MM BSD-1610210081.A59 1610210081	£3.72	£4.47
112 - THREADED RING M24x1.5MM. SW10 BSD-1613461001.A26 1613461001	-
113 - BUSHING BSD-1610501036.A35 1610501036	£9.11	£10.93
122 - NEEDLE BEARING BSD-1610910088.A13 1610910088	£5.58	£6.70
123 - NOZZLE SOCKET BSD-1610910087.A2 1610910087	-
124 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A75 1610101008	-
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A59 2912401036	£1.32	£1.58
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A614 2910211019	£1.84	£2.21
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A17 2914551117	£1.84	£2.21
129 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A58 2912401036	£1.32	£1.58
136 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A16 2910211236	£1.75	£2.10
137 - O-RING 26.0x2.0 MM BSD-1610210101.A19 1610210101	£2.80	£3.36
138 - O-RING 33.0x2.0 MM BSD-1610210103.A18 1610210103	£2.74	£3.29
139 - FELT WASHER BSD-1610108021.A17 1610108021	-
140 - SUPPORT PLATE BSD-1611098004.A21 1611098004	-
141 - HEADED BUSH BSD-1613344005.A2 1613344005	-
143 - FELT WASHER BSD-1610108024.A0 1610108024	-
151 - O-RING 21.0x2.0 MM BSD-2600210028.A10 2600210028	£1.38	£1.66
152 - COVER BSD-1610508030.A15 1610508030	-
661 - GREASE TUBE 30 ML BSD-1615430010.A146 1615430010	£6.85	£8.22
750 - CARRYING CASE BSD-2605438260.A0 2605438260	-
751 - POINTED CHISEL dia18x280 MM BSD-1618600023.A2 1618600023	£15.76	£18.91
751/1 - POINTED CHISEL dia18x400 MM BSD-1618600011.A7 1618600011	-
751/2 - POINTED CHISEL dia18x600 MM BSD-1618600012.A16 1618600012	£24.81	£29.77
752 - COLD CHISEL 25x400 MM BSD-1618600202.A21 1618600202	-
752/1 - COLD CHISEL 25x600 MM BSD-1618600203.A2 1618600203	£19.16	£22.99
753 - SPADE-SHAPED CHISEL 50x400 MM BSD-1618601006.A12 1618601006	-
753/1 - WIDE CHISEL 80x300 MM BSD-1618601008.A12 1618601008	£37.08	£44.49
753/2 - WIDE CHISEL 115x350 MM BSD-1618601007.A11 1618601007	£70.58	£84.70
754 - TOOTHED CHISEL 32x7x300 MM BSD-1618601302.A11 1618601302	£34.74	£41.69
755 - MORTAR RAKING CHISEL 28x8x300 MM BSD-1618601303.A12 1618601303	-
756 - GOUGE 26x300 MM BSD-1618601101.A11 1618601101	£36.89	£44.27
757 - GOUGE 32x300 MM BSD-1618601102.A12 1618601102	£47.04	£56.45
758 - TILE CHISEL 50x300 MM BSD-1618601018.A11 1618601018	-
758/1 - WIDE CHISEL 80x300 MM BSD-1618601019.A12 1618601019	£64.02	£76.83
760 - CHISEL HOLDER 65x220 MM BSD-1618609003.A11 1618609003	£37.03	£44.44
761 - BUSH HAMMER 60x60 MM. Z= 5x5 BSD-1618623205.A12 1618623205	£68.09	£81.71
761/1 - BUSH HAMMER 60x60 MM. Z= 7x7 BSD-1618623206.A11 1618623206	£68.09	£81.71
762 - TAMPING TOOL 120x130 MM BSD-1618633101.A21 1618633101	£92.22	£110.67
762/1 - TAMPING TOOL 150x150 MM BSD-1618633102.A2 1618633102	£128.02	£153.62
784 - AUXILIARY HANDLE dia 43 MM BSD-2602025063.A11 2602025063	£35.92	£43.10
803 - ARMATURE 220-240V BSD-1614010186.A22 1614010186	-
808 - NAMEPLATE BSD-160111A3H3.A2989 160111A3H3	£2.74	£3.29
824 - BALL DIN 5401-5 MM-III-ST BSD-1617000239.A23 1617000239	-
840 - ASSEMBLY OF SERVICE PARTS BSD-1617000804.A10 1617000804	-
842 - BRUSH HOLDER BSD-1614336009.A61 1614336009	-
842/020 - BRUSH GUIDE BSD-1614336043.A64 1614336043	-
842/040 - CARBON-BRUSH SET BSD-1617014122.A56 1617014122	£19.91	£23.89
842/040 - CARBON-BRUSH SET 10 x 1 617 014 122 BSD-1607000497.A33 1607000497	£120.11	£144.13
842/050 - RUBBER BUFFER BSD-1613212004.A77 1613212004	£3.72	£4.47
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A303 2912401005	£1.84	£2.21
843 - BEARING COVER BSD-1615808078.A15 1615808078	-
877 - SHIFT PLATE BSD-1617000297.A0 1617000297	-
887 - CLAMPING BAND dia 43 MM BSD-1617000171.A30 1617000171	-
897 - WEAR AND TEAR PART SET BSD-1617000269.A7 1617000269	-
898 - WEAR AND TEAR PART SET BSD-1617000270.A2 1617000270	-
