Bosch GSH 4 / 0611312141 / GB 110 Volt Spare Parts

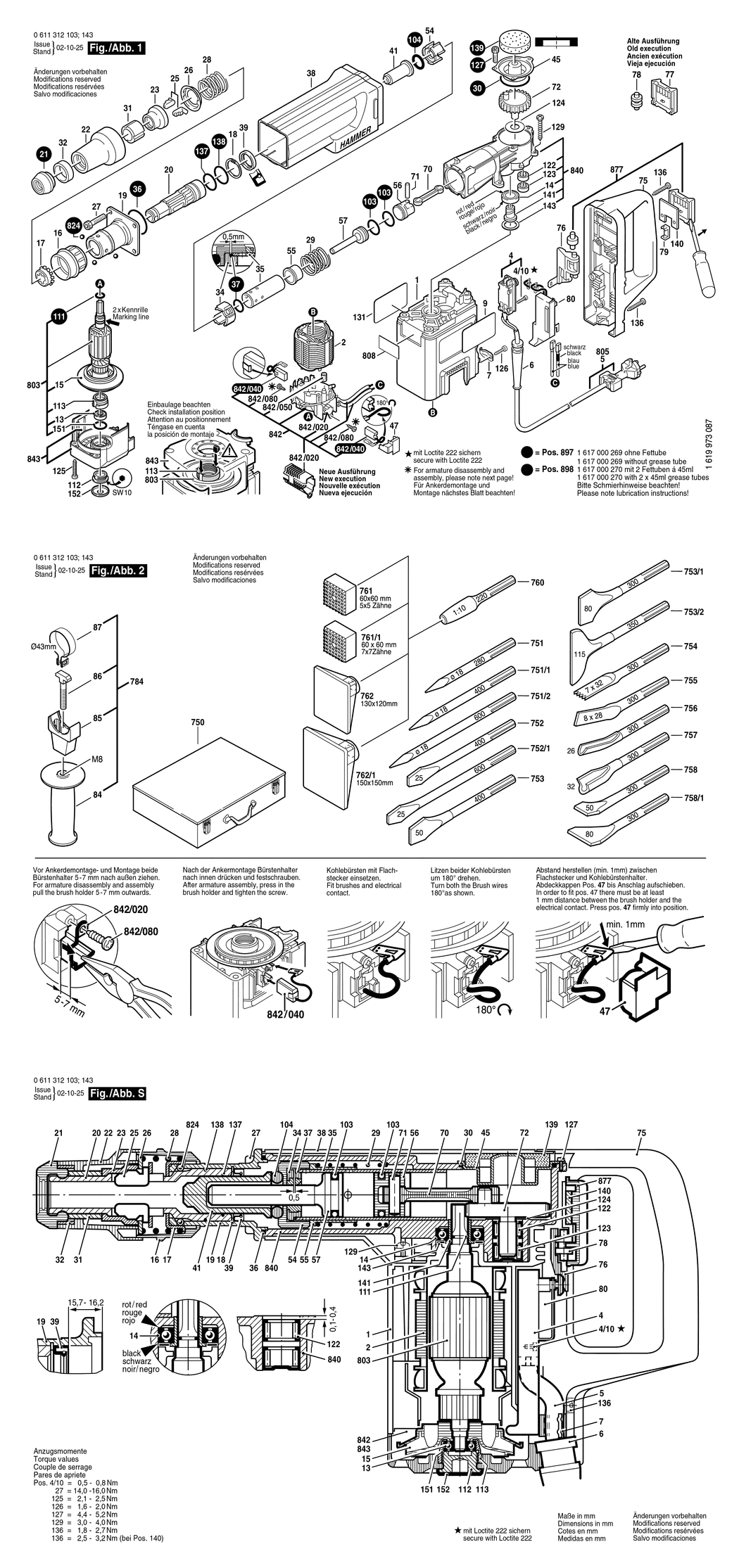

An exploded drawing and listing for the Bosch GSH 4 / 0611312141 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102142.A7 1615102142	£21.52	£25.83
2 - FIELD 100V BSD-1614220132.A12 1614220132	£33.74	£40.49
4 - SWITCH BSD-1617200048.A103 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A124 2910011088	£1.75	£2.10
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07RN-F BSD-1614460060.A1 1614460060	-
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A188 1610703053	£2.61	£3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A765 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A766 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110667.A5 1611110667	-
13 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A147 1610900025	£16.41	£19.69
14 - GROOVE BALL BEARING 15x32x9 BSD-1610905027.A26 1610905027	-
15 - FAN BSD-1616610071.A61 1616610071	£9.49	£11.39
16 - RATCHET SLEEVE BSD-1610499016.A14 1610499016	-
17 - RETAINING SNAP RING BSD-1610590002.A17 1610590002	£3.72	£4.47
18 - SPRING RETAINING RING DIN 472 37x1.5MM BSD-2916660016.A17 2916660016	£2.61	£3.13
19 - CLAMPING-FLANGE BSD-1615700033.A16 1615700033	-
20 - TOOLHOLDER BSD-1618597069.A6 1618597069	-
21 - PROTECTIVE CAP BSD-1610508017.A82 1610508017	£3.72	£4.47
22 - PROTECTION SLEEVE BSD-1610499015.A17 1610499015	£4.75	£5.70
23 - STOP SLEEVE BSD-1610520001.A130 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300027.A32 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1610290025.A113 1610290025	£6.52	£7.83
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A188 2910141201	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A111 1614621000	£2.80	£3.36
29 - COMPRESSION SPRING BSD-1614615002.A24 1614615002	£1.95	£2.34
30 - O-RING 60.0x2.5 MM BSD-1610210136.A7 1610210136	-
31 - SPACER TUBE BSD-1610390015.A26 1610390015	-
32 - CYLINDER SLEEVE BSD-1610202016.A73 1610202016	-
34 - SPACER TUBE BSD-1610390030.A21 1610390030	-
35 - HAMMER PIPE BSD-1615806086.A21 1615806086	-
36 - O-RING 48.0x2.0 MM BSD-1610210022.A23 1610210022	£1.66	£1.99
37 - O-RING 30x2.5 MM BSD-1900210131.A62 1900210131	£4.26	£5.11
38 - COVERING HOOD BSD-1615190058.A1 1615190058	-
39 - ROTARY SHAFT LIP SEAL BSD-1610283027.A26 1610283027	£4.75	£5.70
41 - STRIKER PIN BSD-1618710052.A25 1618710052	£16.74	£20.09
45 - HOUSING COVER BSD-1615500294.A11 1615500294	-
47 - COVER BSD-1610591012.A62 1610591012	£1.75	£2.10
54 - CONTROL DISC BSD-1610190010.A23 1610190010	-
55 - CONTROL BUSHING BSD-1610420004.A19 1610420004	-
56 - HAMMER PISTON BSD-1618700057.A22 1618700057	-
57 - STRIKER BSD-1618710077.A24 1618710077	-
70 - CONNECTING ROD BSD-1612001031.A20 1612001031	-
71 - STRAIGHT PIN BSD-1613101005.A20 1613101005	£1.32	£1.58
72 - ECCENTRIC COG WHEEL Z=43 BSD-1616317051.A9 1616317051	-
75 - HANDLE BSD-1615132056.A8 1615132056	-
76 - CONTROL LEVER BSD-1612026029.A29 1612026029	£5.30	£6.36
79 - BEARING PEDESTAL BSD-1615819016.A24 1615819016	-
80 - SPEED GOVERNOR 100-120V BSD-1617233025.A0 1617233025	-
84 - AUXILIARY HANDLE BSD-160202507H.A41 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP dia 43 MM BSD-1618040057.A7 1618040057	-
86 - T-HEAD BOLT M8x40 MM BSD-1613490002.A636 1613490002	£4.26	£5.11
87 - CLAMPING BAND dia43 MM BSD-1611316006.A20 1611316006	£2.61	£3.13
103 - O-RING 24.0x4.0 MM BSD-1610210091.A21 1610210091	£3.72	£4.47
104 - O-RING 17.0x8.0 MM BSD-1610210093.A25 1610210093	£1.75	£2.10
111 - O-RING 10.0x1.0 MM BSD-1610210081.A66 1610210081	£3.72	£4.47
112 - THREADED RING M24x1.5MM. SW10 BSD-1613461001.A31 1613461001	-
113 - BUSHING BSD-1610501036.A29 1610501036	£8.67	£10.41
122 - NEEDLE BEARING BSD-1610910088.A6 1610910088	£5.58	£6.70
123 - NOZZLE SOCKET BSD-1610910087.A9 1610910087	-
124 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A82 1610101008	-
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A49 2912401036	£1.32	£1.58
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A608 2910211019	£1.75	£2.10
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A22 2914551117	£1.75	£2.10
129 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A48 2912401036	£1.32	£1.58
131 - MANUFACTURER'S NAMEPLATE BSD-1611110668.A2 1611110668	£2.80	£3.36
136 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A23 2910211236	£1.75	£2.10
137 - O-RING 26.0x2.0 MM BSD-1610210101.A11 1610210101	£2.80	£3.36
138 - O-RING 33.0x2.0 MM BSD-1610210103.A26 1610210103	£2.61	£3.13
139 - FELT WASHER BSD-1610108021.A7 1610108021	-
140 - SUPPORT PLATE BSD-1611098004.A29 1611098004	-
141 - HEADED BUSH BSD-1613344005.A8 1613344005	-
143 - FELT WASHER BSD-1610108024.A8 1610108024	-
151 - O-RING 21.0x2.0 MM BSD-2600210028.A9 2600210028	£1.32	£1.58
152 - COVER BSD-1610508030.A7 1610508030	-
750 - CARRYING CASE BSD-2605438313.A2 2605438313	-
751/1 - POINTED CHISEL dia18x280 MM BSD-1618600023.A3 1618600023	£15.76	£18.91
751/2 - POINTED CHISEL dia18x400 MM BSD-1618600011.A0 1618600011	-
751 - POINTED CHISEL dia18x600 MM BSD-1618600012.A23 1618600012	£24.81	£29.77
752 - COLD CHISEL 25x400 MM BSD-1618600202.A20 1618600202	-
752/1 - COLD CHISEL 25x600 MM BSD-1618600203.A3 1618600203	£24.81	£29.77
753 - SPADE-SHAPED CHISEL 50x400 MM BSD-1618601006.A11 1618601006	-
753/1 - WIDE CHISEL 80x300 MM BSD-1618601008.A11 1618601008	£35.31	£42.37
753/2 - WIDE CHISEL 115x350 MM BSD-1618601007.A12 1618601007	£70.58	£84.70
754 - TOOTHED CHISEL 32x7x300 MM BSD-1618601302.A12 1618601302	£33.08	£39.70
755 - MORTAR RAKING CHISEL 28x8x300 MM BSD-1618601303.A11 1618601303	-
756 - GOUGE 26x300 MM BSD-1618601101.A12 1618601101	£35.13	£42.16
757 - GOUGE 32x300 MM BSD-1618601102.A11 1618601102	£44.80	£53.76
758 - TILE CHISEL 50x300 MM BSD-1618601018.A12 1618601018	-
758/1 - WIDE CHISEL 80x300 MM BSD-1618601019.A11 1618601019	£60.98	£73.17
760 - CHISEL HOLDER 65x220 MM BSD-1618609003.A12 1618609003	£35.27	£42.32
761 - BUSH HAMMER 60x60 MM. Z= 5x5 BSD-1618623205.A11 1618623205	£64.85	£77.82
761/1 - BUSH HAMMER 60x60 MM. Z= 7x7 BSD-1618623206.A12 1618623206	£64.85	£77.82
762 - TAMPING TOOL 120x130 MM BSD-1618633101.A20 1618633101	£87.83	£105.40
762/1 - TAMPING TOOL 150x150 MM BSD-1618633102.A3 1618633102	£128.02	£153.62
784 - AUXILIARY HANDLE dia 43 MM BSD-2602025063.A12 2602025063	£35.92	£43.10
803 - ARMATURE 100-110V BSD-1614010187.A2 1614010187	-
808 - NAMEPLATE BSD-160111A3H3.A2982 160111A3H3	£2.61	£3.13
824 - BALL DIN 5401-5 MM-III-ST BSD-1617000239.A28 1617000239	-
840 - ASSEMBLY OF SERVICE PARTS BSD-1617000804.A4 1617000804	-
842 - BRUSH HOLDER BSD-1614336009.A64 1614336009	-
842/020 - BRUSH GUIDE BSD-1614336043.A61 1614336043	-
842/040 - CARBON-BRUSH SET BSD-1617014122.A62 1617014122	£18.96	£22.75
842/040 - CARBON-BRUSH SET 10 x 1 617 014 122 BSD-1607000497.A29 1607000497	£120.11	£144.13
842/050 - RUBBER BUFFER BSD-1613212004.A70 1613212004	£3.72	£4.47
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A309 2912401005	£1.75	£2.10
843 - BEARING COVER BSD-1615808078.A21 1615808078	-
877 - SHIFT PLATE BSD-1617000297.A3 1617000297	-
897 - WEAR AND TEAR PART SET BSD-1617000269.A2 1617000269	-
898 - WEAR AND TEAR PART SET BSD-1617000270.A7 1617000270	-
