Bosch BCDH-5 / 0611318761 / EU 230 Volt Spare Parts

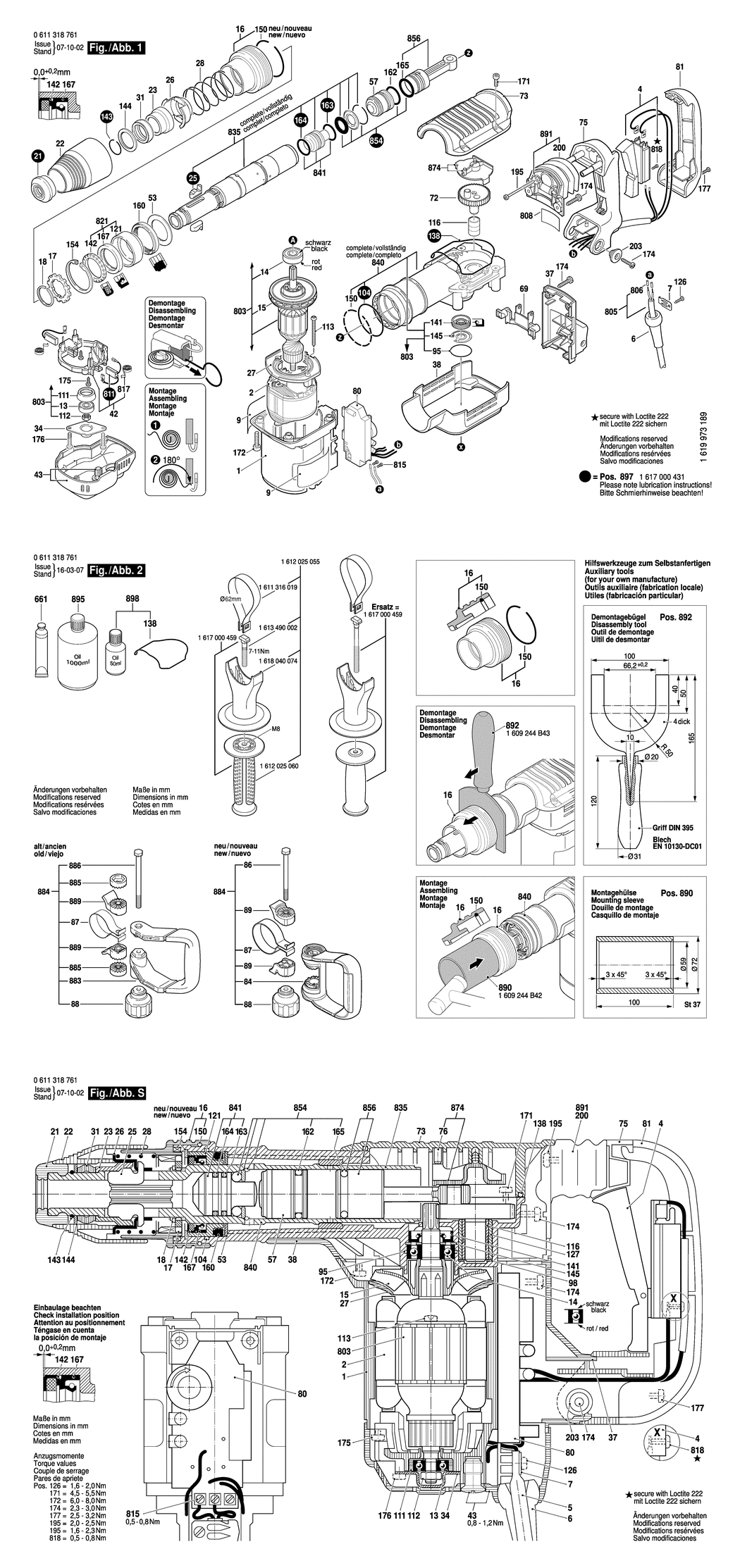

An exploded drawing and listing for the Bosch BCDH-5 / 0611318761 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102158.A1 1615102158	£27.23	£32.68
2 - FIELD 220-240V BSD-1614220123.A6 1614220123	£40.80	£48.96
4 - SWITCH BSD-1617200105.A1 1617200105	£31.64	£37.97
6 - GROMMET dia8.7-dia9.6x66 MM BSD-1600703035.A45 1600703035	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A788 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110F43.A0 1611110F43	-
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A6 1610900026	£12.04	£14.45
14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A2 1610905028	£16.41	£19.69
15 - FAN BSD-1616610090.A26 1616610090	£12.04	£14.45
16 - RATCHET SLEEVE BSD-1610499055.A13 1610499055	£7.36	£8.83
17 - CATCH DISK BSD-1610241000.A14 1610241000	£3.72	£4.47
18 - RETAINING RING BSD-1614601030.A3 1614601030	£2.61	£3.13
21 - PROTECTIVE CAP BSD-1610508038.A21 1610508038	£8.13	£9.76
22 - PROTECTION SLEEVE BSD-1610591030.A2 1610591030	£5.30	£6.36
23 - STOP SLEEVE BSD-1610520001.A111 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300036.A19 1612300036	£13.12	£15.75
26 - INDEXING DISK BSD-1610290076.A16 1610290076	£6.52	£7.83
27 - AIR-DEFLECTOR RING BSD-1610591028.A32 1610591028	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A87 1614621000	£2.80	£3.36
31 - DAMPING RING BSD-1610290049.A37 1610290049	£2.80	£3.36
34 - FLANGE BSD-1610516013.A27 1610516013	£1.75	£2.10
37 - BEARING PEDESTAL BSD-1615500354.A0 1615500354	£5.58	£6.70
38 - COVERING HOOD BSD-1615190130.A0 1615190130	£13.41	£16.09
42 - BRUSH HOLDER BSD-1614336046.A3 1614336046	£37.27	£44.72
43 - FAN COVER BSD-1615500410.A25 1615500410	£13.12	£15.75
53 - SUPPORT DISC BSD-1610102054.A8 1610102054	£3.72	£4.47
57 - STRIKER BSD-1618710073.A6 1618710073	£27.23	£32.68
69 - RETAINING BRACKET BSD-1610099005.A12 1610099005	£2.16	£2.59
72 - ECCENTRIC COG WHEEL BSD-1616317062.A3 1616317062	£51.22	£61.47
73 - HOUSING COVER BSD-1615500360.A0 1615500360	£16.74	£20.09
75 - HANDLE BSD-1615132103.A0 1615132103	£33.45	£40.14
80 - SPEED GOVERNOR 220-240V BSD-1617233046.A0 1617233046	-
81 - HANDLE COVER BSD-1615132088.A4 1615132088	£21.68	£26.01
84 - AUXILIARY HANDLE BSD-160202508D.A24 160202508D	£18.96	£22.75
86 - HEX SCREW BSD-2911021267.A22 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1611316022.A4 1611316022	£10.10	£12.12
88 - STAR KNOB M8 BSD-1619P16922.A32 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A00748.A16 1600A00748	£2.80	£3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A35 1610210173	£2.16	£2.59
104 - O-RING 55.0x2.0 MM BSD-1610210095.A44 1610210095	£2.61	£3.13
111 - BUSHING BSD-1610290064.A8 1610290064	£1.75	£2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A3 1613300008	£2.61	£3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A155 1613435009	£1.75	£2.10
116 - INNER RING BSD-1610311017.A19 1610311017	£6.52	£7.83
121 - BUSHING BSD-1610328018.A1 1610328018	£14.91	£17.89
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A636 2910211019	£1.75	£2.10
138 - SEALING FRAME BSD-1611015050.A13 1611015050	£9.47	£11.36
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A8 1610290066	£10.10	£12.12
142 - ROTARY SHAFT LIP SEAL BSD-1610290061.A8 1610290061	£5.58	£6.70
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A63 1614601021	£7.36	£8.83
144 - SUPPORTING DISC BSD-1610251006.A14 1610251006	£5.58	£6.70
145 - SPRING RETAINING RING BSD-1610119012.A19 1610119012	£2.61	£3.13
150 - RETAINING RING BSD-1614601041.A12 1614601041	£1.75	£2.10
154 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A24 2916660024	£5.30	£6.36
160 - DAMPING RING BSD-1610210172.A9 1610210172	£6.52	£7.83
162 - O-RING 24.0x4.0 MM BSD-1610210091.A33 1610210091	£3.72	£4.47
163 - SEAL RING BSD-1610290065.A53 1610290065	£8.13	£9.76
164 - O-RING 22.0x3.0 MM BSD-1610210144.A24 1610210144	£5.30	£6.36
165 - O-RING 25.0x4.0 MM BSD-1610210153.A6 1610210153	£7.36	£8.83
167 - ROTARY SHAFT LIP SEAL BSD-1610290062.A14 1610290062	£3.72	£4.47
171 - TORX OVAL-HEAD SCREW M5x16-TORX.T25 BSD-1613435014.A6 1613435014	£2.16	£2.59
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A55 1613435013	£2.16	£2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A11 1613435012	£2.16	£2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A179 2912401018	£1.75	£2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A12 1613435012	£2.16	£2.59
177 - TAPPING SCREW ST3.9x32 BSD-1603435051.A93 1603435051	£1.95	£2.34
195 - TORX OVAL-HEAD SCREW BSD-1613435020.A11 1613435020	-
200 - BELLOWS BSD-1610284000.A28 1610284000	£10.10	£12.12
203 - SUPPORT DISC BSD-1610322012.A1 1610322012	-
661 - GREASE TUBE 30 ML BSD-1615430010.A170 1615430010	£6.52	£7.83
803 - ARMATURE 220-240V BSD-1614011098.A5 1614011098	£103.14	£123.77
805 - POWER SUPPLY CORD BSD-1617000723.A76 1617000723	£27.23	£32.68
806 - END SPLICE BSD-3604477009.A10 3604477009	£2.61	£3.13
808 - NAMEPLATE BSD-160111A3HD.A8 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014144.A30 1617014144	£21.52	£25.83
815 - SOCKET HEAD CAP SCREW BSD-1609271281.A8 1609271281	£1.75	£2.10
817 - SPIRAL SPRING BSD-1614652004.A17 1614652004	£7.36	£8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A38 2910011082	£1.75	£2.10
821 - BUSHING BSD-1617000835.A4 1617000835	£21.68	£26.01
835 - HAMMER PIPE BSD-1617000432.A4 1617000432	£179.37	£215.24
840 - IMPACT MECHANISM HOUSING BSD-1617000837.A3 1617000837	£57.02	£68.42
841 - STRIKER PIN BSD-1617000452.A4 1617000452	£40.80	£48.96
854 - STOP DISC BSD-1617000442.A11 1617000442	£37.27	£44.72
856 - HAMMER PISTON BSD-1617000836.A11 1617000836	£27.23	£32.68
874 - HOLDING-DOWN-APPLIANCE BSD-1617000422.A4 1617000422	£13.12	£15.75
883 - AUXILIARY HANDLE BSD-1615132109.A1 1615132109	£23.86	£28.63
884 - AUXILIARY HANDLE BSD-1602025097.A11 1602025097	£40.80	£48.96
885 - CATCH DISK BSD-1610190053.A12 1610190053	£2.49	£2.99
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A34 2911011270	£4.26	£5.11
889 - CLAMPING PIECE BSD-1618040084.A4 1618040084	£2.80	£3.36
890 - MOUNTING SLEEVE BSD-1609244B42.A21 1609244B42	-
891 - SPRING PACK BSD-1617000870.A0 1617000870	-
892 - BOW BSD-1609244B43.A1 1609244B43	-
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A47 1615430019	£59.53	£71.44
897 - WEAR AND TEAR PART SET BSD-1617000431.A5 1617000431	£27.23	£32.68
898 - OIL RESERVOIR 50 ML BSD-1615437512.A9 1615437512	£13.12	£15.75
