Bosch ---- / 0611302042 / GB 220 Volt Spare Parts

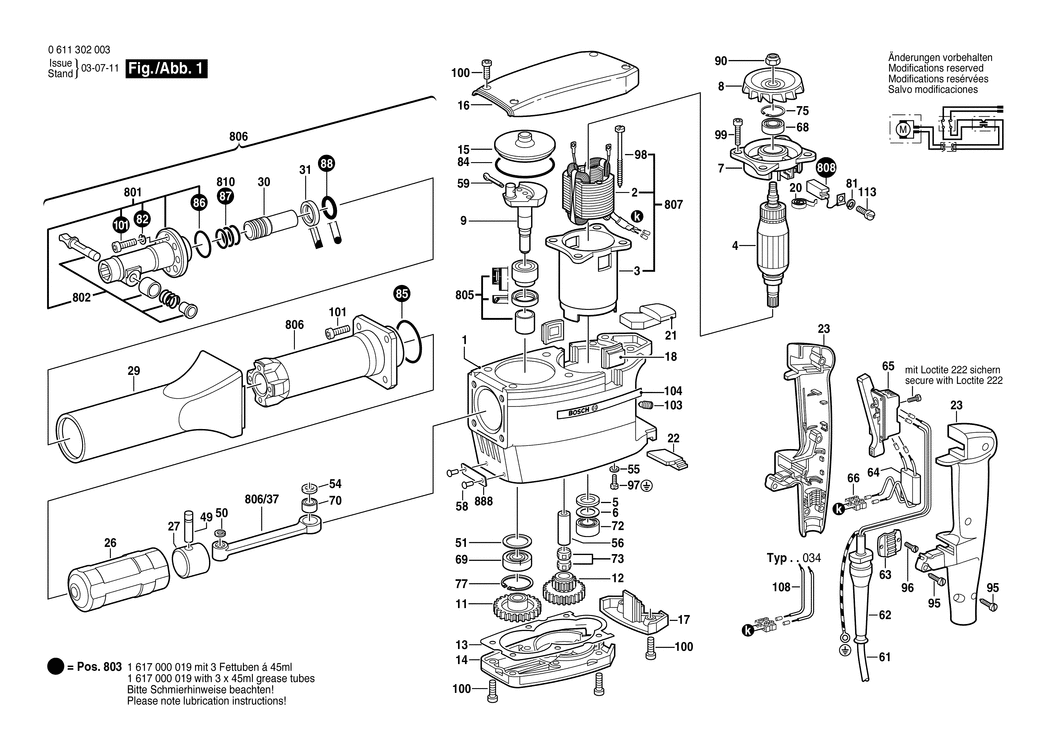

An exploded drawing and listing for the Bosch ---- / 0611302042 / GB 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106023.A0 1615106023	-
2 - FIELD 220-230V BSD-1617031009.A13 1617031009	-
3 - POLE HOUSING BSD-1617000059.A2 1617000059	-
4 - ARMATURE 220-230V BSD-1614011019.A13 1614011019	-
5 - SEALING DISK BSD-1610108012.A34 1610108012	£1.75	£2.10
6 - SHIM 1.0 MM BSD-1610102013.A0 1610102013	£1.75	£2.10
7 - BEARING FLANGE BSD-1615805060.A0 1615805060	-
8 - FAN BSD-1616610047.A12 1616610047	-
9 - ECCENTRIC SHAFT BSD-1616110032.A1 1616110032	£46.82	£56.18
11 - CYLINDRICAL GEAR Z=45 BSD-1616317015.A8 1616317015	-
12 - CYLINDRICAL GEAR Z=47/21 BSD-1616328025.A9 1616328025	-
13 - SEALING PLATE BSD-1611015012.A33 1611015012	£2.33	£2.80
14 - GEAR COVER BSD-1615808039.A22 1615808039	-
15 - SEALING CAP BSD-1615500168.A42 1615500168	£2.52	£3.02
16 - FAN COVER BSD-1615500276.A32 1615500276	£52.15	£62.58
17 - SWITCH COVER BSD-1615500261.A12 1615500261	£7.78	£9.33
18 - SEALING CAP BSD-1615500282.A38 1615500282	£2.33	£2.80
20 - SPIRAL SPRING BSD-1614652000.A99 1614652000	-
21 - RUBBER PLATE BSD-1612392001.A58 1612392001	£3.80	£4.56
22 - RUBBER PLATE BSD-1612392000.A8 1612392000	£3.80	£4.56
23 - HANDLE BSD-1615133021.A8 1615133021	£21.52	£25.83
26 - STRIKER BSD-1618710031.A18 1618710031	-
27 - IMPACT MECHANISM BSD-1617000917.A38 1617000917	£653.78	£784.53
29 - PROTECTIVE TUBE BSD-1615190020.A23 1615190020	£16.41	£19.69
30 - STRIKER PIN BSD-1613120013.A18 1613120013	-
31 - ADAPTOR PLATE BSD-1610114011.A18 1610114011	-
49 - PISTON PIN BSD-1613105009.A26 1613105009	-
50 - LOCKING WASHER BSD-1610113008.A0 1610113008	-
51 - SHIM 1.0 MM BSD-1610102014.A52 1610102014	-
54 - COVER DISC dia12xdia26x2.0 MM BSD-1610113005.A34 1610113005	£1.75	£2.10
55 - SPRING WASHER DIN 137-A4 BSD-1600150006.A849 1600150006	-
56 - BEARING BOLT BSD-1610300057.A39 1610300057	£4.75	£5.70
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A120 2917721034	£1.75	£2.10
59 - SPLIT PIN 3.2x18 DIN 94-ST BSD-1904681350.A41 1904681350	£1.75	£2.10
61 - POWER SUPPLY CORD BSD-1617000723.A69 1617000723	£27.23	£32.68
62 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A710 3600703011	£2.80	£3.36
63 - FASTENING CLAMP BSD-1611302006.A32 1611302006	-
64 - SUPPRESSION FILTER BSD-1617328002.A43 1617328002	-
65 - ON-OFF SWITCH BSD-1617200021.A20 1617200021	-
66 - CONNECTING TERMINAL BSD-1611091002.A8 1611091002	£1.75	£2.10
68 - GROOVE BALL BEARING 10x32x12 BSD-1610905001.A47 1610905001	£14.91	£17.89
69 - GROOVE BALL BEARING BSD-1610900013.A55 1610900013	£11.30	£13.56
70 - NEEDLE-ROLLER BEARING BSD-1610910049.A23 1610910049	£37.26	£44.71
72 - NEEDLE-ROLLER BEARING BSD-1610910007.A49 1610910007	£21.68	£26.01
73 - NEEDLE-ROLLER ASSEMBLY BSD-1610913001.A30 1610913001	£11.30	£13.56
75 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A794 2916660013	£2.16	£2.59
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472 BSD-2916660018.A25 2916660018	£2.61	£3.13
81 - TAB WASHER BSD-1611331007.A83 1611331007	£1.32	£1.58
81 - SPRING WASHER DIN 137-A4 BSD-1600150006.A850 1600150006	-
82 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A119 2916680009	-
84 - O-RING 70x3 MM BSD-1900210160.A0 1900210160	£5.58	£6.70
85 - O-RING 55x3 MM BSD-1900210152.A42 1900210152	£3.72	£4.47
86 - O-RING 30x2 MM BSD-1900210130.A35 1900210130	£3.72	£4.47
88 - O-RING 22.0x6.0 MM BSD-1610210042.A10 1610210042	£1.75	£2.10
90 - HEX NUT DIN 985-M8-8 BSD-2915061005.A55 2915061005	£2.61	£3.13
95 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A550 2910211011	£1.75	£2.10
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A118 2910021118	£1.75	£2.10
97 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A305 2910110116	£1.75	£2.10
98 - SOCKET HEAD CAP SCREW DIN 84-B5x65-5.8 BSD-2910011179.A9 2910011179	-
99 - SOCKET HEAD CAP SCREW DIN 84-AM6x28-8.8 BSD-2910021204.A14 2910021204	-
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A55 2910141199	£3.72	£4.47
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A18 2910141244	£1.75	£2.10
104 - MANUFACTURER'S NAMEPLATE BSD-1601110004.A64 1601110004	-
104 - REFERENCE PLATE BSD-1601110058.A186 1601110058	£1.75	£2.10
108 - CONNECTING CABLE BSD-1614437008.A2 1614437008	-
113 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A169 2910021120	£1.75	£2.10
801 - TOOL HOLDER SET BSD-1617000017.A8 1617000017	-
802 - LOCKING BOLT SET BSD-1617000014.A18 1617000014	£24.45	£29.34
803 - SERVICE BOX BSD-1617000019.A10 1617000019	-
805 - SEAL KIT BSD-1617031004.A25 1617031004	-
806 - PISTON ASSEMBLY BSD-1617031005.A1 1617031005	-
806/37 - CONNECTING ROD BSD-1612001023.A8 1612001023	-
807 - FIELD 110-115V BSD-1617031010.A4 1617031010	-
807 - FIELD 220-230V BSD-1617031009.A12 1617031009	-
808 - CARBON-BRUSH SET BSD-1617014110.A36 1617014110	£18.96	£22.75
888 - NAMEPLATE BSD-160111A3H3.A3032 160111A3H3	£2.61	£3.13
