Bosch GKS 85 G / 3601E7A970 / GB 230 Volt Spare Parts

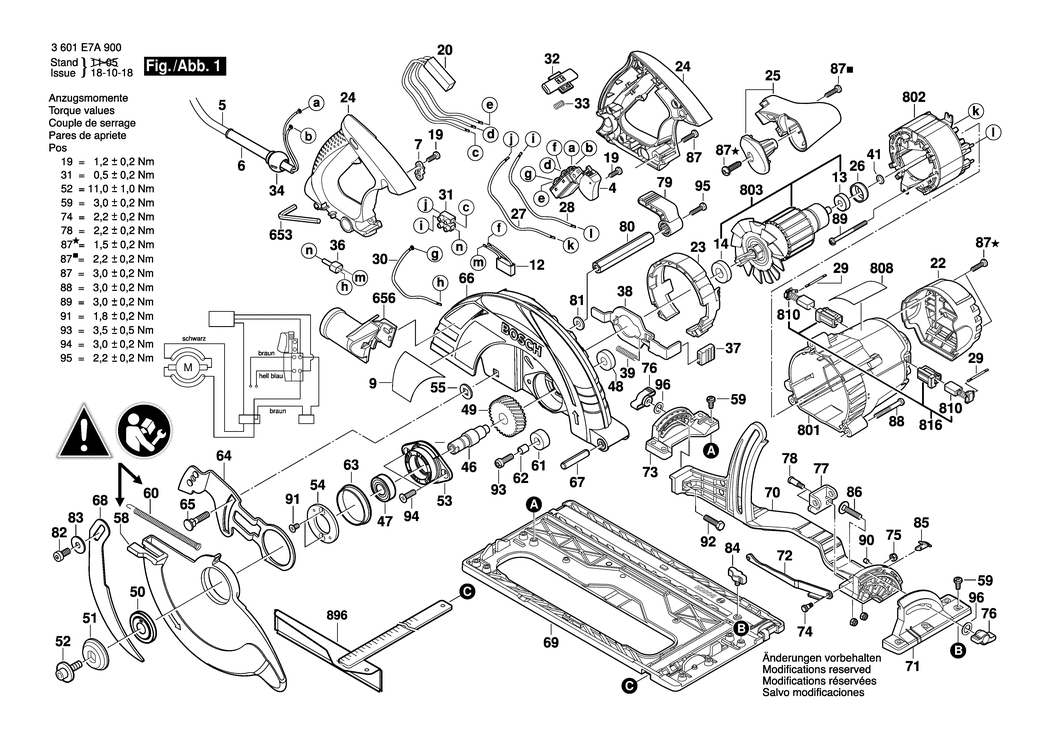

An exploded drawing and listing for the Bosch GKS 85 G / 3601E7A970 / GB 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-1619P01115.A2 1619P01115	£18.96	£22.75
5 - POWER SUPPLY CORD GB 4.15m 2 x 1.50mm H07 RN-F BSD-1619P02323.A1 1619P02323	£21.52	£25.83
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A417 2600703011	£2.80	£3.36
7 - CABLE CLIP BSD-1619P01104.A7 1619P01104	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GKS 85G BSD-1619P31109.A3 1619P31109	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-1619P06099.A0 1619P06099	£5.58	£6.70
13 - GROOVE BALL BEARING BSD-2610017348.A58 2610017348	£11.30	£13.56
14 - GROOVE BALL BEARING BSD-1619P06095.A0 1619P06095	£12.04	£14.45
19 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A391 2603490021	£1.75	£2.10
20 - ELECTRONIC MODULE BSD-1619P06071.A2 1619P06071	£40.80	£48.96
22 - END CAP BSD-1619P01139.A2 1619P01139	£6.52	£7.83
23 - BAFFLE BSD-1619P01140.A5 1619P01140	£4.26	£5.11
24 - SET OF HANDLES BSD-1619P06098.A7 1619P06098	£13.12	£15.75
25 - AUXILIARY HANDLE BSD-1619P01142.A2 1619P01142	£8.67	£10.41
26 - RUBBER RING BSD-1619P01127.A5 1619P01127	£1.75	£2.10
27 - CABLE BSD-1619P06100.A8 1619P06100	£1.75	£2.10
28 - CABLE BSD-1619P06101.A1 1619P06101	£1.75	£2.10
29 - CABLE BSD-2610918148.A6 2610918148	£2.16	£2.59
30 - CABLE BSD-1619P06102.A8 1619P06102	£1.75	£2.10
31 - TERMINAL BLOCK BSD-1619P11754.A1 1619P11754	£2.16	£2.59
32 - SWITCH BUTTON BSD-1619P01156.A6 1619P01156	£2.16	£2.59
33 - COMPRESSION SPRING BSD-2610935251.A30 2610935251	£1.75	£2.10
34 - STRAIN-RELIEF CLAMP BSD-1619P01637.A4 1619P01637	£1.75	£2.10
36 - CONNECTING TERMINAL BSD-1619P06502.A4 1619P06502	£1.75	£2.10
37 - CAP BSD-1619P01143.A5 1619P01143	£1.75	£2.10
38 - GUIDE BRACKET BSD-1619P01620.A3 1619P01620	£5.30	£6.36
39 - COMPRESSION SPRING BSD-1619P01642.A12 1619P01642	£1.75	£2.10
41 - SHIM WASHER BSD-1619P07414.A6 1619P07414	£1.75	£2.10
46 - SHAFT BSD-1619P01623.A9 1619P01623	£13.12	£15.75
47 - GROOVE BALL BEARING 15x35x11 BSD-1900905279.A29 1900905279	£11.30	£13.56
48 - GROOVE BALL BEARING 6000-2RS DIN 625 BSD-1900905173.A12 1900905173	£5.30	£6.36
49 - CYLINDRICAL GEAR BSD-1619P01624.A3 1619P01624	£14.91	£17.89
50 - WASHER BSD-1619P01625.A6 1619P01625	£4.26	£5.11
51 - LOCKING WASHER BSD-1619P06089.A7 1619P06089	£3.72	£4.47
52 - CLAMP SCREW BSD-1619P01634.A10 1619P01634	£1.75	£2.10
53 - BEARING FLANGE BSD-1619P01628.A6 1619P01628	£8.67	£10.41
54 - RETAINING PLATE BSD-1619P01629.A6 1619P01629	£2.80	£3.36
55 - PLAIN WASHER BSD-1619P02619.A2 1619P02619	£1.75	£2.10
58 - PIVOTING BLADE GUARD BSD-1619P02402.A2 1619P02402	£16.74	£20.09
59 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A19 1613435015	£2.61	£3.13
60 - EXTENSION SPRING BSD-1619P01632.A10 1619P01632	£2.61	£3.13
61 - BUMPER BSD-1619P01633.A2 1619P01633	£1.75	£2.10
62 - SPACER TUBE BSD-1619P02580.A6 1619P02580	£1.75	£2.10
63 - FLANGE BUSHING BSD-1619P02410.A1 1619P02410	£1.75	£2.10
64 - SUPPORTING FRAME BSD-1619P02409.A2 1619P02409	£8.67	£10.41
65 - STUD BOLT BSD-1619P02411.A2 1619P02411	£1.75	£2.10
66 - PROTECTIVE GUARD BSD-1619P02403.A1 1619P02403	£27.31	£32.77
67 - SLOTTED SPRING PIN DIN 7346-8x45 BSD-2917780185.A9 2917780185	£2.16	£2.59
68 - RIVING KNIFE BSD-1619P02408.A1 1619P02408	£6.52	£7.83
69 - BASE PLATE BSD-1619P09212.A2 1619P09212	£46.82	£56.18
70 - HINGE BRACKET BSD-1600A00Y01.A1 1600A00Y01	£30.42	£36.51
71 - HINGE BRACKET BSD-1619P09215.A1 1619P09215	£6.52	£7.83
72 - ROCKER BSD-1619P02406.A2 1619P02406	£2.61	£3.13
73 - HINGE BRACKET BSD-1619P09216.A7 1619P09216	£5.58	£6.70
74 - SHOULDER SCREW BSD-2610923224.A4 2610923224	£1.75	£2.10
75 - HEX NUT DIN 985-M 5-8-A BSD-2915061003.A42 2915061003	£2.16	£2.59
76 - WING NUT BSD-1619P06244.A14 1619P06244	£1.75	£2.10
77 - SUPPORT BRACKET BSD-1619P09214.A2 1619P09214	£1.75	£2.10
78 - SHOULDER SCREW BSD-2610924635.A16 2610924635	£1.75	£2.10
79 - ADJUSTING LEVER BSD-1619P01668.A7 1619P01668	£1.75	£2.10
80 - ROD BSD-1600A00Z5N.A10 1600A00Z5N	£2.80	£3.36
81 - PLAIN WASHER 8-ST BSD-2916021013.A23 2916021013	£1.75	£2.10
82 - COLLAR BOLT BSD-1619P02412.A3 1619P02412	£1.75	£2.10
83 - PLAIN WASHER BSD-1619P02413.A0 1619P02413	£1.75	£2.10
84 - WING SCREW BSD-1619P01618.A25 1619P01618	£2.29	£2.75
85 - INDICATOR BSD-1619P09217.A3 1619P09217	£27.31	£32.77
86 - ROUND-HEAD BOLT M6x30 BSD-1619P09218.A7 1619P09218	£1.75	£2.10
87 - SCREW BSD-1619P01643.A9 1619P01643	£1.75	£2.10
88 - SCREW BSD-1619P01644.A0 1619P01644	£1.75	£2.10
89 - SCREW BSD-1619P01676.A9 1619P01676	£1.75	£2.10
90 - ADJUSTING SCREW BSD-2610924685.A30 2610924685	£1.75	£2.10
91 - SCREW M5x10-H BSD-1619P01677.A0 1619P01677	£1.75	£2.10
92 - STUD BOLT M6x25 MM BSD-F016L11371.A17 F016L11371	£2.61	£3.13
93 - SCREW BSD-1619P01679.A7 1619P01679	£1.75	£2.10
94 - SCREW M6x20-H BSD-1619P01680.A5 1619P01680	£1.75	£2.10
95 - SCREW BSD-1619P01673.A3 1619P01673	£1.75	£2.10
96 - PLAIN WASHER BSD-2916011111.A4 2916011111	£2.61	£3.13
653 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A551 1907950006	£4.26	£5.11
656 - VACUUM ADAPTER BSD-1619P09425.A0 1619P09425	£2.61	£3.13
801 - MOTOR HOUSING BSD-1619P04514.A0 1619P04514	£18.96	£22.75
802 - FIELD 230V BSD-1619P14887.A5 1619P14887	£33.73	£40.48
803 - ARMATURE SET 230V BSD-1619P01696.A1 1619P01696	£59.53	£71.44
808 - NAMEPLATE BSD-1619P09611.A0 1619P09611	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1619P01685.A5 1619P01685	£12.04	£14.45
816 - BRUSH HOLDER BSD-1619P02799.A0 1619P02799	£16.41	£19.69
896 - EDGE GUIDE BSD-2608190002.A41 2608190002	-
