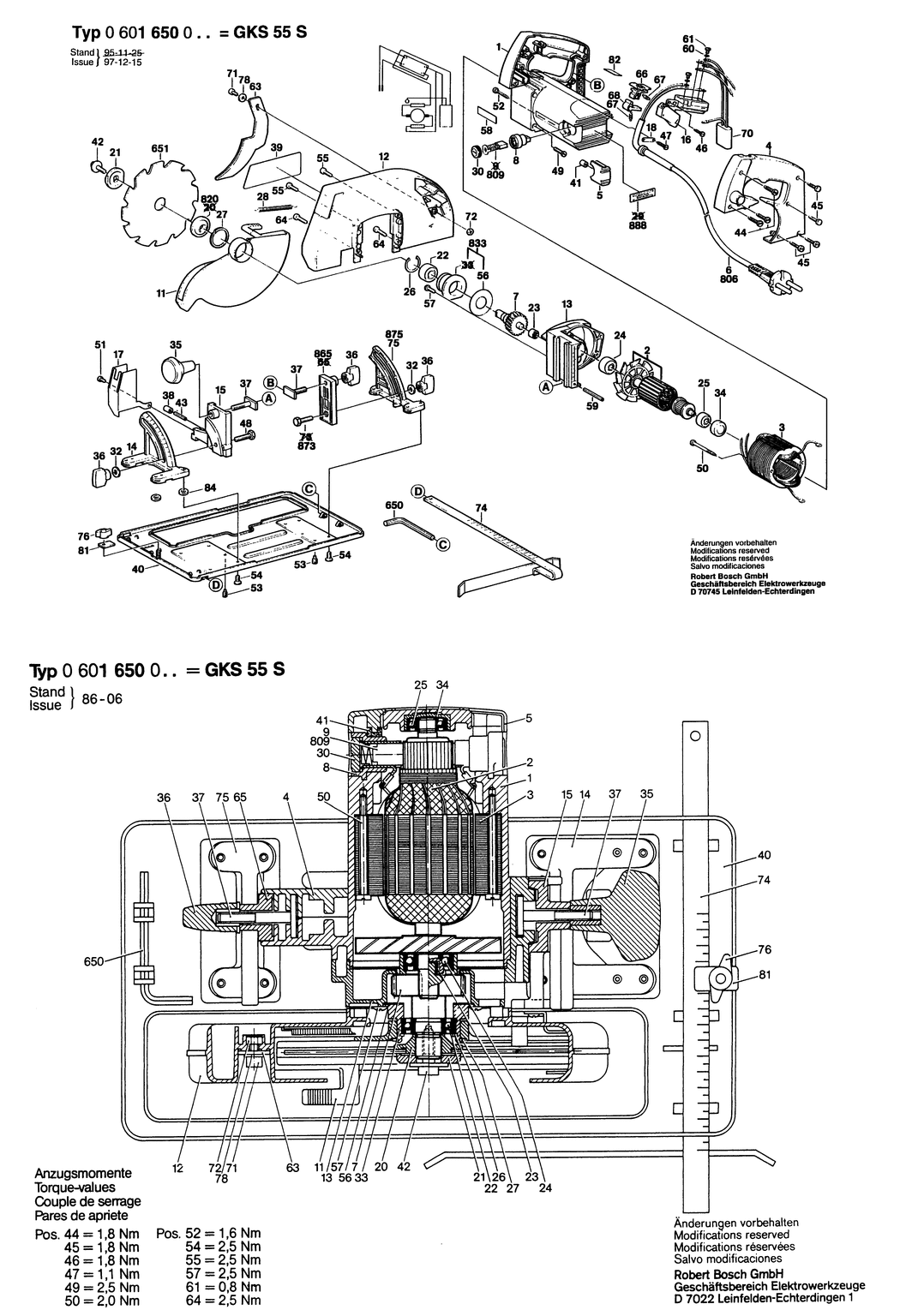

1 - MOTOR HOUSING
BSD-3605108548.A3
3605108548
|
-
|
|
|
|
2 - ARMATURE 220V
BSD-3604011520.A13
3604011520
|
-
|
|
|
|
3 - FIELD 220V
BSD-3604220508.A5
3604220508
|
-
|
|
|
|
4 - HANDLE COVER
BSD-3605500572.A21
3605500572
|
£13.41
|
£16.09
|
|
|
5 - HOUSING COVER
BSD-3605500573.A3
3605500573
|
£2.80
|
£3.36
|
|
|
6 - POWER SUPPLY CORD CH 4.25m 2 x 1.0mm H07RN-F
BSD-3604460517.A1
3604460517
|
-
|
|
|
|
7 - SPINDLE WITH GEAR Z=61
BSD-3606328508.A19
3606328508
|
£41.62
|
£49.95
|
|
|
8 - BRUSH HOLDER
BSD-3600492505.A4
3600492505
|
£14.91
|
£17.89
|
|
|
11 - PIVOTING BLADE GUARD
BSD-3605500539.A7
3605500539
|
-
|
|
|
|
12 - PROTECTIVE COVER
BSD-3605500535.A8
3605500535
|
-
|
|
|
|
13 - GEAR HOUSING
BSD-3605806506.A3
3605806506
|
-
|
|
|
|
14 - DIAL
BSD-3605702529.A3
3605702529
|
-
|
|
|
|
15 - DEPTH-GAUGE
BSD-3605702558.A21
3605702558
|
£14.72
|
£17.67
|
|
|
16 - MAINS SWITCH
BSD-2610916046.A6
2610916046
|
-
|
|
|
|
17 - PROTECTING COVER
BSD-3605510528.A21
3605510528
|
£21.68
|
£26.01
|
|
|
18 - FASTENING CLAMP
BSD-3601032500.A16
3601032500
|
£7.36
|
£8.83
|
|
|
21 - CONICAL SPRING WASHER
BSD-3600144507.A3
3600144507
|
-
|
|
|
|
22 - GROOVE BALL BEARING
BSD-3600900521.A4
3600900521
|
£18.96
|
£22.75
|
|
|
23 - NEEDLE-ROLLER BEARING
BSD-3600910502.A20
3600910502
|
£5.58
|
£6.70
|
|
|
24 - GROOVE BALL BEARING
BSD-3600900520.A20
3600900520
|
£14.75
|
£17.70
|
|
|
25 - BALL BEARING
BSD-2610904891.A24
2610904891
|
-
|
|
|
|
26 - SPRING RETAINING RING
BSD-3600119505.A3
3600119505
|
£2.61
|
£3.13
|
|
|
27 - SPRING RETAINING RING
BSD-3600119506.A21
3600119506
|
£2.61
|
£3.13
|
|
|
28 - EXTENSION SPRING
BSD-2610909254.A5
2610909254
|
£6.61
|
£7.93
|
|
|
30 - SCREW CAP
BSD-2610994437.A48
2610994437
|
-
|
|
|
|
31 - GROMMET dia 9.4 MM
BSD-3600707503.A58
3600707503
|
£3.72
|
£4.47
|
|
|
32 - PLAIN WASHER
BSD-3600100515.A0
3600100515
|
-
|
|
|
|
34 - RUBBER BUSHING
BSD-1600502006.A30
1600502006
|
£1.75
|
£2.10
|
|
|
35 - AUXILIARY HANDLE M8
BSD-3603231516.A7
3603231516
|
-
|
|
|
|
36 - WING NUT M8
BSD-3603231524.A7
3603231524
|
£4.26
|
£5.11
|
|
|
37 - T-SLOT SCREW M 8x45 MM
BSD-3603440502.A0
3603440502
|
-
|
|
|
|
38 - RUBBER BUFFER
BSD-3600707504.A4
3600707504
|
-
|
|
|
|
39 - REFERENCE PLATE
BSD-3601119578.A4
3601119578
|
-
|
|
|
|
40 - BASE PLATE 396x230 MM
BSD-3601440510.A3
3601440510
|
-
|
|
|
|
41 - ROUND RUBBER
BSD-3600305500.A20
3600305500
|
£2.33
|
£2.80
|
|
|
42 - HEX SOCKET HEAD CAP SCREW
BSD-3603450501.A24
3603450501
|
-
|
|
|
|
44 - LENS HEAD SCREW 4x32
BSD-2603490026.A54
2603490026
|
£1.75
|
£2.10
|
|
|
45 - TAPPING SCREW DIN 7971-BZ4.2x25
BSD-2910211229.A6
2910211229
|
-
|
|
|
|
46 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211225.A4
2910211225
|
-
|
|
|
|
47 - TAPPING SCREW DIN 7971-B3.5x16-A2
BSD-2910211212.A7
2910211212
|
-
|
|
|
|
48 - HEX SCREW DIN 933-M8x30-8.8
BSD-2911061246.A19
2911061246
|
£1.75
|
£2.10
|
|
|
49 - SOCKET HEAD CAP SCREW
BSD-3603415543.A7
3603415543
|
-
|
|
|
|
50 - TAPPING SCREW B 4.8x68 MM
BSD-1613412001.A120
1613412001
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A193
1603435008
|
£1.32
|
£1.58
|
|
|
51 - THREAD-FORMING TAP. SCREW
BSD-2603435042.A174
2603435042
|
£1.75
|
£2.10
|
|
|
52 - TAPPING SCREW
BSD-3603435504.A9
3603435504
|
-
|
|
|
|
53 - SET SCREW
BSD-3603415566.A22
3603415566
|
£2.52
|
£3.02
|
|
|
54 - SOCKET HEAD CAP SCREW
BSD-3603415545.A4
3603415545
|
-
|
|
|
|
55 - SOCKET HEAD CAP SCREW DIN 7500 CM 4x20
BSD-2914411051.A20
2914411051
|
-
|
|
|
|
56 - SEAL RING
BSD-3601016507.A5
3601016507
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW
BSD-3603430502.A2
3603430502
|
£2.33
|
£2.80
|
|
|
58 - MANUFACTURER'S NAMEPLATE
BSD-3601119666.A23
3601119666
|
-
|
|
|
|
59 - SLOTTED SPRING PIN DIN 1481-3x40
BSD-2917765240.A6
2917765240
|
-
|
|
|
|
60 - SPRING WASHER
BSD-3600151506.A24
3600151506
|
-
|
|
|
|
61 - PAN HEAD SCREW
BSD-3603415549.A20
3603415549
|
£2.61
|
£3.13
|
|
|
63 - RIVING KNIFE
BSD-3601098515.A0
3601098515
|
-
|
|
|
|
64 - SOCKET HEAD CAP SCREW DIN 7500-CM4x16-ST
BSD-2914411049.A4
2914411049
|
-
|
|
|
|
66 - CONTROL LEVER
BSD-3603231518.A20
3603231518
|
£4.26
|
£5.11
|
|
|
67 - EXTENSION SPRING
BSD-3604648503.A24
3604648503
|
-
|
|
|
|
68 - LOCKING LEVER
BSD-3601960500.A23
3601960500
|
-
|
|
|
|
70 - SUPPRESSION CAPACITOR
BSD-3607328509.A0
3607328509
|
-
|
|
|
|
71 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x12-8.8
BSD-2910141193.A36
2910141193
|
-
|
|
|
|
72 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1434
2915011007
|
-
|
|
|
|
74 - EDGE GUIDE
BSD-2608190002.A70
2608190002
|
-
|
|
|
|
75 - HOLDING BRACKET
BSD-3605702535.A24
3605702535
|
-
|
|
|
|
76 - WING NUT M6
BSD-1603339006.A137
1603339006
|
£2.52
|
£3.02
|
|
|
78 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A125
2916011014
|
£1.75
|
£2.10
|
|
|
81 - CLAMPING PIECE
BSD-3601030500.A17
3601030500
|
-
|
|
|
|
84 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A107
2916011012
|
£1.75
|
£2.10
|
|
|
650 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A359
1907950006
|
£4.26
|
£5.11
|
|
|
809 - CARBON-BRUSH SET
BSD-3607014505.A20
3607014505
|
£13.41
|
£16.09
|
|
|
820 - CLAMPING-FLANGE
BSD-3600101510.A24
3600101510
|
-
|
|
|
|
833 - PARTS SET
BSD-3607000566.A18
3607000566
|
£19.45
|
£23.34
|
|
|
865 - DEPTH-GAUGE
BSD-3605702536.A0
3605702536
|
-
|
|
|
|
873 - HEX SCREW DIN 933 -M8x25- 5.8
BSD-2911052244.A9
2911052244
|
-
|
|
|
|
888 - NAMEPLATE
BSD-3601119590.A19
3601119590
|
-
|
|
|
