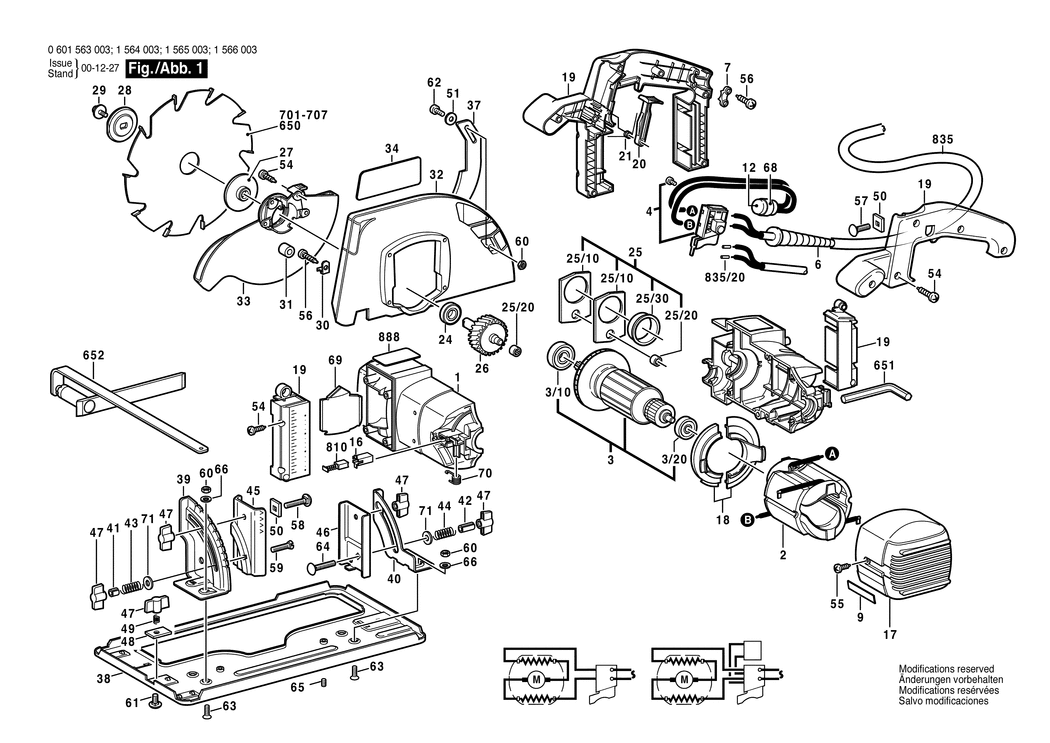

1 - MOTOR HOUSING
BSD-1609201186.A11
1609201186
|
-
|
|
|
|
2 - POLE SHOE 220-230V
BSD-1609201187.A4
1609201187
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1609201188.A7
1609201188
|
-
|
|
|
|
3/10 - GROOVE BALL BEARING
BSD-1609201136.A21
1609201136
|
-
|
|
|
|
3/20 - GROOVE BALL BEARING
BSD-1609201137.A7
1609201137
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609201397.A3
1609201397
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460403.A150
1604460403
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A61
1609207001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609213000.A193
1609213000
|
-
|
|
|
|
9 - STICKER
BSD-1601110190.A7
1601110190
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1609200750.A56
1609200750
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1609201140.A22
1609201140
|
-
|
|
|
|
17 - COVER DISC
BSD-1609201189.A3
1609201189
|
-
|
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1609201142.A24
1609201142
|
-
|
|
|
|
19 - HANDLE
BSD-1609201143.A4
1609201143
|
-
|
|
|
|
20 - LOCKING LEVER
BSD-1602099003.A23
1602099003
|
-
|
|
|
|
21 - COILED SPRING
BSD-1604651008.A22
1604651008
|
-
|
|
|
|
24 - GROOVE BALL BEARING 12x28x8
BSD-1900905161.A62
1900905161
|
£21.68
|
£26.01
|
|
|
25 - BEARING BRACKET
BSD-1609201213.A22
1609201213
|
-
|
|
|
|
25/20 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A629
1600910018
|
£5.30
|
£6.36
|
|
|
25/30 - BUSHING
BSD-1609201214.A4
1609201214
|
-
|
|
|
|
26 - TOOTHED GEAR Z=43
BSD-1609201149.A24
1609201149
|
-
|
|
|
|
27 - INTERMEDIATE FLANGE
BSD-1609201150.A4
1609201150
|
-
|
|
|
|
28 - CONICAL SPRING WASHER
BSD-1609201151.A24
1609201151
|
-
|
|
|
|
29 - HEX SOCKET HEAD CAP SCREW
BSD-1609201152.A4
1609201152
|
-
|
|
|
|
30 - STOP BRACKET
BSD-1609201153.A24
1609201153
|
-
|
|
|
|
31 - RUBBER BUFFER
BSD-1609201154.A4
1609201154
|
-
|
|
|
|
32 - PROTECTIVE COVER
BSD-1609201190.A11
1609201190
|
-
|
|
|
|
33 - PIVOTING BLADE GUARD
BSD-1609201191.A4
1609201191
|
-
|
|
|
|
34 - STICKER
BSD-1601110189.A1
1601110189
|
-
|
|
|
|
37 - RIVING KNIFE
BSD-1609201198.A5
1609201198
|
-
|
|
|
|
38 - BASE PLATE 396x202.5x2 MM
BSD-1609201158.A22
1609201158
|
-
|
|
|
|
39 - DIAL
BSD-1609201159.A6
1609201159
|
-
|
|
|
|
40 - SLIDE PLATE
BSD-1609201160.A22
1609201160
|
-
|
|
|
|
41 - CLAMP BUSHING
BSD-1609201161.A6
1609201161
|
-
|
|
|
|
42 - CLAMP BUSHING
BSD-1609201162.A22
1609201162
|
-
|
|
|
|
43 - COMPRESSION SPRING dia13.1xdia10.9x20 MM
BSD-1609201163.A6
1609201163
|
-
|
|
|
|
44 - COMPRESSION SPRING dia13.5xdia10.5x30 MM
BSD-1609201164.A22
1609201164
|
-
|
|
|
|
45 - DIAL
BSD-1609201165.A6
1609201165
|
-
|
|
|
|
46 - GUIDE RAIL
BSD-1609201166.A22
1609201166
|
-
|
|
|
|
47 - WING NUT M6
BSD-1609233000.A187
1609233000
|
-
|
|
|
|
48 - CLAMPING PIECE
BSD-1601030024.A47
1601030024
|
-
|
|
|
|
49 - COMPRESSION SPRING
BSD-1609201167.A5
1609201167
|
-
|
|
|
|
50 - BACKING PLATE
BSD-1609201168.A23
1609201168
|
-
|
|
|
|
51 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A188
1609201082
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A761
2912401020
|
£2.16
|
£2.59
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A204
2910611018
|
-
|
|
|
|
56 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A131
2910611082
|
£1.75
|
£2.10
|
|
|
57 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A109
2910281203
|
£2.61
|
£3.13
|
|
|
58 - ROUND-HEAD BOLT DIN 603-M6x40
BSD-2910281209.A29
2910281209
|
-
|
|
|
|
59 - ROUND-HEAD BOLT DIN 603-M6x35
BSD-2910281207.A25
2910281207
|
£1.75
|
£2.10
|
|
|
60 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1111
2915011007
|
-
|
|
|
|
61 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A268
2910281196
|
-
|
|
|
|
62 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A170
2910375193
|
-
|
|
|
|
63 - COUNTERSUNK-HEAD SCREW DIN 963-M6x12-8.8
BSD-2910781193.A6
2910781193
|
-
|
|
|
|
64 - COUNTERSUNK-HEAD SCREW
BSD-1609201170.A6
1609201170
|
-
|
|
|
|
65 - SET SCREW M 5x5-DIN 913-45H
BSD-2912041147.A61
2912041147
|
£2.16
|
£2.59
|
|
|
66 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A90
2916060007
|
£1.75
|
£2.10
|
|
|
68 - ADHESIVE TAPE
BSD-1609200550.A29
1609200550
|
-
|
|
|
|
69 - GUIDE PLATE
BSD-1609201216.A24
1609201216
|
-
|
|
|
|
70 - TORSION SPRING
BSD-1609201210.A3
1609201210
|
-
|
|
|
|
71 - PLAIN WASHER
BSD-1609201466.A21
1609201466
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A385
1907950006
|
£4.26
|
£5.11
|
|
|
652 - EDGE GUIDE
BSD-1609201118.A22
1609201118
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1609201460.A4
1609201460
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1040
160111A3H3
|
£2.61
|
£3.13
|
|
