Bosch GKE 35 BCE / 06015976A1 / CH 230 Volt Spare Parts

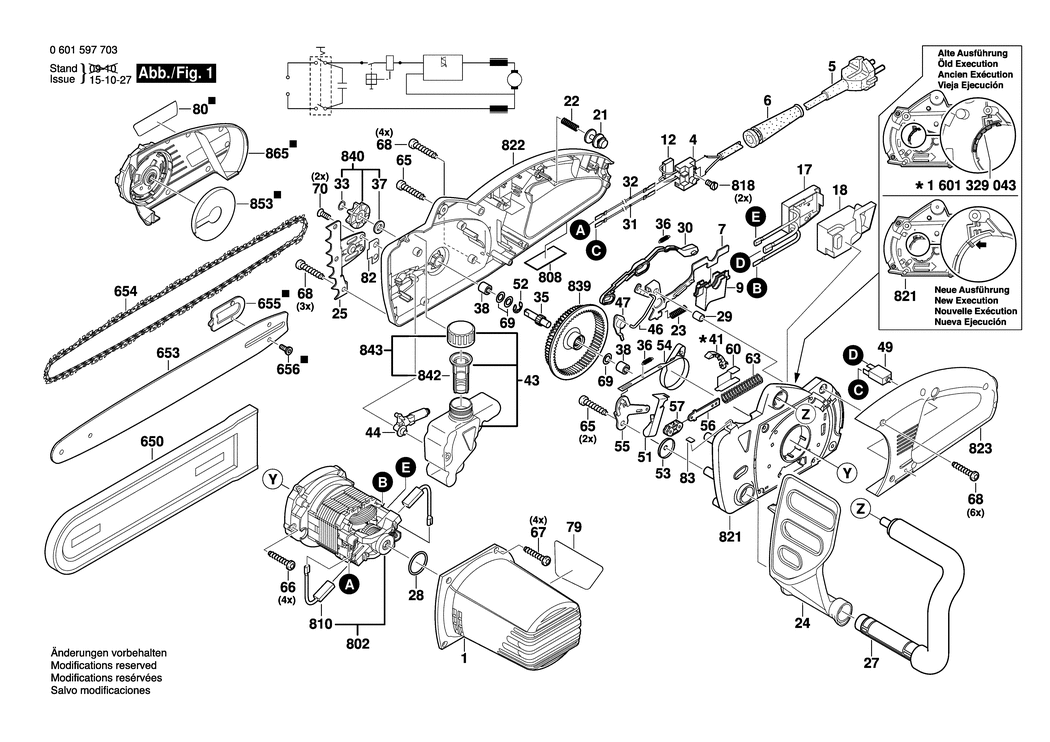

An exploded drawing and listing for the Bosch GKE 35 BCE / 06015976A1 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605190195.A5 1605190195	£21.68	£26.01
4 - SWITCH BSD-1607200193.A6 1607200193	£12.04	£14.45
5 - POWER SUPPLY CORD BSD-1604460443.A0 1604460443	£14.91	£17.89
6 - GROMMET BSD-2609005766.A4 2609005766	£2.80	£3.36
7 - LEVER BSD-1602002008.A26 1602002008	£6.52	£7.83
9 - PUSH-BUTTON BSD-1603231020.A5 1603231020	£1.95	£2.34
12 - SUPPRESSION FILTER BSD-1607328028.A713 1607328028	£5.30	£6.36
17 - SPEED GOVERNOR 230-240V BSD-1607233154.A5 1607233154	£33.74	£40.49
18 - HOUSING BSD-1605108241.A6 1605108241	£5.58	£6.70
21 - LOCKING BOLT BSD-1600390019.A2 1600390019	£1.75	£2.10
22 - COMPRESSION SPRING BSD-1604617008.A6 1604617008	£1.75	£2.10
23 - COMPRESSION SPRING BSD-1604617015.A10 1604617015	£1.75	£2.10
24 - PROTECTIVE SHIELD BSD-1605510315.A31 1605510315	£10.10	£12.12
25 - SPIKED BUMPER BSD-1601098008.A21 1601098008	£5.58	£6.70
27 - HANDLE BSD-1605133045.A22 1605133045	£14.91	£17.89
28 - INTERMEDIATE RING BSD-1600206035.A3 1600206035	£1.75	£2.10
29 - BUSHING BSD-1600300096.A25 1600300096	£1.75	£2.10
30 - PUSHER BSD-1602319019.A6 1602319019	£2.80	£3.36
31 - CONNECTING CABLE BSD-1604431005.A6 1604431005	£1.75	£2.10
32 - CONNECTING CABLE BSD-1604431006.A1 1604431006	£1.75	£2.10
33 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A604 2916650001	£2.61	£3.13
35 - SHAFT BSD-1606100039.A23 1606100039	£14.91	£17.89
36 - EXTENSION SPRING BSD-1604650016.A0 1604650016	£1.75	£2.10
37 - FELT WASHER BSD-1600205037.A22 1600205037	£1.75	£2.10
38 - NEEDLE BEARING BSD-2600917006.A63 2600917006	£3.72	£4.47
43 - OIL RESERVOIR BSD-1605405004.A1 1605405004	£16.41	£19.69
44 - OIL PUMP BSD-1605437003.A44 1605437003	£16.41	£19.69
46 - ROD BSD-1603023003.A1 1603023003	£5.30	£6.36
47 - SWIVELLING LEVER BSD-1600590014.A33 1600590014	£5.58	£6.70
49 - SWITCH BSD-1607200195.A1 1607200195	£21.52	£25.83
51 - CLAMP SPRING BSD-1604651013.A28 1604651013	£2.80	£3.36
52 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A178 2916080012	£1.75	£2.10
53 - COLLAR DISC BSD-1600328030.A3 1600328030	£1.75	£2.10
54 - BRAKE BAND BSD-1604652020.A0 1604652020	£5.30	£6.36
55 - LEVER ARM BSD-1600590019.A3 1600590019	£2.80	£3.36
56 - SPRING GUIDE BSD-1600590016.A4 1600590016	£2.16	£2.59
57 - LEVER CARRIER BSD-1600390018.A42 1600390018	£2.80	£3.36
60 - PRESSURE PLATE BSD-1600590012.A4 1600590012	£1.75	£2.10
63 - COMPRESSION SPRING BSD-1604617017.A28 1604617017	£1.75	£2.10
65 - OVAL-HEAD SCREW 5x22 BSD-2914211528.A42 2914211528	£1.75	£2.10
66 - OVAL-HEAD SCREW 5x22 BSD-2914211528.A43 2914211528	£1.75	£2.10
67 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A93 2914201506	£1.75	£2.10
68 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A94 2914201506	£1.75	£2.10
69 - FRICTION WASHER BSD-1600100038.A3 1600100038	£1.75	£2.10
70 - TAPPING SCREW 4.2x13 BSD-2910601325.A21 2910601325	£1.75	£2.10
79 - REFERENCE PLATE BSD-1601118K70.A7 1601118K70	£2.61	£3.13
80 - MANUFACTURER'S NAMEPLATE BSD-1601118A85.A0 1601118A85	£3.34	£4.01
82 - SEAL STRIP BSD-1601010009.A42 1601010009	£2.16	£2.59
83 - STICKER BSD-1601118A64.A3 1601118A64	£3.72	£4.47
650 - CHAIN GUARD BSD-1605510329.A7 1605510329	£10.10	£12.12
653 - GUIDE RAIL 350 MM BSD-1602317011.A3 1602317011	£37.27	£44.72
654 - SAW CHAIN 350 MM BSD-2609006250.A3 2609006250	£31.64	£37.97
655 - ADJUSTING PLATE BSD-1601015035.A24 1601015035	£5.58	£6.70
656 - COUNTERSUNK-HEAD SCREW BSD-1603421003.A21 1603421003	£1.75	£2.10
802 - ALTERNATING-CURRENT MOTOR BSD-1607000A38.A7 1607000A38	£156.22	£187.46
808 - NAMEPLATE BSD-160111A3H3.A1160 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014170.A21 1607014170	£18.96	£22.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A698 2603410001	£1.75	£2.10
821 - HOUSING SECTION BSD-1607000A87.A7 1607000A87	£21.68	£26.01
822 - HOUSING SECTION BSD-1607000A36.A0 1607000A36	£59.53	£71.44
823 - HANDLE COVER BSD-1605133047.A7 1605133047	£16.41	£19.69
839 - RING GEAR BSD-1607000A06.A24 1607000A06	£21.52	£25.83
840 - SPROCKET WHEEL BSD-1607000885.A38 1607000885	£5.58	£6.70
842 - STRAINER BSD-1607431000.A24 1607431000	£5.30	£6.36
843 - RESERVOIR CAP BSD-1607000A47.A38 1607000A47	£6.52	£7.83
853 - DUST-PROTECTION COVER BSD-1605190190.A17 1605190190	£2.80	£3.36
865 - PROTECTIVE COVER BSD-1605510333.A0 1605510333	£31.64	£37.97
