Bosch ---- / 0601535042 / GB 240 Volt Spare Parts

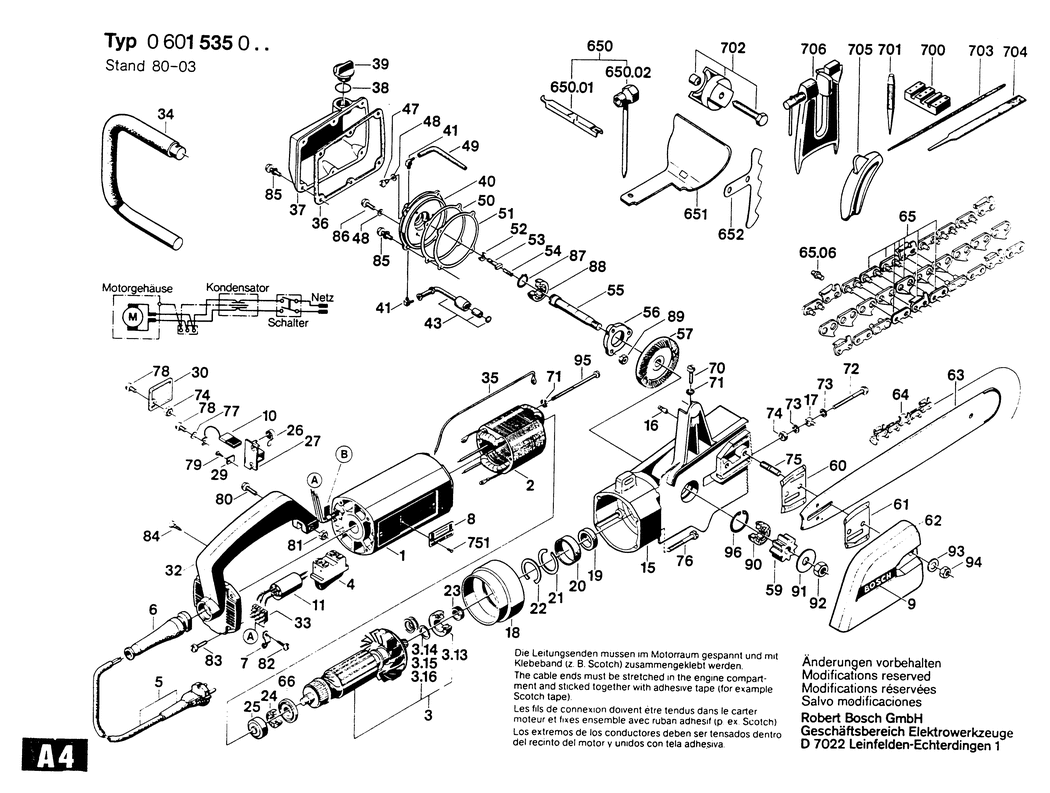

An exploded drawing and listing for the Bosch ---- / 0601535042 / GB 240 Volt

	Ex VAT	Inc VAT
1 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A96 1605108902	-
2 - FIELD 220V BSD-1604220109.A25 1604220109	-
3 - ARMATURE 220V BSD-1604011240.A5 1604011240	-
3/13 - GROOVE BALL BEARING 17x35x10 BSD-1600900020.A102 1600900020	-
3/14 - SHIM 0.05 MM BSD-1600101650.A75 1600101650	£2.61	£3.13
3/15 - SHIM 0.1 MM BSD-1600101648.A75 1600101648	£1.75	£2.10
3/16 - SHIM 0.15 MM BSD-1600101649.A12 1600101649	-
4 - ON-OFF SWITCH BSD-1609200060.A0 1609200060	-
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A430 1607000228	£23.86	£28.63
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1362 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302013.A209 1601302013	£1.75	£2.10
8 - NAMEPLATE BSD-160111A3H3.A1761 160111A3H3	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1601110016.A56 1601110016	-
10 - CARBON-BRUSH SET BSD-1607014013.A0 1607014013	-
11 - SUPPRESSION FILTER BSD-1607328034.A330 1607328034	£4.26	£5.11
15 - GEAR HOUSING BSD-1609251028.A5 1609251028	-
16 - HOSE FITTING BSD-1609233048.A5 1609233048	-
17 - SQUARE NUT BSD-1609233049.A1 1609233049	-
18 - AIR-DEFLECTOR RING BSD-1600502007.A79 1600502007	-
19 - ROTARY SHAFT LIP SEAL BSD-1600290008.A126 1600290008	£2.61	£3.13
20 - RUBBER RING 10 MM BSD-1600206014.A56 1600206014	£1.75	£2.10
21 - RETAINING RING BSD-1600116002.A29 1600116002	-
22 - RETAINING RING BSD-1600116004.A10 1600116004	-
23 - THREADED RING BSD-1603344051.A9 1603344051	-
24 - GROOVE BALL BEARING 10x26x8 BSD-1900900407.A30 1900900407	-
25 - RUBBER BUSHING BSD-1600502006.A8 1600502006	£1.75	£2.10
26 - SPIRAL SPRING BSD-1604652015.A168 1604652015	£2.80	£3.36
27 - BRUSH HOLDER BSD-1604336008.A26 1604336008	£21.52	£25.83
29 - TAB WASHER BSD-1601030022.A59 1601030022	£1.75	£2.10
30 - SEALING CAP BSD-1605500089.A332 1605500089	-
32 - HANDLE BSD-1609251029.A1 1609251029	-
33 - SOCKET-TERMINAL STRIP BSD-1609210017.A6 1609210017	-
34 - STRAP-SHAPED HANDLE BSD-1609207011.A5 1609207011	-
35 - CONNECTING CABLE BSD-1604440005.A1 1604440005	-
35 - CONNECTING CABLE BSD-1604414010.A5 1604414010	-
36 - SEAL BSD-1609210016.A0 1609210016	-
37 - GEAR COVER BSD-1609255030.A0 1609255030	-
38 - SEAL RING BSD-1609202013.A5 1609202013	-
39 - SCREW PLUG BSD-1609234031.A6 1609234031	-
40 - GEAR COVER BSD-1609258011.A5 1609258011	-
41 - ELBOW BSD-1609233050.A5 1609233050	-
43 - EXTRACTOR HEAD BSD-1609207012.A1 1609207012	-
47 - SOCKET HEAD CAP SCREW BSD-1609234030.A0 1609234030	-
48 - SEAL RING BSD-1609201016.A0 1609201016	-
49 - PRESSURE LINE BSD-1609207013.A5 1609207013	-
50 - SHIM 0.10 MM BSD-1609201017.A6 1609201017	-
51 - STOP DISC 0.20 MM BSD-1609201018.A0 1609201018	-
52 - SEAL RING BSD-1609202014.A1 1609202014	-
53 - PUMP PISTON BSD-1609287000.A0 1609287000	-
54 - COMPRESSION SPRING BSD-1609246018.A0 1609246018	-
55 - DRIVE SHAFT BSD-1609231016.A1 1609231016	-
56 - BEARING COVER BSD-1609255032.A0 1609255032	-
57 - BEVEL GEAR Z=61 BSD-1606333158.A20 1606333158	-
59 - SPROCKET WHEEL Z=8 BSD-1609263007.A1 1609263007	-
60 - GUIDE PLATE BSD-1609213014.A5 1609213014	-
61 - GUIDE PLATE BSD-1609213013.A1 1609213013	-
62 - PROTECTIVE COVER BSD-1609255031.A5 1609255031	-
63 - STRIKER BAR BSD-1609280045.A0 1609280045	-
64 - CHAIN BSD-1609200061.A5 1609200061	-
65 - PARTS SET BSD-1609200063.A5 1609200063	-
65 - RIVET-HEADED PIN BSD-1609231015.A4 1609231015	-
66 - COVER DISC BSD-1600190007.A4 1600190007	-
70 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9 BSD-2910151164.A35 2910151164	£1.75	£2.10
71 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A465 2916680006	-
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x55-5.8 BSD-2910061144.A1 2910061144	-
73 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A168 2916060005	£1.75	£2.10
74 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A507 2915011005	£1.75	£2.10
75 - STUD BSD-1609200062.A1 1609200062	-
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A374 1613435009	£1.75	£2.10
77 - SPRING WASHER DIN 137-A4 BSD-1600150006.A145 1600150006	-
78 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1520 2910021118	£1.75	£2.10
79 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A51 2910211011	£1.75	£2.10
80 - MICROENCAPSULATED SCREW DIN 84 M6x30-8.8 BSD-2914551114.A12 2914551114	£2.61	£3.13
81 - HEX NUT AM 6 DIN 439-04 BSD-2915051006.A0 2915051006	-
82 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A160 2910211025	£1.75	£2.10
83 - TORX OVAL-HEAD SCREW BSD-2914201529.A74 2914201529	£1.75	£2.10
83 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A29 2910011162	£1.75	£2.10
84 - TAPPING SCREW DIN 7971 BZ4.2x22 BSD-2910211028.A1 2910211028	-
85 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A202 2910011157	-
86 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A28 2910011162	£1.75	£2.10
87 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A395 2916650006	£1.75	£2.10
88 - GROOVE BALL BEARING BSD-1600905003.A5 1600905003	-
89 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A24 2915011006	-
90 - GROOVE BALL BEARING BSD-1600905002.A1 1600905002	-
91 - FRICTION WASHER BSD-1609200099.A5 1609200099	-
92 - HEX NUT BSD-1609200064.A1 1609200064	-
93 - SPRING WASHER DIN 137-A8-ST BSD-2916063008.A1 2916063008	-
94 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A11 2915011009	£2.61	£3.13
95 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A5 1603435006	-
96 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A150 2916660013	£2.16	£2.59
650 - SET OF TOOLS BSD-1609270023.A4 1609270023	-
650/01 - MEASURING DEVICE BSD-1609279004.A2 1609279004	-
650/02 - ASSEMBLY WRENCH BSD-1609279003.A4 1609279003	-
651 - PROFILE BEADING BSD-1609200901.A1 1609200901	-
652 - PROTECTING COVER BSD-1609200902.A5 1609200902	-
700 - DISASSEMBLY TOOL BSD-1609223015.A1 1609223015	-
701 - PUNCH FOR RIVETS BSD-1609279002.A2 1609279002	-
702 - PULLER BSD-1609281003.A5 1609281003	-
703 - BLUNT FLAT-FILE BSD-1609286069.A4 1609286069	-
704 - ROUND FILE BSD-1609286068.A2 1609286068	-
705 - HANDLE BSD-1609251030.A5 1609251030	-
706 - TENSIONING DEVICE BSD-1609280044.A5 1609280044	-
