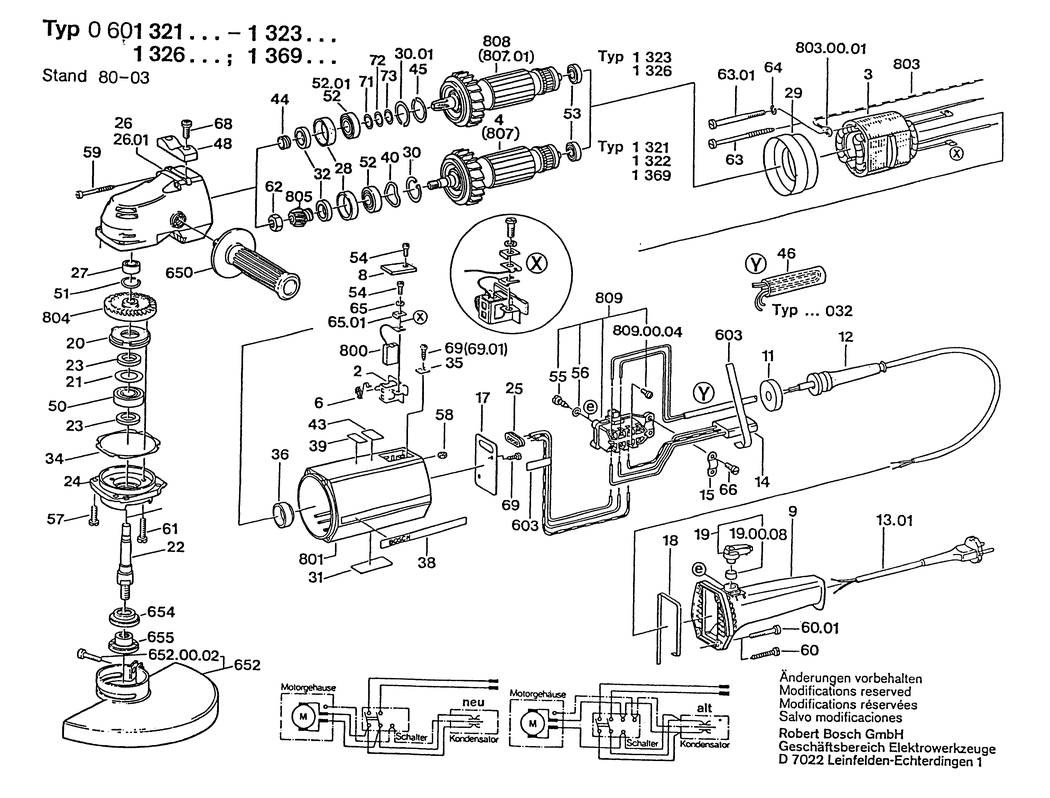

2 - BRUSH HOLDER
BSD-1604336008.A246
1604336008
|
£21.52
|
£25.83
|
|
|
3 - FIELD 220V
BSD-1604220109.A4
1604220109
|
-
|
|
|
|
4 - ARMATURE 220V
BSD-1604011223.A11
1604011223
|
-
|
|
|
|
6 - SPIRAL SPRING
BSD-1604652015.A452
1604652015
|
£2.80
|
£3.36
|
|
|
8 - SEALING CAP
BSD-1605500089.A98
1605500089
|
-
|
|
|
|
9 - HANDLE
BSD-1605132079.A3
1605132079
|
-
|
|
|
|
11 - SEAL
BSD-1600113002.A44
1600113002
|
£1.75
|
£2.10
|
|
|
12 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A441
3600703011
|
£2.80
|
£3.36
|
|
|
13 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A265
1607000228
|
£23.86
|
£28.63
|
|
|
14 - SUPPRESSION FILTER
BSD-1607328034.A151
1607328034
|
£4.26
|
£5.11
|
|
|
15 - FASTENING CLAMP
BSD-1601302013.A549
1601302013
|
£1.75
|
£2.10
|
|
|
17 - COVER PLATE
BSD-1601037006.A119
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A41
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A50
1602026041
|
-
|
|
|
|
19/00/08 - FELT WASHER
BSD-1600205019.A68
1600205019
|
£1.75
|
£2.10
|
|
|
20 - BEARING COVER
BSD-1605808054.A288
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A282
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A36
1603523032
|
£37.27
|
£44.72
|
|
|
23 - SEALING DISK
BSD-1600108055.A81
1600108055
|
£1.75
|
£2.10
|
|
|
25 - GROMMET
BSD-1600306001.A131
1600306001
|
£2.61
|
£3.13
|
|
|
26 - GEAR HOUSING
BSD-1605806362.A7
1605806362
|
-
|
|
|
|
26/1 - MOTOR HOUSING
BSD-1605806324.A0
1605806324
|
-
|
|
|
|
27 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A289
1600910010
|
£45.67
|
£54.80
|
|
|
28 - RUBBER RING 10 MM
BSD-1600206014.A40
1600206014
|
£1.75
|
£2.10
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502007.A37
1600502007
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A24
2916660017
|
£4.26
|
£5.11
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A88
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A126
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A157
1600190005
|
£1.32
|
£1.58
|
|
|
35 - TAB WASHER
BSD-1601030022.A411
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A114
1600502006
|
£1.75
|
£2.10
|
|
|
38 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A247
1601110003
|
-
|
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A27
1600150007
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A47
1900905227
|
-
|
|
|
|
51 - RETAINING RING dia22 MM
BSD-2916620011.A164
2916620011
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A164
1900905234
|
£31.64
|
£37.97
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A53
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A283
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A67
2910211006
|
£1.75
|
£2.10
|
|
|
55 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8
BSD-2910021050.A177
2910021050
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A119
2916011005
|
£1.75
|
£2.10
|
|
|
56 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A18
2916060003
|
£1.32
|
£1.58
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-8.8
BSD-2910021157.A19
2910021157
|
£1.32
|
£1.58
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A113
2915011005
|
£1.75
|
£2.10
|
|
|
59 - TAPPING SCREW B4.8x57.5 MM
BSD-1603429000.A33
1603429000
|
£1.75
|
£2.10
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8
BSD-2910021158.A70
2910021158
|
£1.32
|
£1.58
|
|
|
60/1 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A18
2910211036
|
£1.75
|
£2.10
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8
BSD-2910021162.A19
2910021162
|
-
|
|
|
|
62 - HEX NUT M12x1.5 MM
BSD-1603300009.A18
1603300009
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A172
1603435006
|
-
|
|
|
|
63/01 - SOCKET HEAD CAP SCREW DIN 84-BM5x82
BSD-1603410001.A160
1603410001
|
-
|
|
|
|
64 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A106
2916680006
|
-
|
|
|
|
65 - SPRING WASHER DIN 137-A4
BSD-1600150006.A738
1600150006
|
-
|
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A161
2910021122
|
£2.16
|
£2.59
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A499
2910211011
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A1461
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A1320
1602025030
|
£18.96
|
£22.75
|
|
|
652 - PROTECTIVE COVER dia 230 MM
BSD-2605510082.A44
2605510082
|
-
|
|
|
|
652/2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8
BSD-2910141242.A147
2910141242
|
£1.75
|
£2.10
|
|
|
654 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A166
2600501006
|
£16.43
|
£19.72
|
|
|
655 - ROUND NUT M14
BSD-2603345004.A151
2603345004
|
£6.52
|
£7.83
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A76
1607014103
|
£14.91
|
£17.89
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-1605108902.A50
1605108902
|
-
|
|
|
|
803 - CONNECTING CABLE
BSD-1604440004.A67
1604440004
|
-
|
|
|
|
803/00/01 - TERMINAL LUG
BSD-1601353003.A26
1601353003
|
-
|
|
|
|
804 - CROWN GEAR Z=59
BSD-1606333144.A3
1606333144
|
-
|
|
|
|
805 - BEVEL GEAR Z=15
BSD-1606333145.A15
1606333145
|
-
|
|
|
|
809 - SWITCH KIT
BSD-1607000034.A218
1607000034
|
-
|
|
|
|
809/00/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A137
2910091118
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3828
160111A3H3
|
£2.61
|
£3.13
|
|
