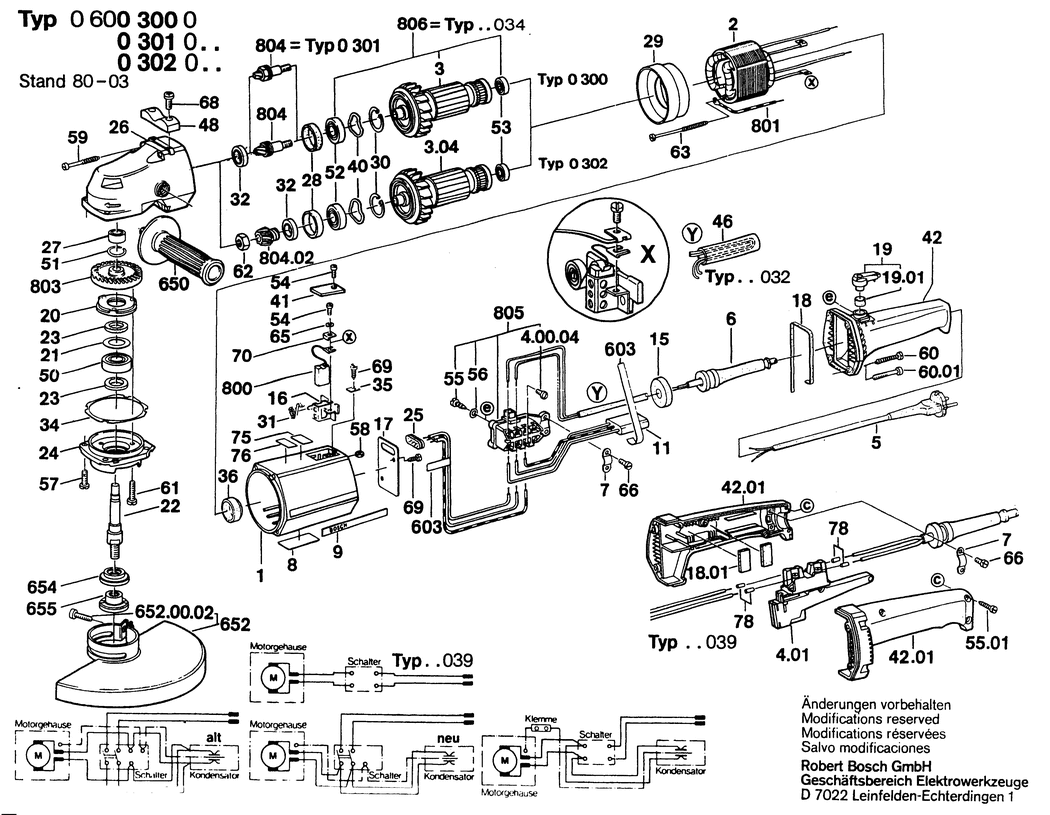

1 - MOTOR HOUSING
BSD-3605108088.A29
3605108088
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220122.A24
1604220122
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1604011236.A20
1604011236
|
-
|
|
|
|
4/00/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A499
2910091118
|
£1.66
|
£1.99
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A593
1607000228
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1097
3600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A482
1600703009
|
£5.58
|
£6.70
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A74
1601302013
|
£1.66
|
£1.99
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A541
160111A3H3
|
£2.33
|
£2.80
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A13
1601110005
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A480
1607328034
|
£4.26
|
£5.11
|
|
|
16 - BRUSH HOLDER
BSD-3604336012.A82
3604336012
|
£5.58
|
£6.70
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A223
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A112
1602026041
|
-
|
|
|
|
19/01 - FELT WASHER
BSD-1600205019.A163
1600205019
|
£1.66
|
£1.99
|
|
|
20 - BEARING COVER
BSD-1605808054.A75
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A7
1600102012
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600108055.A251
1600108055
|
£1.66
|
£1.99
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A736
2600910001
|
£4.26
|
£5.11
|
|
|
28 - RUBBER RING 7 MM
BSD-1600206020.A69
1600206020
|
£1.66
|
£1.99
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502009.A31
1600502009
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A97
2916660017
|
£4.26
|
£5.11
|
|
|
31 - SPIRAL SPRING
BSD-1604652006.A186
1604652006
|
£1.66
|
£1.99
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A209
1600290008
|
£2.33
|
£2.80
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A120
1600190005
|
£1.32
|
£1.58
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A163
1600190004
|
-
|
|
|
|
35 - TAB WASHER
BSD-1601030022.A316
1601030022
|
£1.66
|
£1.99
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A57
1600502006
|
£1.66
|
£1.99
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A106
1600150007
|
£1.66
|
£1.99
|
|
|
41 - SEALING CAP
BSD-1605500089.A184
1605500089
|
-
|
|
|
|
50 - GROOVE BALL BEARING 17x40x12
BSD-1900905281.A37
1900905281
|
£31.64
|
£37.97
|
|
|
51 - RETAINING RING dia22 MM
BSD-2916620011.A392
2916620011
|
£1.66
|
£1.99
|
|
|
52 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A36
1900905234
|
£31.64
|
£37.97
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A219
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1207
2910021118
|
£1.66
|
£1.99
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A574
2916011005
|
£1.66
|
£1.99
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A96
2910011157
|
-
|
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A663
2915011005
|
£1.66
|
£1.99
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A128
3603415560
|
£1.66
|
£1.99
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A225
2910211036
|
£1.66
|
£1.99
|
|
|
60/01 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8
BSD-2910021158.A39
2910021158
|
£1.32
|
£1.58
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A157
2910011162
|
£1.66
|
£1.99
|
|
|
63 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A302
1613435009
|
£1.66
|
£1.99
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A544
2910021122
|
£1.66
|
£1.99
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A315
2910211011
|
£1.66
|
£1.99
|
|
|
76 - REFERENCE PLATE
BSD-3601119236.A990
3601119236
|
£3.72
|
£4.47
|
|
|
78 - END SPLICE
BSD-3604477009.A353
3604477009
|
£1.66
|
£1.99
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A263
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A365
1602025030
|
£18.96
|
£22.75
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A852
2607950511
|
£4.26
|
£5.11
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW19
BSD-1907950511.A20
1907950511
|
£11.78
|
£14.13
|
|
|
652/000/02 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8
BSD-2910141242.A54
2910141242
|
£1.66
|
£1.99
|
|
|
656 - PIN-TYPE FACE-WRENCH SW6-HL8-N6
BSD-1607950007.A34
1607950007
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014106.A38
1607014106
|
£18.96
|
£22.75
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A136
1604440004
|
-
|
|
|
|
803 - BEVEL GEAR Z=61
BSD-1606333158.A16
1606333158
|
-
|
|
|
|
804 - BEVEL GEAR Z=11
BSD-1606333159.A2
1606333159
|
-
|
|
|
|
810 - SEAL KIT
BSD-1607000111.A13
1607000111
|
-
|
|
|
