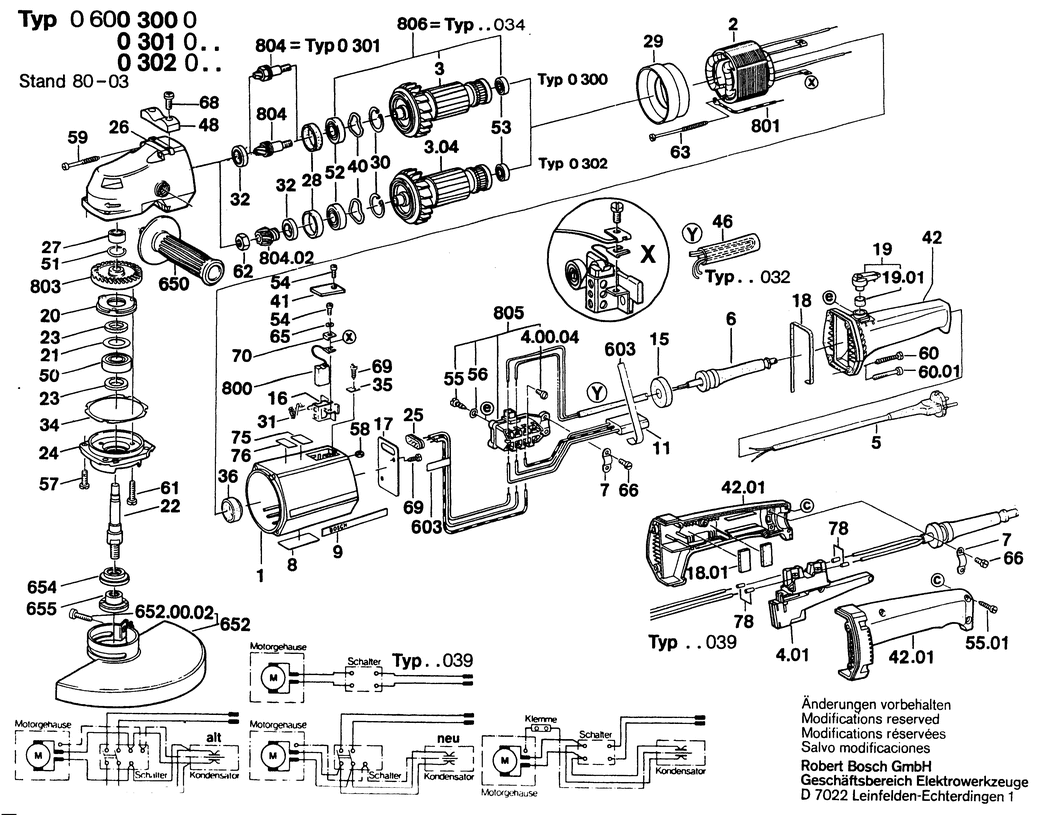

1 - MOTOR HOUSING
BSD-3605108088.A38
3605108088
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220122.A21
1604220122
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1604011236.A15
1604011236
|
-
|
|
|
|
4/00/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A497
2910091118
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD
BSD-1607000391.A32
1607000391
|
£18.96
|
£22.75
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1088
3600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A478
1600703009
|
£5.58
|
£6.70
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A83
1601302013
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A538
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A3
1601110005
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A479
1607328034
|
£4.26
|
£5.11
|
|
|
15 - SEAL
BSD-1600113002.A219
1600113002
|
£1.75
|
£2.10
|
|
|
16 - BRUSH HOLDER
BSD-3604336012.A91
3604336012
|
£5.58
|
£6.70
|
|
|
17 - COVER PLATE
BSD-1601037006.A36
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A218
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A103
1602026041
|
-
|
|
|
|
19/01 - FELT WASHER
BSD-1600205019.A161
1600205019
|
£1.75
|
£2.10
|
|
|
20 - BEARING COVER
BSD-1605808054.A82
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A5
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14. L=101 MM
BSD-1603523090.A68
1603523090
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600108055.A253
1600108055
|
£1.75
|
£2.10
|
|
|
24 - BEARING FLANGE
BSD-1607000229.A55
1607000229
|
-
|
|
|
|
25 - GROMMET
BSD-1600306001.A391
1600306001
|
£2.61
|
£3.13
|
|
|
26 - MOTOR HOUSING
BSD-1605806375.A9
1605806375
|
-
|
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A730
2600910001
|
£4.26
|
£5.11
|
|
|
28 - RUBBER RING 7 MM
BSD-1600206020.A71
1600206020
|
£1.75
|
£2.10
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502009.A22
1600502009
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A94
2916660017
|
£4.26
|
£5.11
|
|
|
31 - SPIRAL SPRING
BSD-1604652006.A177
1604652006
|
£1.75
|
£2.10
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A207
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A108
1600190005
|
£1.32
|
£1.58
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A175
1600190004
|
-
|
|
|
|
35 - TAB WASHER
BSD-1601030022.A321
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A68
1600502006
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A96
1600150007
|
£1.75
|
£2.10
|
|
|
41 - SEALING CAP
BSD-1605500089.A172
1605500089
|
-
|
|
|
|
42 - HANDLE
BSD-1605132079.A68
1605132079
|
-
|
|
|
|
50 - GROOVE BALL BEARING 17x40x12
BSD-1900905281.A40
1900905281
|
£31.64
|
£37.97
|
|
|
51 - RETAINING RING dia22 MM
BSD-2916620011.A380
2916620011
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A32
1900905234
|
£31.64
|
£37.97
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A214
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1199
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A757
2910211006
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A586
2916011005
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A88
2910011157
|
-
|
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A651
2915011005
|
£1.75
|
£2.10
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A116
3603415560
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A222
2910211036
|
£1.75
|
£2.10
|
|
|
60/01 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8
BSD-2910021158.A32
2910021158
|
£1.32
|
£1.58
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A165
2910011162
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A297
1613435009
|
£1.75
|
£2.10
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A552
2910021122
|
£2.16
|
£2.59
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A318
2910211011
|
£1.75
|
£2.10
|
|
|
76 - REFERENCE PLATE
BSD-3601119236.A1001
3601119236
|
£3.72
|
£4.47
|
|
|
78 - END SPLICE
BSD-3604477009.A341
3604477009
|
£2.61
|
£3.13
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A252
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A376
1602025030
|
£18.96
|
£22.75
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A846
2607950511
|
£4.26
|
£5.11
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW19
BSD-1907950511.A17
1907950511
|
£11.78
|
£14.13
|
|
|
652 - PROTECTIVE COVER dia190 MM (7)
BSD-1605510083.A17
1605510083
|
-
|
|
|
|
654 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A189
2600501006
|
£16.43
|
£19.72
|
|
|
655 - ROUND NUT M14
BSD-2603345004.A208
2603345004
|
£6.52
|
£7.83
|
|
|
652/000/02 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8
BSD-2910141242.A55
2910141242
|
£1.75
|
£2.10
|
|
|
656 - PIN-TYPE FACE-WRENCH SW6-HL8-N6
BSD-1607950007.A24
1607950007
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014106.A26
1607014106
|
£18.96
|
£22.75
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A132
1604440004
|
-
|
|
|
|
803 - BEVEL GEAR Z=61
BSD-1606333158.A11
1606333158
|
-
|
|
|
|
804 - BEVEL GEAR Z=11
BSD-1606333159.A7
1606333159
|
-
|
|
|
|
805 - SWITCH KIT
BSD-1607000034.A74
1607000034
|
-
|
|
|
|
810 - SEAL KIT
BSD-1607000111.A5
1607000111
|
-
|
|
|
