Bosch GFZ 14-35 A / 0601637042 / GB 240 Volt Spare Parts

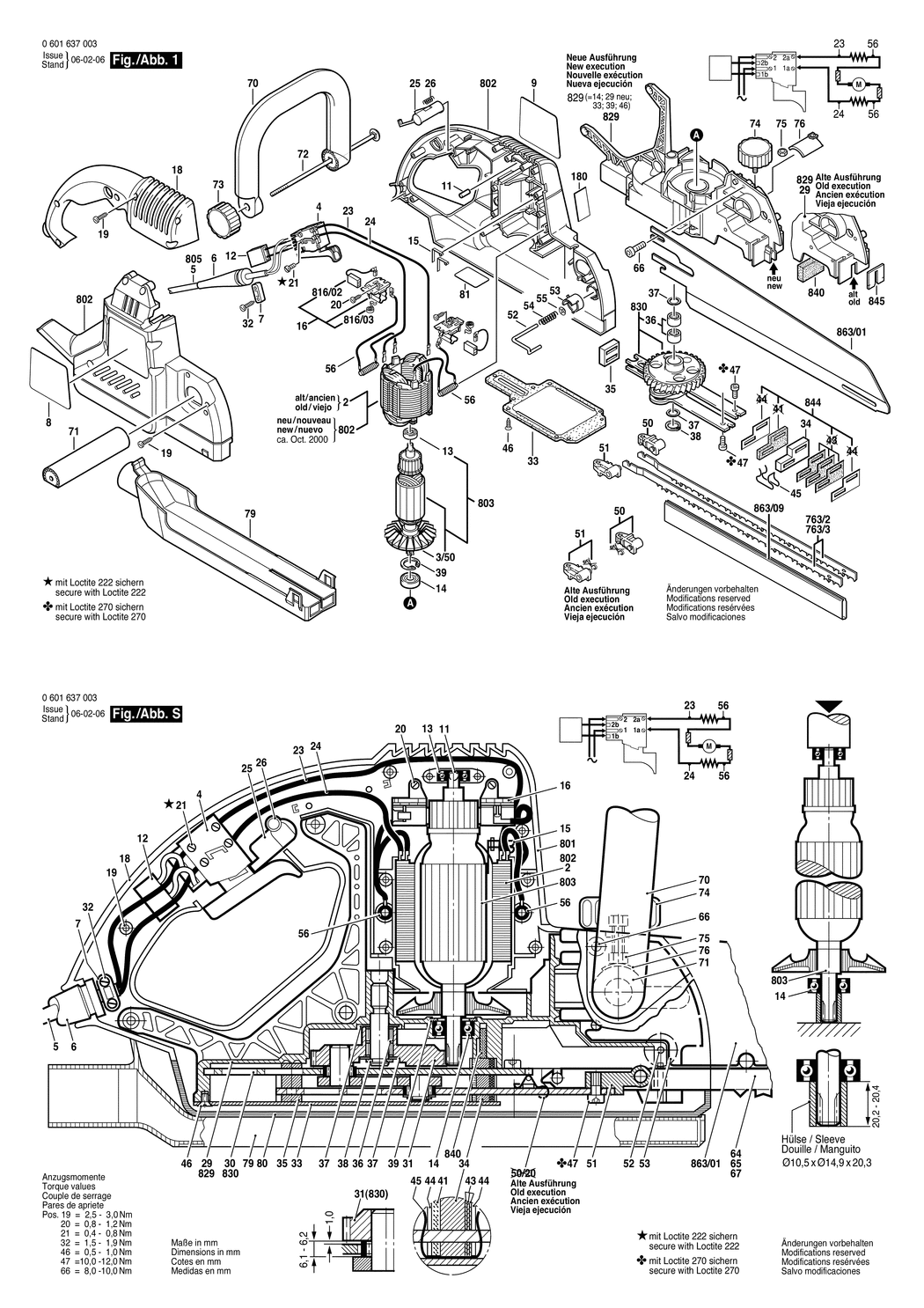

An exploded drawing and listing for the Bosch GFZ 14-35 A / 0601637042 / GB 240 Volt

	Ex VAT	Inc VAT
3/50 - FAN BSD-3606610002.A50 3606610002	£2.33	£2.80
4 - SWITCH BSD-3607200066.A17 3607200066	£11.30	£13.56
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.00mm H05RN-F BSD-3604460079.A0 3604460079	£16.41	£19.69
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A63 1600703026	£2.16	£2.59
7 - CABLE CLIP BSD-2601035001.A1920 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-3601110313.A0 3601110313	-
9 - MANUFACTURER'S NAMEPLATE BSD-3601110261.A3 3601110261	£3.80	£4.56
11 - RUBBER BUFFER BSD-1603100036.A54 1603100036	£1.75	£2.10
12 - SUPPRESSION FILTER BSD-1607328028.A382 1607328028	£5.30	£6.36
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A319 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING BSD-1600900042.A72 1600900042	£5.58	£6.70
15 - CONTACT SPRING BSD-3604680003.A2 3604680003	£1.75	£2.10
16 - BRUSH HOLDER BSD-3604336002.A0 3604336002	£11.30	£13.56
18 - HOUSING COVER BSD-3605500130.A3 3605500130	£9.49	£11.39
19 - TAPPING SCREW TORX ST 3.9x19-C-Z BSD-3603435009.A1 3603435009	-
20 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A430 2910211006	£1.75	£2.10
21 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1431 2603410001	£1.75	£2.10
23 - CONNECTING CABLE L=280 MM BSD-3604411036.A3 3604411036	£3.72	£4.47
24 - CONNECTING CABLE L=180 MM BSD-3604411038.A5 3604411038	£2.52	£3.02
25 - REJECTION SLIDE BSD-3602329028.A14 3602329028	£1.75	£2.10
26 - COMPRESSION SPRING BSD-3604610041.A10 3604610041	£1.75	£2.10
32 - SCREW 4x16 BSD-2603490022.A1665 2603490022	£1.75	£2.10
33 - GEAR COVER BSD-3605500133.A17 3605500133	£12.04	£14.45
34 - PLAIN BEARING BSD-3600929027.A10 3600929027	£6.52	£7.83
35 - PLAIN BEARING BSD-3600929030.A9 3600929030	£5.30	£6.36
36 - NEEDLE BEARING BSD-3600913008.A31 3600913008	£3.72	£4.47
37 - FRICTION WASHER BSD-3600102045.A16 3600102045	£1.75	£2.10
38 - SPRING RETAINING RING DIN 471-12x1-FSTM BSD-2916650903.A18 2916650903	£1.75	£2.10
39 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A114 2916660010	£1.75	£2.10
45 - CLAMP SPRING BSD-3604651020.A9 3604651020	£2.61	£3.13
46 - THREAD-FORMING TAP. SCREW M3x8 BSD-3603391003.A35 3603391003	£2.16	£2.59
47 - HEX SOCKET HEAD CAP SCREW M 6x16 MM BSD-3603410020.A5 3603410020	£1.75	£2.10
50 - BASE BODY BSD-3602319021.A5 3602319021	£12.04	£14.45
51 - BASE BODY BSD-3602319022.A14 3602319022	£12.04	£14.45
52 - BOW BSD-3601921005.A7 3601921005	£5.58	£6.70
53 - ACTUATING ELEMENT BSD-3600522002.A9 3600522002	£3.72	£4.47
54 - COMPRESSION SPRING BSD-3604682004.A17 3604682004	£2.16	£2.59
55 - LOCKING WASHER BSD-3600112002.A13 3600112002	£1.75	£2.10
56 - SUPPRESSION FILTER BSD-3604463010.A10 3604463010	£5.87	£7.04
66 - HEX SOCKET HEAD CAP SCREW M6 BSD-3603386041.A15 3603386041	£1.75	£2.10
70 - AUXILIARY HANDLE BSD-3605132063.A8 3605132063	£18.96	£22.75
71 - DISTANCE PIPE BSD-3600723012.A1 3600723012	£7.36	£8.83
72 - ROUND-HEAD BOLT BSD-3603300015.A13 3603300015	£2.80	£3.36
73 - HANDWHEEL M6 BSD-3602317021.A12 3602317021	£4.26	£5.11
74 - HANDWHEEL M6 BSD-3602317020.A7 3602317020	£4.26	£5.11
75 - HEX NUT BSD-3603435044.A15 3603435044	£2.16	£2.59
76 - CLAMPING PIECE BSD-3601329018.A12 3601329018	£1.75	£2.10
79 - SUCTION CHANNEL BSD-3602317017.A12 3602317017	£21.52	£25.83
81 - REFERENCE PLATE BSD-3601110332.A7 3601110332	£2.61	£3.13
763/2 - SAW BLADE SET 350 MM BSD-2608632120.A8 2608632120	£22.56	£27.07
763/3 - SAW BLADE SET 350 MM BSD-2608632123.A2 2608632123	£45.12	£54.14
802 - FIELD 230V BSD-1607000711.A0 1607000711	£61.98	£74.38
803 - ARMATURE 240V BSD-1604010496.A2 1604010496	-
816/02 - CARBON BRUSH BSD-3604321012.A0 3604321012	£12.04	£14.45
816/03 - SPIRAL SPRING BSD-3604652500.A10 3604652500	£1.75	£2.10
829 - GEAR HOUSING BSD-3605109010.A2 3605109010	£81.81	£98.17
830 - LIFT GEAR Z=78 BSD-3602319020.A13 3602319020	£120.11	£144.13
840 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A188 1602381006	£1.75	£2.10
844 - SEAL KIT BSD-3600929039.A8 3600929039	£16.41	£19.69
845 - LATERAL GUIDE BSD-3600929034.A11 3600929034	-
863/01 - SWORD 350 MM BSD-2608045017.A4 2608045017	£33.74	£40.49
863/09 - GUARD PROFILE 350 MM BSD-2601329049.A9 2601329049	£2.80	£3.36
