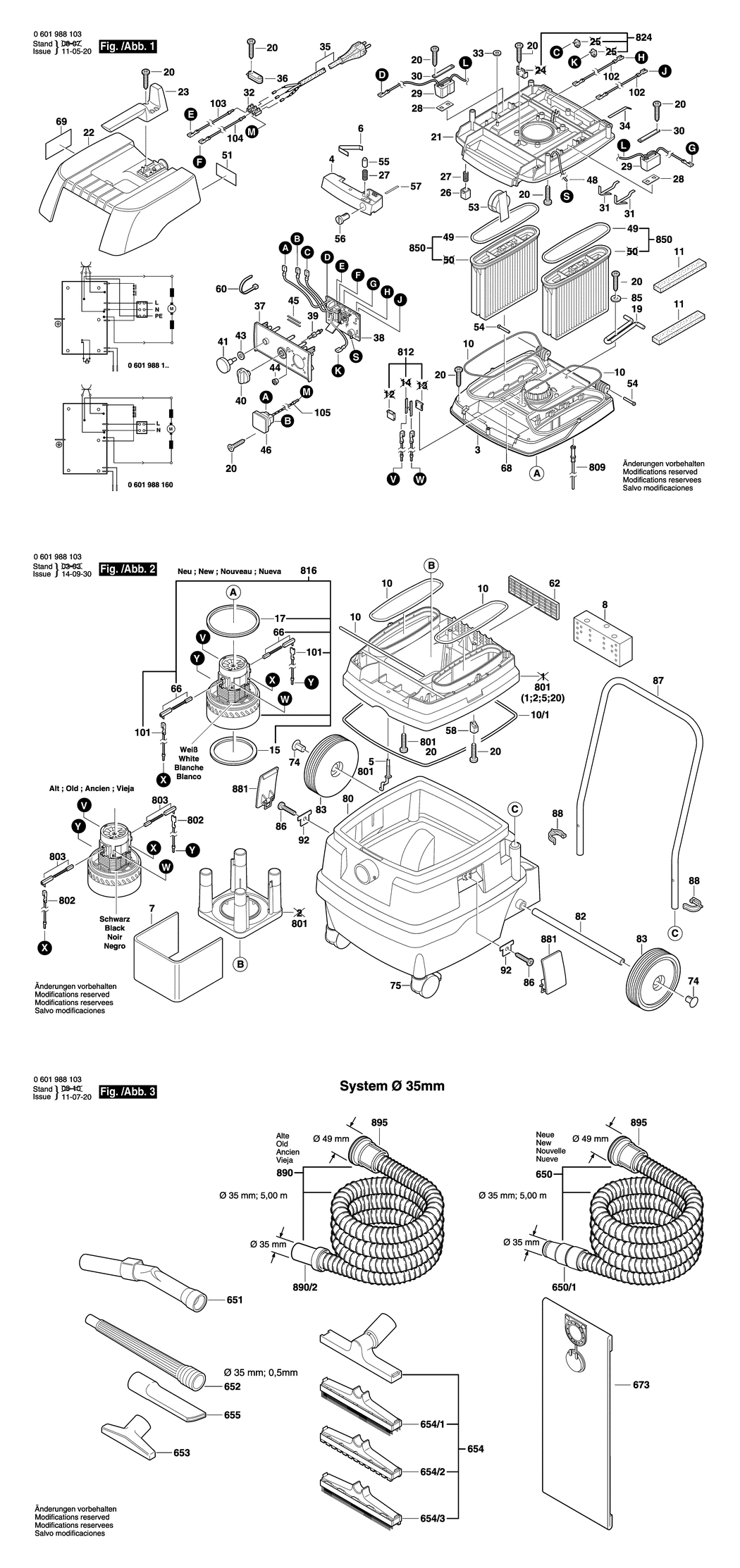

3 - MOTOR HOUSING
BSD-1600A000R5.A0
1600A000R5
|
£48.38
|
£58.06
|
|
|
4 - LOCKING-BAR
BSD-1609203D09.A1
1609203D09
|
£8.49
|
£10.19
|
|
|
5 - CONTACT FINGER
BSD-1609203C27.A9
1609203C27
|
£4.26
|
£5.11
|
|
|
6 - LEAF SPRING
BSD-1609203C28.A6
1609203C28
|
£2.61
|
£3.13
|
|
|
7 - SOUND INSULATION MAT
BSD-1609203C29.A9
1609203C29
|
£10.10
|
£12.12
|
|
|
8 - SOUND INSULATION MAT
BSD-1609203C30.A6
1609203C30
|
£18.96
|
£22.75
|
|
|
10 - SEALING CORD 3 M
BSD-1609203C32.A9
1609203C32
|
£10.10
|
£12.12
|
|
|
10/1 - SEALING CORD 1.5 M
BSD-1609203C33.A6
1609203C33
|
£11.30
|
£13.56
|
|
|
11 - AIR FILTER
BSD-1609203C34.A9
1609203C34
|
£2.61
|
£3.13
|
|
|
15 - SEAL RING
BSD-1609201669.A128
1609201669
|
£5.58
|
£6.70
|
|
|
17 - SEAL RING
BSD-1609203B13.A57
1609203B13
|
£6.52
|
£7.83
|
|
|
19 - LOAD ABSORBER
BSD-1600A000RW.A6
1600A000RW
|
£6.52
|
£7.83
|
|
|
20 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A196
2910611015
|
£1.75
|
£2.10
|
|
|
21 - INTERMEDIATE HOUSING
BSD-1600A000R7.A2
1600A000R7
|
£33.74
|
£40.49
|
|
|
22 - COVERING HOOD
BSD-1609203C42.A8
1609203C42
|
£33.74
|
£40.49
|
|
|
23 - HANDLE
BSD-1609203C43.A7
1609203C43
|
£11.30
|
£13.56
|
|
|
26 - THRUST MEMBER
BSD-1609203C46.A8
1609203C46
|
£1.75
|
£2.10
|
|
|
27 - COMPRESSION SPRING
BSD-1609201685.A37
1609201685
|
£2.16
|
£2.59
|
|
|
28 - SEALING DISK
BSD-1609201663.A34
1609201663
|
£2.16
|
£2.59
|
|
|
29 - ATTACHMENT VIBRATOR 220-240V
BSD-1609201662.A28
1609201662
|
£93.88
|
£112.65
|
|
|
30 - HOLDING PLATE
BSD-1609203C48.A4
1609203C48
|
£2.16
|
£2.59
|
|
|
31 - CONTACT STRAP
BSD-1609203C49.A11
1609203C49
|
£2.16
|
£2.59
|
|
|
32 - CONNECTING TERMINAL
BSD-1609203C50.A4
1609203C50
|
£2.61
|
£3.13
|
|
|
33 - HOLDING-DOWN-APPLIANCE
BSD-1609203C51.A11
1609203C51
|
£1.75
|
£2.10
|
|
|
34 - CONTACT SPRING
BSD-1609203C52.A4
1609203C52
|
£1.75
|
£2.10
|
|
|
35 - POWER SUPPLY CORD
BSD-1609203C53.A3
1609203C53
|
£48.38
|
£58.06
|
|
|
36 - CABLE CLIP
BSD-1609203C54.A4
1609203C54
|
£1.75
|
£2.10
|
|
|
37 - FRONT SHIELD
BSD-1609203C59.A1
1609203C59
|
£12.04
|
£14.45
|
|
|
38 - PRINTED-BOARD ASSEMBLY 230V
BSD-1609203D16.A1
1609203D16
|
£102.57
|
£123.08
|
|
|
39 - AXLE
BSD-1609203W42.A11
1609203W42
|
£1.75
|
£2.10
|
|
|
40 - SWITCH BUTTON
BSD-1609203C58.A9
1609203C58
|
£4.26
|
£5.11
|
|
|
41 - ROTARY KNOB
BSD-1609203D13.A1
1609203D13
|
£7.78
|
£9.33
|
|
|
43 - LOCKING DISC
BSD-1609203C61.A0
1609203C61
|
£1.75
|
£2.10
|
|
|
44 - INDICATOR LAMP
BSD-1609201654.A0
1609201654
|
£6.52
|
£7.83
|
|
|
45 - SWITCH SPRING
BSD-1609203C62.A2
1609203C62
|
£1.75
|
£2.10
|
|
|
46 - SOCKET
BSD-1609203C63.A1
1609203C63
|
£23.86
|
£28.63
|
|
|
48 - PLASTIC HOSE
BSD-1609203C65.A2
1609203C65
|
£2.61
|
£3.13
|
|
|
49 - SEAL RING
BSD-1609203C66.A6
1609203C66
|
£5.58
|
£6.70
|
|
|
51 - NAMEPLATE
BSD-1601118C99.A0
1601118C99
|
£3.72
|
£4.47
|
|
|
53 - SIREN
BSD-1609203C69.A1
1609203C69
|
£48.38
|
£58.06
|
|
|
54 - BEARING BOLT
BSD-1609203C70.A0
1609203C70
|
£2.16
|
£2.59
|
|
|
55 - LOCKING PIN
BSD-1609203C71.A15
1609203C71
|
£2.61
|
£3.13
|
|
|
56 - COUPLER LINK
BSD-1609203C72.A0
1609203C72
|
£2.61
|
£3.13
|
|
|
57 - LOCK SPRING
BSD-1609203C73.A15
1609203C73
|
£11.30
|
£13.56
|
|
|
58 - SUPPORT
BSD-1609203C74.A0
1609203C74
|
£1.75
|
£2.10
|
|
|
60 - CABLE TIE
BSD-1609203C76.A0
1609203C76
|
£1.75
|
£2.10
|
|
|
62 - PROTECTIVE GRILLE
BSD-1609203C77.A1
1609203C77
|
£12.04
|
£14.45
|
|
|
66 - CARBON-BRUSH SET
BSD-1609203Z24.A0
1609203Z24
|
£40.80
|
£48.96
|
|
|
68 - WARNING PLATE
BSD-1601118C61.A13
1601118C61
|
£3.72
|
£4.47
|
|
|
69 - WARNING PLATE
BSD-1601118E17.A0
1601118E17
|
-
|
|
|
|
74 - PLUG
BSD-1609202727.A0
1609202727
|
£3.72
|
£4.47
|
|
|
75 - CASTER WHEEL
BSD-1609203K69.A0
1609203K69
|
£14.91
|
£17.89
|
|
|
80 - DUST CONTAINER
BSD-1609203D14.A0
1609203D14
|
£134.16
|
£160.99
|
|
|
82 - AXLE
BSD-1609203C90.A2
1609203C90
|
£13.12
|
£15.75
|
|
|
83 - IMPELLER
BSD-1609203C91.A6
1609203C91
|
£21.52
|
£25.83
|
|
|
85 - PLAIN WASHER dia4.2xdia11x1.2MM
BSD-1609202726.A159
1609202726
|
£1.75
|
£2.10
|
|
|
86 - TAPPING SCREW DIN 7981-B3.5x25
BSD-2910611015.A197
2910611015
|
£1.75
|
£2.10
|
|
|
87 - BOW
BSD-1609203C93.A2
1609203C93
|
£54.42
|
£65.30
|
|
|
88 - RETAINING SPRING
BSD-1609203C94.A6
1609203C94
|
£6.52
|
£7.83
|
|
|
92 - PRESSURE PLATE
BSD-1609203E24.A8
1609203E24
|
-
|
|
|
|
101 - CONNECTING CABLE
BSD-1609203Z25.A13
1609203Z25
|
£10.10
|
£12.12
|
|
|
102 - CONNECTING CABLE
BSD-1609203C96.A13
1609203C96
|
£2.61
|
£3.13
|
|
|
103 - CONNECTING CABLE
BSD-1609203C97.A2
1609203C97
|
£2.80
|
£3.36
|
|
|
104 - CONNECTING CABLE
BSD-1609203C98.A13
1609203C98
|
£2.80
|
£3.36
|
|
|
105 - CONNECTING CABLE
BSD-1609203U04.A12
1609203U04
|
£4.26
|
£5.11
|
|
|
650 - AIR HOSE
BSD-1600A000W2.A3
1600A000W2
|
£179.37
|
£215.24
|
|
|
650/1 - FITTING
BSD-1609203V36.A5
1609203V36
|
£23.86
|
£28.63
|
|
|
651 - SETTING TUBE
BSD-1609202525.A15
1609202525
|
£27.23
|
£32.68
|
|
|
652 - SUCTION PIPE dia 35x500
BSD-1609202527.A15
1609202527
|
£18.96
|
£22.75
|
|
|
653 - SUCTION NOZZLE
BSD-1609202526.A0
1609202526
|
£21.52
|
£25.83
|
|
|
654 - SUCTION NOZZLE
BSD-2609390006.A6
2609390006
|
-
|
|
|
|
654/1 - FLAT BRUSH
BSD-1609390493.A101
1609390493
|
£21.68
|
£26.01
|
|
|
654/2 - FLAT BRUSH
BSD-1609390494.A0
1609390494
|
-
|
|
|
|
654/3 - STRIP BRUSH
BSD-1609390495.A101
1609390495
|
£16.41
|
£19.69
|
|
|
655 - CREVICE NOZZLE dia 35 MM
BSD-1609202532.A2
1609202532
|
£10.10
|
£12.12
|
|
|
673 - DUST BAG
BSD-1609203C80.A0
1609203C80
|
-
|
|
|
|
801 - INTERMEDIATE FLANGE
BSD-1609203C39.A8
1609203C39
|
£40.80
|
£48.96
|
|
|
802 - CONNECTING CABLE
BSD-1609203C95.A2
1609203C95
|
£2.61
|
£3.13
|
|
|
803 - CARBON-BRUSH SET
BSD-1609203C81.A8
1609203C81
|
£40.80
|
£48.96
|
|
|
809 - ELECTRODE
BSD-1609203M84.A0
1609203M84
|
£7.36
|
£8.83
|
|
|
812 - CONNECTOR
BSD-1609203C40.A7
1609203C40
|
£7.36
|
£8.83
|
|
|
816 - SUCTION BLOWER
BSD-1609203Z37.A4
1609203Z37
|
£251.67
|
£302.00
|
|
|
824 - SOCKET CONTACT
BSD-1609203C75.A15
1609203C75
|
£8.67
|
£10.41
|
|
|
850 - AIR FILTER
BSD-1609203C99.A1
1609203C99
|
£81.81
|
£98.17
|
|
|
881 - BENT-LEVER CLOSURE
BSD-1609203L96.A8
1609203L96
|
£16.41
|
£19.69
|
|
|
890 - AIR HOSE
BSD-1600A000W2.A2
1600A000W2
|
£179.37
|
£215.24
|
|
|
890/2 - FITTING
BSD-1609203V36.A6
1609203V36
|
£23.86
|
£28.63
|
|
|
895 - FITTING
BSD-1600A000W0.A8
1600A000W0
|
£31.64
|
£37.97
|
|
