Bosch GAS 1000 RF / 0601971263 / DK 220 Volt Spare Parts

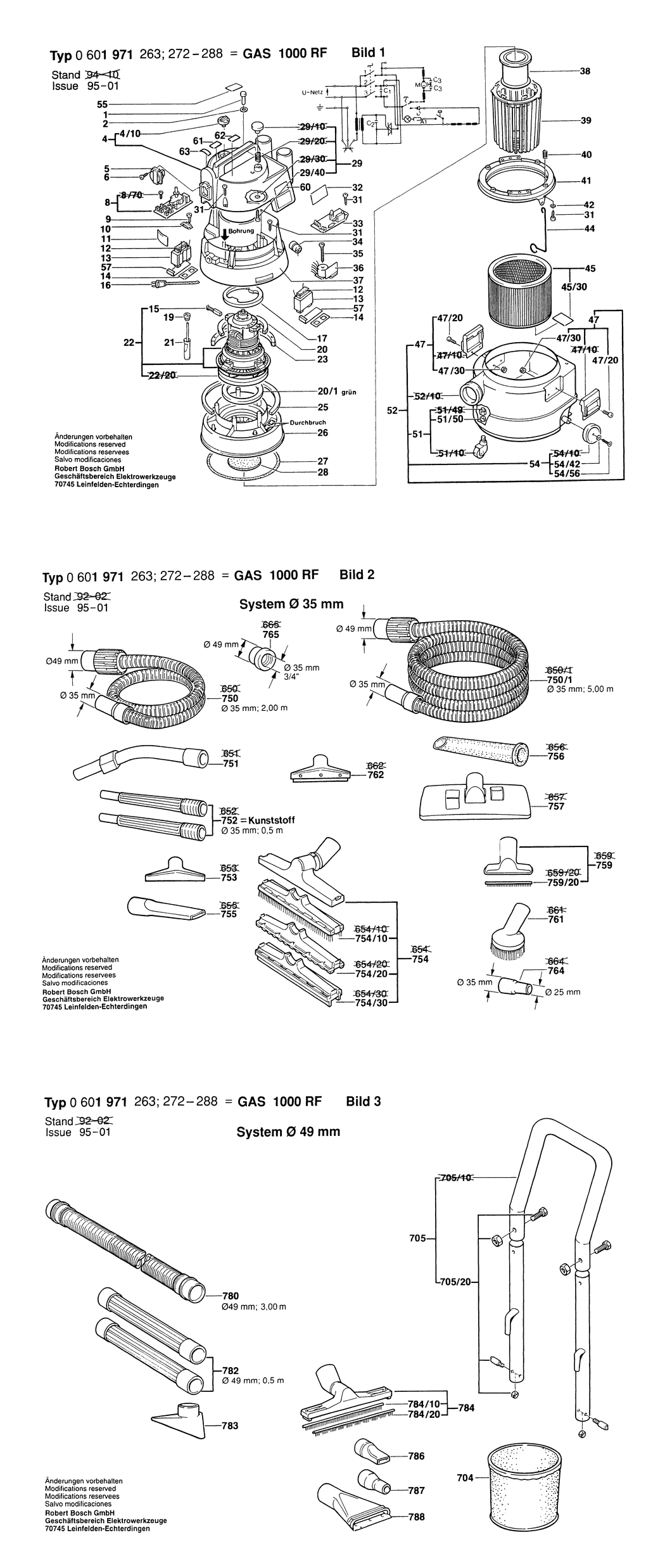

An exploded drawing and listing for the Bosch GAS 1000 RF / 0601971263 / DK 220 Volt

	Ex VAT	Inc VAT
1 - INDICATOR LAMP BSD-1609201654.A17 1609201654	£6.52	£7.83
2 - SEAL RING BSD-1609201655.A39 1609201655	£1.75	£2.10
4 - COVERING HOOD BSD-1609202365.A31 1609202365	-
4/10 - SWITCH BUTTON BSD-1609203721.A9 1609203721	-
5 - SOCKET BSD-1609201707.A13 1609201707	-
6 - TAPPING SCREW DIN 7983-ST3.9x19-C-H BSD-2910612519.A4 2910612519	-
8 - ON-OFF SWITCH BSD-1609201706.A2 1609201706	£45.67	£54.80
9 - TAPPING SCREW DIN 7971-B2.9x19 BSD-2910211208.A22 2910211208	-
10 - CLAMP BSD-1609201659.A9 1609201659	-
11 - NAMEPLATE BSD-1601110873.A0 1601110873	-
12 - DAMPING PLATE BSD-1609201660.A45 1609201660	£1.75	£2.10
13 - ATTACHMENT VIBRATOR 220-240V BSD-1609201662.A35 1609201662	£93.88	£112.65
14 - SEALING DISK BSD-1609201663.A27 1609201663	£2.16	£2.59
15 - CARBON-BRUSH SET BSD-1609201664.A28 1609201664	-
16 - CONNECTOR CABLE BSD-1609201708.A4 1609201708	£36.63	£43.96
17 - AIR-DEFLECTOR RING BSD-1609201666.A88 1609201666	-
19 - SEAL RING BSD-1609201668.A24 1609201668	£2.16	£2.59
20 - SEAL RING BSD-1609201669.A58 1609201669	£5.58	£6.70
20/1 - SEAL RING BSD-1609201669.A59 1609201669	£5.58	£6.70
21 - GUIDE SLEEVE BSD-1609202573.A17 1609202573	£3.72	£4.47
22 - SUCTION BLOWER 220V BSD-1609202695.A10 1609202695	-
23 - AIR FILTER BSD-1609201672.A55 1609201672	-
25 - AIR FILTER BSD-1609201674.A8 1609201674	-
26 - INTERMEDIATE FLANGE BSD-1609201675.A20 1609201675	-
27 - SEAL RING BSD-1609201676.A3 1609201676	-
28 - AIR FILTER BSD-1609201677.A70 1609201677	£1.95	£2.34
29 - PUSH-BUTTON BSD-1609201678.A3 1609201678	-
29/40 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A123 2910611015	£1.75	£2.10
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A124 2910611015	£1.75	£2.10
33 - CONNECTION PLATE BSD-1609201679.A17 1609201679	-
34 - PRESSURE SWITCH BSD-1609201680.A3 1609201680	-
35 - TAPPING SCREW 3.5x32 MM BSD-1609201681.A51 1609201681	-
36 - AUTOMATIC SWITCHING UNIT BSD-1609203C05.A30 1609203C05	-
37 - INTERMEDIATE HOUSING BSD-1609201683.A3 1609201683	-
38 - FLOAT BSD-1609200952.A72 1609200952	-
39 - SUCTION BASKET BSD-1609201684.A24 1609201684	-
40 - COMPRESSION SPRING BSD-1609201685.A46 1609201685	£2.16	£2.59
41 - RETAINING SNAP RING BSD-1609203182.A33 1609203182	-
42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A76 1609202726	£1.75	£2.10
44 - RETAINING BRACKET BSD-1609202406.A14 1609202406	-
45 - AIR FILTER dia 245x194 MM BSD-1609202378.A1 1609202378	-
45/30 - REFERENCE PLATE BSD-1601110830.A6 1601110830	£2.61	£3.13
47 - BENT-LEVER CLOSURE BSD-1609201690.A20 1609201690	-
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8 BSD-2910021193.A70 2910021193	£1.75	£2.10
47/30 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1410 2915011007	-
51 - IMPELLER BSD-1609201691.A43 1609201691	-
51/50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A106 2915011009	£2.61	£3.13
52 - DUST CONTAINER BSD-1609201692.A20 1609201692	-
54 - IMPELLER BSD-1609202221.A4 1609202221	-
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A77 1609202726	£1.75	£2.10
54/56 - TAPPING SCREW DIN 7981-B4.2x19 BSD-2910611027.A22 2910611027	-
55 - REFERENCE PLATE BSD-1601110724.A14 1601110724	-
57 - LEAF SPRING BSD-1609202192.A54 1609202192	-
704 - DUST SEPARATOR BSD-2607432010.A30 2607432010	-
705 - GUIDE BRACKET BSD-1609201627.A54 1609201627	-
705/20 - PARTS SET BSD-1609201661.A6 1609201661	-
750 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A36 2607000163	-
750/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A8 1609202230	£85.74	£102.89
751 - SETTING TUBE dia 35 MM BSD-2607000164.A47 2607000164	£22.56	£27.07
752 - SUCTION PIPE dia 35 MM. 0.5 M BSD-2607000162.A53 2607000162	£27.98	£33.57
753 - SUCTION NOZZLE dia 35 MM BSD-2607000170.A62 2607000170	£13.12	£15.74
754 - SUCTION NOZZLE dia 35 MM BSD-1609390478.A65 1609390478	£34.99	£41.99
754/10 - FLAT BRUSH BSD-1609390493.A67 1609390493	£21.68	£26.01
754/20 - FLAT BRUSH BSD-1609390494.A34 1609390494	-
754/30 - STRIP BRUSH BSD-1609390495.A67 1609390495	£16.41	£19.69
755 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A46 2607000165	£5.24	£6.29
756 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A82 1609201229	£17.49	£20.99
757 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A56 1609201230	£41.99	£50.39
759 - SUCTION NOZZLE dia 35 MM BSD-2607000166.A52 2607000166	£8.74	£10.49
759/20 - BRUSH INSERT BSD-1609202534.A19 1609202534	£2.80	£3.36
761 - SUCTION BRUSH dia 35 MM BSD-1609390481.A20 1609390481	£8.74	£10.49
762 - SUCTION NOZZLE dia 35 MM BSD-2607000168.A52 2607000168	-
764 - FITTING dia 25x35 MM BSD-1600499005.A61 1600499005	£3.49	£4.19
765 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A134 1609200933	£7.21	£8.65
780 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A36 2607000167	£64.74	£77.69
782 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A116 1609200968	£12.24	£14.69
783 - SUCTION NOZZLE dia 49 MM BSD-2607000169.A13 2607000169	-
784 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A113 1609200970	£26.24	£31.49
784/10 - FLAT BRUSH BSD-1609201109.A109 1609201109	-
784/20 - FLAT BRUSH BSD-1609201110.A18 1609201110	-
786 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A9 1609200971	£7.87	£9.44
787 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A137 1609200976	£3.61	£4.33
788 - SUCTION NOZZLE dia 49 MM BSD-1609201235.A30 1609201235	-
