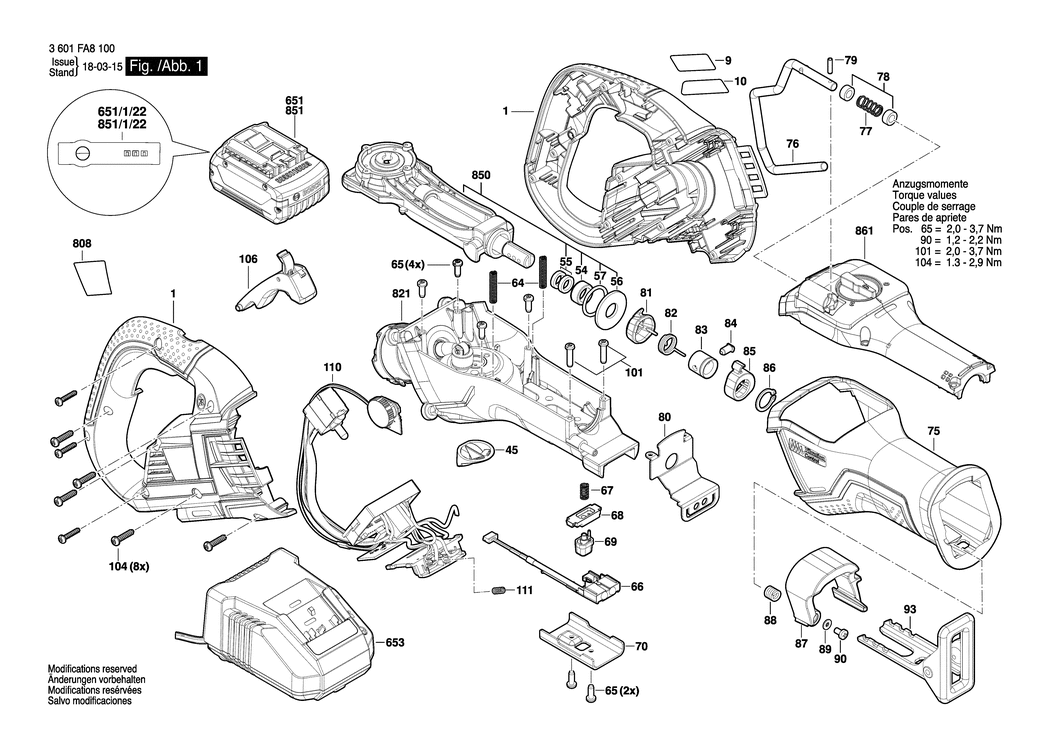

1 - HOUSING SECTION
BSD-2605105218.A0
2605105218
|
£27.23
|
£32.68
|
|
|
9 - MANUFACTURER'S NAMEPLATE GSA 18V-32
BSD-160111C0P1.A0
160111C0P1
|
£2.33
|
£2.80
|
|
|
10 - STICKER EC
BSD-2601113630.A0
2601113630
|
£2.33
|
£2.80
|
|
|
45 - COVER
BSD-2601099301.A0
2601099301
|
£1.95
|
£2.34
|
|
|
54 - SHEET METAL COVER
BSD-2600109124.A0
2600109124
|
£1.66
|
£1.99
|
|
|
55 - FELT SEAL RING
BSD-2600109125.A0
2600109125
|
£1.66
|
£1.99
|
|
|
56 - FELT SEAL RING
BSD-2600109126.A0
2600109126
|
£1.66
|
£1.99
|
|
|
57 - O-RING 25x2 MM
BSD-1900210124.A37
1900210124
|
£2.80
|
£3.36
|
|
|
64 - COMPRESSION SPRING
BSD-2604618021.A0
2604618021
|
£1.66
|
£1.99
|
|
|
65 - THREAD-FORMING TAP. SCREW M4x12 MM
BSD-2603410049.A146
2603410049
|
£1.66
|
£1.99
|
|
|
66 - ASSEMBLY
BSD-1609271BS3.A0
1609271BS3
|
£12.04
|
£14.45
|
|
|
67 - COMPRESSION SPRING
BSD-2601016121.A0
2601016121
|
£1.66
|
£1.99
|
|
|
68 - BRIDGE
BSD-2601016124.A0
2601016124
|
£3.72
|
£4.47
|
|
|
69 - PUSH-BUTTON
BSD-2601016122.A0
2601016122
|
£2.80
|
£3.36
|
|
|
70 - HOLDING PLATE
BSD-2601016123.A0
2601016123
|
£8.67
|
£10.41
|
|
|
75 - RUBBER HOSE
BSD-2605105217.A0
2605105217
|
£16.41
|
£19.69
|
|
|
76 - HOOK
BSD-2601990056.A0
2601990056
|
£18.96
|
£22.75
|
|
|
77 - COMPRESSION SPRING
BSD-2604618020.A0
2604618020
|
£1.66
|
£1.99
|
|
|
78 - BUSHING
BSD-2600406039.A0
2600406039
|
£1.66
|
£1.99
|
|
|
79 - SLOTTED SPRING PIN
BSD-2917780078.A0
2917780078
|
£1.66
|
£1.99
|
|
|
80 - SHEET METAL COVER
BSD-2600000049.A0
2600000049
|
£1.66
|
£1.99
|
|
|
81 - COVER
BSD-2605191323.A0
2605191323
|
£1.66
|
£1.99
|
|
|
82 - TORSION SPRING
BSD-2604690067.A0
2604690067
|
£1.66
|
£1.99
|
|
|
83 - SLEEVE
BSD-2600406038.A0
2600406038
|
£5.58
|
£6.70
|
|
|
84 - CLAMP PIN
BSD-2602388026.A0
2602388026
|
£1.95
|
£2.34
|
|
|
85 - CLAMPING SLEEVE
BSD-2600400078.A0
2600400078
|
£11.30
|
£13.56
|
|
|
86 - SPRING RETAINING RING DIN 471 18x1.2MM
BSD-2916650009.A0
2916650009
|
£1.66
|
£1.99
|
|
|
87 - EJECTION LEVER
BSD-2607990159.A0
2607990159
|
£11.30
|
£13.56
|
|
|
88 - TORSION SPRING
BSD-2604610152.A0
2604610152
|
£1.66
|
£1.99
|
|
|
89 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A143
2916011010
|
£1.66
|
£1.99
|
|
|
90 - OVAL-HEAD SCREW M4x8
BSD-2603413035.A3
2603413035
|
£1.66
|
£1.99
|
|
|
93 - BASE PLATE
BSD-2601016120.A0
2601016120
|
£24.45
|
£29.34
|
|
|
101 - THREAD-FORMING TAP. SCREW
BSD-2603410051.A44
2603410051
|
£1.66
|
£1.99
|
|
|
104 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1203
2603490023
|
£1.66
|
£1.99
|
|
|
106 - LOCKING ASSEMBLY
BSD-1600A00XF7.A0
1600A00XF7
|
£10.10
|
£12.12
|
|
|
110 - ELECTRONICS MODULE
BSD-16072335A5.A0
16072335A5
|
£134.16
|
£160.99
|
|
|
111 - COMPRESSION SPRING
BSD-2604690055.A15
2604690055
|
£1.66
|
£1.99
|
|
|
651 - BATTERY PACK BBS MR. 18V. 5.0 Ah 48 S
BSD-2607337069.A36
2607337069
|
£116.15
|
£139.38
|
|
|
651/1/22 - STICKER
BSD-2601115537.A48
2601115537
|
£2.33
|
£2.80
|
|
|
653 - CHARGER EU GAL 1880 CV 230/14.4-18V
BSD-2607225921.A5
2607225921
|
£134.16
|
£160.99
|
|
|
653 - CHARGER GB GAL 1880 CV 230/14.4-18V
BSD-2607225923.A18
2607225923
|
£114.88
|
£137.86
|
|
|
808 - NAMEPLATE
BSD-160111A3H0.A0
160111A3H0
|
£2.33
|
£2.80
|
|
|
821 - MOTOR-GEARBOX ASSEMBLY
BSD-1607000CF0.A0
1607000CF0
|
£171.57
|
£205.88
|
|
|
850 - ROCKER ROD
BSD-1607000CF2.A0
1607000CF2
|
£68.42
|
£82.10
|
|
|
851 - BATTERY PACK GBA 18V 8.0 Ah XL ProCore
BSD-1607A350AT.A1
1607A350AT
|
-
|
|
|
|
851 - BATTERY PACK GBA 18V 6.0Ah M-C
BSD-2607337267.A0
2607337267
|
£216.12
|
£259.35
|
|
|
851/1/22 - STICKER
BSD-160111C0PB.A0
160111C0PB
|
£2.33
|
£2.80
|
|
|
861 - PLASTIC COVERING
BSD-1607000CF1.A0
1607000CF1
|
£21.52
|
£25.83
|
|
