Bosch GSR 7.2 V / 0601949742 / GB 7.2 Volt Spare Parts

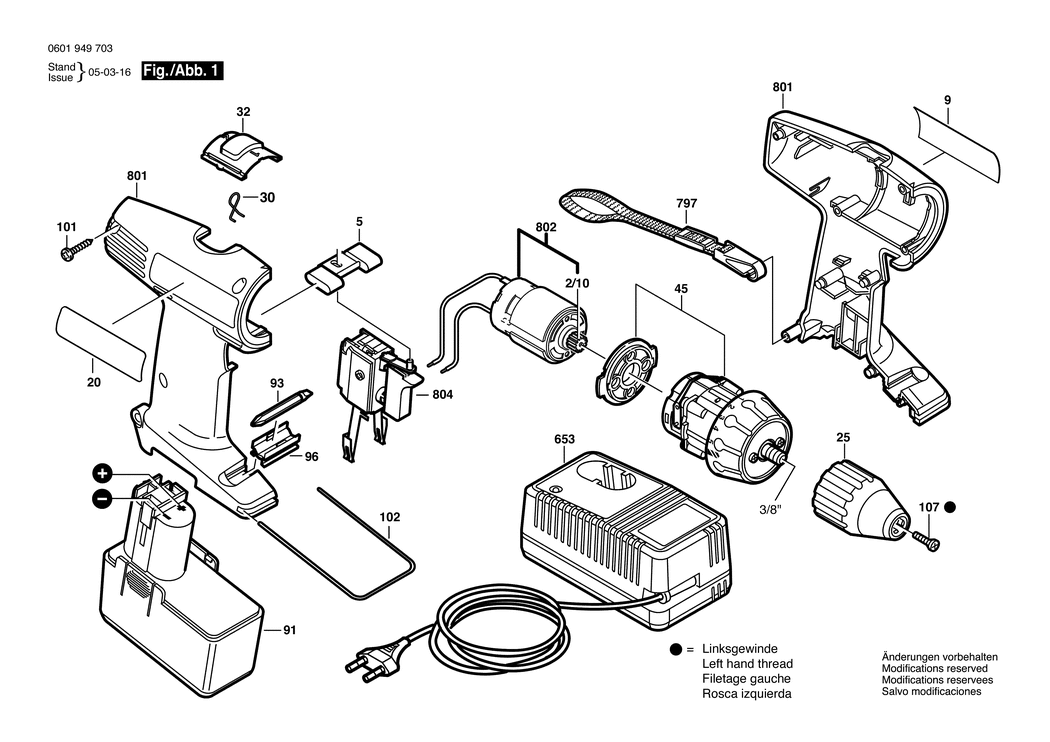

An exploded drawing and listing for the Bosch GSR 7.2 V / 0601949742 / GB 7.2 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A33 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A45 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601117026.A3 2601117026	-
20 - REFERENCE PLATE BSD-2601117027.A0 2601117027	-
25 - KEYLESS CHUCK BSD-2608572214.A24 2608572214	£45.67	£54.80
30 - CONTROL LEVER BSD-2602033008.A3 2602033008	-
32 - ADJUSTING SLIDE BSD-2601099060.A19 2601099060	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2606200047.A2 2606200047	-
91 - SLIDE-IN ACCU PACKAGE 7.2V.1.4Ah.NiCd BSD-2607335115.A4 2607335115	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A111 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A52 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A566 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A223 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A153 2609110721	£2.16	£2.59
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A151 2607224427	£103.14	£123.77
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A45 2607224703	£116.15	£139.38
797 - CARRYING LOOP BSD-2601398009.A35 2601398009	-
801 - HOUSING SECTION BSD-2605104676.A2 2605104676	-
802 - DC MOTOR 7.2-12V BSD-2607022941.A11 2607022941	-
804 - ON-OFF SWITCH BSD-2607200353.A56 2607200353	-
899 - BATT-OPER SCREWDRIVER BSD-0601949723.A2 0601949723	-

Attribute Name	Value
Brand	Bosch
