Bosch GSR 14.4-2 / 3601J18G00 / EU 14.4 Volt Spare Parts

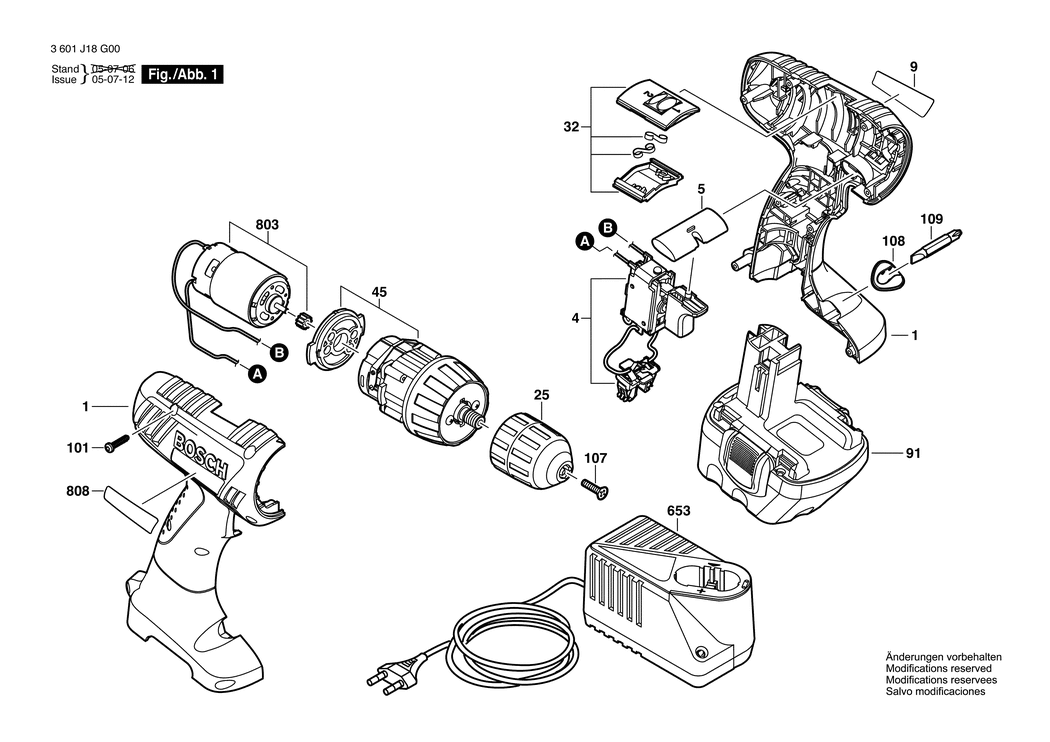

An exploded drawing and listing for the Bosch GSR 14.4-2 / 3601J18G00 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100626.A0 2609100626	£27.23	£32.68
4 - ON-OFF SWITCH BSD-2609199070.A0 2609199070	£40.80	£48.96
5 - BUTTON BSD-2609100744.A0 2609100744	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GSR 14.4-2 BSD-2609130867.A0 2609130867	£3.34	£4.01
25 - KEYLESS CHUCK dia1.0-10 MM. 3/8 BSD-2609110495.A0 2609110495	£40.80	£48.96
32 - REGULATOR BSD-2609120202.A0 2609120202	£7.36	£8.83
45 - GEAR BOX BSD-2609110493.A0 2609110493	£33.74	£40.49
91 - SLIDE-IN ACCU PACKAGE 14.4V.2.0Ah.NiCd BSD-2607335263.A0 2607335263	-
91 - SLIDE-IN ACCU PACKAGE 14.4V. 2.0Ah. NiMH BSD-2607335699.A21 2607335699	-
91 - ACCUMULATOR BATTERY 14.4V. 1.5Ah. NiCd BSD-1617S0004W.A0 1617S0004W	-
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A46 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A300 2609110721	£2.16	£2.59
108 - TOOLHOLDER BSD-2607001443.A4 2607001443	£2.16	£2.59
109 - SCREWDRIVER BIT BSD-2609160063.A19 2609160063	£3.72	£4.47
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224391.A11 2607224391	£48.38	£58.06
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A21 2607224393	-
653 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224443.A11 2607224443	-
803 - DC MOTOR BSD-2609120622.A0 2609120622	£31.64	£37.97
808 - NAMEPLATE BSD-2609135871.A0 2609135871	£2.33	£2.80

Attribute Name	Value
Brand	Bosch
